  • VTSYIQI Multi Position Hotplate & Magnetic Stirrer Multi-positions Hot Plate Stirrer with 4 Stirring Points Max Stirring Capacity 4*10L Control Mode Independent Operation Temperature Control RT+5–160°C Accuracy ±1°C

VTSYIQI

VTSYIQI Multi Position Hotplate & Magnetic Stirrer Multi-positions Hot Plate Stirrer with 4 Stirring Points Max Stirring Capacity 4*10L Control Mode Independent Operation Temperature Control RT+5–160°C Accuracy ±1°C

$1,89500
In stock
$1,89500

Customer Service

Post your customer service details here.

Return Policy

Post your policy conditions details here.

About this item

【Heating Function】Designed for regular lab heating‑stirring tasks. Equipped with temperature sensor to deliver precise temperature control with PID auto‑tuning algorithm. Heating plate surface maximum temperature reaches up to 320℃, practical working heating range from RT+5℃ to 160℃. Four independent stations support simultaneous multi‑sample heating experiments.

【Stirring Performance】4‑position stirring unit, stirring speed ranges 50‑2000rpm. Each station can be controlled separately, maximum stirring volume up to 10L per single station. Adopts brushless DC motor, providing stable torque with low‑noise operation ≤27dB. Features smooth low‑speed running and powerful high‑speed output, supports long‑duration continuous work with minimal maintenance.

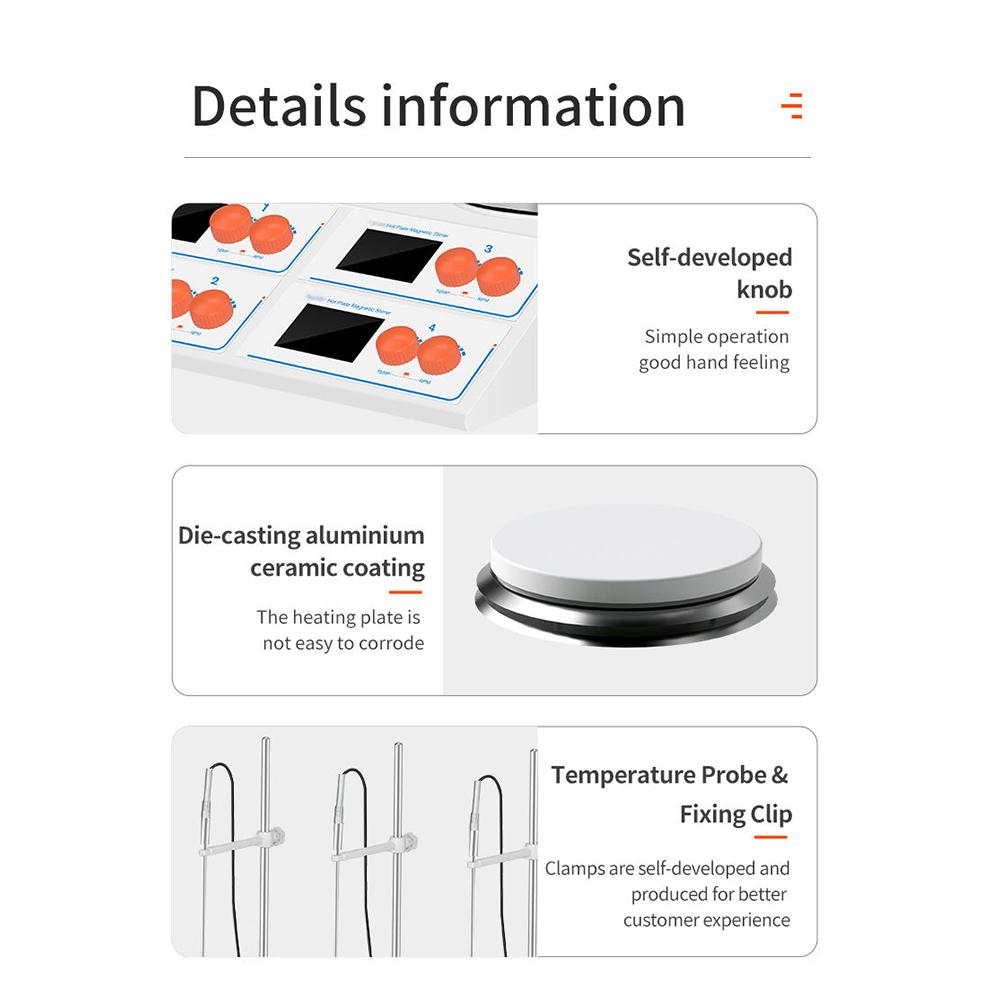

【Functional Lab Construction】LCD digital display plus rotary knob design. Waterproof rotary adjustment knobs enhance safety. Each station supports independent asynchronous operation. Less than 30° inclined control panel fits both sitting and standing viewing angles. Work plate adopts aluminum die‑cast with ceramic coating, heat‑resistant, corrosion‑resistant and easy to clean, well‑suited for conventional lab heating‑stirring applications.

【Thoughtful Lab‑Use Features】LCD screen displays real‑time temperature and rotating speed for quick status check. 0‑9999‑minute timing function enables timed experimental runs. Robust housing made of stamped metal and injection‑molded material boasts high temperature resistance, corrosion resistance and good insulation, suitable for frequent daily lab use.

【Wide Application】Compact single‑row 2×2 layout saves precious lab bench space. Suitable for medical, petroleum, chemical and environmental protection industries. Perfect lab equipment for universities, research institutions, inspection and quarantine laboratories for various stirring‑heating sample processing.

PRODUCT OVERVIEW

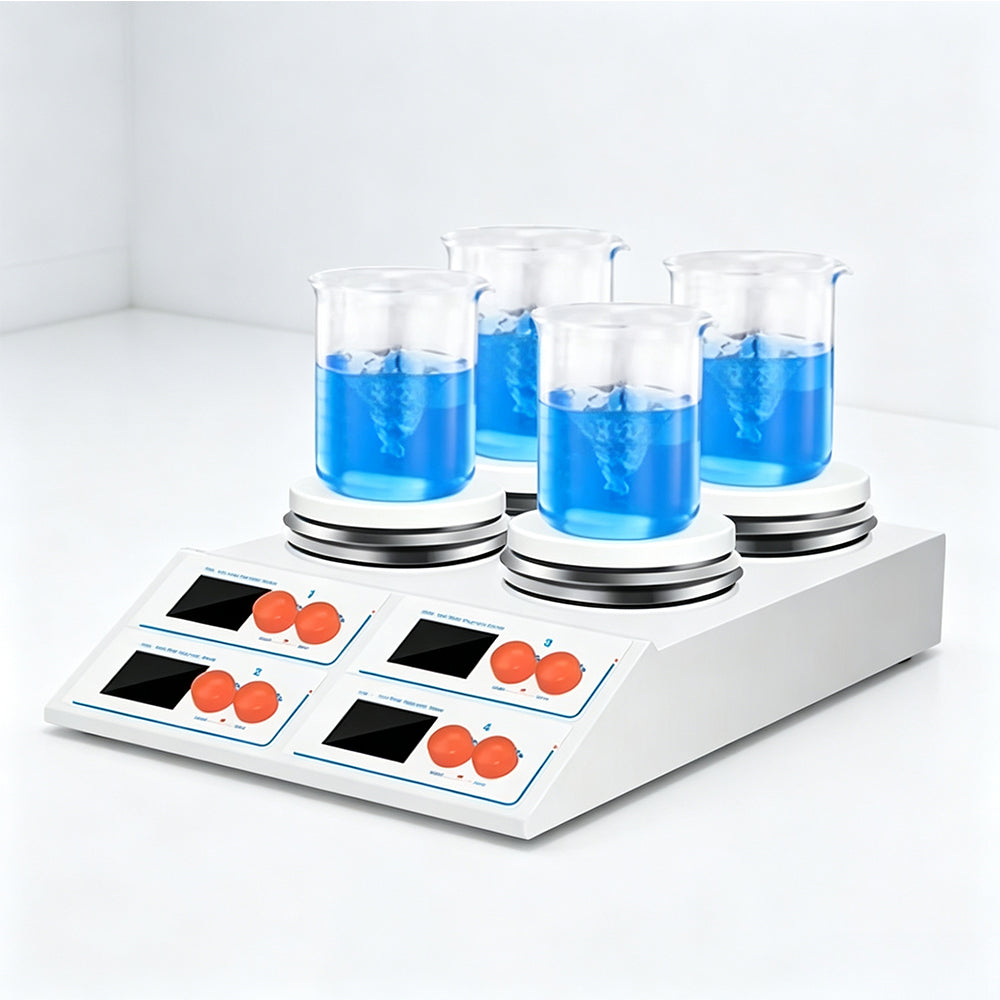

Multi-position Magnetic Hotplate Stirrer features a novel and aesthetically pleasing design, rapid heating, a large heating surface area, and uniform heat distribution. It is widely used in the medical, petroleum, chemical, and environmental protection sectors, and serves as a valuable tool in laboratories at universities and colleges, research institutions, inspection and quarantines, and public health and epidemic prevention agencies.

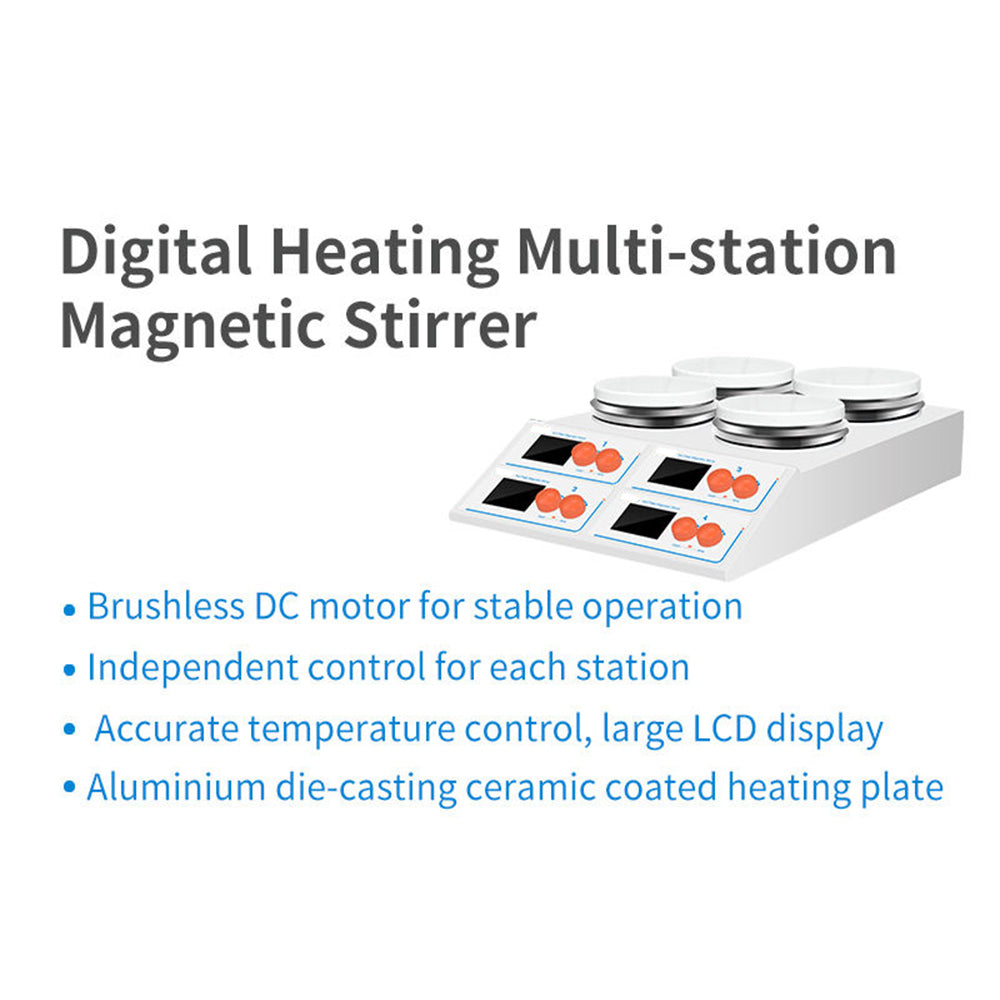

KEY FEATURES

Brushless DC motor, stable performance, maintenance-free.

Low noise, long service life, smooth operation at low speeds, and powerful performance at high speeds.

Control panel with a <30° tilt angle, suitable for both seated and standing viewing angles.

Equipped with a temperature sensor for temperature control accuracy of ±1.

Rotary adjustment switch with a waterproof design and high safety factor.

Independent control for each station, allowing for the simultaneous stirring of different samples across up to 4 stations.

Die-cast aluminum heating surface with ceramic coating is corrosion-resistant and can reach a maximum surface temperature of 320°C.

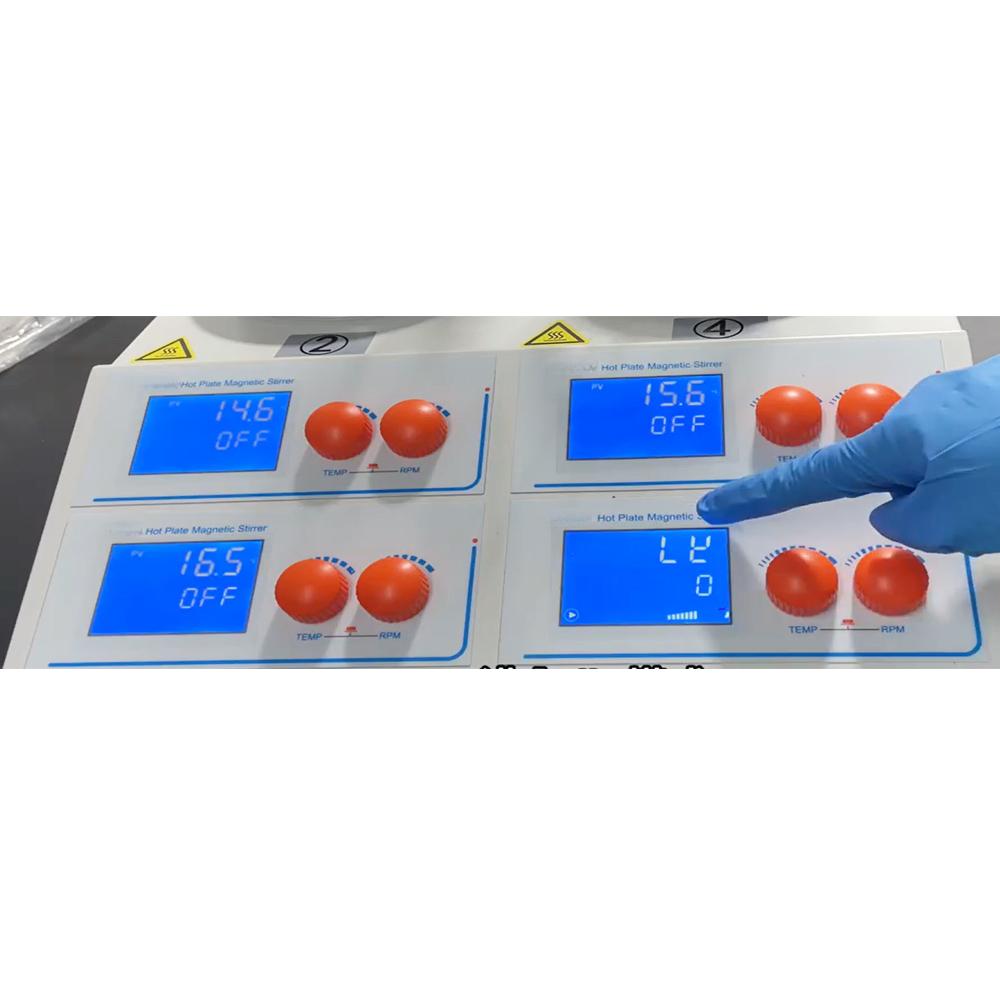

LCD display showing heating temperature and stirring speed for convenient experimental operation.

Temperature control utilizes a PID control algorithm with self-tuning functionality, ensuring high measurement accuracy and minimal overshoot.

The housing is made of a stamped metal plate with an injection-molded outer shell, offering high-temperature resistance, corrosion resistance, and excellent insulation properties.

SPECIFICATIONS

Power Supply: AC 220 V, 50/60 Hz

Noise Level: ≤27 dB

Number of Stirring Stations: 4

Display Type: LCD

Display Functions: Temperature, RPM

Control Mode: Independent Operation

Configuration: Single Row 2x2

Speed Range: 50–2000rpm

Temperature Control Range: RT+5–160°C

Temperature Control Accuracy: ±1°C

Heating Plate Temperature: ≤320°C

Heating Plate Diameter: 135mm

Station Spacing:Plate Edge Spacing: 42 mm; Plate Center-to-Center Spacing: 175 mm

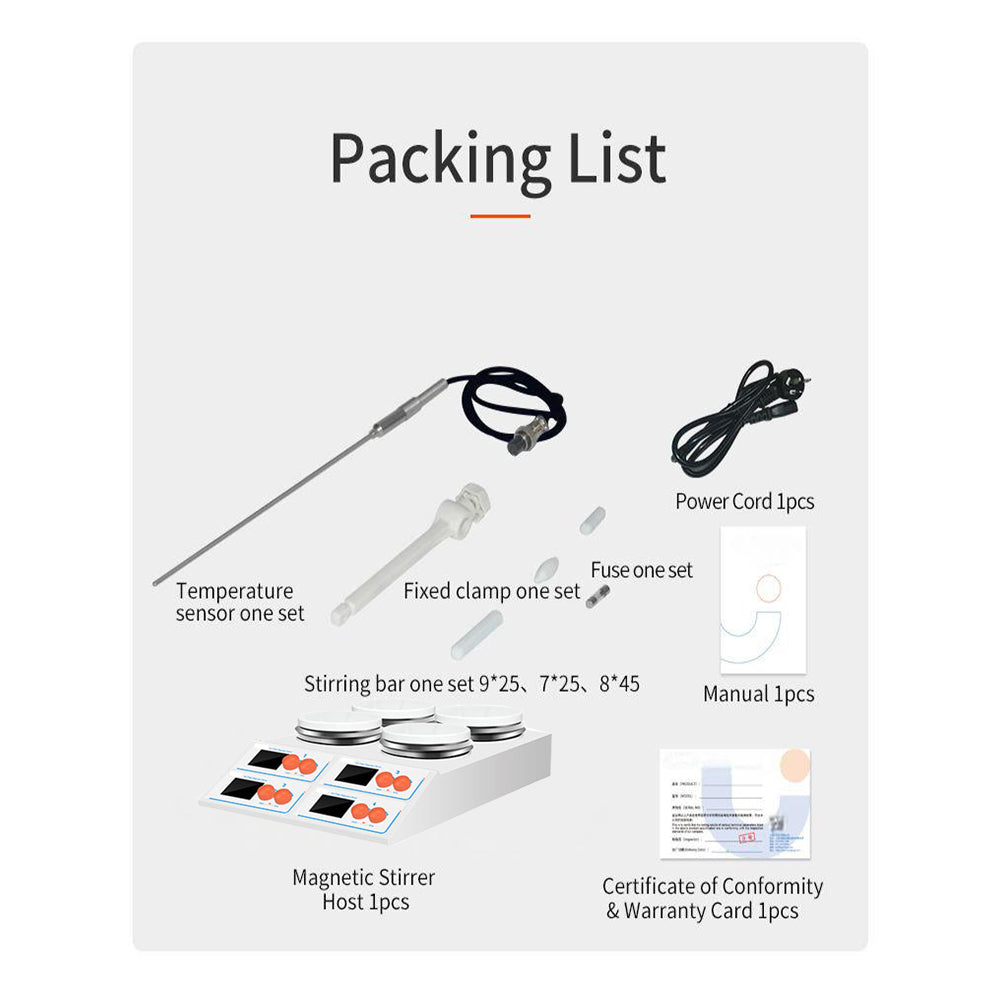

Standard Stirrer Set(mm): Type A: 9×25×4 + Type C: 7×25×4 + Type C: 8×45×

Maximum Stirring Capacity per Station: 10L*4

Operating Time: 0–9999min

Motor Power per Station: 10W

Heating Power per Station: 350W

Permissible Ambient Temperature: 5–40°C

Permissible Relative Humidity: 80%

Instrument Dimensions (mm): 540 × 363 × 131

Packaging Dimensions (mm): 640 × 475 × 240

Net Weight (kg): 10

Gross Weight (kg): 14.3
