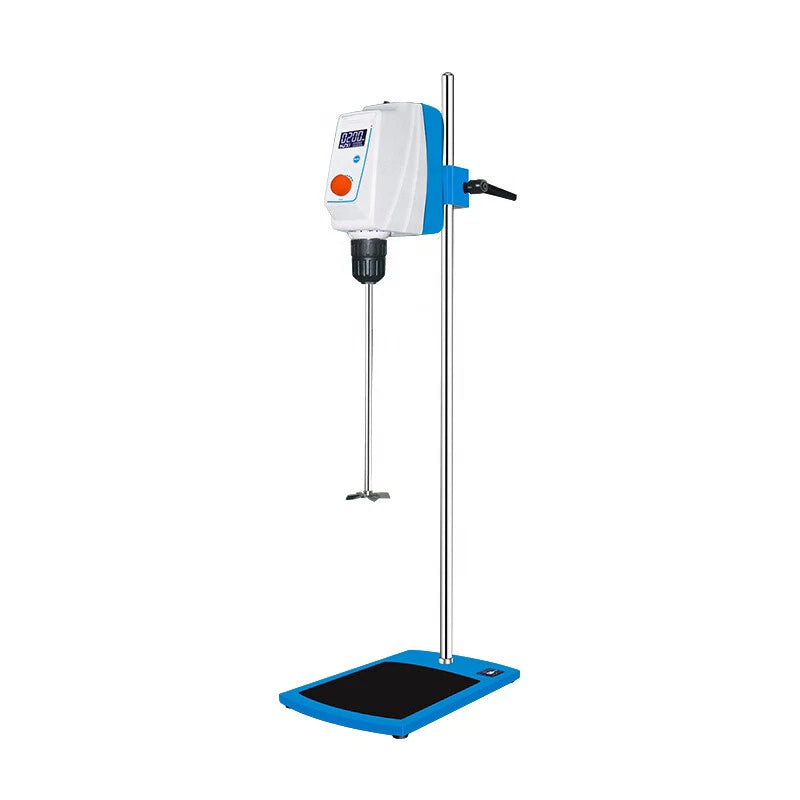

  • VTSYIQI Overhead Electric Mixer Overhead Stirrer with Speed Range 30-2200rpm LCD Display Timing Range 1~9999min Maximum Mixing Capacity 20L RS232 Interface Overload Protection Motor Protection

VTSYIQI

VTSYIQI Overhead Electric Mixer Overhead Stirrer with Speed Range 30-2200rpm LCD Display Timing Range 1~9999min Maximum Mixing Capacity 20L RS232 Interface Overload Protection Motor Protection

$99000
In stock
$99000

Applications：

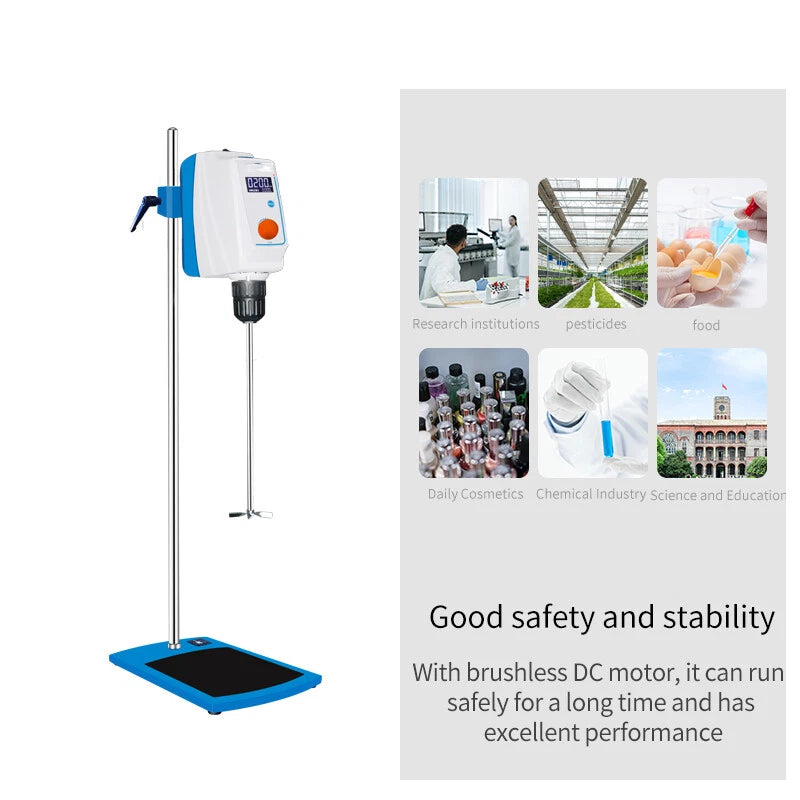

The liquid crystal display electric mixer adopts a numerically controlled stepless speed regulator, which is high-speed and convenient, and can digitally display the running speed, making the body more safe and reliable, advanced technology, low-noise mechanical deceleration structure, small size, large output torque, suitable for scientific research, colleges and universities Schools, chemical industry, pharmaceuticals, medical units and other purposes.

Main Features：

LCD screen display, the speed and time can be roughly adjusted, and the working time can also be fine-tuned under working conditions;

● The speed is 30-2200rpm, the speed can be constant, and the high and low speeds are controllable;

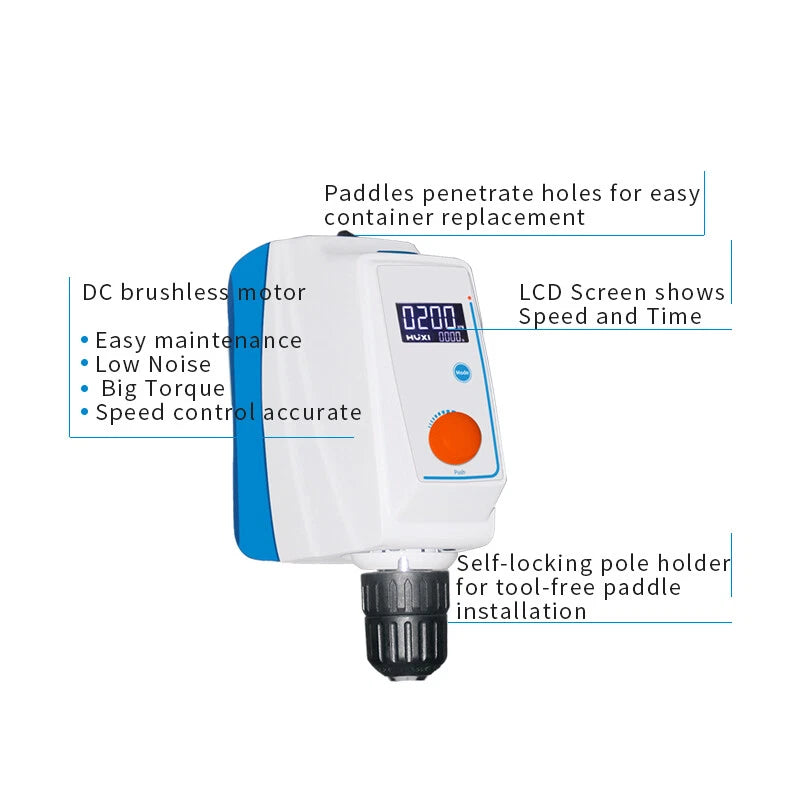

● DC brushless motor, which can run safely for a long time with outstanding performance;

● Overload and motor protection, in case of overload, short circuit or abnormality, it will automatically cut off the circuit and alarm to ensure the safety of the experiment;

● With the penetration hole of the stirring propellers, the user does not need to adjust the installation height of the instrument, but only the installation position of the stirring rod;

● The torque can be automatically adjusted according to the viscosity change of the sample, which is convenient for experimental operation;

● Various stirring propellers and supports are optional.（optional）

Technical Parameters

Maximum mixing volume：20 (L)

Range of rotation：30-2200 (rpm)

Speed display：LCD

Timing range：1~9999min

Mixing time setting：Yes

Speed display resolution (rpm)：±1

Speed memory：Yes

Speed mode：Coarse and fine adjustment

Maximum torque(N.cm)：40

Maximum viscosity (Pas)：10000

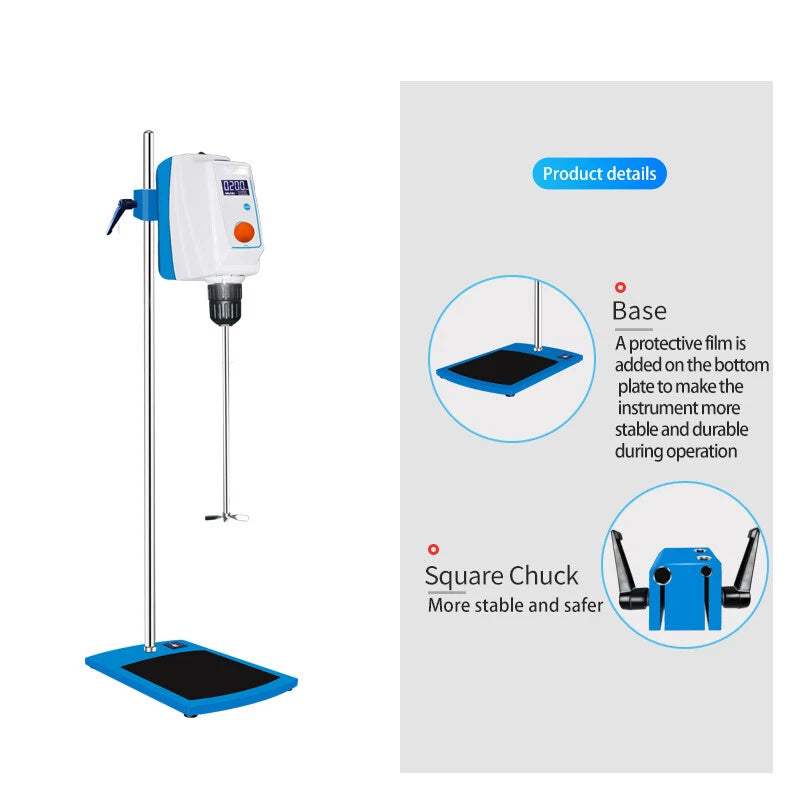

Stirring paddle fixing method：Self-locking chuck

Drill chuck clamping diameter range  (mm)：0.5-10

Security：Chuck protective cover, safety buckle, non-slip mat

Overload protection：Display failure and stop automatically

Motor protection：Display failure and stop automatically

Motor input power (W)：60

Motor output power (W)：50

Voltage (VAC)：100-240

Frequency (Hz)：50/60

Protection method：IP42

Allowable ambient temperature (°C)：5-40

Permissible environmental humidity (%)：80

RS232 interface：Yes

Instrument NW：7kg

Instrument GW：12.4kg

Packing Dimension：803*400*140mm
