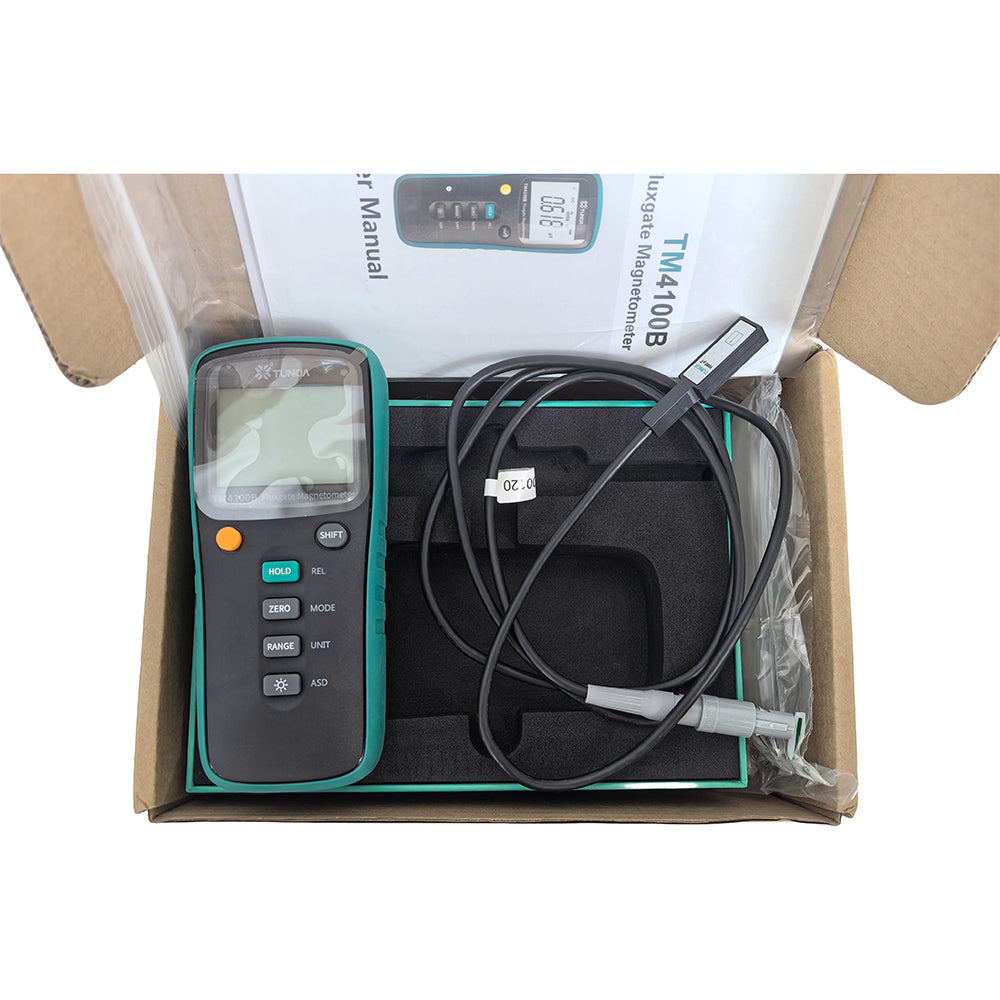

VTSYIQI Portable Fluxgate Magnetometer Handheld Uniaxial Fluxgate Magnetometer with 5-Digits Display Measuring Range 0~2000μT Accuracy 2% Single-axis Fluxgate Sensor USB Interface Frequency Range DC～400 Hz for Magnetic Shielding Evaluation

About this item:

Range: 0～± 2000 μT.Accuracy (k=2):2%.Temperature coefficient (%/°C):0.1

Various of probes are optional

Unit switch: μT, mG.

It is suitable for measuring the residual magnetism of magnetic materials or metal parts, monitoring the attenuation characteristics evaluation of environmental magnetic field, geomagnetic detection and magnetic shielding, detecting magnetic field drift, package detection and geological exploration of precision instruments.

This product displays the remaing baterry power and is of low power consumption.

Introduction:

A portable instrument equipped with a high sensitivity, high linearity, low drift fluxgate sensor and advanced digital signal processing to measure the weak magnetic field more accurately.

It is suitable for measuring the residual magnetism of magnetic materials or metal parts, monitoring the attenuation characteristics evaluation of environmental magnetic field, geomagnetic detection and magnetic shielding, detecting magnetic field drift, package detection and geological exploration of precision instruments.

Features:

Range: 0~2000 μT.

Various of probes are optional.

Accuracy: 2%.

Unit switch: μT, mG.

Relative measurement mode.

Max. hold function.

N/S polarity display.

USB interface.

Small size, light weight.

Specification:

Range: 0～± 2000 μT.Accuracy (k=2):2%.Temperature coefficient (%/°C):0.1

Probe (μT):100--Resolution (nT):10

Probe (μT):500--Resolution (nT):10

Probe (μT):1000--Resolution (nT):100

Display digits: 5-digit decimal display

Frequency: DC～400 Hz

Linearity: better than ± 0.1%

Noise: <20nTrms @ 1Hz

Select the corresponding magnetic field probe according to the magnetic field strength to achieve the best accuracy

Line Power: Three AA dry(NOT INCLUDED) or USB batteries

Operating Environment: 0℃ ~ 40℃, R·H: 20% ~ 80%, No condensation

Storage Environment: −20℃ ~ 70℃, R·H: <85%, No condensation

Mainframe Dimensions: 160 mm × 90 mm × 40 mm (W×L×H)

Probe Dimensions: 20 mm × 13 mm × 13 mm (W×L×H)

Weight: About 350 g
