High-performance multiparameter water quality meter contains the 8 measurement modes, the meter is suitable for measuring the pH, conductivity, TDS, salinity, resistivity and dissolved oxygen. (If you want to measure ORP, ion concentration, you need to purchase additional electrodes)

pH Mode:

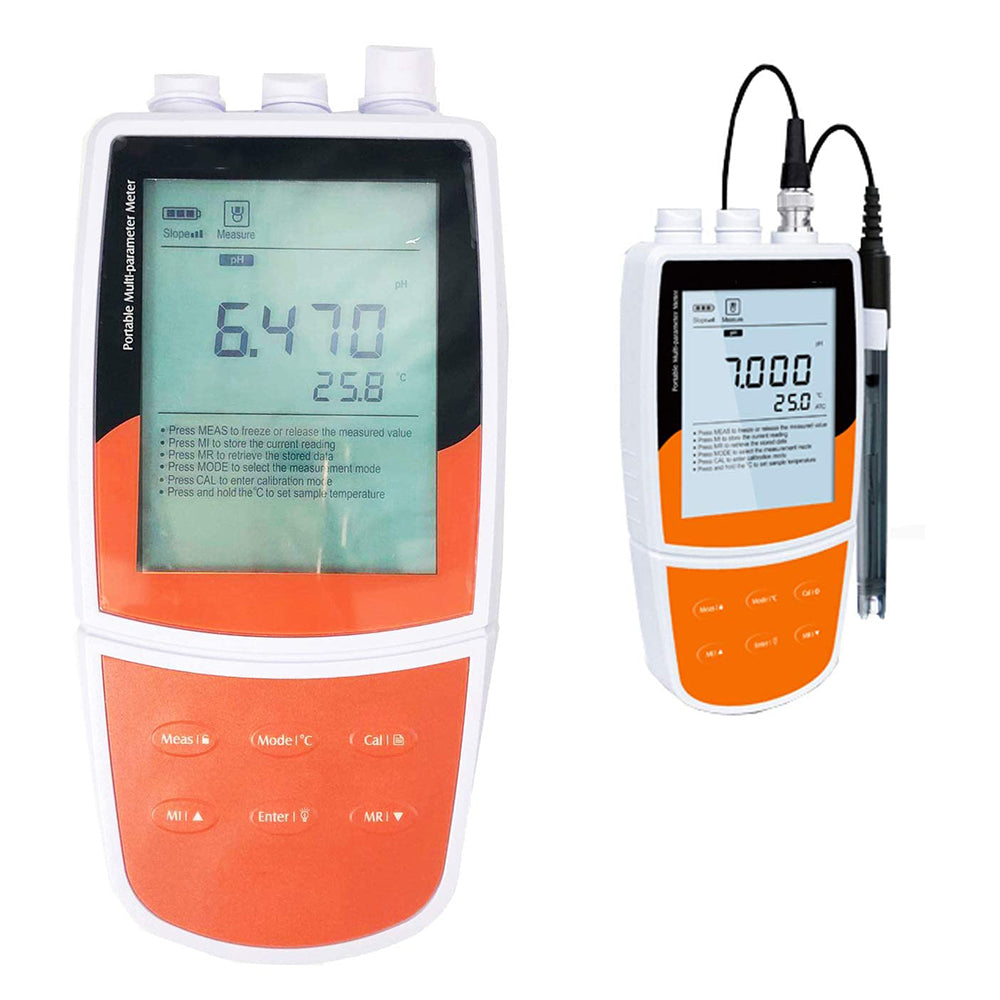

• Portable multiparameter water quality meter is equipped with a backlit LCD display.

• 1 to 5 points calibration with automatic recognition for USA, NIST and DIN buffers.

• Automatic electrode diagnosis shows the pH slope and offset.

ORP Mode: (ORP Probe is optional)

• 1 point offset calibration allows adjusting the displayed value to a known standard.

• Relative and absolute millivolt modes ensure the reliable ORP measurements.

Ion Concentration Mode(Ion Probe is optional)

• 2 to 5 points calibration, including the 8 concentration points can be selected.

• Direct ion concentration readout simplifies the measurement process.

• Automatic electrode diagnosis shows the calibration points and slopes.

• Selectable concentration units (ppm, mg/L, mol/L, mmol/L) and ionic valency.

Conductivity/TDS/Salinity/Resistivity Modes:

• 1 to 5 points calibration with automatic recognition for conductivity standards.

• Selectable cell constant (K=0.1/1/10), reference temperature (20/25°C), TDS factor, linear

and pure water compensations, seawater and practical salinity measurement modes.

Dissolved Oxygen Mode:

• 1 or 2 points calibration using the air-saturated water or zero oxygen solution.

• Salinity and barometric pressure compensations eliminate the measurement error.

Specifications

pH

Range: -2.000 to 20.000pH

Resolution: 0.001, 0.01, 0.1pH, selectable

Accuracy: ±0.002pH

Calibration Points: 1 to 5 points

PH Buffer Options: USA, NIST, DIN, 2 custom buffers

mV

Range: ±1999.9mV

Resolution: 0.1, 1mV, selectable

Accuracy: ±0.2mV

Calibration Points: 1 point

Measurement Modes: Relative or absolute mV

Conductivity

Range: 0.01 to 20.00, 200.0, 2000µS/cm, 20.00, 200.0mS/cm

Resolution: 0.001, 0.01, 0.1, 1

Accuracy: ±0.5% F.S.

Calibration Points: 1 to 5 points

Calibration Solutions: 10µS, 84µS, 1413µS, 12.88mS, 111.8mS

Temperature Coefficient: Linear (0.0 to 10.0%/°C), pure water

Reference Temperature: 20/25°C

Cell Constant: K=0.1, 1, 10 or custom

TDS

Range: 0.00 to 10.00, 100.0, 1000ppm, 10.00, 200.0ppt

Resolution: 0.01, 0.1, 1

Accuracy: ±1% F.S.

TDS Factor: 0.1 to 1.0 (default 0.5)

Salinity

Range: 0.00 to 80.00ppt, 0.00 to 42.00psu

Resolution: 0.01

Accuracy: ±1% F.S.

Resistivity

Range: 0.00 to 20.00MΩ

Resolution: 0.01

Accuracy: ±1% F.S.

Dissolved Oxygen

DO Range: 0.00 to 20.00mg/L

Resolution: 0.01, 0.1mg/L, selectable

Accuracy: ±0.2mg/L

% Saturation of Oxygen: 0.0 to 200.0%

Resolution: 0.1, 1%, selectable

Accuracy: ±2.0%

Calibration Points: 1 or 2 points

Pressure Correction: 60.0 to 112.5kPa/450 to 850mmHg, manual

Salinity Correction: 0.0 to 50.0g/L, manual

Temperature

Range: 0 to 105°C/32 to 221°F

Resolution: 0.1°C/0.1°F

Accuracy: ±0.5°C/±0.9°F

Offset Calibration: 1 point

Calibration Range: Reading ±10°C

General Specifications:

Temperature Compensation: 0 to 100°C/32 to 212°F, manual or automatic

Stability Criteria: Low or high

Calibration Due Alarm: 1 to 31 days or off

Auto-Power Off: 10, 20 or 30 minutes after last key pressed

Memory: Stores up to 500 data sets

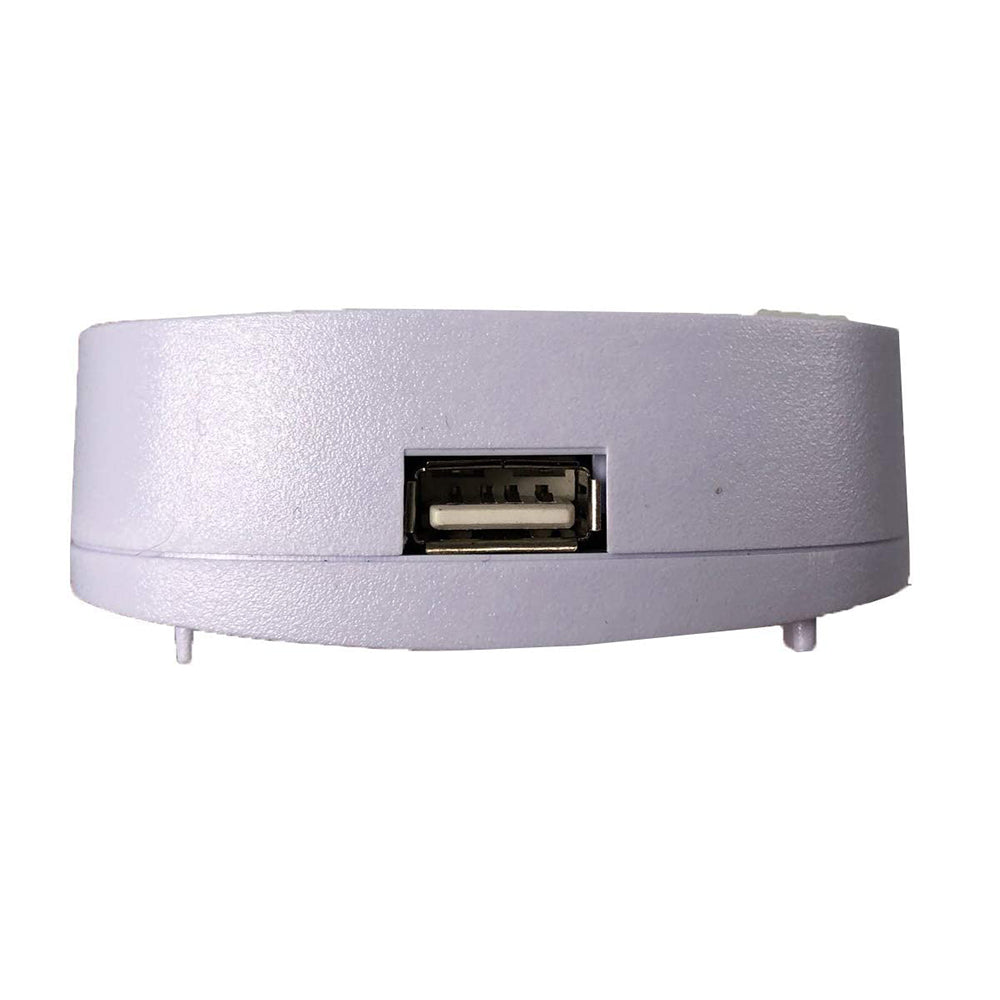

Output: USB communication interface

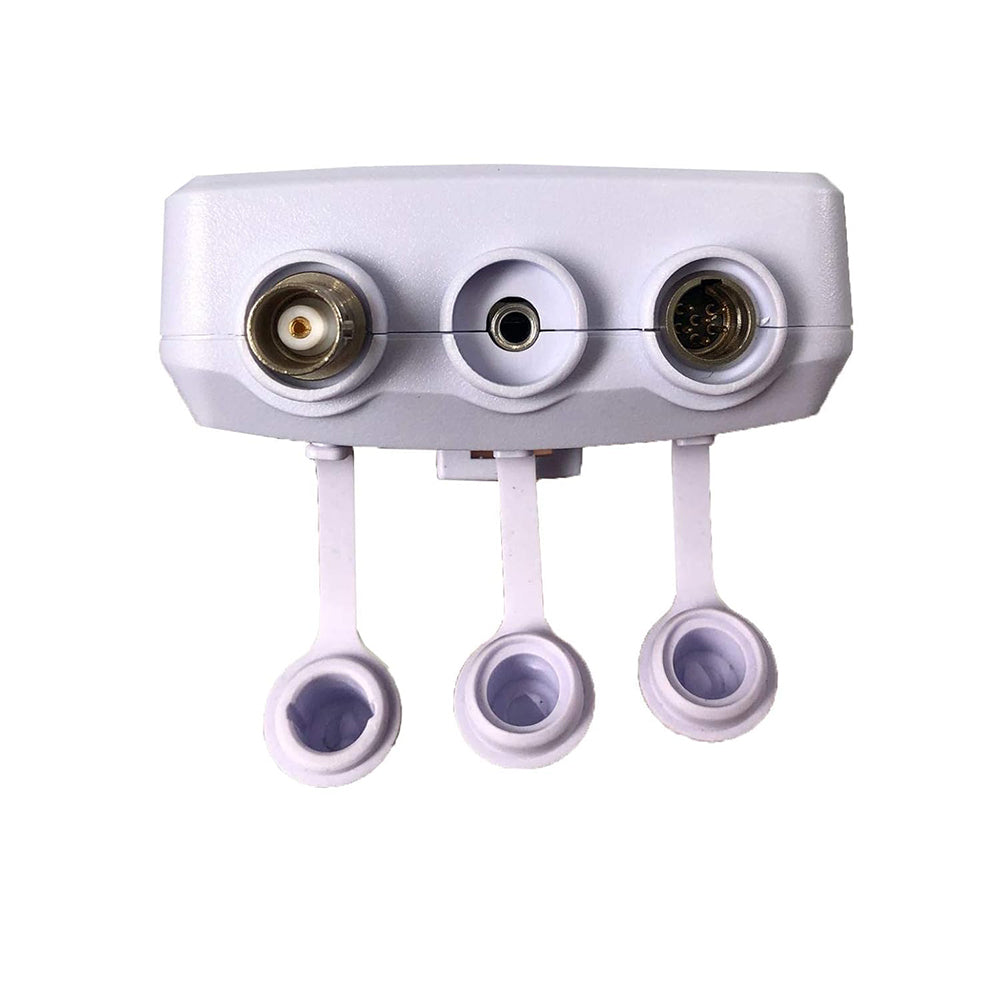

Connector: BNC, 6-pin nimi-DIN, 3.5mm jack socket

Display: Custom LCD (80×60mm)

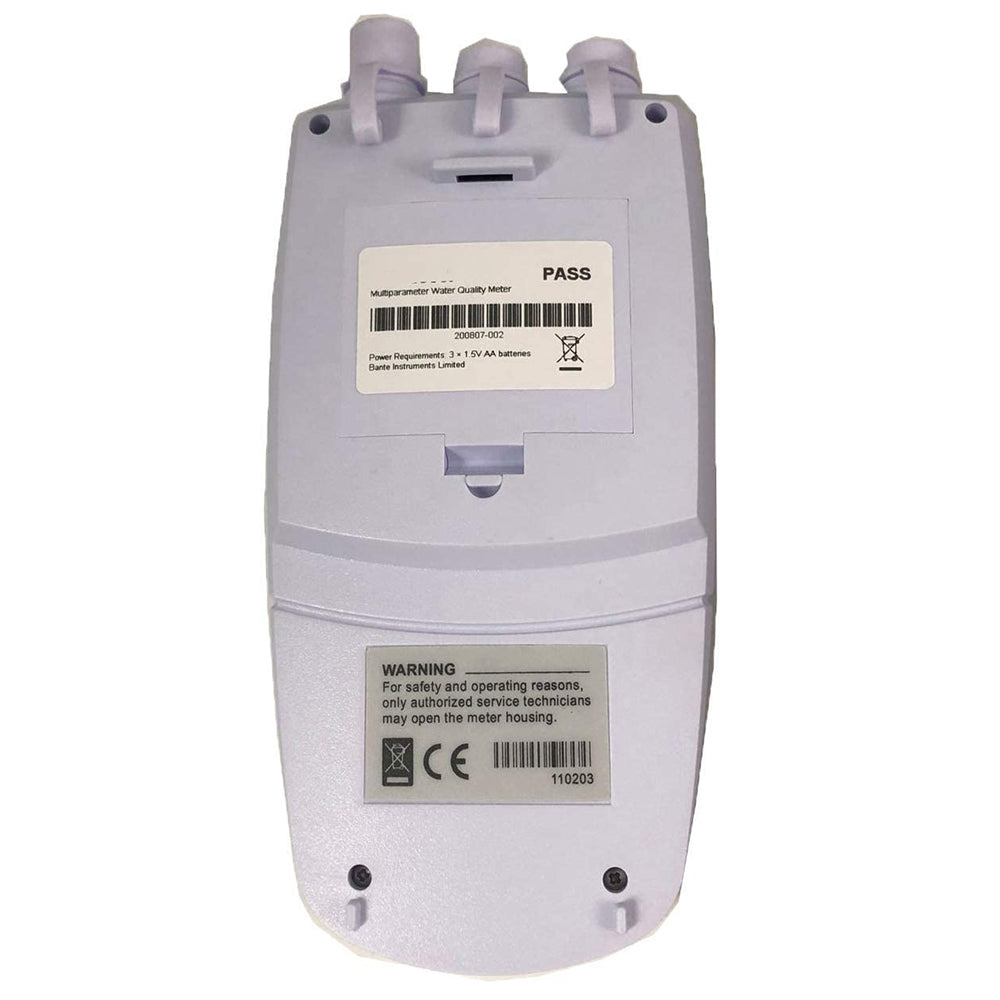

Power: 3×1.5V AA batteries or DC5V power adapter

Battery Life: Approximately 150 hours (turn off the backlight)

Dimensions: 170(L)×85(W)×30(H)mm

Weight: 300g

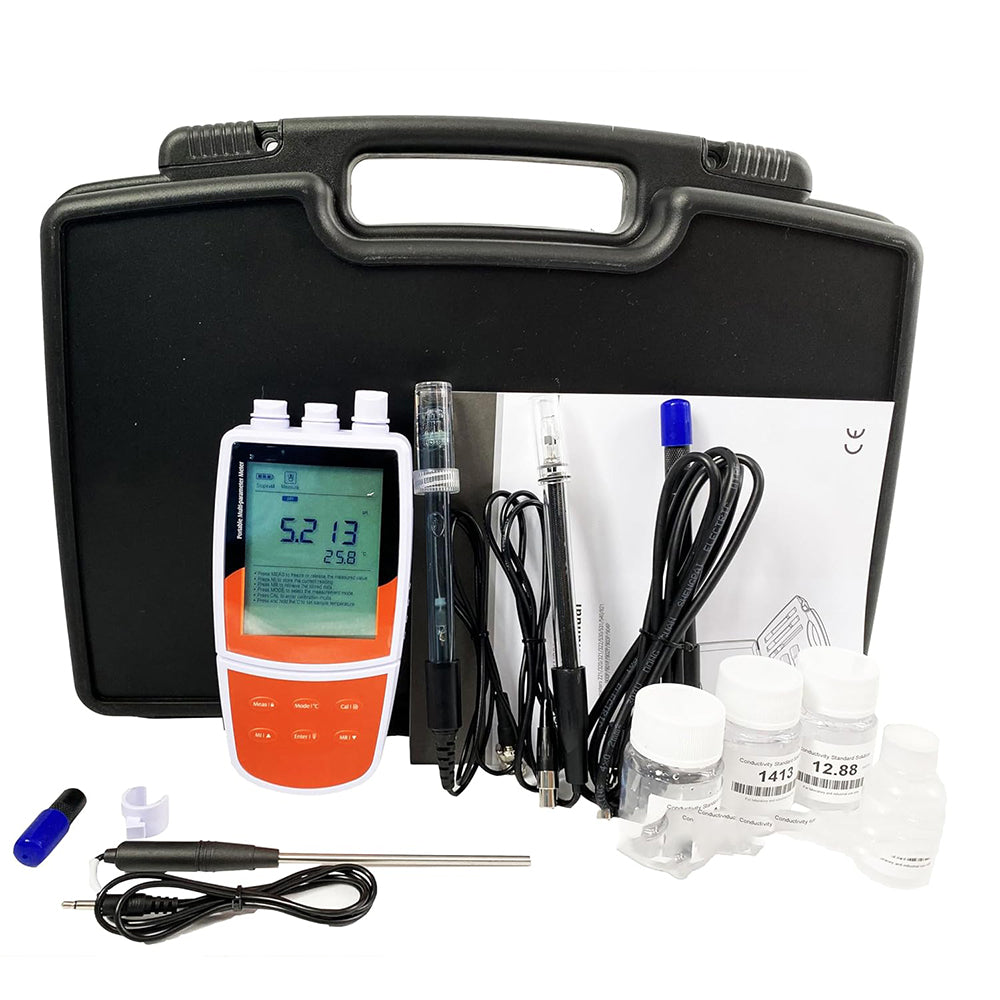

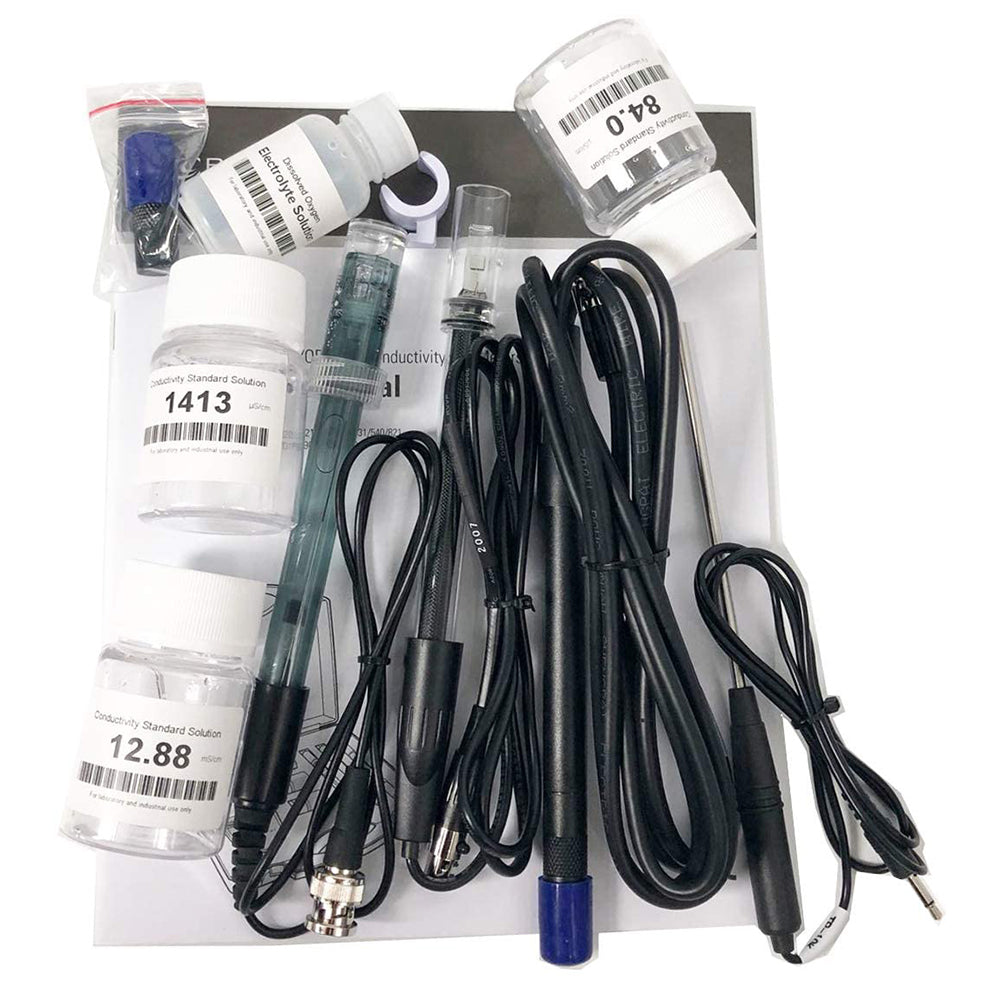

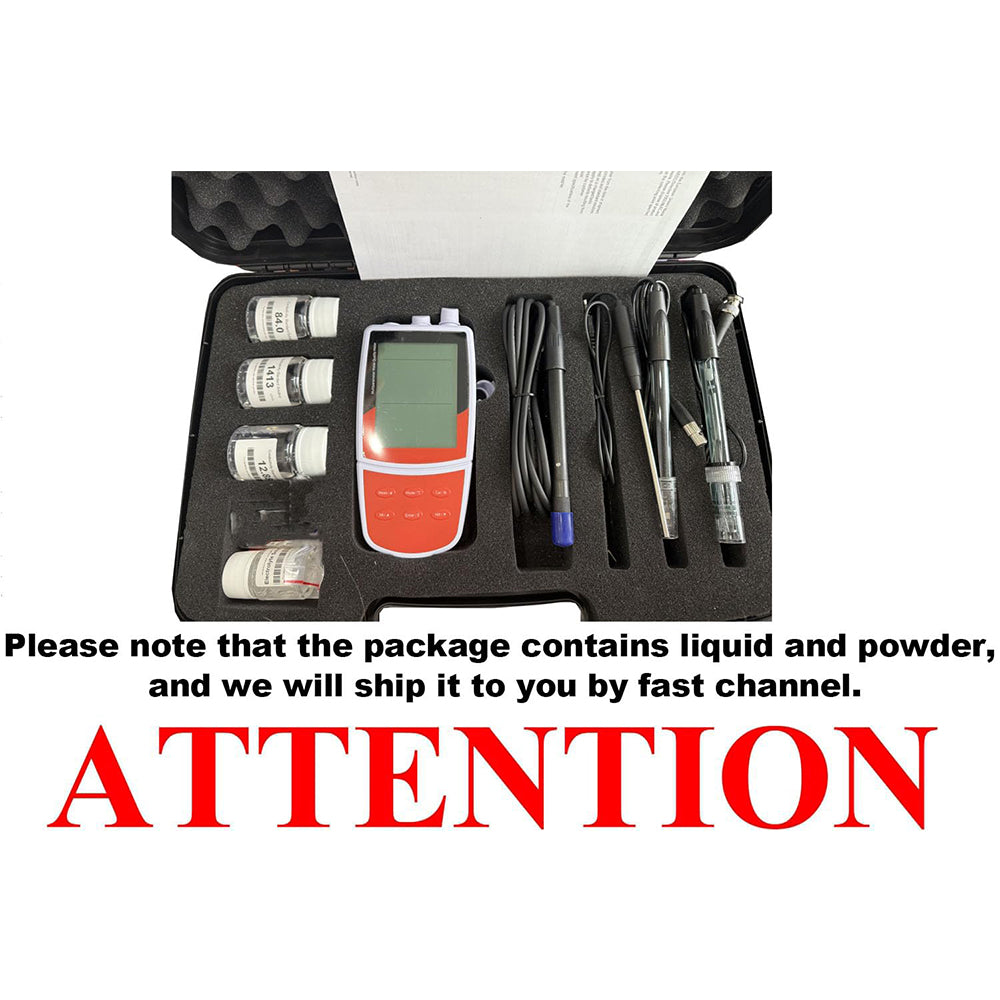

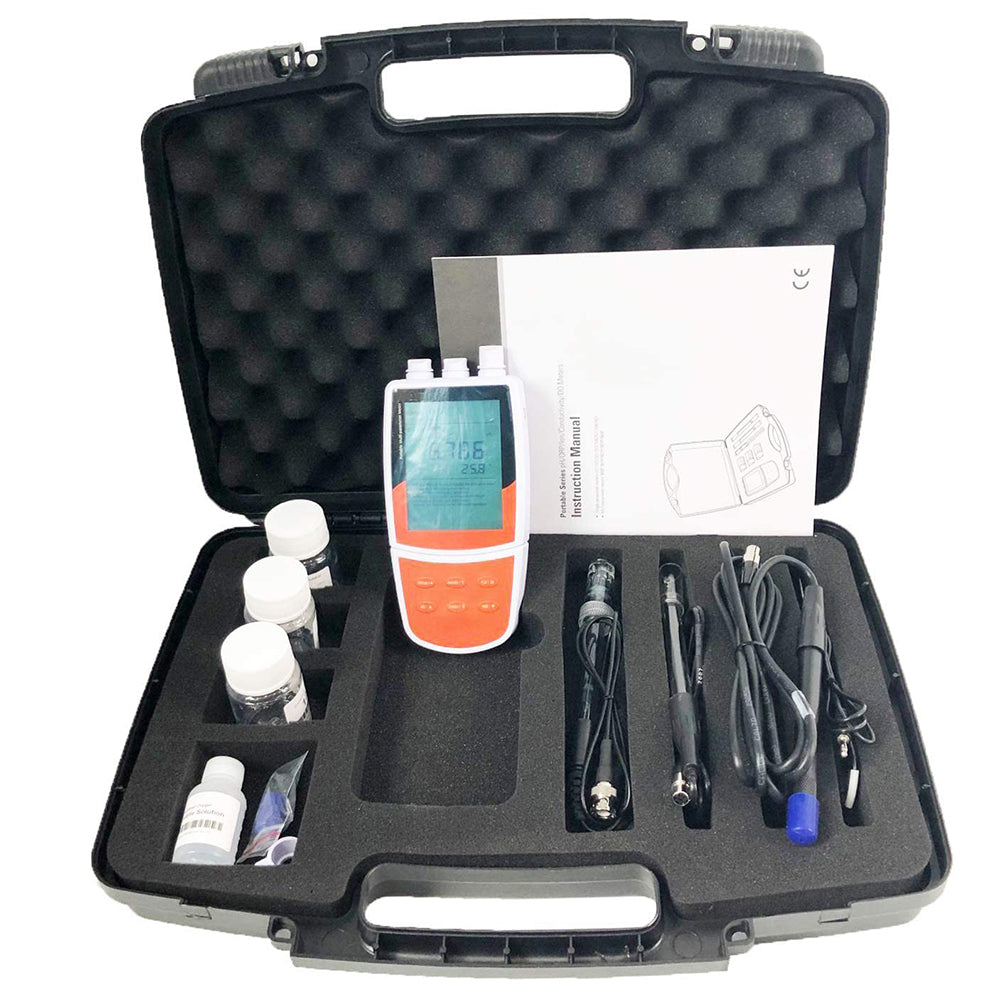

Packing

E201-BNC pH electrode

CON-1 conductivity electrode

DO100 dissolved oxygen electrode

TP-10K temperature probe

DO membrane cap

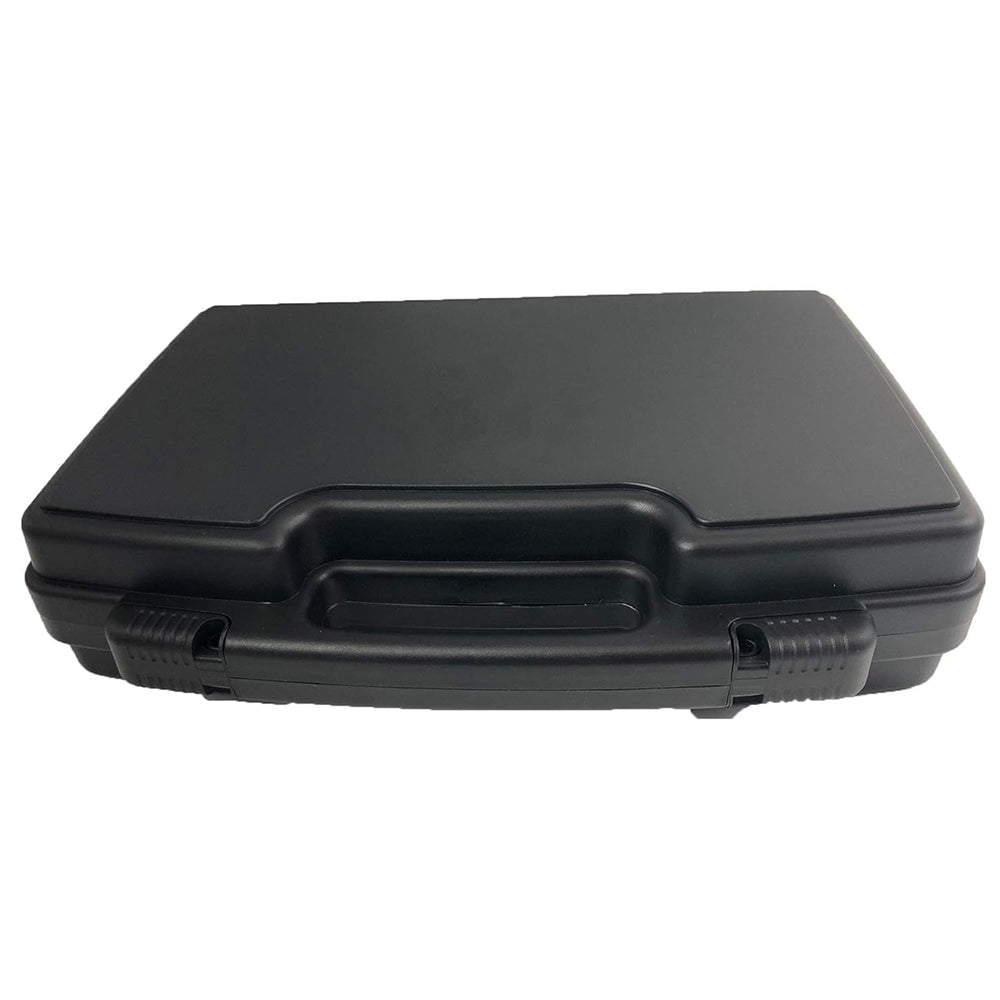

Carrying case
