Product Overview

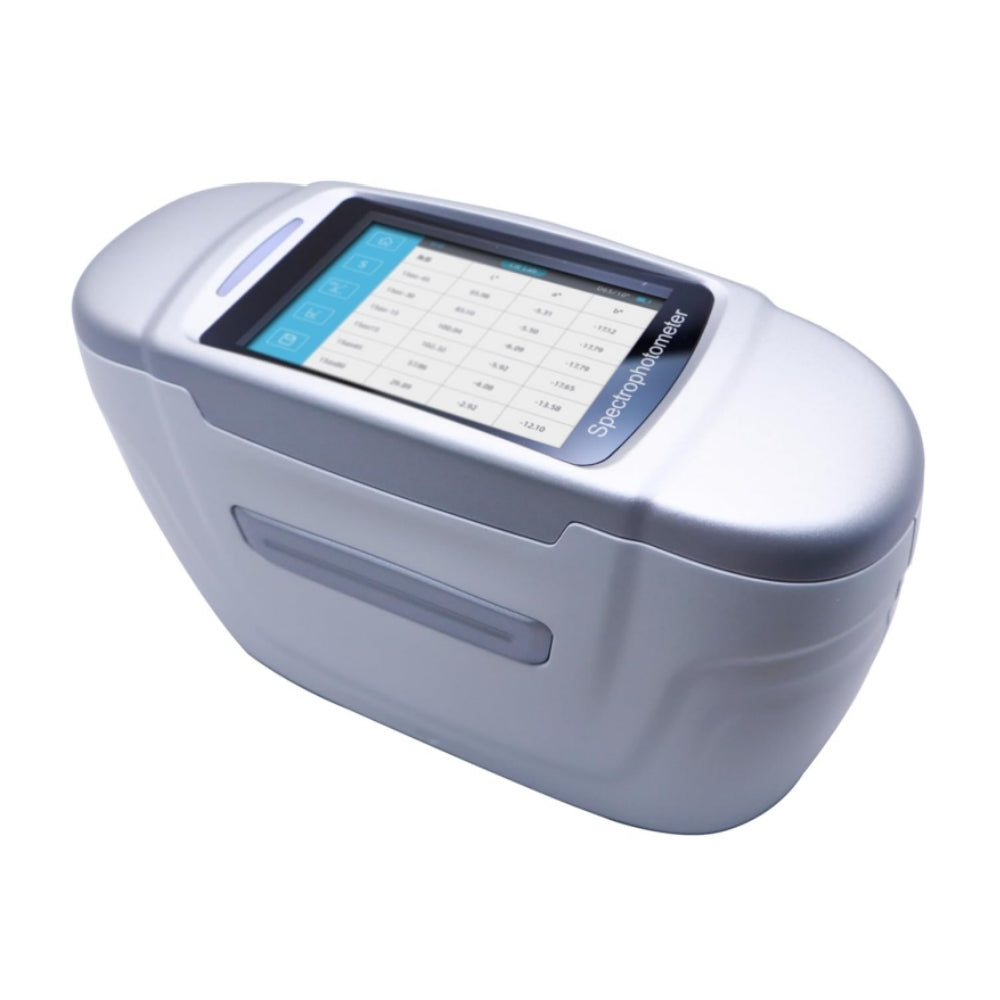

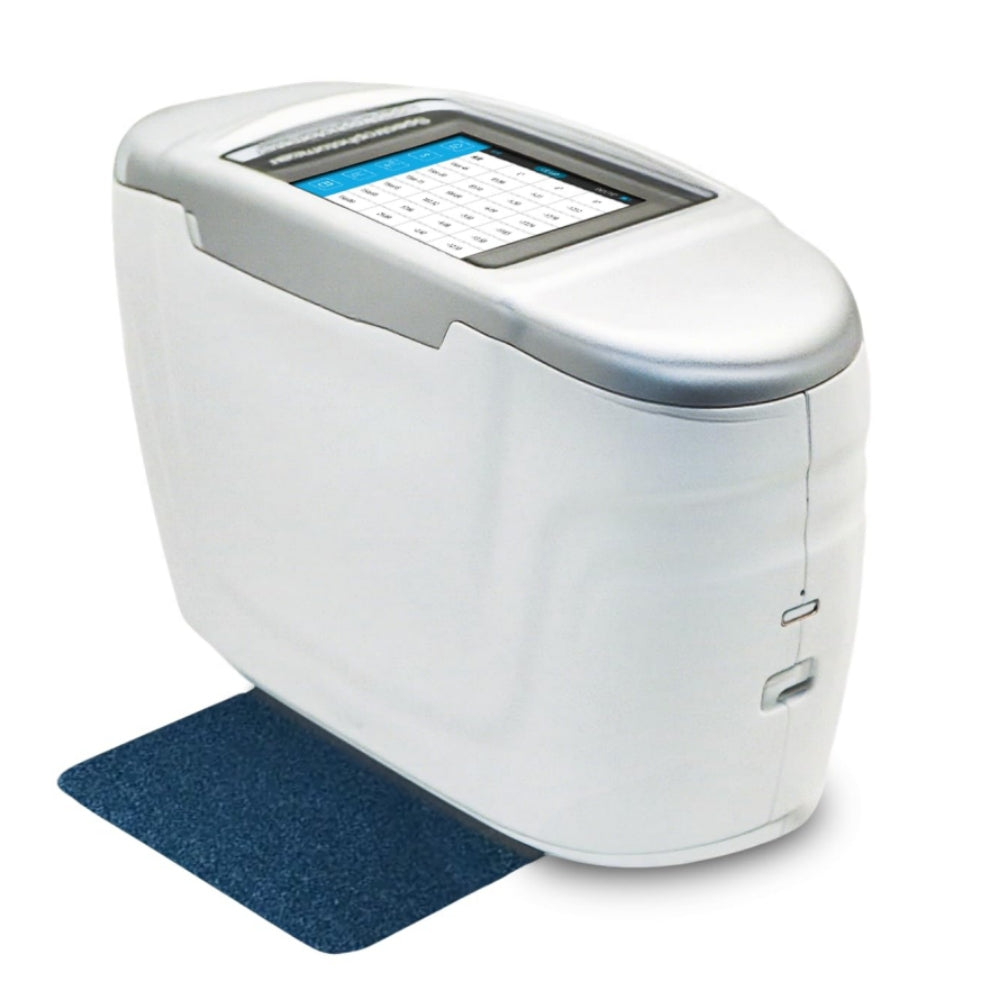

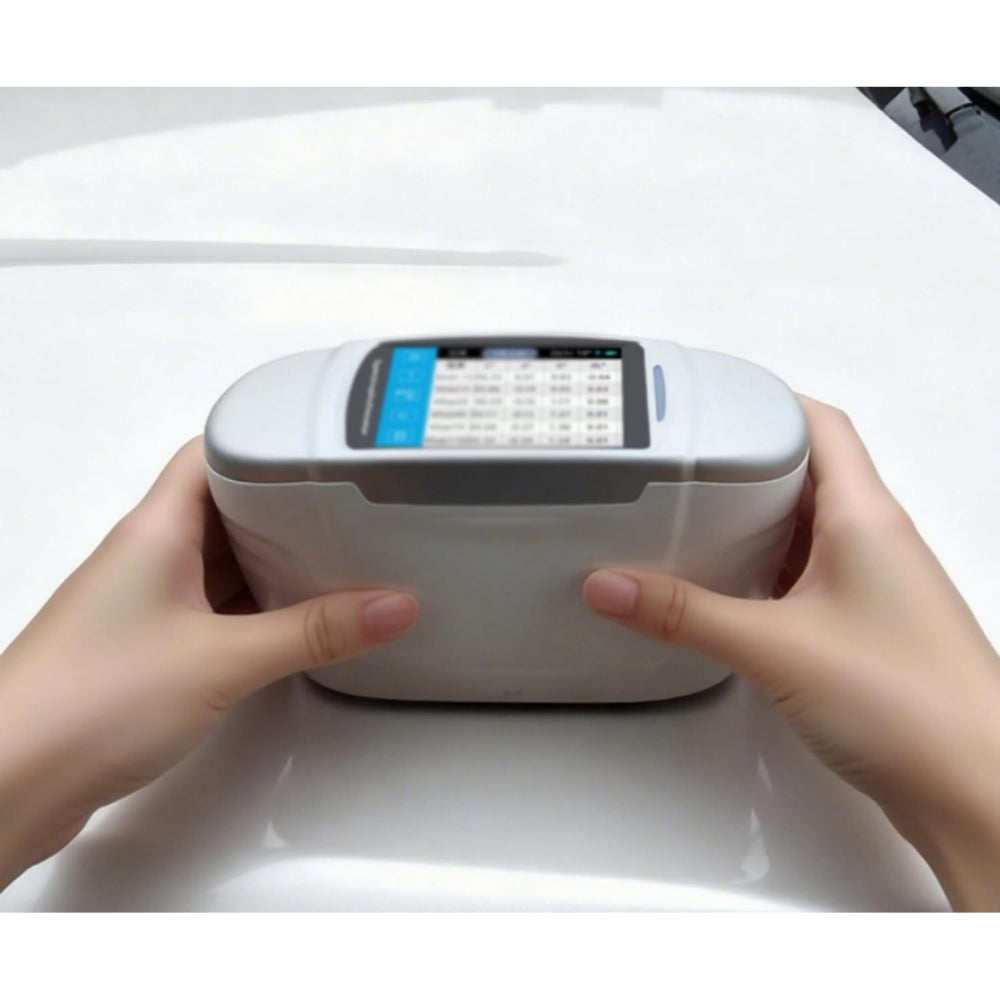

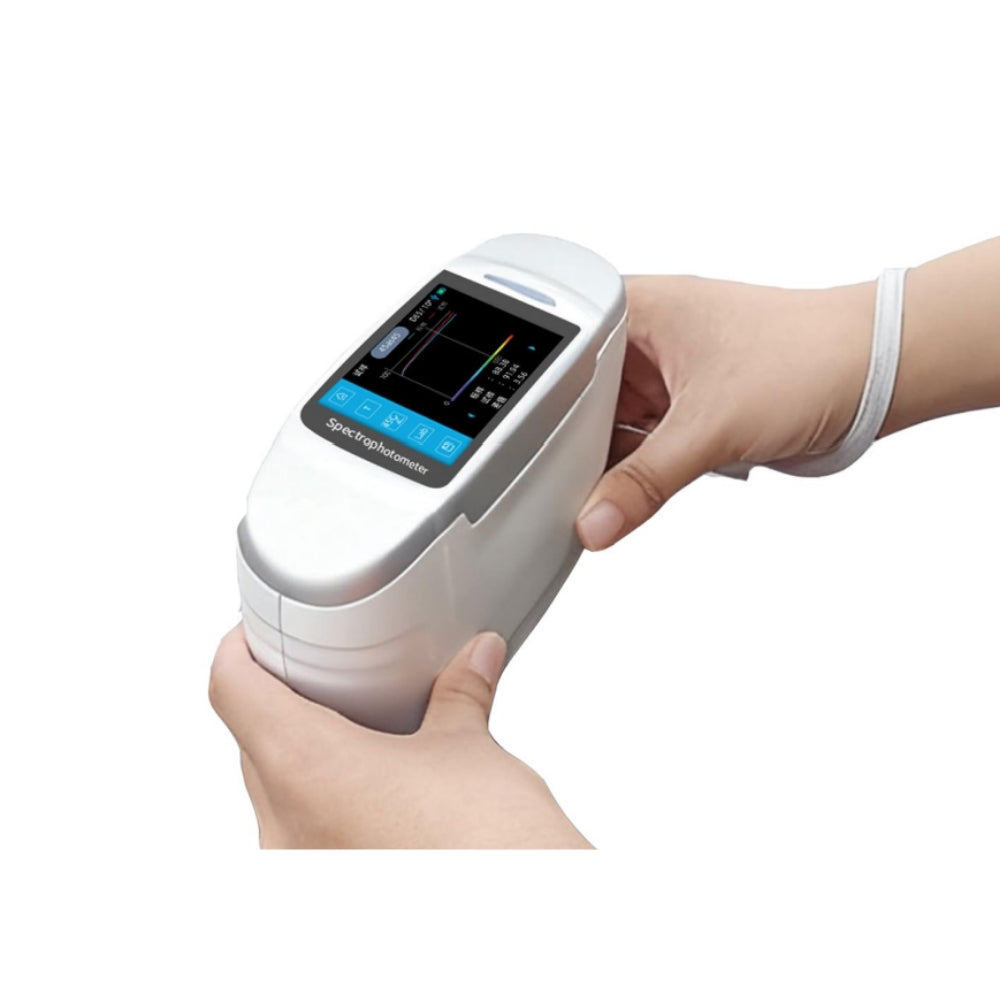

The multi-angle Spectrophotometer of accurately captures the color differences of special effect finishes such as automotive metallic paint, providing objective data support for color control.

Technical Specifications

Measurement Geometry：3 measuring angles (3 light sources, 1 receiver)

Color Measuring Angles： 45° receiver: 45as15°, 45as45°, 45as110°

Illumination Source：Full‑spectrum LED with blue‑light enhancement

Light‑source Service Life：10 years / 5 million measurements

Detector ：256‑pixel dual‑array CMOS image sensor

Wavelength Range：400 nm‑700 nm

Measuring Aperture ：Illumination Φ24 mm / Sampling 9×12 mm

Other Colorimetric Indices：Flop Index, Color Travel Index

Measurement Time：Approx. 2.5 s

Battery Capacity：Up to 5000 measurements

Color Repeatability：Chromaticity value: 0.02 ΔE*ab(after warm-up calibration, 30 white tile measurements at 5s intervals, standard deviation)

Color Reproducibility：‑Average ΔE*＜0.10 on grey BCRA tiles; average ΔE*＜0.25 on chromatic BCRA tiles

Inter‑instrument Agreement：0.2 ΔE*00 (average for 12 tiles of BCRA Series II)

Effect Parameters    --

Effect Measurement    --

Effect Repeatability    --

Effect Reproducibility：--

Positioning Method：Color camera preview

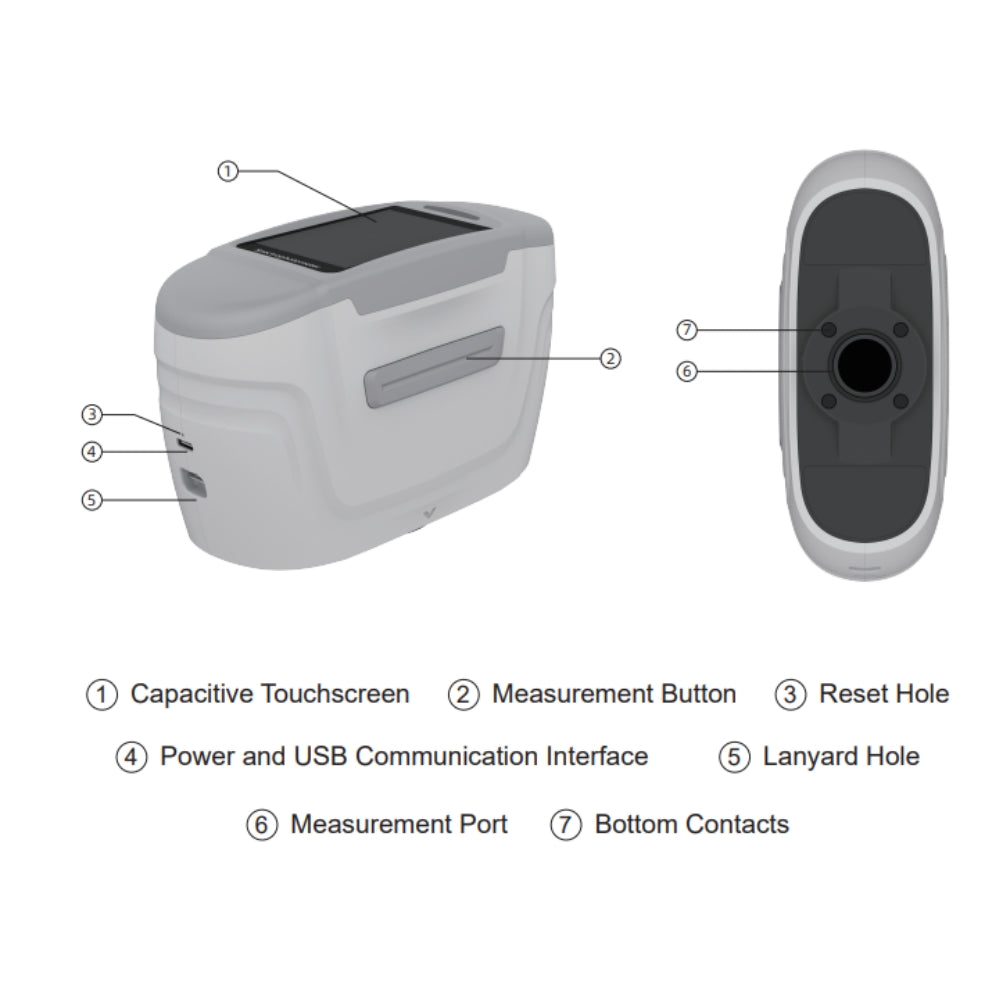

Display Screen：3.5‑inch TFT true‑color capacitive touch screen

Data Storage：10 000 records

Compliant Standards：ASTM D 2244, E 308, E 1164, E 2194, E 2539; DIN 5033, 5036, 6174, 6175‑1, 6175‑2; ISO 7724, 11664‑4; SAE J 1545

Features：Provides precise and consistent color measurement for metallic, pearlescent, and other complex special-effect colors

Spectroscopy Method：Concave grating

Wavelength Interval：10 nm

Measuring Range：0‑600 %

Half Bandwidth：10 nm

Color Spaces：CIE LAB, XYZ, Yxy, LCh, βxy, DIN Lab99, RGB, Hunter‑Lab

Color‑difference Formulas：ΔEab, ΔE94, ΔEcmc(2:1), ΔEcmc(1:1), ΔE00, DIN ΔE99, ΔE DIN6175, multiple automotive‑brand specific color‑difference formulas; Metamerism index, ΔEab(Hunter), ΔEch, ΔE*uv

Observer Angle：2° / 10°

Illuminants：A, B, C, D50, D55, D65, D75, F1, F2, F3, F4, F5, F6, F7, F8, F9, F10, F11, F12, CWF, U30, U35, DLF, NBF, TL83, TL84, ID50, ID65, LED‑B1, LED‑B2, LED‑B3, LED‑B4, LED‑B5, LED‑BH1, LED‑RGB1, LED‑V1, LED‑V2, LED‑8

Display Contents：Spectral graph/data, sample color values, color difference values/graph, pass/fail results, color simulation, color bias, effect values, effect difference values

Trigger Modes：Pressure‑sensing trigger, button trigger, software trigger

Measurement Modes：Single measurement, average measurement, continuous measurement

Observation Method：Built‑in camera

Dimensions：L 194 mm × W 73 mm × H 118 mm

Interfaces：USB, Bluetooth

Languages：Simplified Chinese, Traditional Chinese, English

Operating Temperature：10 ℃‑50 ℃, humidity ≤ 85 %, non‑condensing

Storage Temperature：‑20 ℃‑50 ℃, humidity ≤ 85 %, non‑condensing

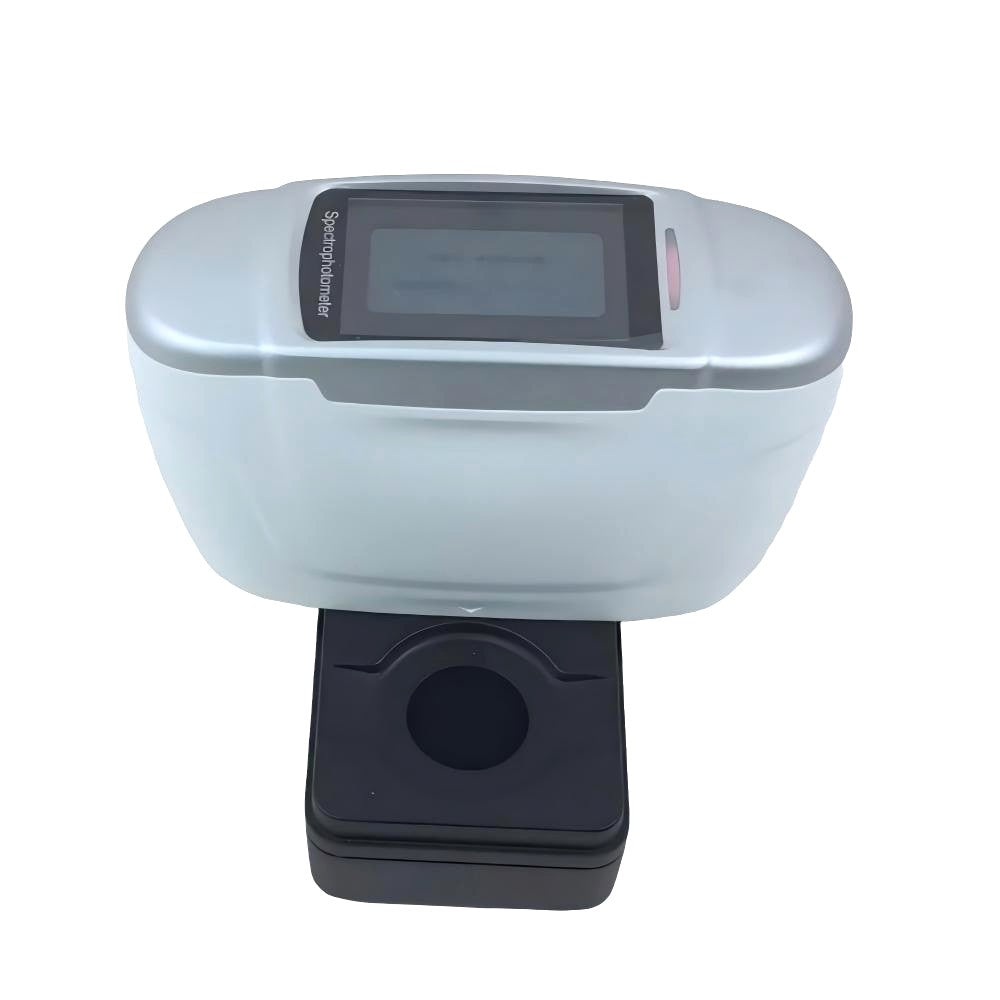

Calibration：Built‑in white‑plate parameters; external white plate, black trap, external color plate

Calibration Interval：4 h, 8 h, 24 h, power‑on calibration

Standard Accessories：Power adapter,data cable, user manual, QC software (Contact Us), calibration box, protective cover, wrist strap

Optional Accessories：Mini printer
