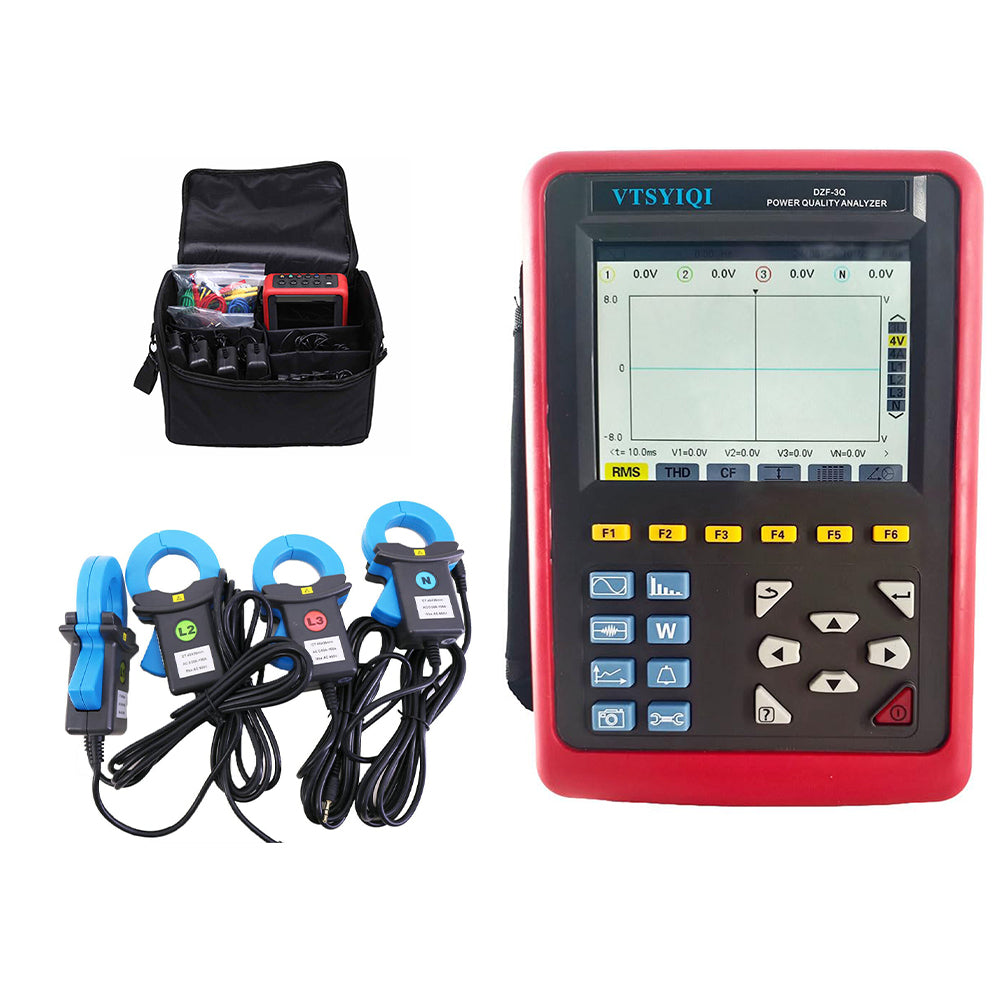

VTSYIQI Power Quality Logger 3 Phase Energy Quality Analyzer Meter with Range 0.10A to 100A 4 Current Clamp Sensor Large LCD Color Screen Display USB Communication Interface CT Size 35mm×40mm Automatic Phasor Diagram Display

VTSYIQI Power Quality Logger 3 Phase Energy Quality Analyzer Meter with Range 0.10A to 100A 4 Current Clamp Sensor Large LCD Color Screen Display USB Communication Interface CT Size 35mm×40mm Automatic Phasor Diagram Display

Regular price $2,190.00 USD
Regular price Sale price $2,190.00 USD
Sale Sold out
Shipping calculated at checkout.

VTSYIQI Power Quality Logger 3 Phase Energy Quality Analyzer Meter with Range 0.10A to 100A 4 Current Clamp Sensor Large LCD Color Screen Display USB Communication Interface CT Size 35mm×40mm Automatic Phasor Diagram Display

About this item:

Carefully developed for a field test of three-phase, multi-functional, intelligent, simple man-machine operation of integrated test equipment

It is easy to use, large LCD screen display, high resolution, in English bilingual interface, features of anti vibration structure shell etc.

Backlight function, for the use of dark places and at night,Double insulation, with insulation vibration proof sheath

Operating temperature and humidity: -10℃~40℃;below 80%Rh; Storage temperature and humidity: -10℃~60℃;below 70%Rh

Functional diversity:test, capture and monitoring functions, record storage function, Alarm function, Screenshot function etc,Battery indicator: Battery symbol 5 grid display power, when the battery power is too low, prompt automatic shutdown after 1 minutes

Specification Description:

Power Supply: Rechargeable lithium battery pack 9.6V, external charger

Power consumption: Current consumption 490mA, battery work 8 hours continuously

Current clamp type: current clamp: 35mm * 40MM(4PCS), CT size: Ф40mm

Channel number: 4U/4I

Line voltage: 1.0V~2000V

Phase voltage: 1.0V~1000V

Frequency: 40Hz~70Hz

Power parameter: W,VA,var,PF,DPF,cosφ,tanφ

Electrical parameters: Wh,varh,Vah

Harmonic: Yes, 0 to 50 times

Total harmonic distortion:Yes, 0 to 50 times, each phase

Expert mode: Yes

Transient record group: 150 groups

Voltage flicker: Yes

Start current mode: Yes, 100 seconds

Three phase unbalance: Yes

Record: 300 days (record 20 parameters at the same time, record every 5 seconds, 1 points) Alarm:40 different types of parameters, the 12800 group alarm log

Phasor diagram display: automatic

Screenshot capacity: 60

Menu language: Chinese and English

Communication interface: USB

Automatic shutdown: The instrument does not shut down automatically when the alarm / trend chart recording / transient capture mode is in progress;In other test mode, 15 minutes without key operation, prompt automatic shutdown after 1 minutes.

Test line: Voltage test line 3m, Current clamp 2m

Operating temperature and humidity: -10℃~40℃;below 80%Rh

Storage temperature and humidity: -10℃~60℃;below 70%Rh

Input impedance:Test voltage input impedance: 1MΩ

Safety regulation: IEC 61010 1000V Cat III / 600V CAT IV,IEC61010-031,IEC61326,Pollution level 2

Accessory: Host: 1; instrument box: 1; test line: 5 (yellow, green, red, blue, black, 1); Alligator clip: 5; Pen: 5; charger: 1; CD: 1; lithium battery group: 1; 2G memory card: 1; current sensor (optional).
