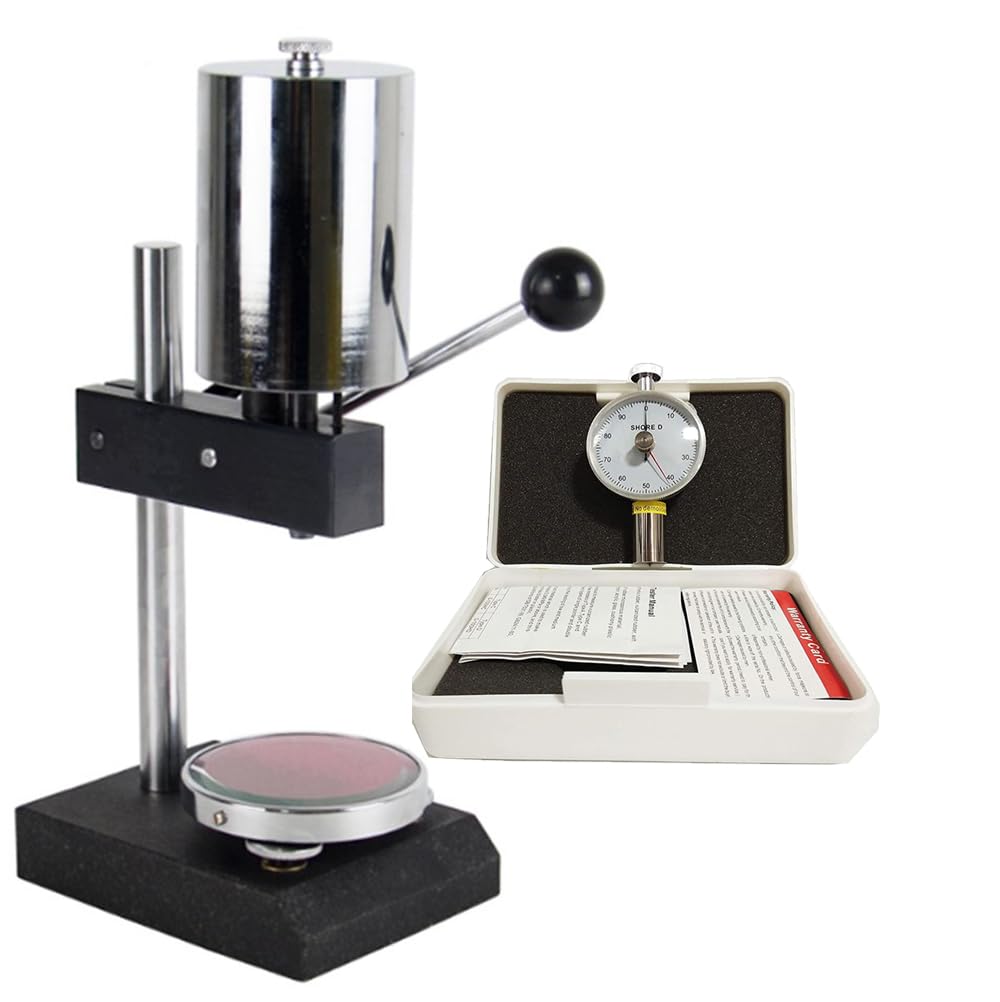

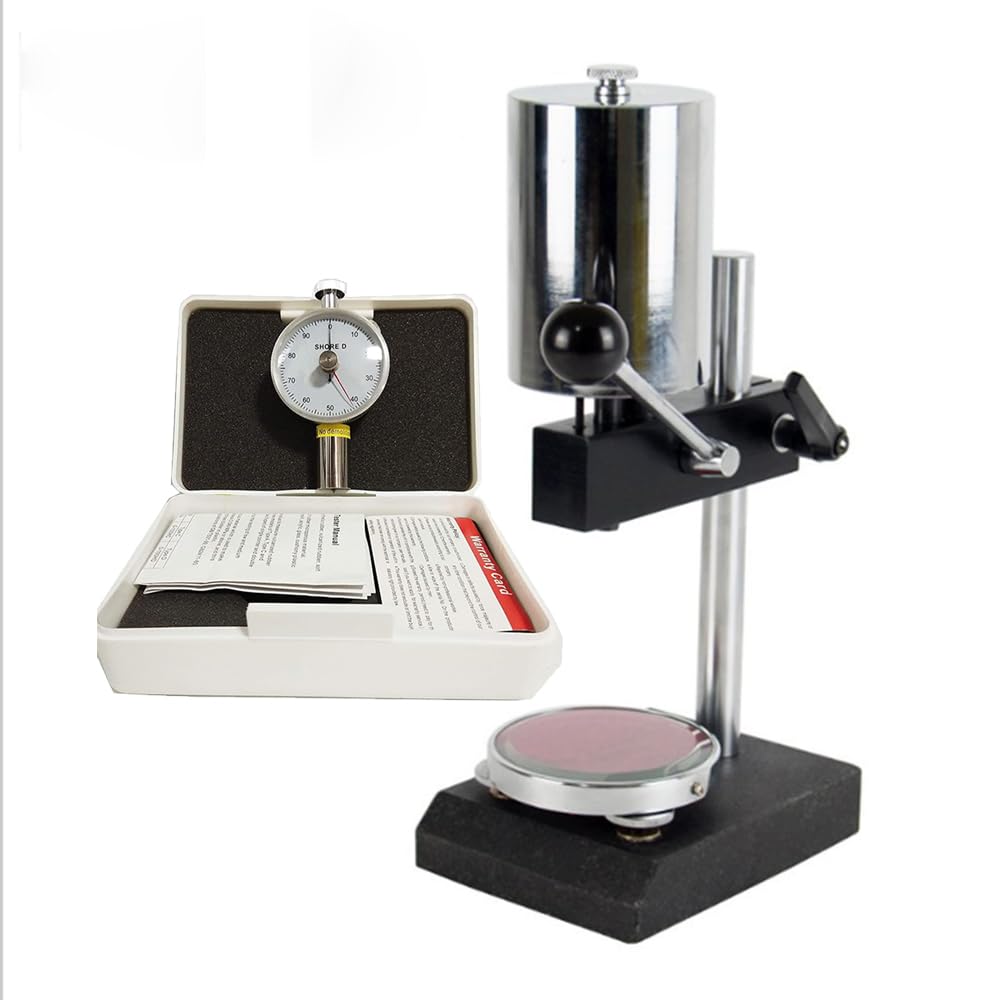

About this item

Test stand is especially for our Shore D hardness tester meter; This mode is more scientific, more compact structure, reasonable, so that the stability and accuracy of the test further improved.

Test stand is a developed new generation of Shore hardness test.; The use of high hardness metal platform instead of the traditional glass platform, effectively avoids the disadvantages of fragile glass platform.

Shore D hardness tester: Dial value: 0-100HD; Recommended range of measurements: 20-90HD

 Needle indicates, Double Needle,convenience the user to read, high accuracy.Needle stroke: 2.5 mm; Needlepoint size: SR 0.1 mm

Type D hardness tester : applicable to hard rubber, hard resin, acrylic, glass, cushiony plastic cement, printing plates, fiber, etc.

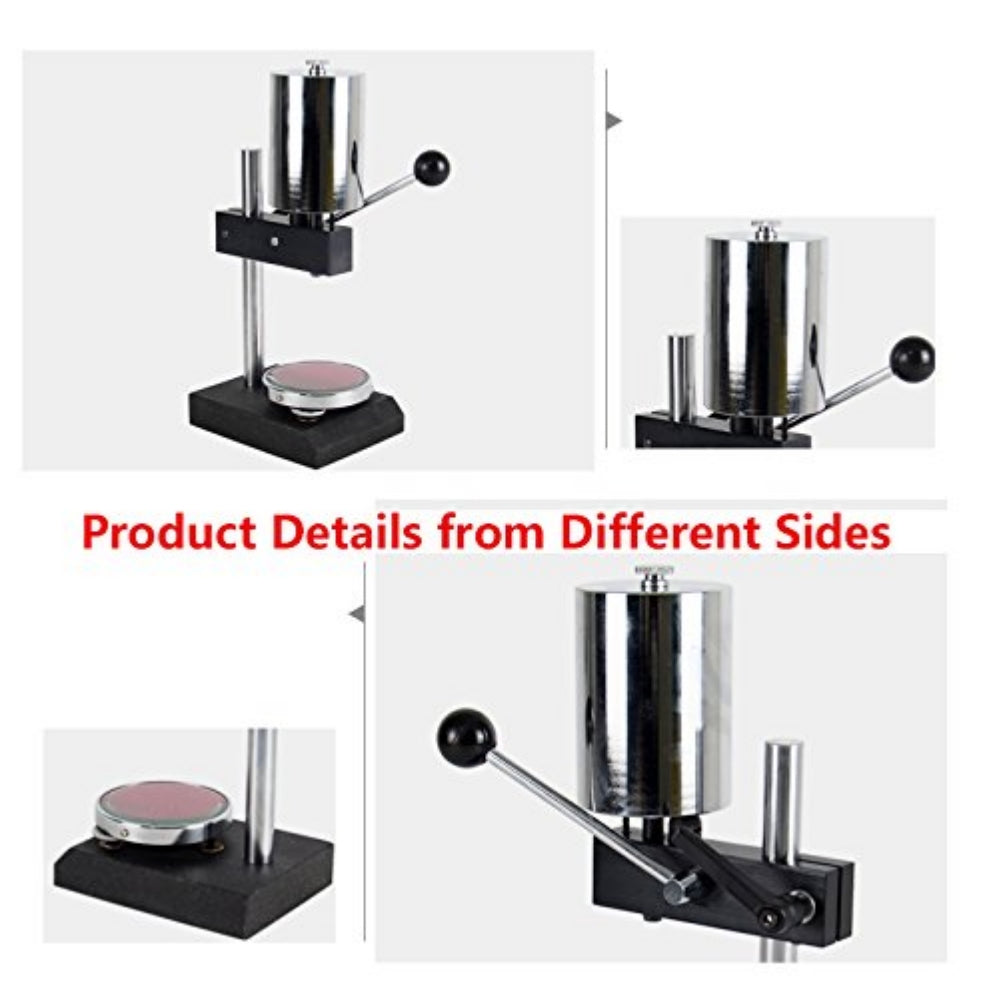

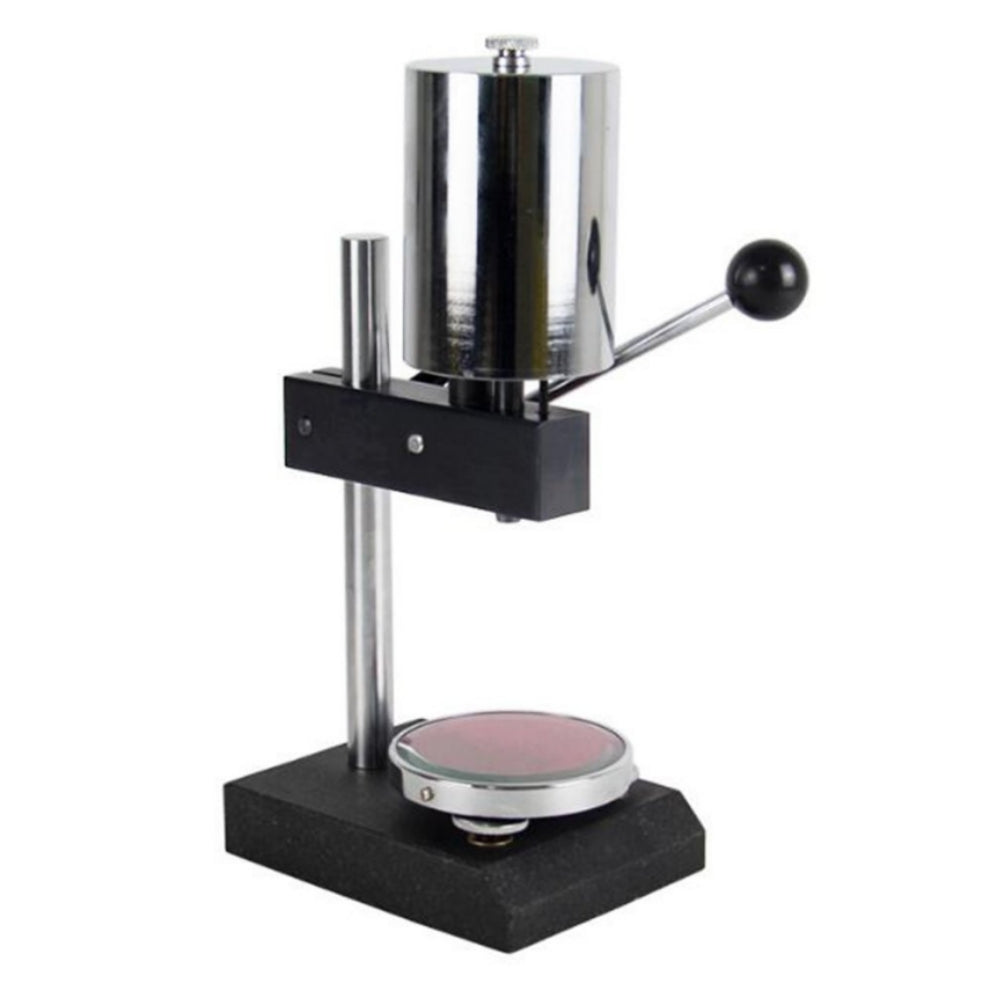

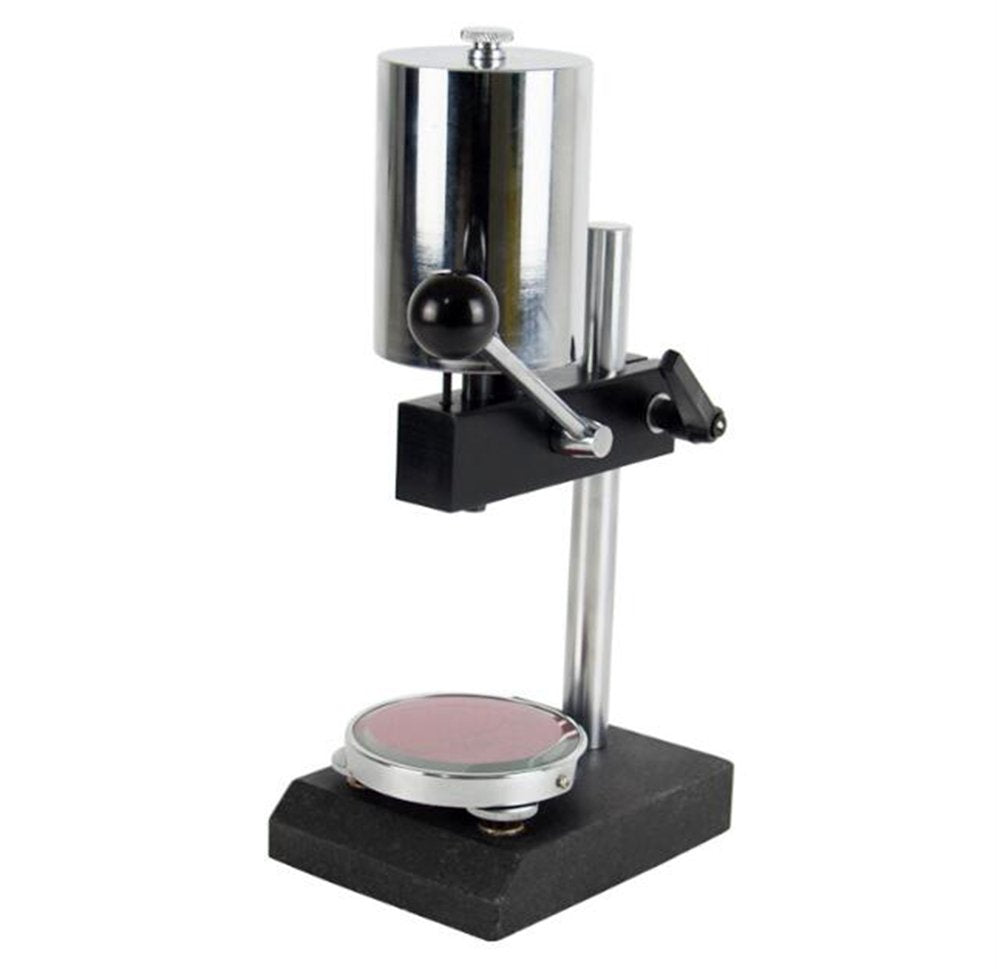

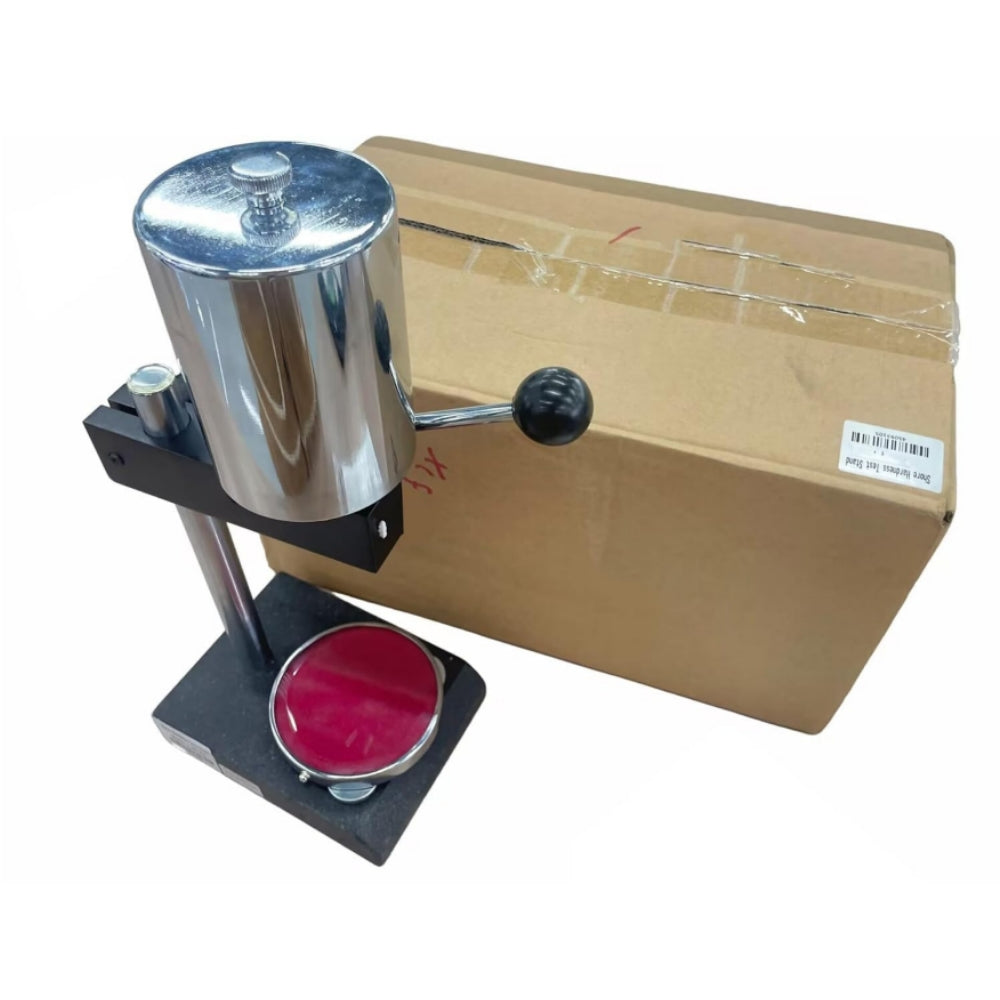

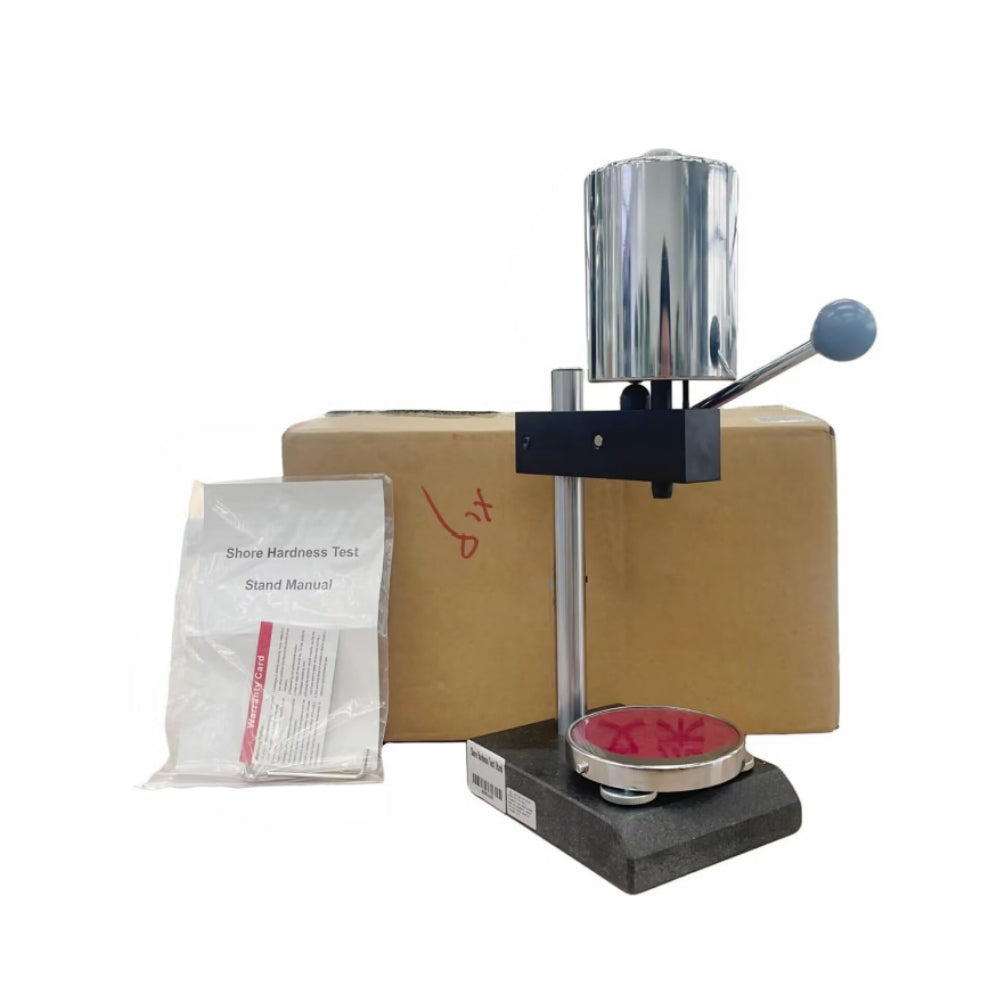

Description about the Stand:

Function:

The testing principle of hardness tester is compact, more reasonable that makes the stability and the accuracy of the test, it has a further improved.

And the use of high rigidity metal platform instead of the traditional glass platform, avoid the shortcomings of fragile glass platform, Especially in the testing of hardness test D, the users do not need to equipped with special hardness blocks, make the testing more economic and convenient .

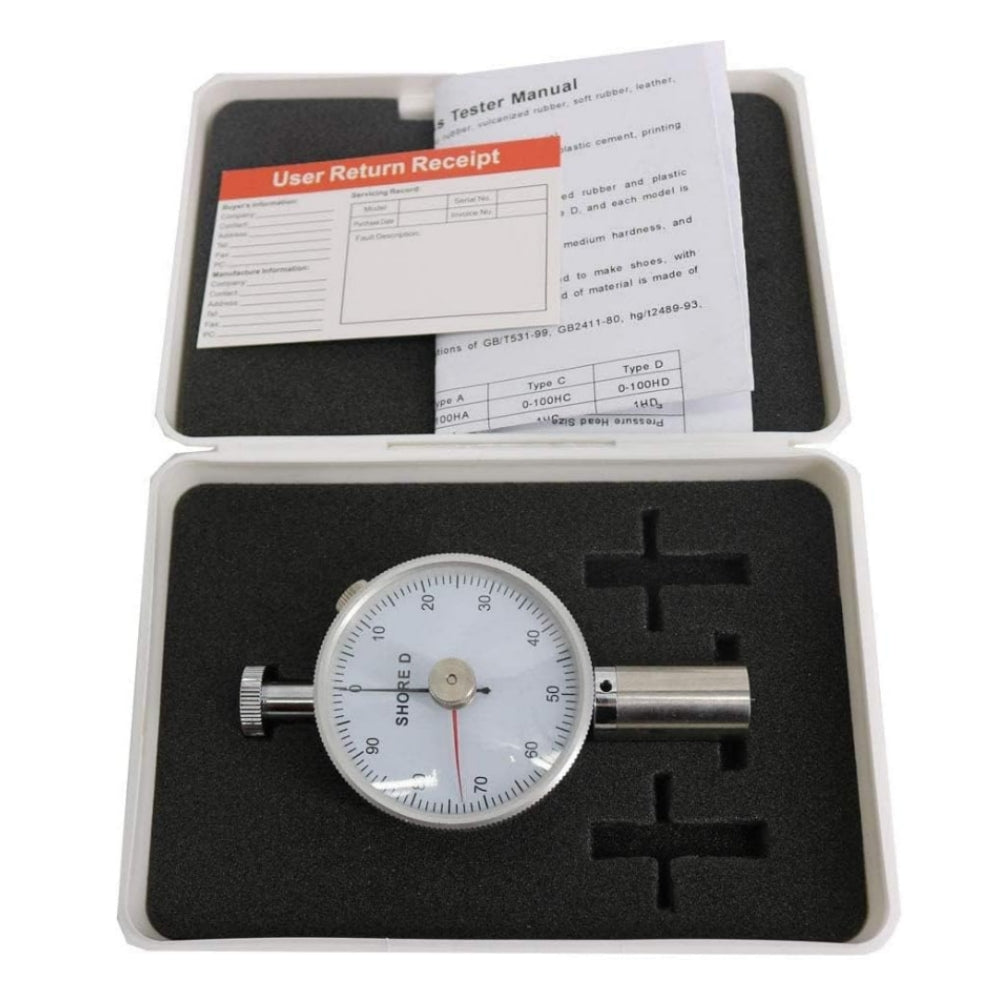

Description about the Double Needle Shore D Hardness Tester :

Function:

Shore D hardness tester is suitable for hardness test of high degree of hardness material, such as common hard rubber, hardened resin, acryl, Plexiglas, thermos plastic rubber, printing plate, fibred. The product conforms to HG/T2489 and other related standard request.

Features

* It is not necessary to observe the value in real time according to the change of the measuring angle. As long as the measurement is done, the driven pointer is directly positioned on the numerical scale of the measurement, so that it is convenient to read and eliminate the error caused by the change of the observation angle.

* Type D: applicable to hard rubber, hard resin, acrylic, glass, cushiony plastic cement, printing plates, fiber, etc.

* Needle indicates, convenience the user to read., high accuracy.

* Handhold design, carry conveniently,

Technical Specifications

* Dial value: 0 - 100HD

* Needle stroke: 2.5 mm

* Recommended range of measurements: 20 - 90HD

* Needlepoint size: SR 0.1 mm

* Weight: 0.15kg
