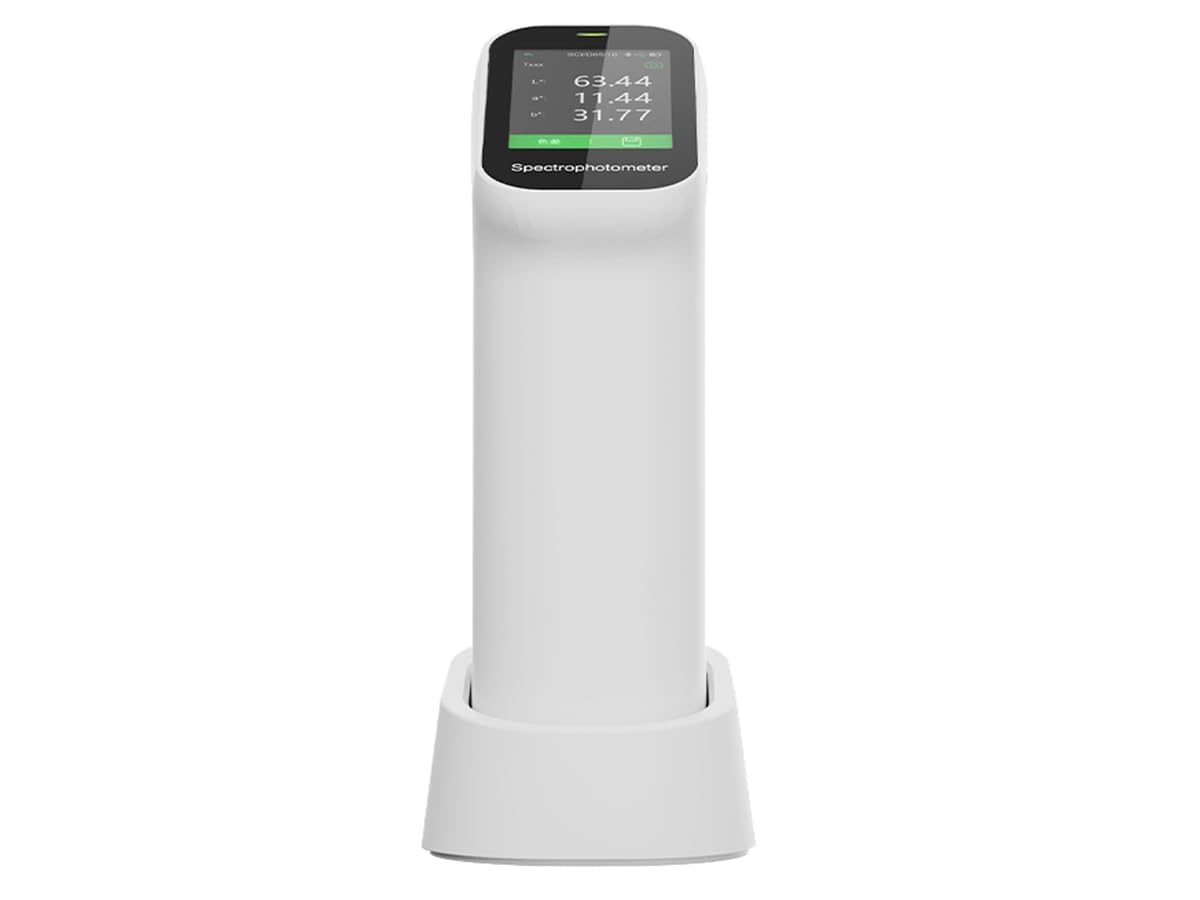

  • VTSYIQI Spectrocolorimeter Portable Color Measurement with Integrating Sphere Diameter 40mm Repeatability ΔE*ab≤ 0.03 10000pcs Mass Storage Camera Observation ASTM ISO Standard

VTSYIQI

VTSYIQI Spectrocolorimeter Portable Color Measurement with Integrating Sphere Diameter 40mm Repeatability ΔE*ab≤ 0.03 10000pcs Mass Storage Camera Observation ASTM ISO Standard

$1,01300
In stock
$1,01300

Customer Service

Post your customer service details here.

Return Policy

Post your policy conditions details here.

Specification:

Measurement structure* : D/8，SCI/SCE

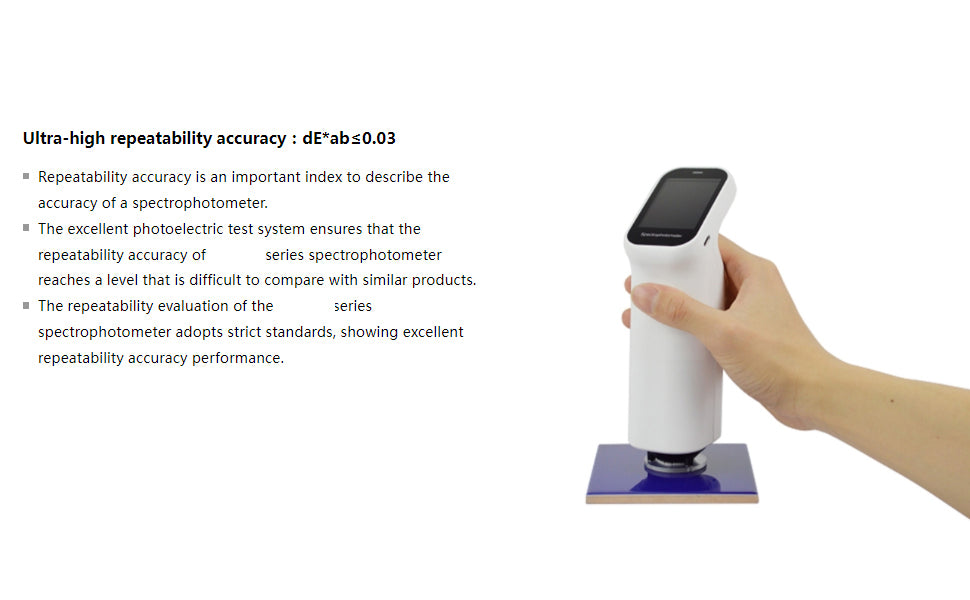

Measurement repeatability** : ΔE*ab≤ 0.03

Display accuracy : 0.01

Measuring aperture : There are 4 stable and smart types:

Φ11mm，Φ6mm，Φ3mm

▽11mm，▽6mm，▽3mm

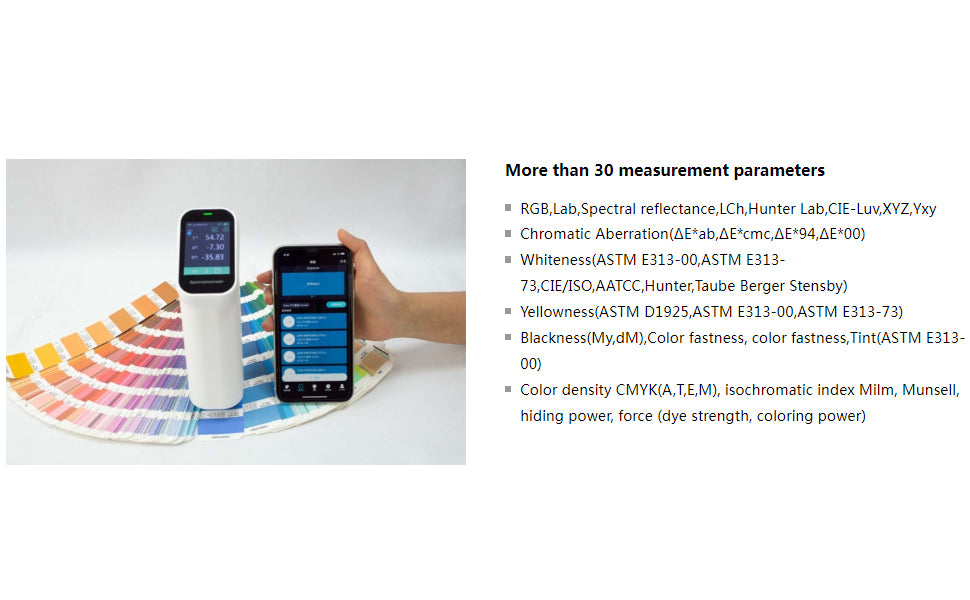

Measurement index : Spectral reflectance,CIE-Lab,CIE-LCh,HunterLab,CIE-Luv,XYZ,Yxy,RGB,Chromatic Aberration(ΔE*ab,ΔE*cmc,ΔE*94,ΔE*00),

Whiteness(ASTM E313-00,ASTM E313-73,CIE,ISO2470/R457,AATCC,Hunter,Taube Berger Stensby),Yellowness(ASTM D1925,

ASTM E313-00,ASTM E313-73),Blackness (My,dM), color fastness, color fastness,Tint(ASTM E313-00),

Colour densityCMYK(A,T,E,M),Isochromatic index Milm, Munsell, covering power, force (dye strength, coloring power)

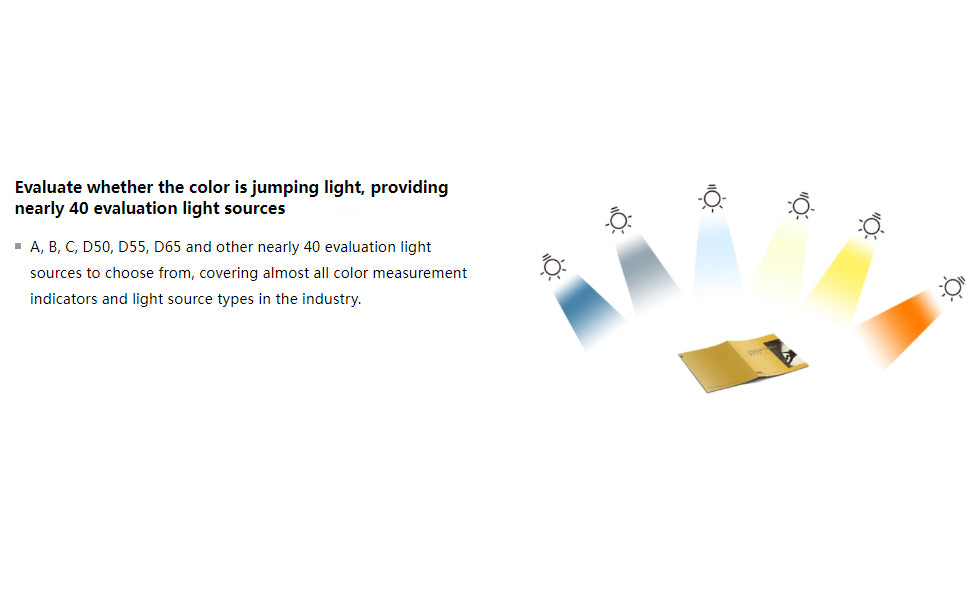

Light source condition : A,B,C,D50,D55,D65,D75,F1,F2,F3,F4,F5,F6,F7,F8,F9,F10,F11,F12,CWF,U30,U35,DLF,NBF,TL83,

TL84,ID50,ID65,LED-B1,LED-B2,LED-B3,LED-B4,LED-B5,LED-BH1,LED-RGB1,LED-V1,LED-V2

Lighting source : All-band equalizationLED light source

Field Angle : 2°，10°

Integrating sphere diameter : 40mm

Meet the standard : Andriod,iOS,Windows,Wechat mini program

Accuracy : First level qualification

Field Angle : 2°，10°

Integrating sphere diameter : 40mm

Meet the standard : CIE No.15,GB/T 3978,GB 2893,GB/T 18833,ISO7724-1,ASTM E1164,DIN5033 Teil7

Spectroscopic method : Nano integrated spectral device

Inductor : Silicon photodiode array Double16 groups

Wavelength interval : 10nm

Wavelength range : 400-700nm(Users can view the reflectivity of 31 wavelengths)

Reflectance measurement range : 0-200%

Reflectance resolution : 0.01%

Measurement mode :Single measurement, average measurement（2~99 times）

Measuring time : About1s

Measurement and observation mode :Camera

Calibrate : Intelligent automatic calibration

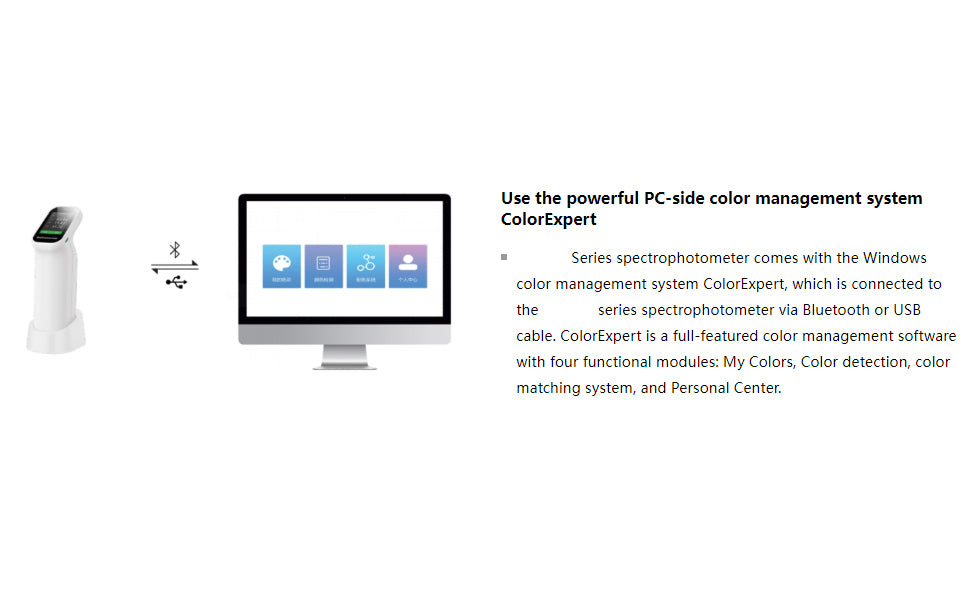

Software support : Andriod,iOS,Windows,Wechat mini program

Accuracy : First level qualification

Port : USB，Bluetooth

Screen : Full color screen, 2.4 inches

Battery capacity : 8000 continuous measurements in a single charge, 3.7V/3000mAh

Light source lifetime : 1 million times in 10 years

Language : Simplified Chinese, English

Store : Instrument: 10,000 data; APP: Mass storage
