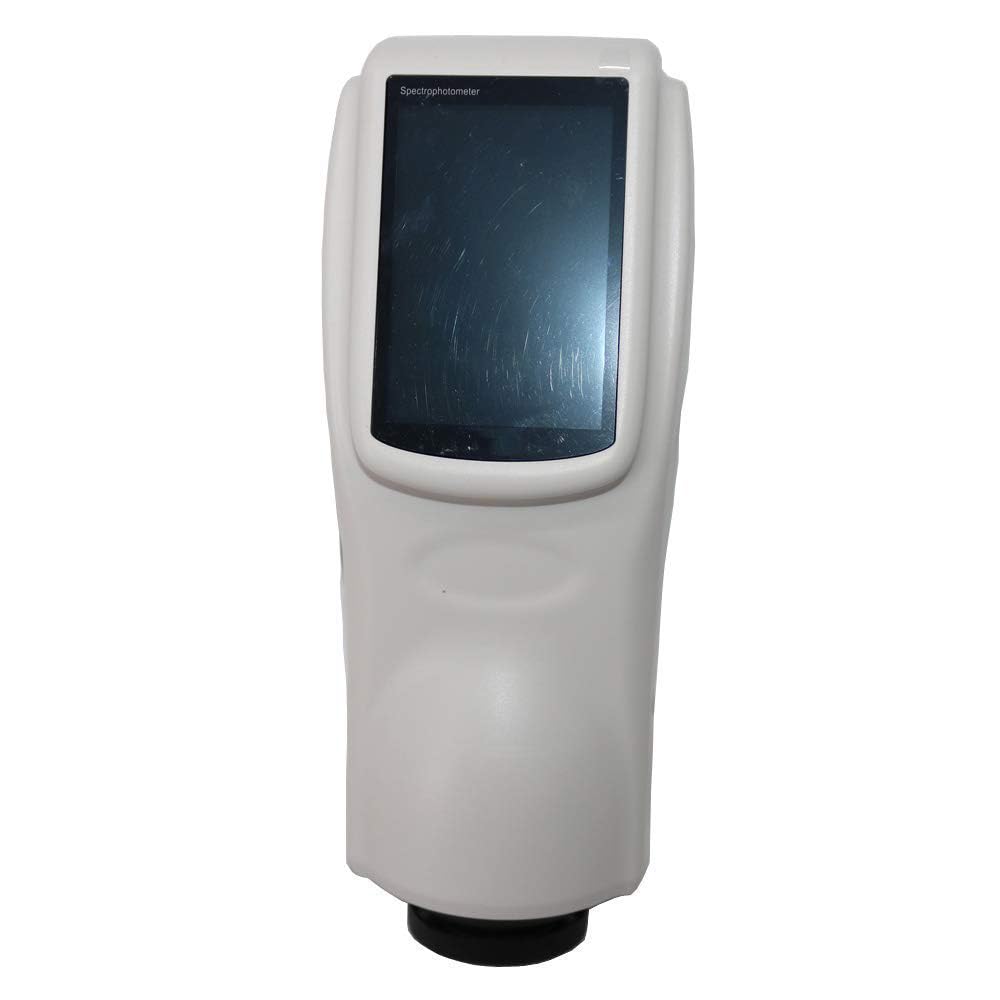

VTSYIQI Spectrophotometer Colorimeter Color Difference Meter Tester with TFT 3.5inch Capacitive Touch Screen Display Color Space CIE LAB,XYZ,Yxy,LCh,CIE LUV Measuring Aperture Φ8mm USB/RS-232 Interface Measurement Time 1.5s

About this item

(1)spectrophotometer uses the principle of combination LED precision spectroscopy, separates the light according to a certain wavelength interval, and adopts groups of sensor array to perform sensitivity analysis.

(2)spectrophotometer with higher accuracy is very sensitive to any colors. It not only can measure L*ab value and delta E value accurately, but also can display spectral reflectance curve which can realize color matching function and calculate the real parameters of various color formulas.

(3)it also analyzed the parameters from Japan, American and Germany spectrophotometers. The differences of L*ab absolute value between them are within ±1.5. Compared the L*ab value between NS800 and Japan spectrophotometer, when measuring any color objects, the biggest L*ab difference is within ±1.0. This is a breakthrough of NS800 high technology which realizes to be fully compatible with international market.

(4)The spectrophotometer is equipped with high-end color management software which can connect PC to achieve more extension functions.It can store 1000 standard values and 10000 sample color difference values. The gigantic database can be used at any time during measurement.

(5)Application Industry: it can be used in textile, printing and dyeing, clothing, footwear, leather, chemical, plastic, film, pigment, paint, ink and other color industries to control color quality, color analysis, sample testing, production line testing. For texture testing can be used Multiple average tests.

Features:
❤❤3.5 inch large capacitive touch screen.
❤❤Two standard observer perspectives, multiple light sources modes, a variety of color systems.
❤❤The repeatability ΔE*ab is within 0.04, the errors between each instrument ΔE* ab is less than 0.2.
❤❤Large capacity storage, can save more than 10000 data.
❤❤Oversized integrating sphere, more effective homogenization ray of lights and precise measurement.
Technical Specifications:
❤❤Illumination/observation system: 45/0 method (45 ring-shaped illumination, vertical viewing), Comply with CIE No.15，GB/T 3978
❤❤Integrating sphere Size: Φ58mm
❤❤Light Source: combined LED sources
❤❤Sensor: Silicon photodiode array
❤❤Wavelength range: 400~700nm
❤❤Wavelength interval: 10nm
❤❤Reflectance range: 0~200%

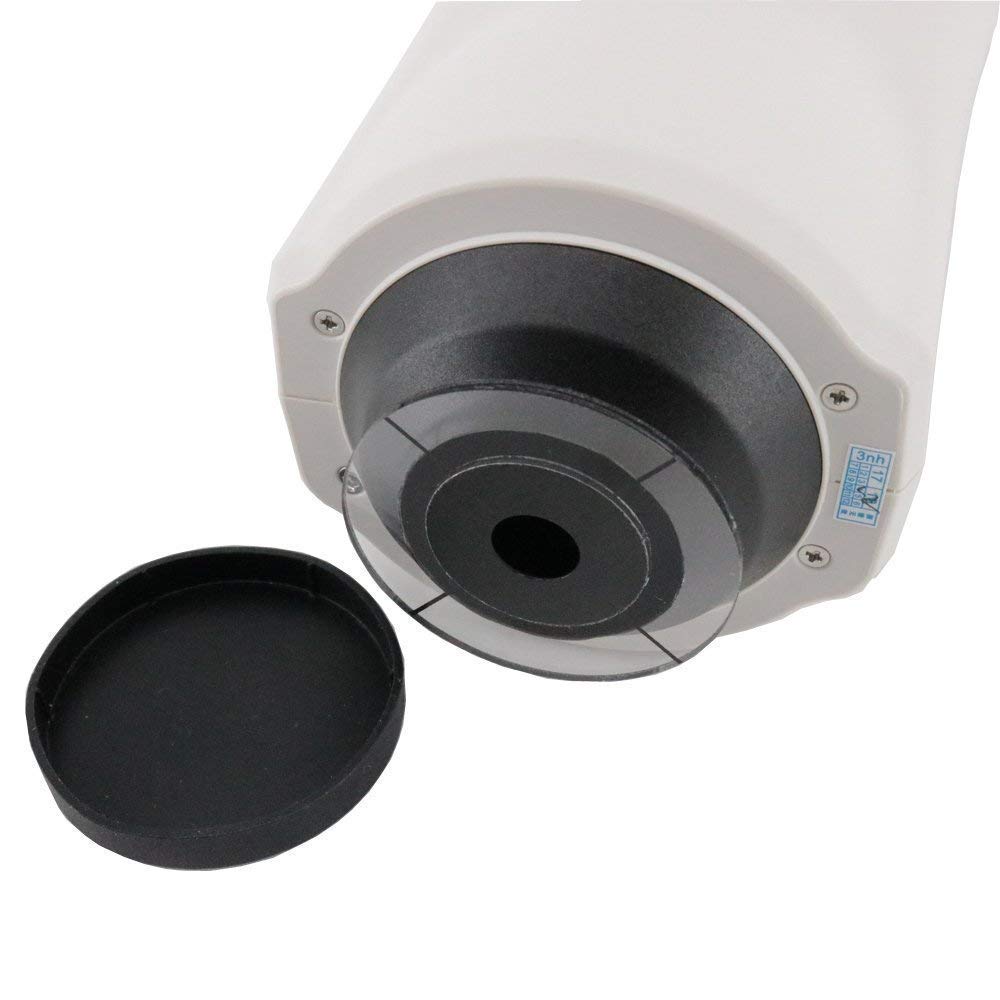

❤❤Measuring Aperture: Φ8mm
❤❤Color Space: CIE LAB,XYZ,Yxy,LCh,CIE LUV
❤❤Color difference Formula: ΔE*ab,ΔE*uv,ΔE*94,ΔE*cmc(2:1),ΔE*cmc(1:1),ΔE*00
❤❤Other Chromaticity Data: WI(ASTM E313，CIE/ISO, AATCC, Hunter), YI(ASTM D1925，ASTM 313), TI(ASTM E313，CIE/ISO), Metamerism Index (Mt), Color Stain, Color Fastness
❤❤Observer: 2°/10°
❤❤Illuminant: D65，A,C,D50，D55，D75，F2，F6，F7，F8，F10，F11,F12
❤❤Display Data: Spectral Value/Graph, Colorimetric Value, Color Difference Value/Graph, PASS/FAIL Result, Color Offset, Color Simulation
❤❤Measurement Time: 1.5s
❤❤Repeatability: Spectral Reflectance: standard deviation within 0.1%(400~700nm: within 0.2%)
❤❤Colorimetric Value: Standard deviation within Delta E*ab 0.04 (Measurement conditions: white calibration plate measured 30 times at 5 seconds intervals after white calibration was performed.)
❤❤Inter Instrument Agreement: Within Delta E*ab 0.2 (Average for 12 BCRA Series II color tiles)
❤❤Dimension: L*W*H=90*77*230mm

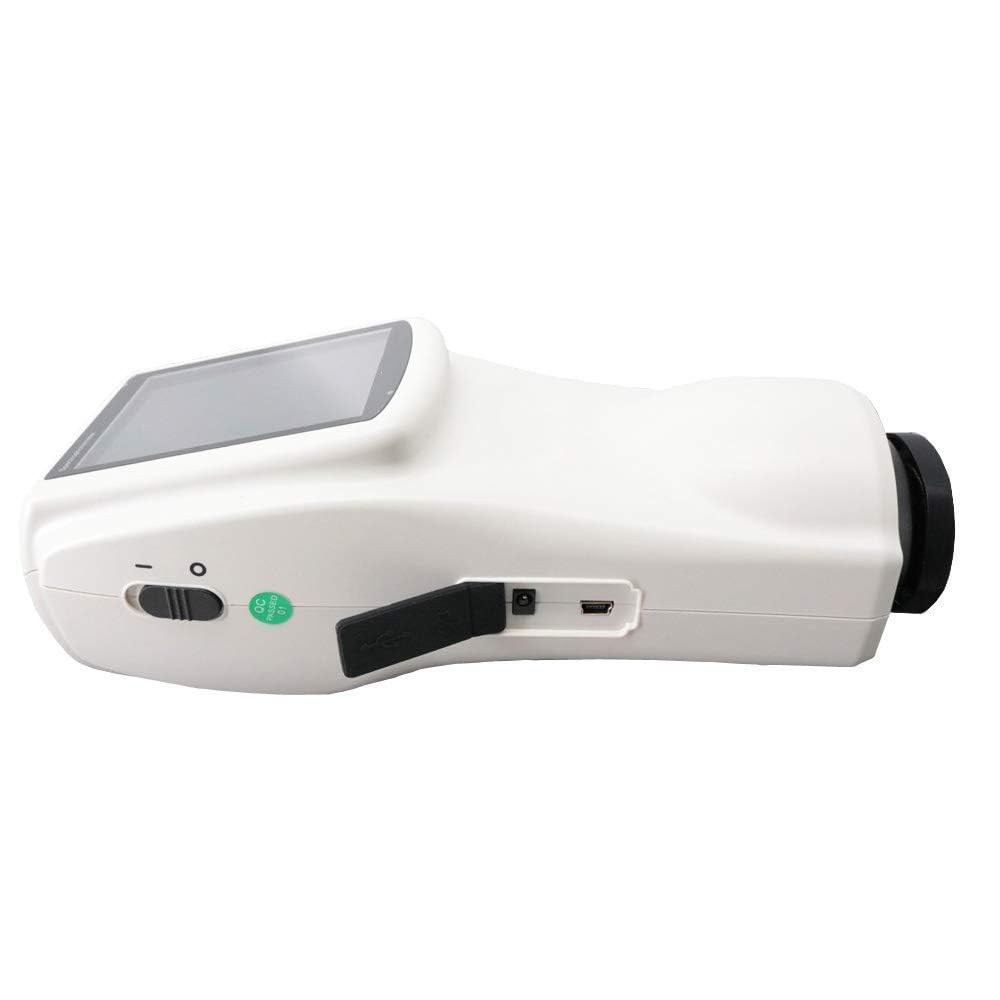

❤❤Interface: USB/RS-232
❤❤Data Memory: 1000 Standards, 15000 Samples
