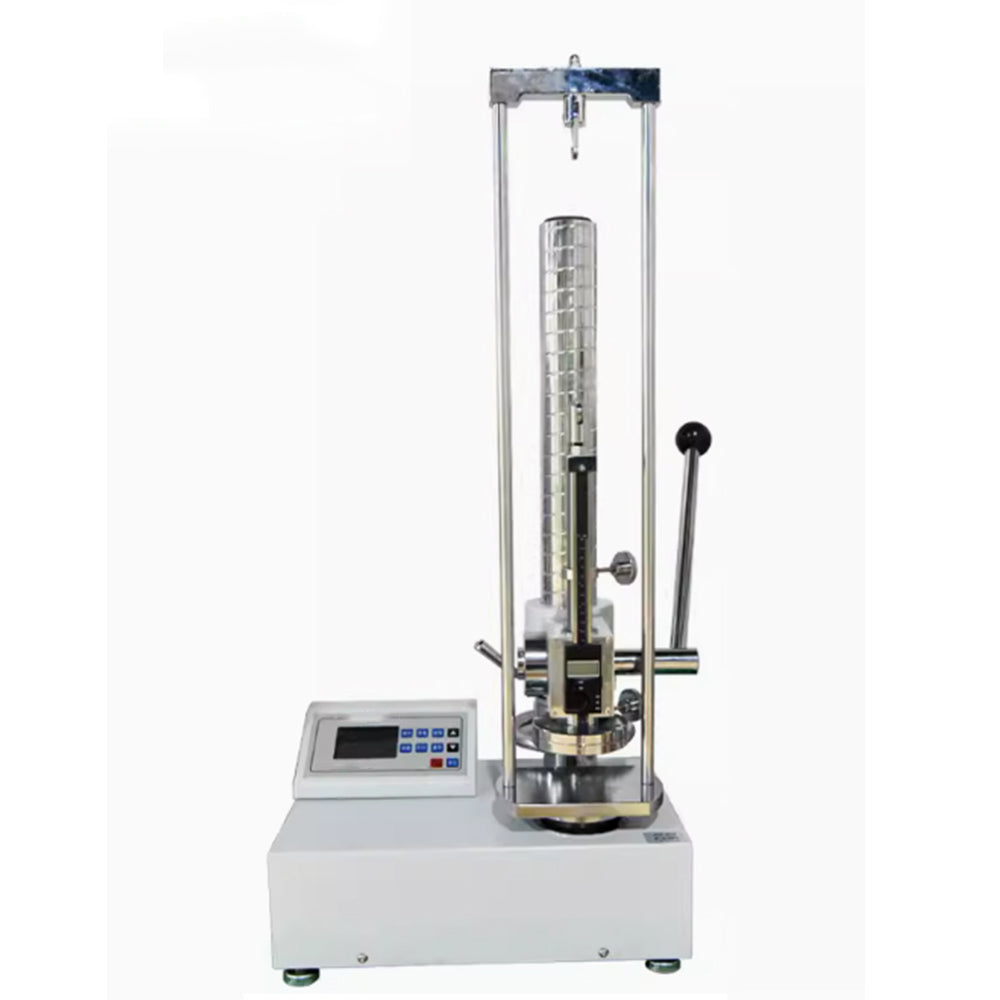

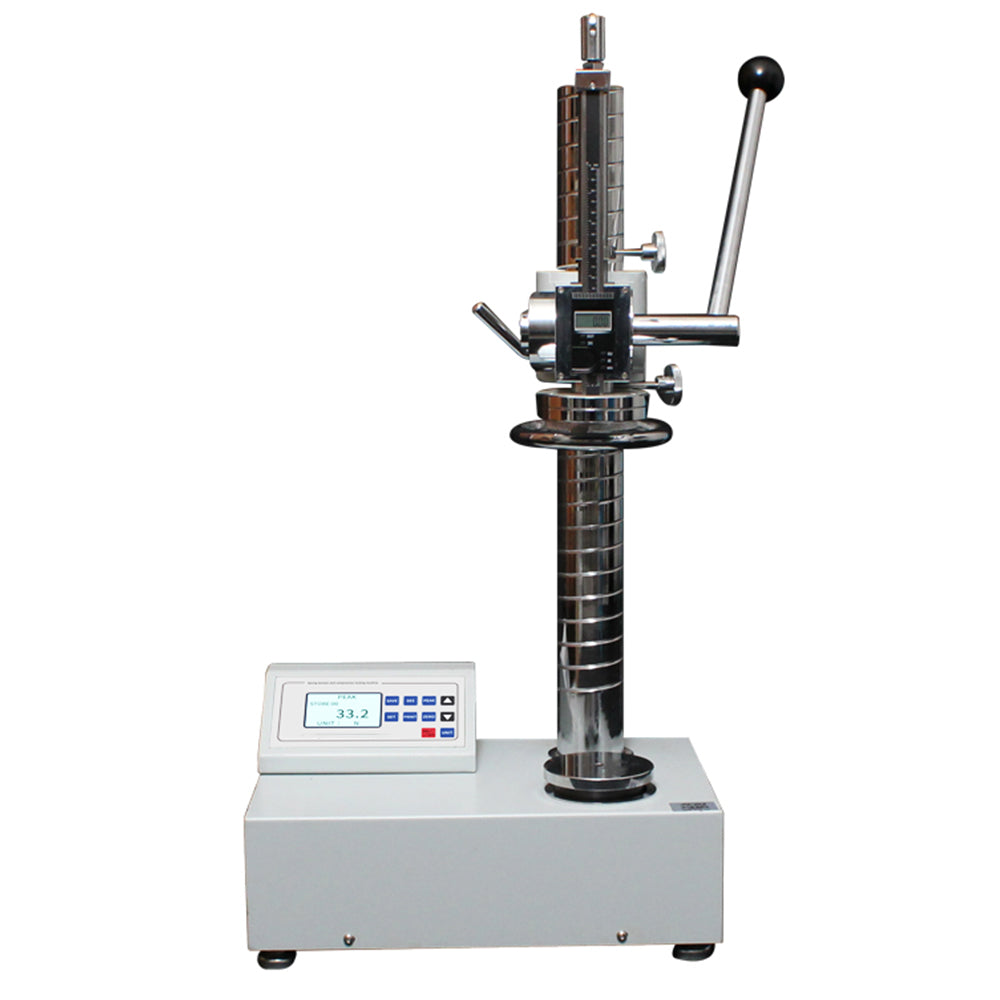

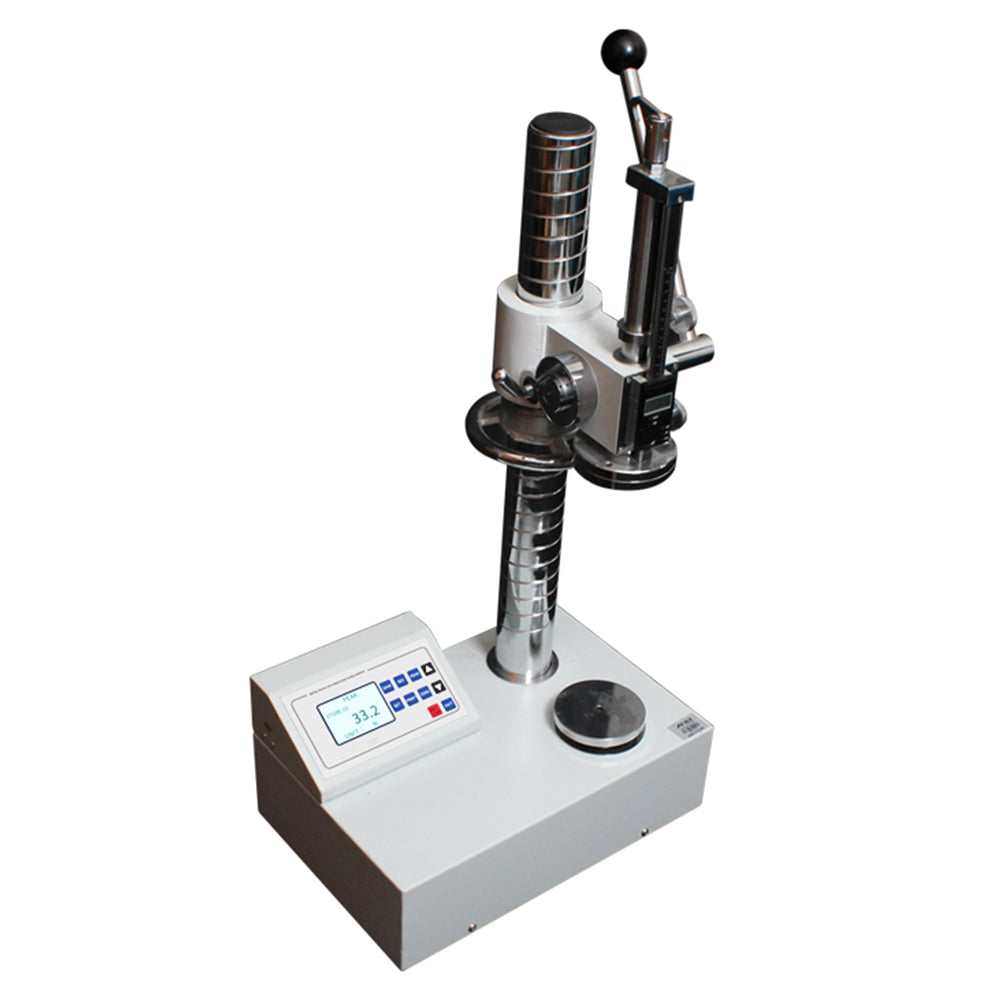

VTSYIQI Spring Tester Valve Spring Pressure Testers with Maximum Test Machine Load 1000N/100KG/220Lb Minimum Resolution 0.1N/0.01KG/0.01Lb Platen Diameter 108mm High Precision and High Resolution Store 99 Sets of Test Data

About this item:

Maximum testing load ：1000N/100kg/220Lb

Minimum resolution ：0.1N/0.01kg/0.01Lb

Diameter of the platen ：108mm Indication error : +/-1%

Maximum free length of measurable spring ：200mm

Length of travel of the displacement scale ：150mm

Features:

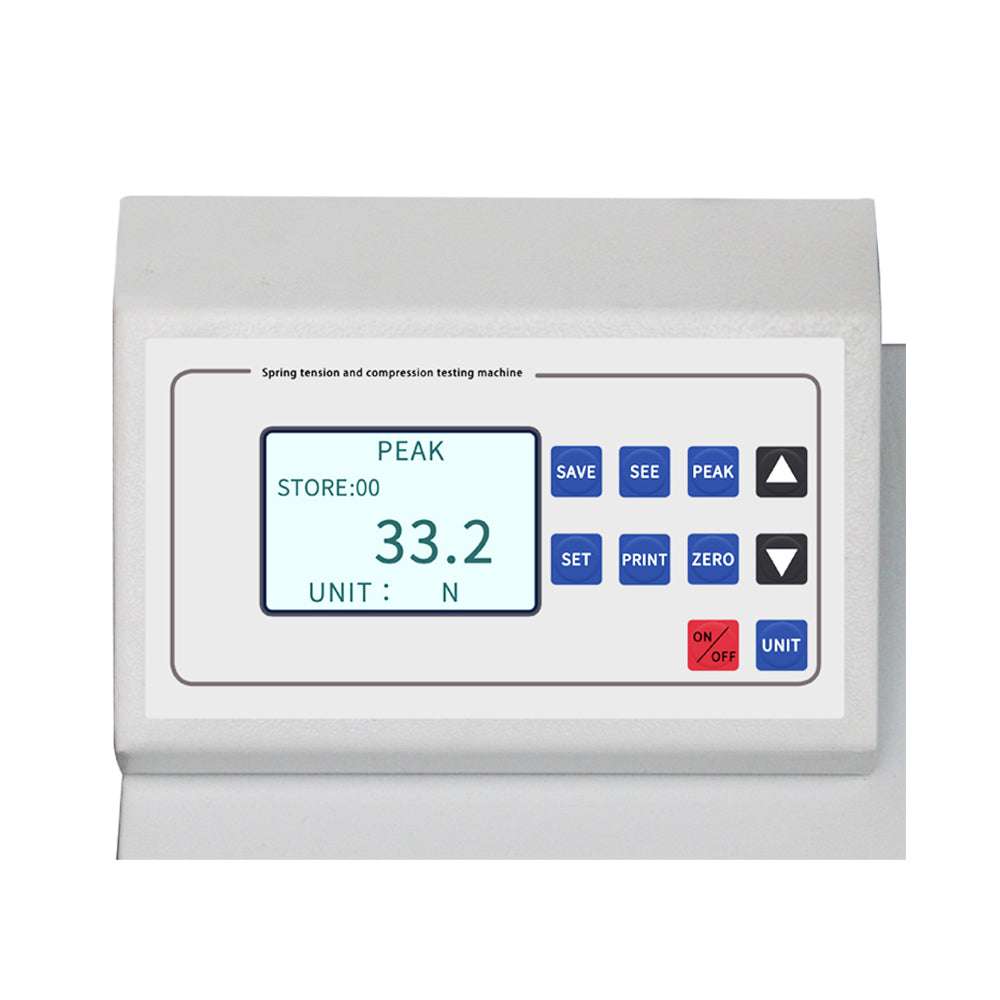

Liquid crystal display (English); better Human Machine Interface (HMI)

High precision and resolution

Three kinds of measurement units can be selected(N, Lb and Kg); inter-conversion is available

The user can independently set up acceleration of gravity of the place of usage. In this way, the testing and unit conversion would be more accurate

99 sets of test data can be stored; the user can directly look over, store and delete data in the machine

The user can freely shift among the following three patterns: Real-time and peak-value patterns and the pattern of automatic peak value

It has the function of client setup and free setup of upper and lower limits (corresponding to audible and visual alarms), storage value, holding value, automatic storage time of peak value, automatic shutdown time (non-operation), etc

Judgment of acceptance or rejection of test data to be printed and stored, maximum value, minimum value and mean value (only for tape printing machine)

MODBUS-RTU standard agreement is adopted for communication; USB interface is adopted for better connection with configuration and PLC connection

Specification:

Maximum testing load ：1000N/100kg/220Lb

Minimum resolution ：0.1N/0.01kg/0.01Lb

Diameter of the platen ：108mm

Maximum free length of measurable spring ：200mm

Length of travel of the displacement scale ：150mm

Division value of the displacement scale 0.01mm

Indication error +/-1%

Power Supply AC 110-220V, 50HZ-60HZ

Power capability (without printer) 13W

Power capability (with printer) 20W

Working temperature 20+/-10C

Temperature of storage and transportation -27C~+70C

Relative temperature 15%~80%RH
