Technical parameters:

Measurement Geometry : 3 measurement angles (3 illumination sources, 1 receivers)

Measure Angle :

1. 45° Receiver：45as25°,45as45°,45as110°
2. Conform to the standards：ASTM D 2244,E 308,E 1164,E 2194, E2539,DIN 5033,5036,6174,6175-1,6175-2;ISO 7724, 11664-4 SAE J 1545

Application : Provide accurate and consistent color measurement for metallic, pearlescent and other complex special effect color products

Light Source : Full spectrum LED light source with blue enhancement

Lamp Life : 5 years, 3 million times measurements

Spectrophotometric Mode : Concave Grating

Sensor : 256 Image Element Double Array CMOS Image Sensor

Wavelength Range : 400nm-700nm

Wavelength Interval : 10nm

Measurement Range : 0~600%

Semiband Width : 10nm

Measuring Aperture : Φ12mm

Color Space : CIE LAB,XYZ,Yxy,LCh,βxy,DIN Lab99

Color Difference Formula : ΔE*ab,ΔE*94,ΔE*cmc(2:1),ΔE*cmc(1:1),ΔE*00, DINΔE99,ΔE DIN6175

Other Colorimetric Index : Flop Index

Observer Angle : 2°/10°

Illuminant : D65,A,C,D50,D55,D75,F1,F2(CWF),F3,F4,F5,F6,F7(DLF),F8,F9,F10(TPL5),F11(TL84),F12(TL83/U30)

Display : Spectrogram/Values, Samples Chromaticity Values, Color Difference Values/Graph, PASS/FAIL Result, Color Offset

Measuring Time :

1. Approx. 1 second for one angle
2. Approx. 3 seconds for all angles

Repeatability :

1. Spectral reflectance: Standard deviation within 0.08%
2. Chromaticity value: ΔE*ab 0.04 ( When a white calibration plate is measured 30 times at 5 second intervals after white calibration)

Reproducibility :

1. ΔE*<0.10,avg on the gray tile of BCRA tile set
2. ΔE*<0.25,avg on the color BCRA tile set

Inter-instrument Error:0.2ΔE*00(avg on reference Series II BCRA tile set)

Effect Parameters :/

Effect Measurement :/

Effect Repeatability :/

Effect Reproducibility:/

Trigger mode : Pressure sensing trigger, button trigger, software trigger

Measuring Mode : Single measurement, average measurement (1-99), continuous measurement (1-99)

Locating Mode : Color camera preview

Dimension : L*W*H=195X83X128mm

Weight : About 1Kg

Power : lithium-ion battery, 3.7V,3200mAh, Continuous test 6000 times within 8 hours of full charge

Display : 3.5-inch TFT color LCD, Capacitive Touch Screen

Interface : USB

Data Storage : 1000 pcs Standards,4000 pcs Samples

Language : Simplified Chinese, Traditional Chinese, English

Operating Environment : 10℃ to 50℃, humidity does not exceed 85%, no condensation

Storage Environment : -20℃ to 50℃, humidity does not exceed 85%, no condensation

Calibration : Built-in white board parameters, external white board, black light trap

Calibration Interval : 4 hours,8 hours,24 hours,Startup calibration

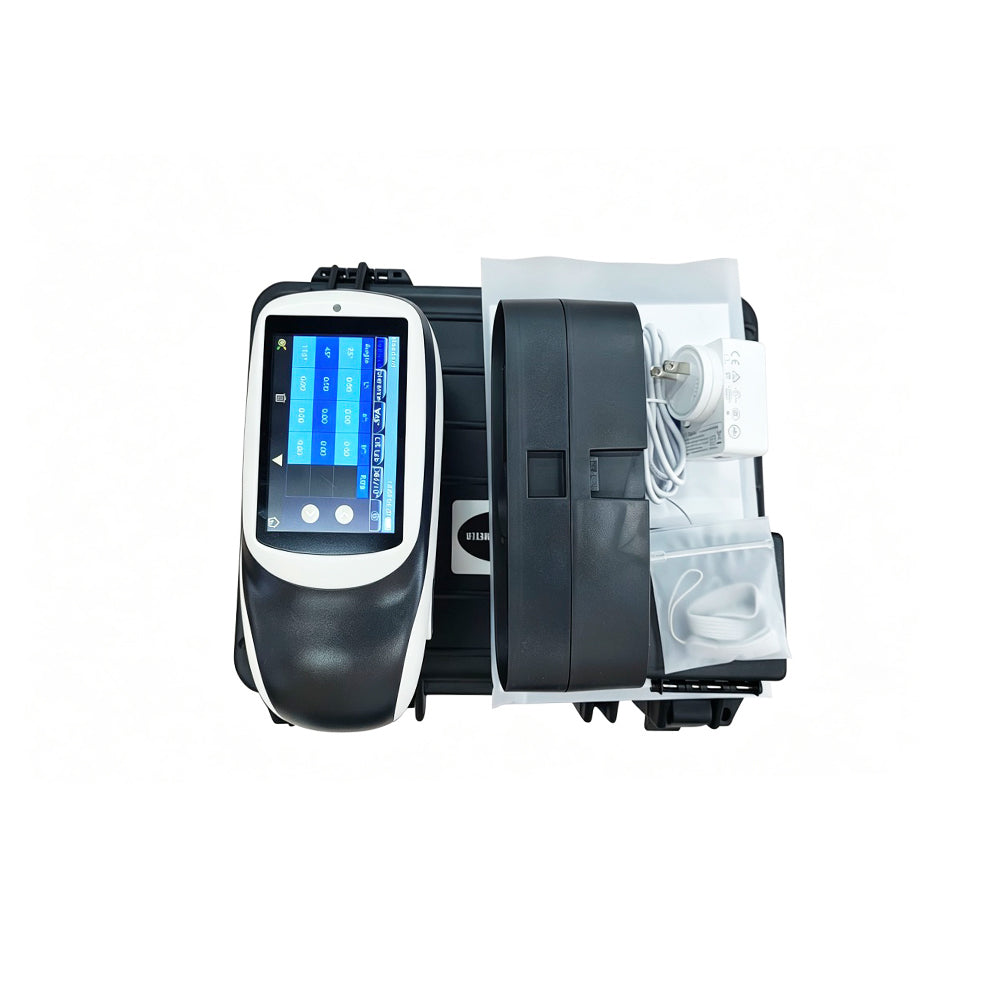

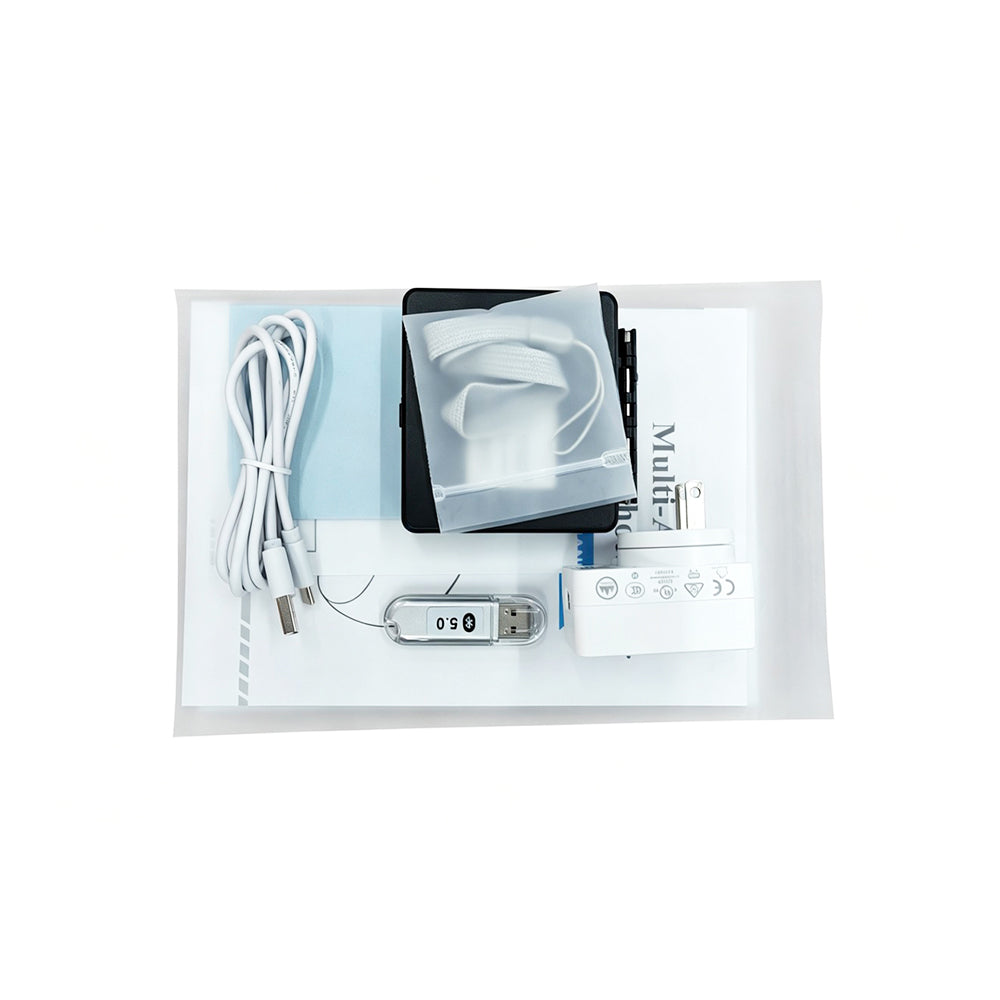

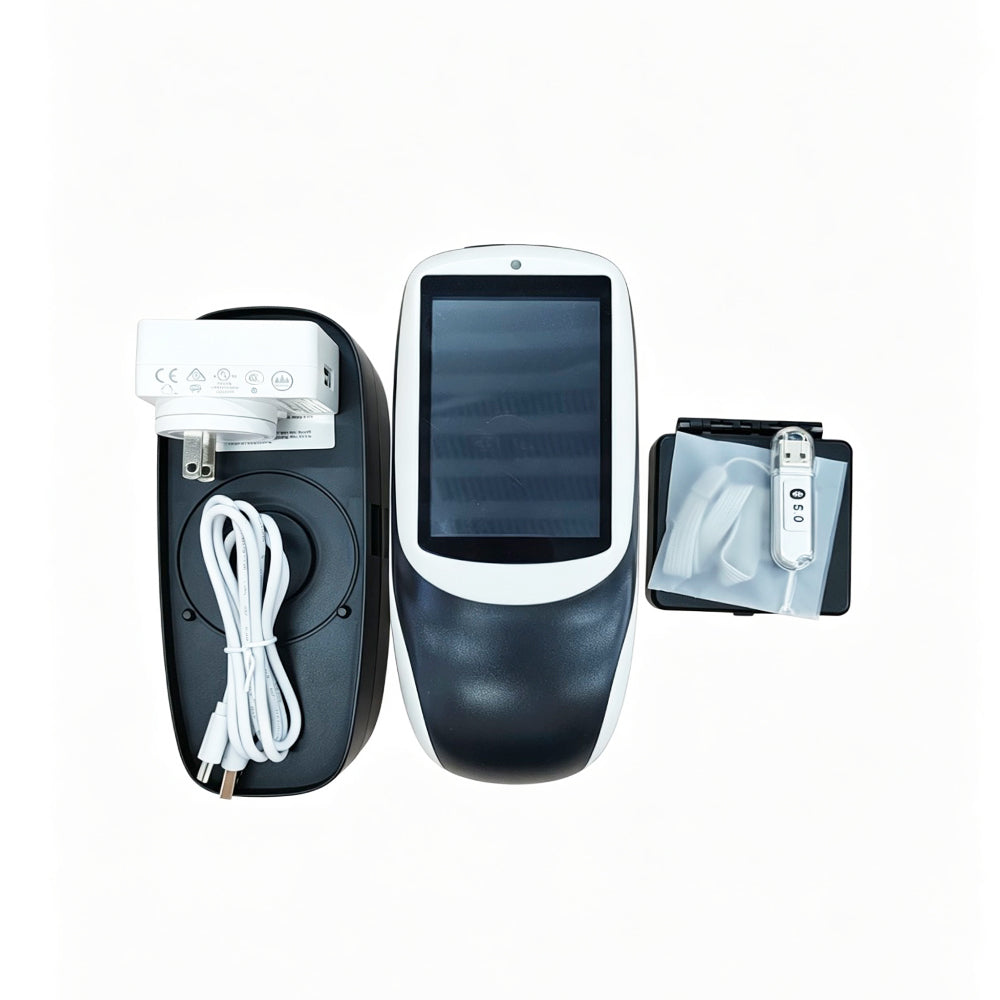

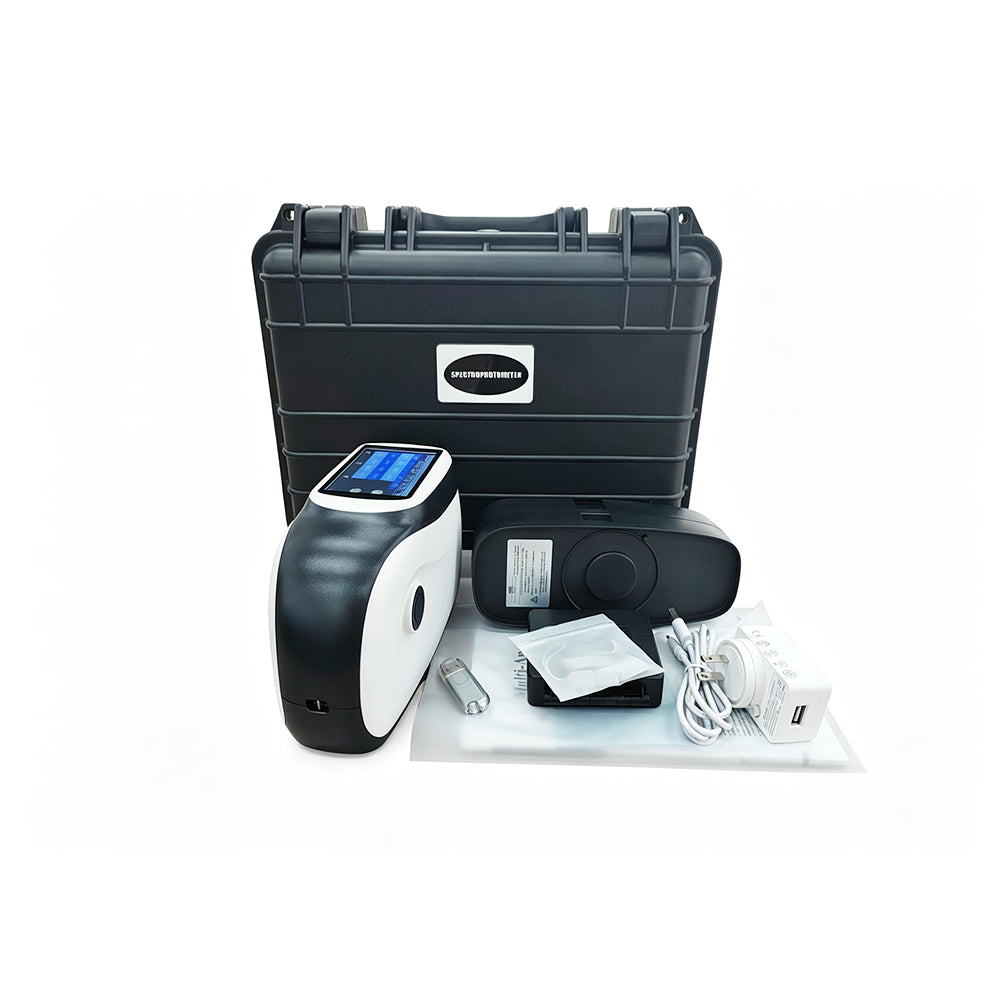

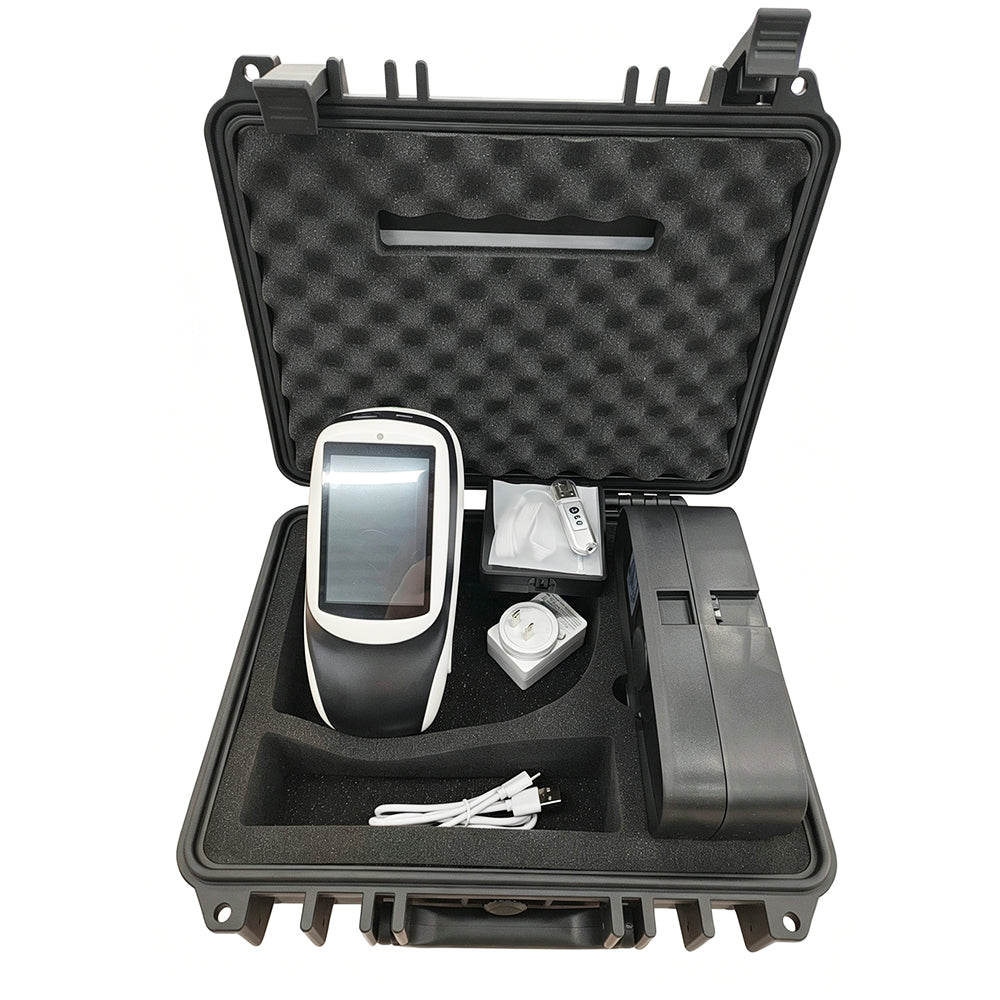

Standard accessories : Power Adapter, USB Cable, User Guide,PC Software, Calibration Board, black light trap,Protective cap, wristband

Optional Accessory : Micro-printer

Notes : Technical parameters are for reference only, subject to actual sales products.
