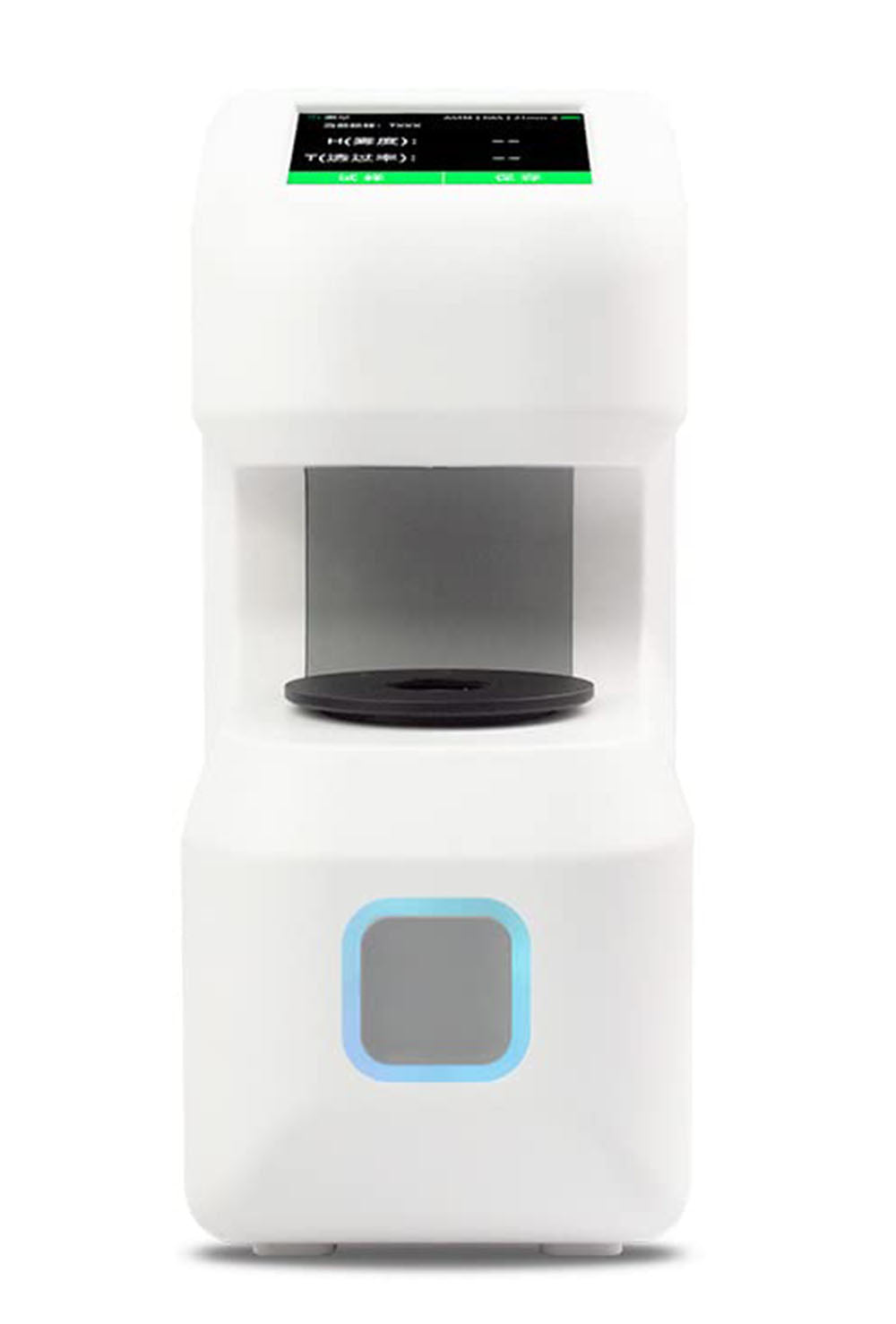

VTSYIQI Three Apertures Haze Meter Light Transmittance Haze Meter Film Plastic Glass Hazemeter with Switchable 21mm 15mm 12mm Apertures Repeatability 0.02 for Haze Transmittance Test of Plastic Film

Introduction:

Light Source:CIE-A,CIE-C,CIE-D65

Standards:ASTM D1003/D1044,ISO 13468/ISO14782,JIS K 7105,JIS K 7361,JIS K 7136,GB/T 2410-08

Parameter:ASTM & ISO -haze/transmittance

Spectral Response:CIE The spectrum function Y/V(λ)

Geometry:0/d

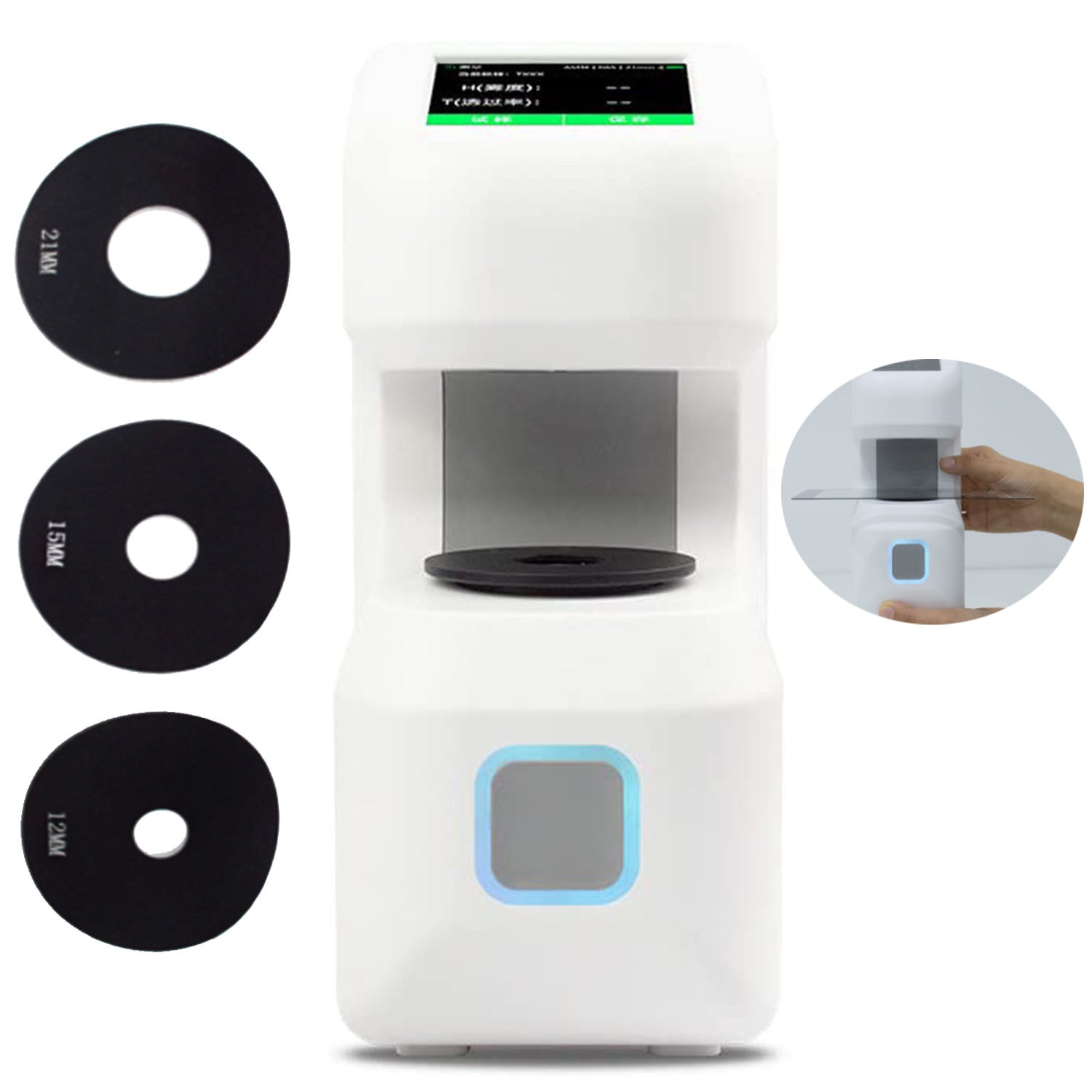

Test Aperture :21mm, 15mm, 12mm

Test Range:0-100%

Resolution:0.01%

Repeatability:0.02

Sample Size:Thickness ≤40mm

Display:2.8 inches touch screen

Data Storage:Mass Storage

Interface :USB

Power:DC 5V/2A

Working Temperature:5~40℃, Relative humidity 80% or below (at 35 ° C), no condensation

Storage Temperature:-20 ℃ ~ 45 ℃, relative humidity 80% or below (at 35 ℃), no condensation

Size :133mm x 99mm x 224mm (length X width X height)

Weight:1.13 kg

Optional :Test Aperture with custom made size
