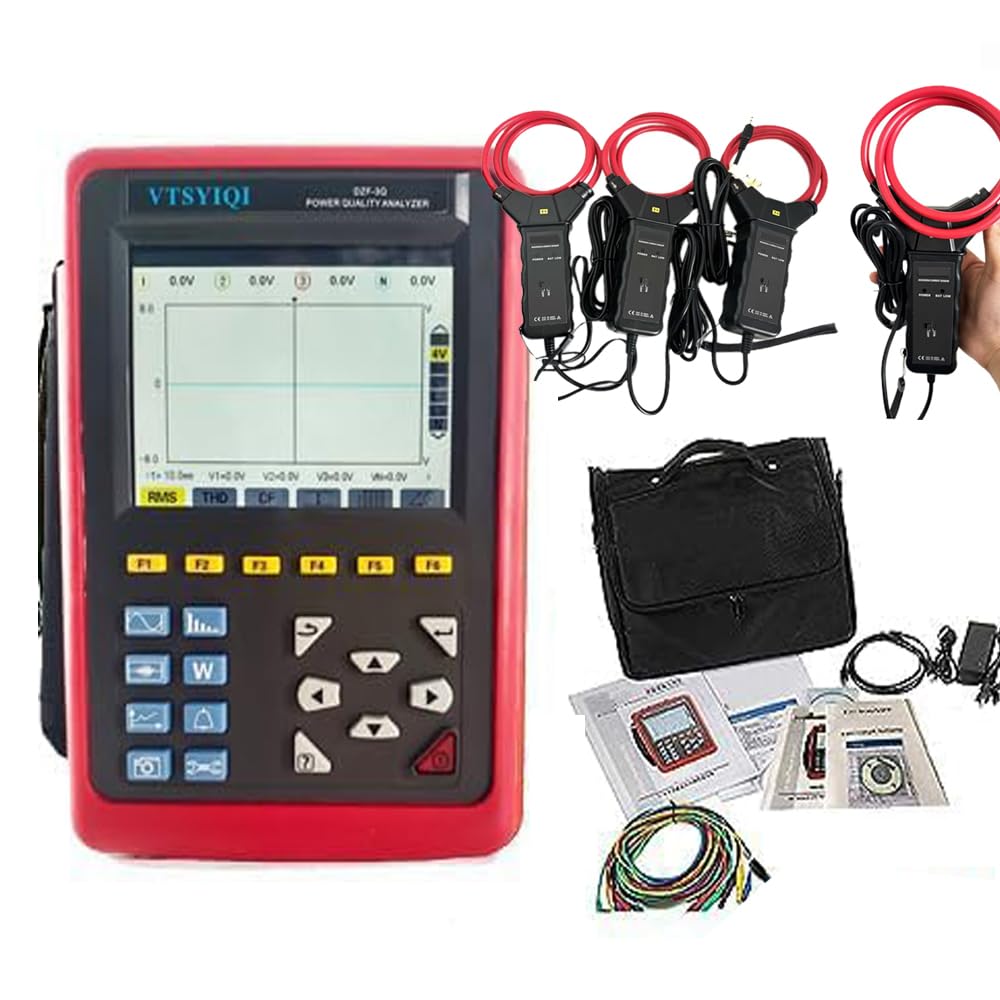

VTSYIQI Three Phase Power Quality Analyzer Power Quality Monitor with Current Sensors Size Φ300mm Range 10A~6000A Transient Capture Function Starting Current Monitoring 4 Channel Voltage Measurement USB Interface Power and Energy Mode

VTSYIQI Three Phase Power Quality Analyzer Power Quality Monitor with Current Sensors Size Φ300mm Range 10A~6000A Transient Capture Function Starting Current Monitoring 4 Channel Voltage Measurement USB Interface Power and Energy Mode

Regular price $2,890.00 USD
Regular price Sale price $2,890.00 USD
Sale Sold out
Shipping calculated at checkout.

VTSYIQI Three Phase Power Quality Analyzer Power Quality Monitor with Current Sensors Size Φ300mm Range 10A~6000A  Transient Capture Function Starting Current Monitoring  4 Channel Voltage Measurement USB Interface Power and Energy Mode

About this item

Carefully developed for a field test of three-phase, multi-functional, intelligent, simple man-machine operation of integrated test equipment

It is easy to use, large LCD screen display, high resolution, in English bilingual interface, features of anti vibration structure shell etc.

Backlight function, for the use of dark places and at night,Double insulation, with insulation vibration proof sheath

Operating temperature and humidity: -10℃~40℃;below 80%Rh; Storage temperature and humidity: -10℃~60℃;below 70%Rh

Functional diversity:test, capture and monitoring functions, record storage function, Alarm function, Screenshot function etc,Battery indicator: Battery symbol 5 grid display power, when the battery power is too low, prompt automatic shutdown after 1 minutes

Main Function:

It is a comprehensive test instrument of multifunctional, intelligent, man-machine operation simple. Comprehensive analysis and diagnosis all the voltage, current, power, electrical energy, harmonic, phase and other electric parameters.

Channel current and 4 channel voltage measurement, simultaneously capturing and recording electric parameters and waveform, to provide with all the power quality information for working.

Voltage:Below 600V.

Technical Specifications:

Power supply:Rechargeable lithium-ion battery packs 9.6V, backup charger.

Working Current:about 590mA, continuous working 8hours.

Display mode:LCD color screen, 640dots × 480dots, 5.6 inches, display field 116mm × 88mm

Instrument Size:240mm×170mm×68 mm.

CT Size:Flexible Coil Current Sensor (with Integrator) : Ф300mm.

Line Voltage:1.0V~2000V.

Phase Voltage:1.0V~1000V

Current:Flexible Coil Current Sensor (with Integrator) : 10A ~ 6000A;

Frequency:40Hz~70Hz.

Electricity Energy Parameter:W, VA, Var, PF, DPF, cosφ, tanφ.

Energy parameters:Wh, Varh, Vah.

Harmonic Wave:Yes, 0 - 50 times

Total harmonic distortion:Yes, 0 - 50 times, each phase

Expert Mode:Yes.

Transient Record Groups:150 groups

Voltage Flicker:Yes

Start Current Mode:Yes, 100 seconds

Three-phases Unbalance:Yes

Record:300 days (record 20 parameters simultaneously, every 5 seconds record 1 point) Min/Max Recorded Value:Yes, the max min value can be measured for a certain time Alarm:40 different types of parameter selection, 12800 group alarm logs

Peak:Yes.

Phasor Diagram Display:Automatic

Screenshot Capacity:60PCS

Communication Interface:USB.

Voltage Test Wire Length:3M

Current Clamp Wire Length:2M
