About this item

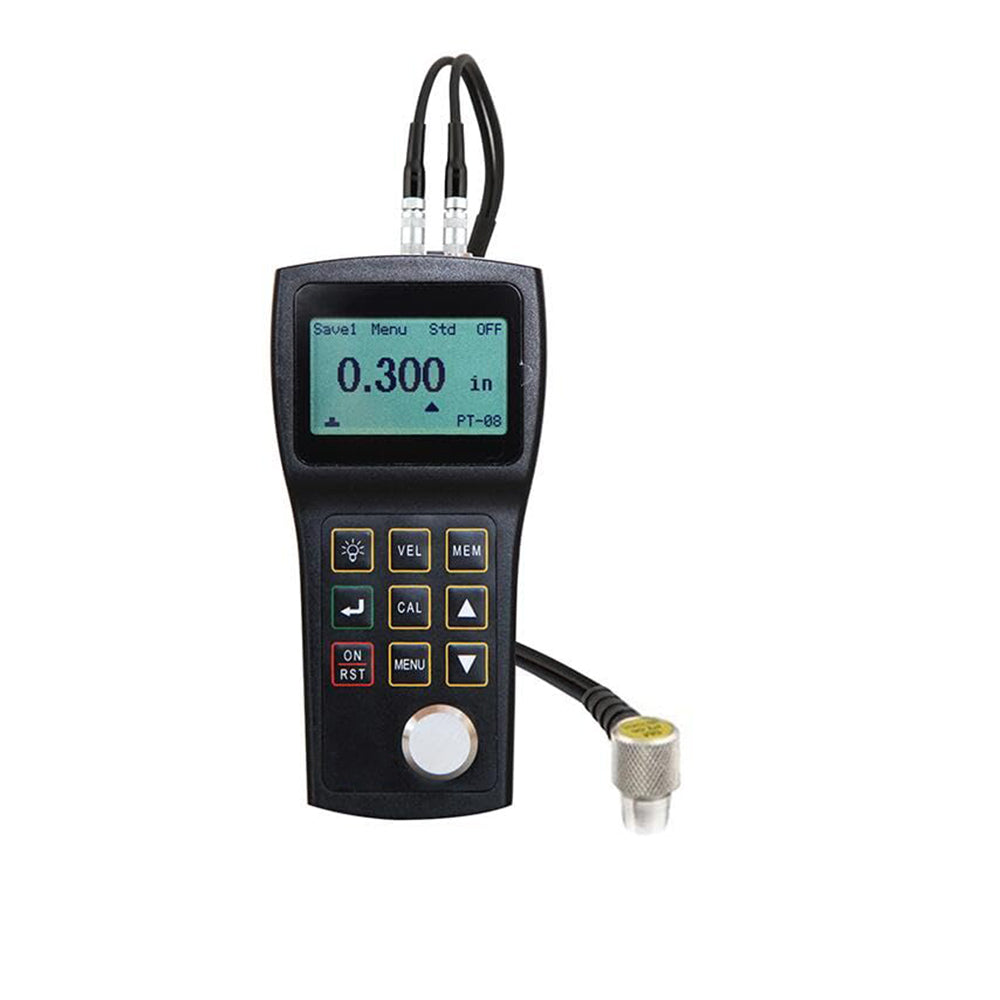

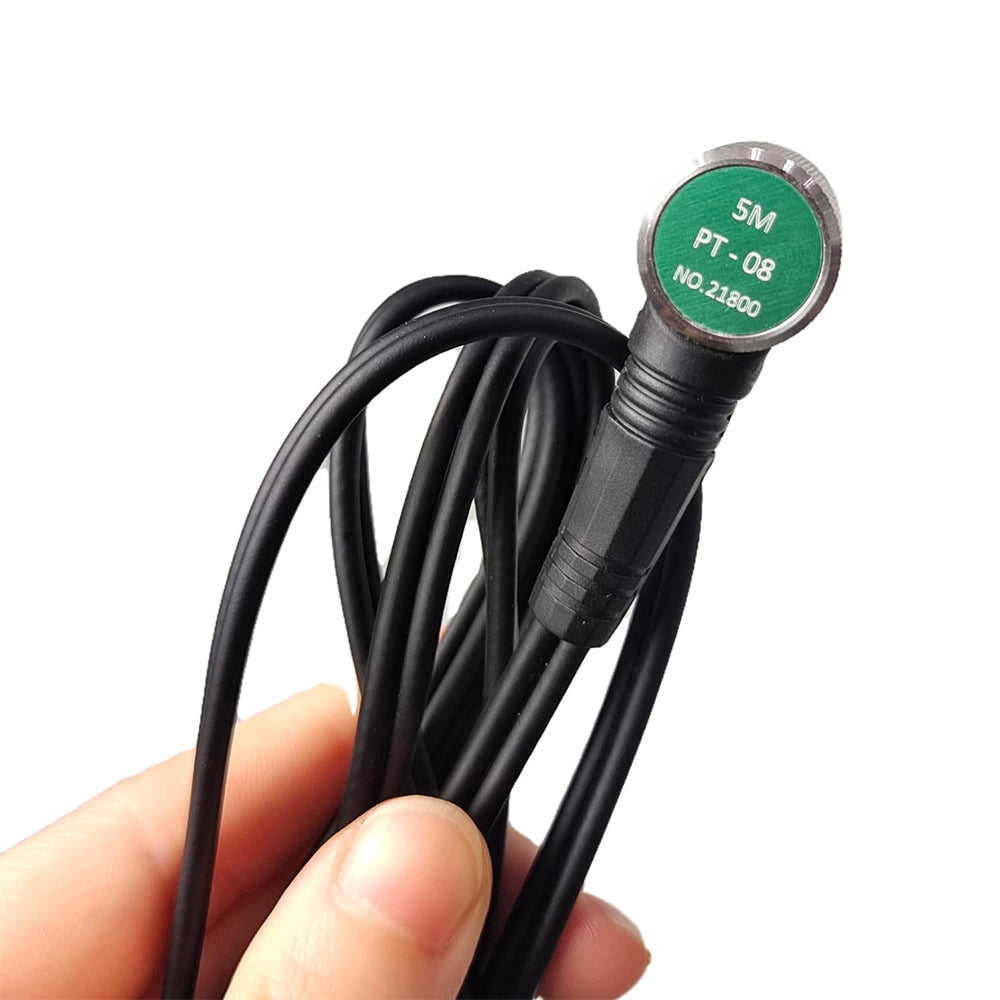

◆(1) Operating Principle: Ultrasonic Pulse/echo Method,E-E (echo-echo) Method; Measuring Range : 0.8mm to 300mm; 0.031in to 11.81in(depending on probes、materials、surface conditions) ;3.0mm to 20mm; 0.118in to 0.787in in through coating mode,with 128×64 dot-matrix LCD screen EL backlight display , convenient to use in dark environment ;

◆(2)Ultrasonic Thickness Gauge measures the thickness of an object by precisely calculating the time of the probe sending ultrasonic pulse with the help of couplant (NOT INCLUDED)to the object and passing through the object until the probe receiving the reflection form the boundary.The operating principle is P-E(pause-echo),E-E (echo-echo).The measuring range is 0.8mm to 300mm; 0.031in to 11.81in in standard mode;3.0mm to 20.0mm,0.118in to 0.787in in through coating mode.

◆(3)Ultrasonic thickness gauges has through coating function.500 Thickness Values can be stored.Alarm Mode, Minimum Thickness Capture, Two-point Calibration, Automatic V-Path Correction ,7 Types of built-in transducer compensation line Function etc.

◆(4)Each machine is subjected to a non-linear calibration of 34 standard test blocks before leaving the factory to ensure measurement accuracy.

◆(5)Ultrasonic thickness gauges is used for measuring Metal and Nonmetal Materials, include Plastic thickness measurement, Steel/Pipe thickness measurement, PVC thickness measurement and Glass Plates thickness measurement,etc.
