VTSYIQI Transformer DC Resistance Tester Meter Three Channel DC Resistance Tester with Built-in Thermal Printer Resistance  Range 0.0001mΩ~5000Ω Output Current Display 0.01mA~20.000A Four-Wire Test Measurement Method 500 Groups Data Storage

About this item

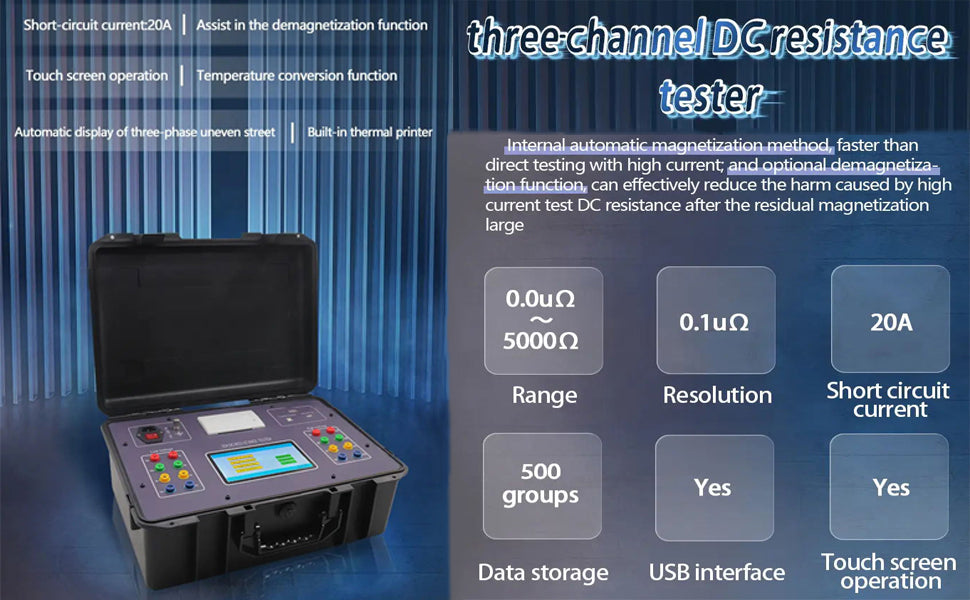

(1) {Function}--------DC resistance measurement, transformer DC resistance measurement

(2) {Direct-current Resistance range}--------0.0001mΩ~5000Ω; precision：±0.2%FS±5dgt; minimum resolution ：0.001mΩ

(3) {Output current display}--------0.01mA~20.000A ; {Short circuit test current}--------0.2A、0.5A、2A、5A、10A、20A(Level 6 Settings)

(4) {Measurement method}--------Four line test

(5) {Data Storage}--------500 Groups; Use to connect to the u-disk dedicated interface; Connect to computer dedicated software to query and save data through USB cable

(6) {Display mode}--------7-Inch touch color screen

(7) {Printer}--------Built-in thermal printer

Introduction:

This DC resistance tester, also known as transformer DC resistance tester, is an important instrument to check whether the connection or mechanical characteristics between windings, windings and leads are good, and whether the resistance between each phase winding is balanced, so as to ensure the safe operation of the transformer.

Transformer DC resistance tester is a new type of instrument suitable for measuring the DC resistance of large-capacity transformer.

It is designed as a high-precision current-stabilized power supply and test module.

During the test process, it is controlled by a computer and automatically completes the steady state judgment, data acquisition, data processing and resistance measurement. Value display and printing.

This instrument can be used for longitudinal test of on-load voltage regulator with secondary power supply, which completely saves test time. It also has the temperature rise test function of the transformer manufacturer.

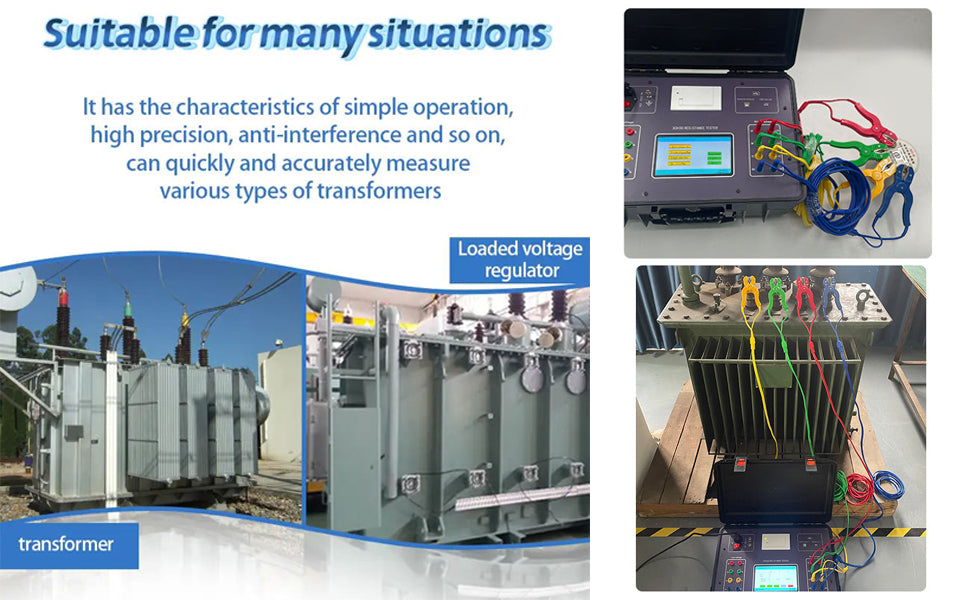

It has the characteristics of simple operation, high accuracy and anti-interference, and can measure various types of transformers quickly and accurately. The magnetic aid method is to charge the low winding by generating a magnetic field for the output current of the high winding.

With the help of the excitation ampere turns of the high voltage winding, the winding inductance is greatly reduced by passing a small current to shorten the measurement time and achieve the purpose of rapid measurement.

It should be noted that when measuring the DC resistance of low voltage winding with magnetic aid method, the current direction of high and low voltage winding on the same iron core column must be the same, so as to play the role of magnetic aid.

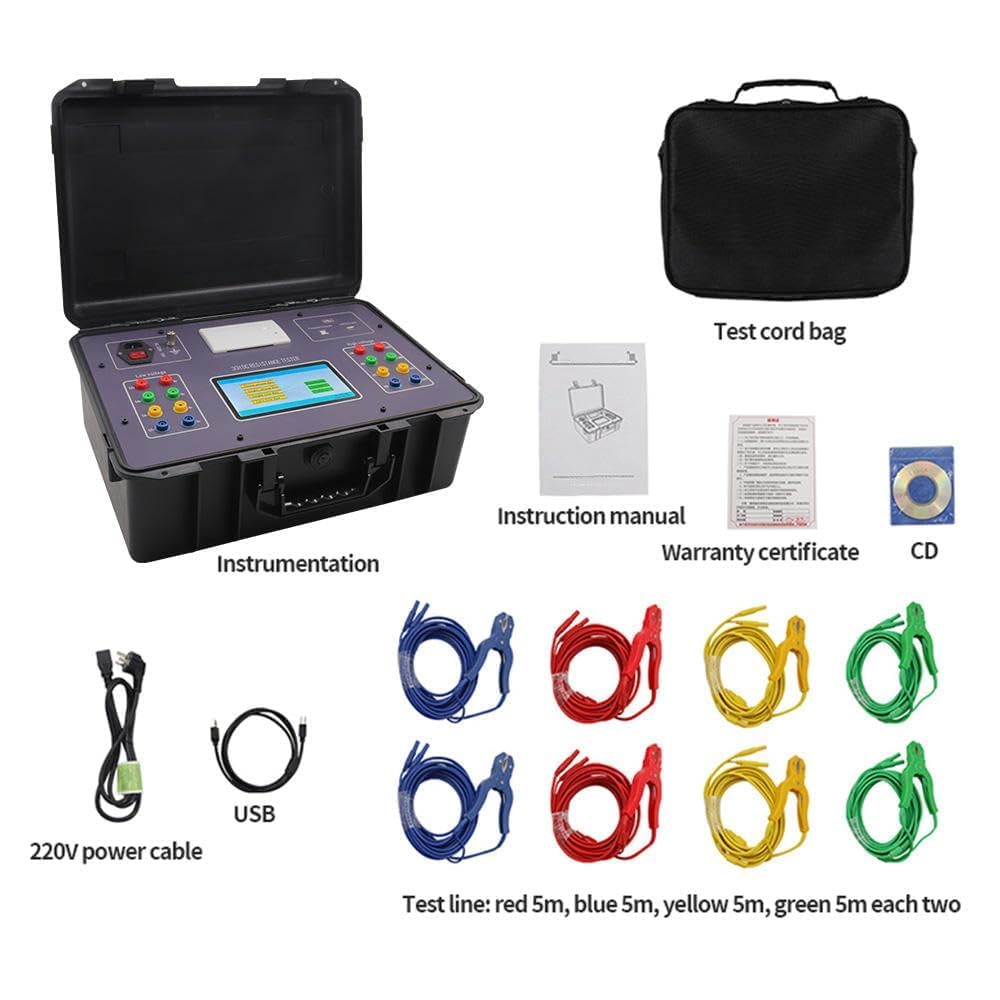

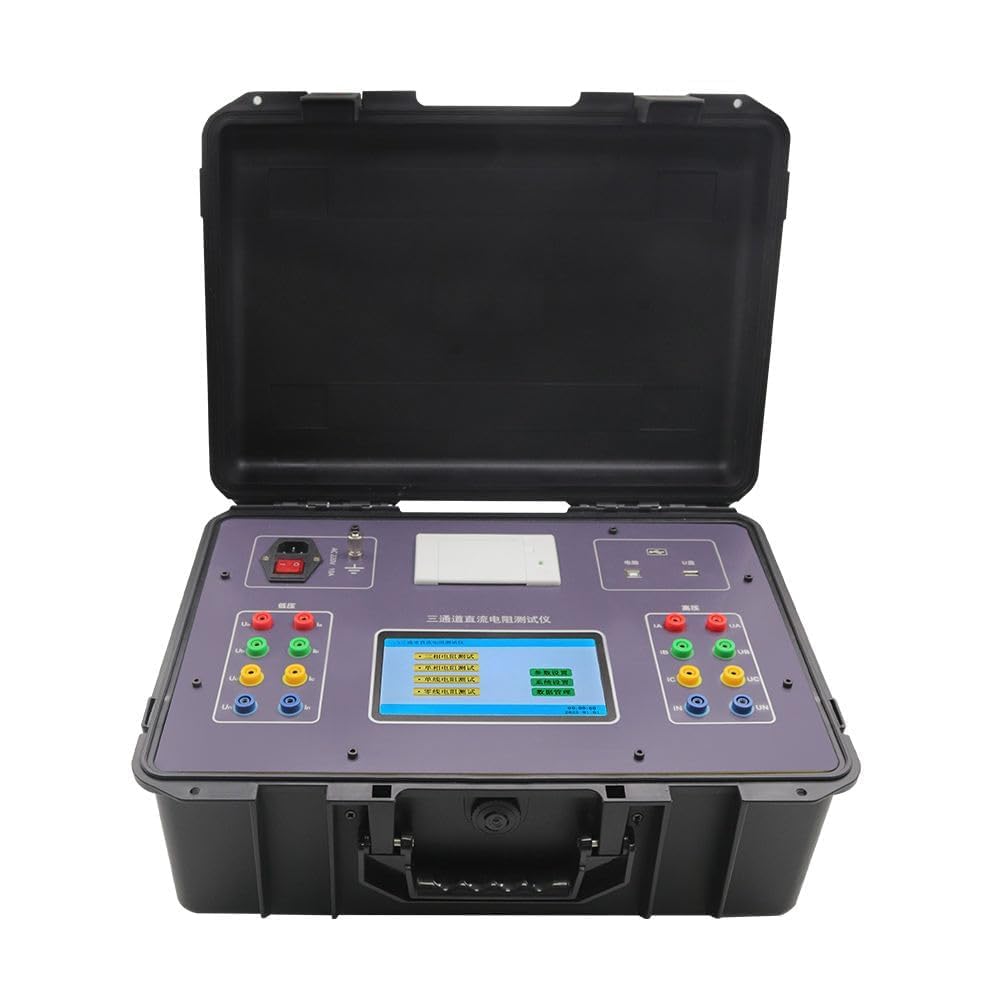

This DC resistance tester is composed of host, test line, etc. It has the functions of reading, consulting, saving and printing historical data

Specification:

function:DC resistance measurement, transformer DC resistance measurement

direct-current resistance:0.0001mΩ~5000Ω precision：±0.2%FS±5dgt minimum resolution ：0.001mΩ

Output current display:0.01mA~20.000A

The conversion resistance:The winding material can be converted to measure the temperature

Three-phase imbalance rate:Three-phase winding imbalance rate is automatically displayed.

Partition position:The tap position can be manually set in the setting interface.

overload protection:have

self discharge:have

Rated measurement power:1000W

source:AC 220V 10A (50Hz)

be in a poor light:Adjustable back brightness

Measurement method:Four line test

Magnetic testing:High and low voltage output current, test the resistance of the low voltage end

Short circuit test current:0.2A、0.5A、2A、5A、10A、20A(Level 6 Settings)

Short circuit maximum current:DC 20A±10%

No-load maximum voltage:DC 27V±10%

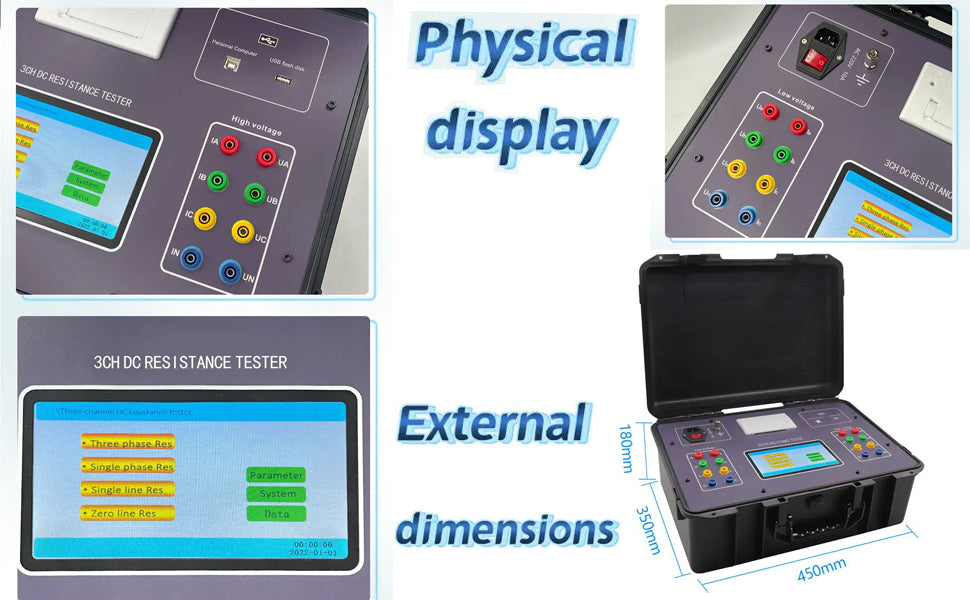

Display mode:7-Inch touch color screen

touch screen:yes

Measuring instructions:Measurement progress display and measurement prompt animation display

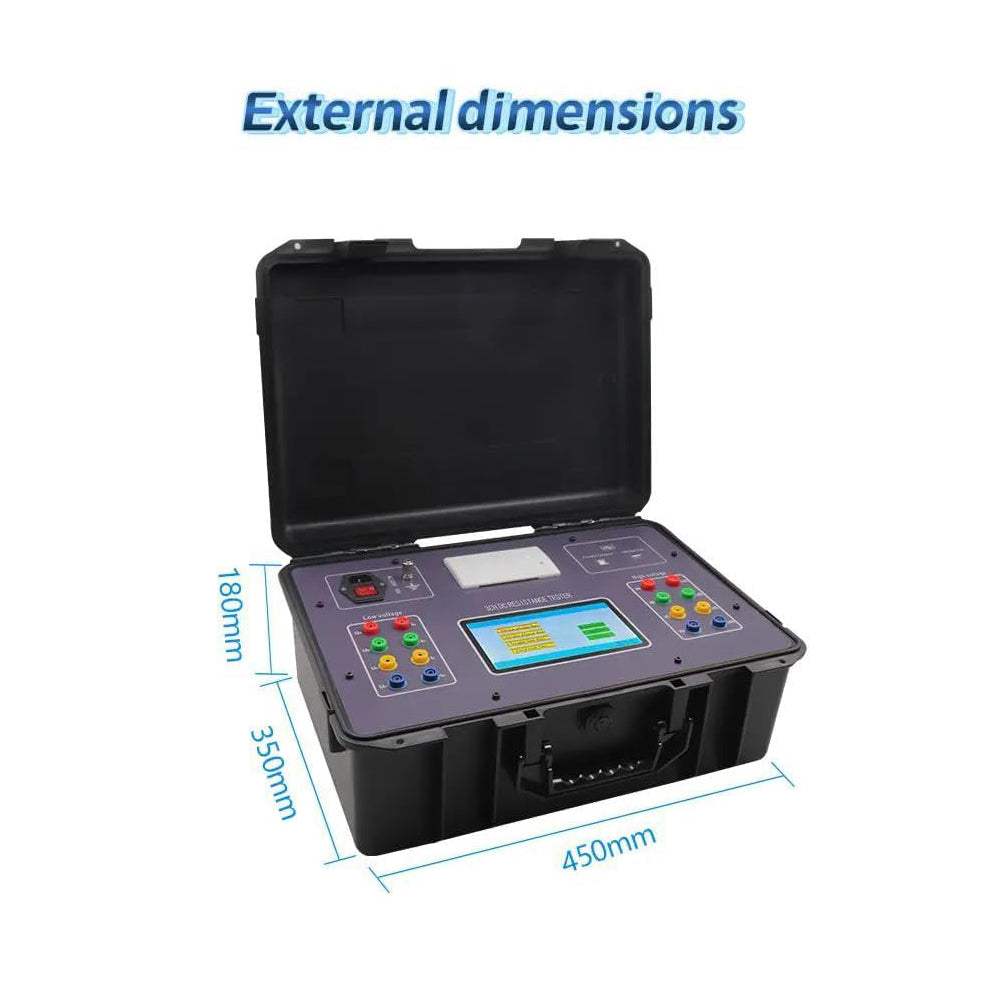

Measuring instructions:length, width and height：450mm×350mm×180mm

The standard test line is long:Article 8

U disk interface:Use to connect to the u-disk dedicated interface

USB joggle:Connect to computer dedicated software to query and save data through USB cable

put a seal on:Built-in thermal printer

Print paper specifications:57*40mm

data storage:500 Groups

Data access:have

Overflow display:Overload overflow function: The OL symbol display

auto shut off:NO

power dissipation:bide one's time : <110W ; measure：1000W

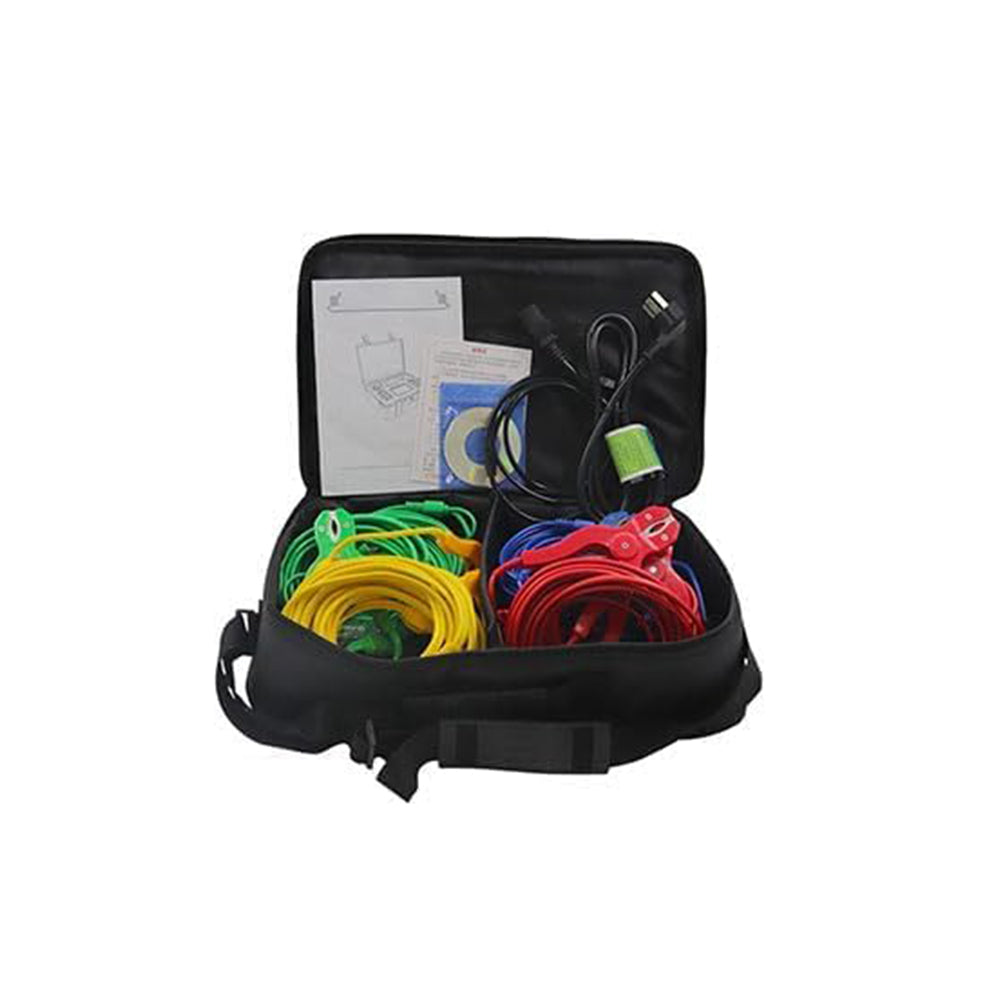

quality:meter：27 kg ; Test the line, pack the line bag：5.0kg

Working temperature and humidity:-10℃～40℃；80%rh below

Store temperature and humidity:-20℃～60℃；70%rh below

insulation resistance:Over 10MΩ(500V between the circuit and the housing)

withstand voltage:AC 3700V/rms(Between the circuit and the housing)

Suitable for safety regulations:IEC61010-1、IEC1010-2-31、IEC61557-1,5、IEC60529(IP54)、Pollution, etc、CAT Ⅲ 300V
