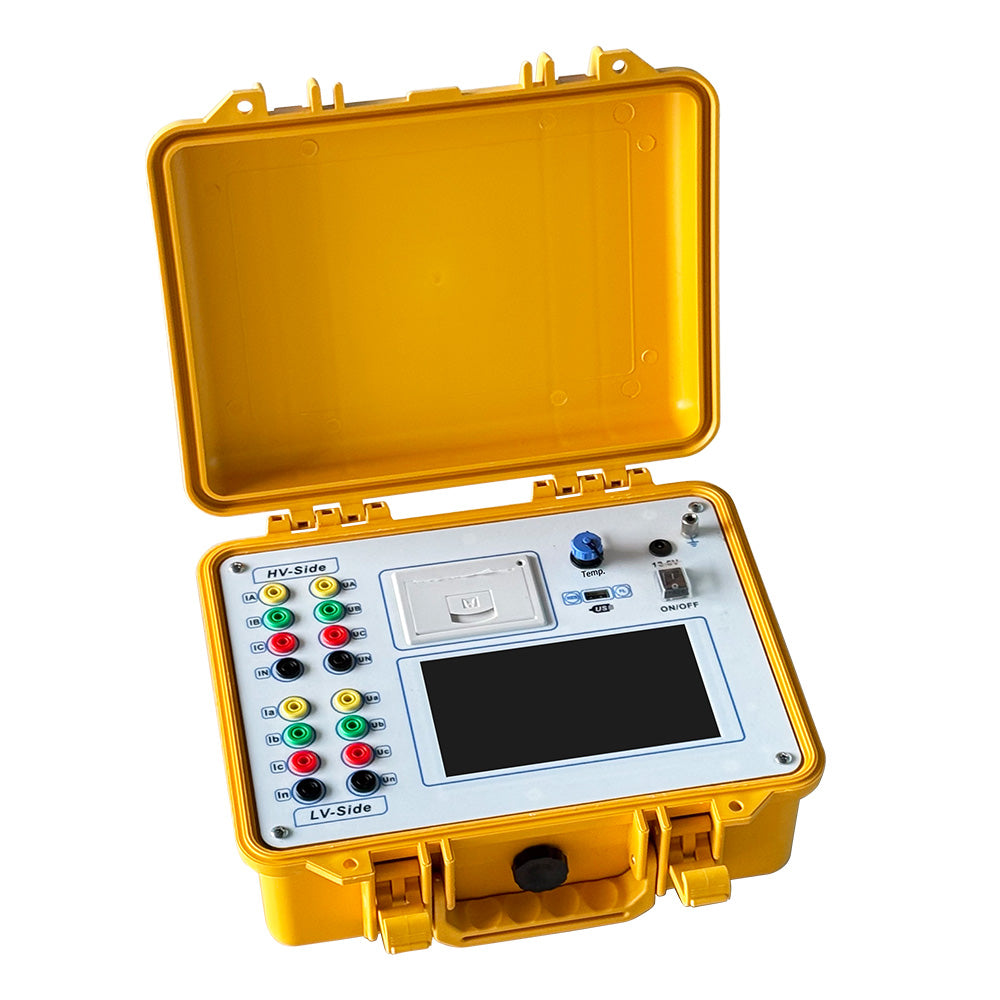

1.Overview
The basic test parameters for transformers—turn ratio and direct resistance—are commonly performed. we has developed a portable instrument capable of conducting both turn ratio and direct resistance tests with a single wiring setup, thereby enhancing testing efficiency.

2.Performance Features

Transformer Turns Ratio Test Part

2.1 The three-phase CNC sine wave inverter delivers output with soft-start and soft-stop functions, ensuring fast testing speed and high accuracy.
2.2 Testing functions for the transformation ratios, types, and polarities of three-phase transformers, single-phase transformers, PTs, CTs, and Z-type transformers.
2.3 The three-phase test features line-to-line voltage ratio, line-to-phase voltage ratio, turn ratio, vector diagram, and group connection testing functions.
2.4 Features angular difference testing capability during single-phase testing.
2.5 The tap position range can be tested up to 99 positions.
2.6 Wide measurement range, up to over 2000.
2.7 High/Low Voltage Connection Reversal Warning.
2.8 Output short-circuit alert.

DC Resistance Test Part

2.9 CNC constant-current source with DSP-controlled power supply for higher efficiency.
2.10 Can measure the DC resistance of inductive components in the windings of single-phase and three-phase transformers.
2.11 Automatic test termination, discharge, and wiring removal prompts.
2.12 A temperature sensor can be configured to measure the transformer temperature, or it can be entered manually.
2.13 The clock and date display remain functional when power is off; data is stored locally with 100 test records available for transfer to a computer (PC).
2.14 Thermal printer printing function.
2.15 Compact size and lightweight design for easy portability and use.

3. Technical Specifications

Transformer Turns Ratio Test Part

Range：0.9～2000

Accuracy    ：
±(Reading × 0.1% + 2 digits) (for values ≤ 200)
±(Reading × 0.2% + 2 digits) (greater than 200 and less than or equal to 500)
±(Reading × 0.3% + 2 digits) (for values greater than 500)

Resolution ratio：
0.9～9.9999（0.0001）
10～99.999（0.001）
100～999.99（0.01）
1000～1999.9（0.1）
Above 2000 (0.1)

DC Resistance Test Part

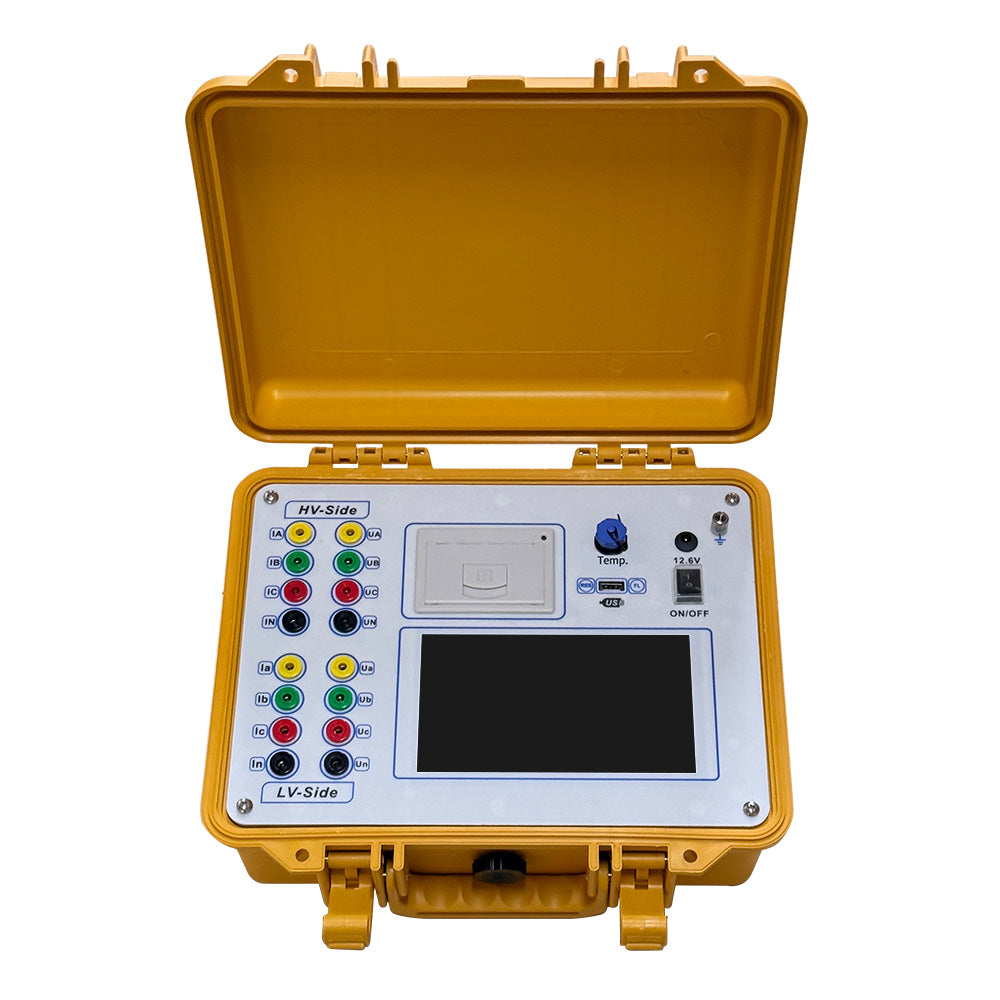

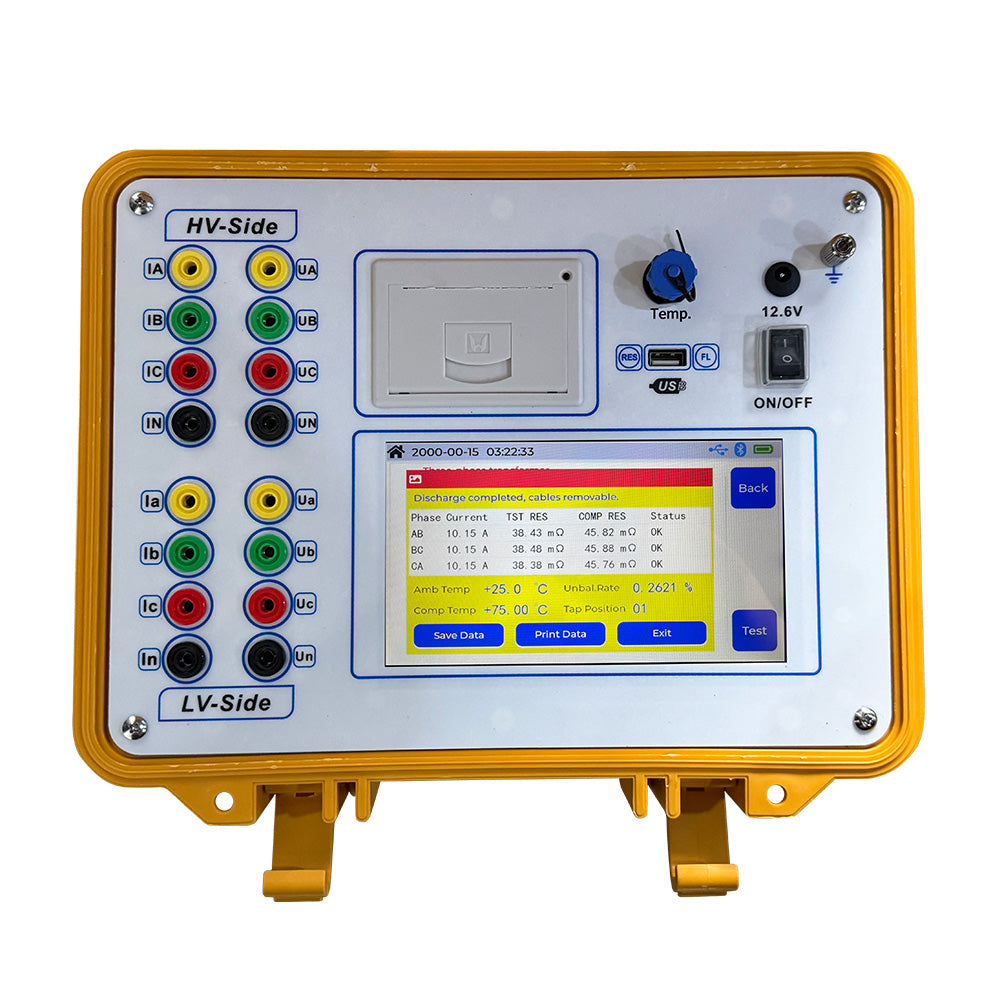

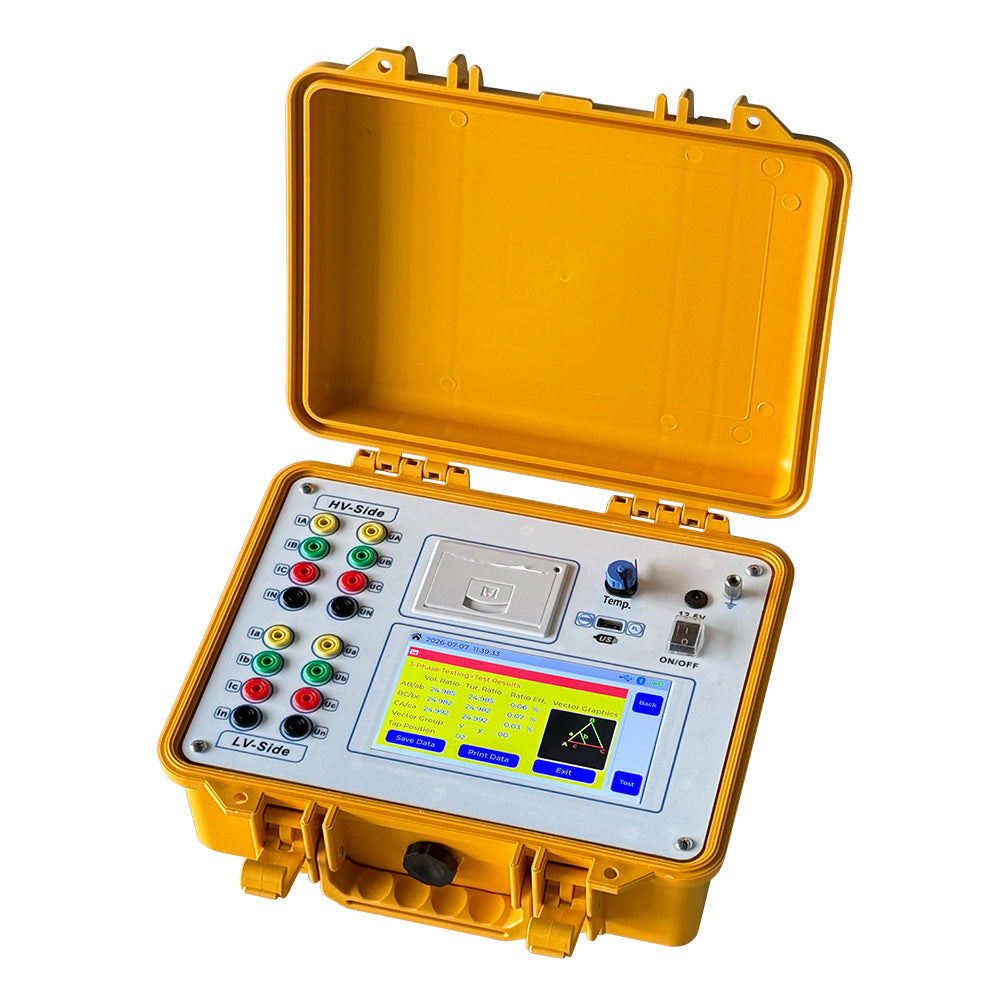

4.Introduction to Panels and Terminal Blocks

①High-voltage test terminal: A four-color terminal block (yellow, green, red, black) corresponding to three-phase current outputs IA, IB, IC and neutral point IN; the other end features four-color test probes (yellow, green, red, black) for measuring three-phase voltage samples UA, UB, UC and neutral point UN on the high-voltage side of the transformer under test.
② Low-voltage test terminal: A four-color terminal block (yellow, green, red, black) corresponding to three-phase current outputs Ia, Ib, Ic and neutral point In; the other end of the test wire features four-colored test clamps (yellow, green, red, black) for measuring three-phase voltage samples Ua, Ub, Uc and neutral point Un on the low-voltage side of the transformer under test.
③ Printer: Print the test results.
④ Temperature sensor connection port.
⑤ Charger interface.
⑥ Grounding terminal of the instrument housing.
⑦USB port: Allows data stored on this device to be transferred to a computer (PC) via a data cable.
⑧ Device Switch.
⑨Display: A 7.0-inch color touch LCD with an 800×480 TFT resolution, displaying operation menus and test results.

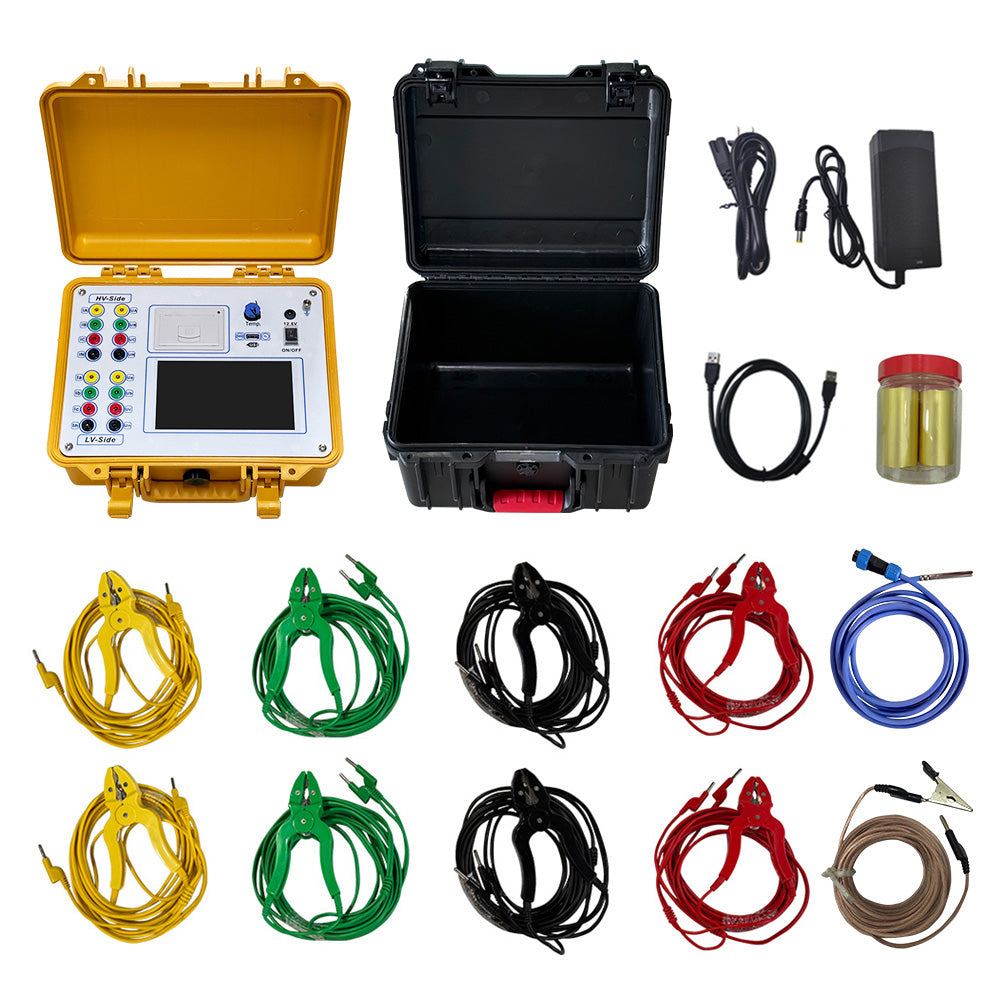

5.Product Accessories

Host    ：1 unit
Test Cable：8 items
Data cable：1 Item
Ground wire：1 Item
Power cord：1 set
Temperature sensor：1 Item
Standard resistor：1 item
Printer paper：Volume 2
Certificate of conformity：1 copy
Instruction manual：1 copy
Calibration Certificate：1 copy
