• Home
  • VTSYIQI Twelve Angles Spectrophotometer D/8 Colorimeter Color Matching Instrument with Excellent Repeatability Display Resolution 0.01 for Printing Paint Textiles

VTSYIQI

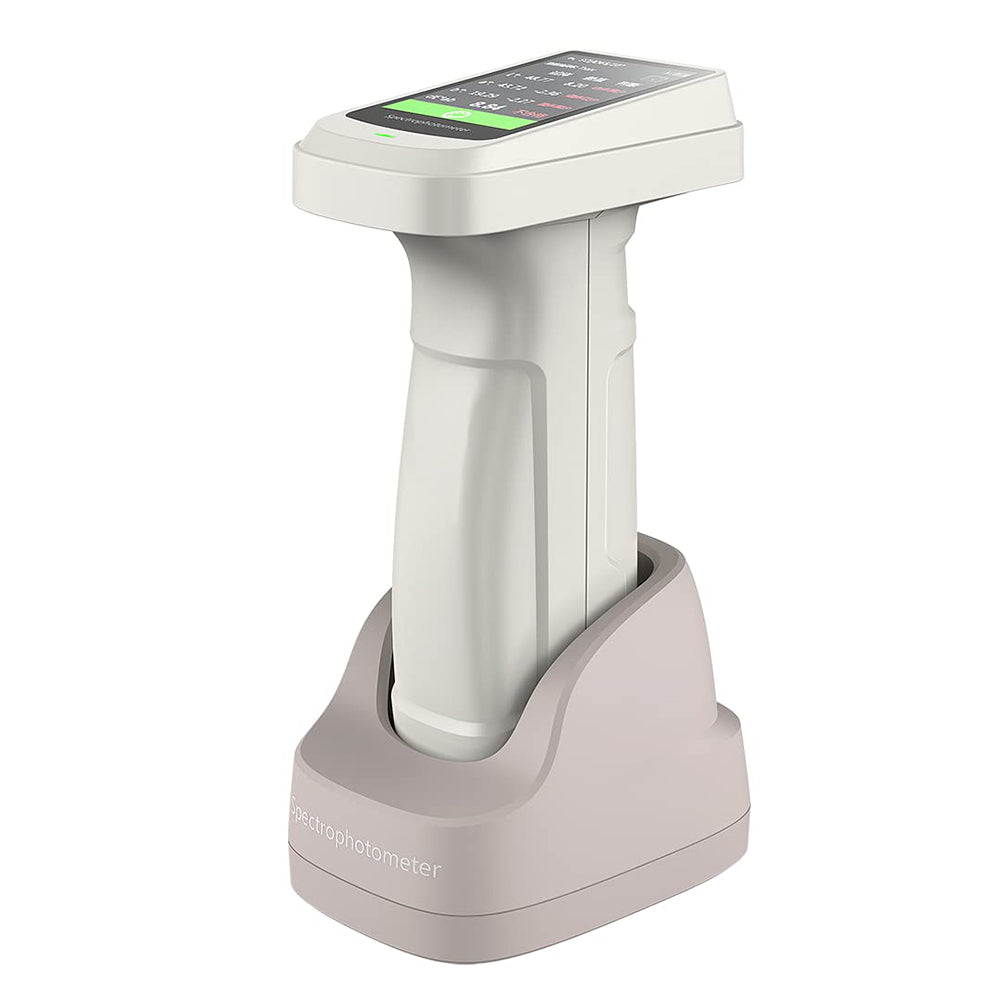

VTSYIQI Twelve Angles Spectrophotometer D/8 Colorimeter Color Matching Instrument with Excellent Repeatability Display Resolution 0.01 for Printing Paint Textiles

$2,85000
In stock
$2,85000

Customer Service

Post your customer service details here.

Return Policy

Post your policy conditions details here.

Product Description

(1)Ultra-high repeatability accuracy:dE*ab≤0.02

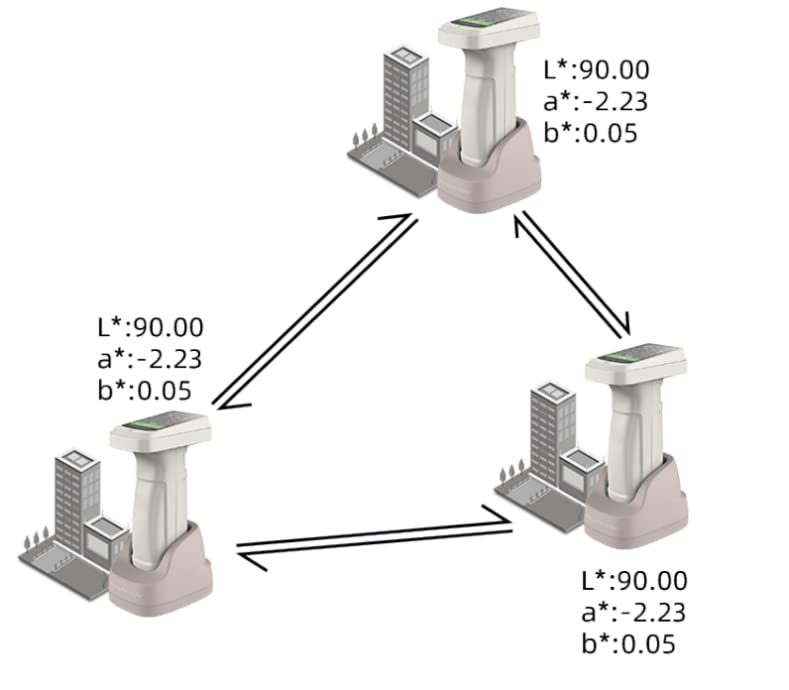

(2)Excellent inter-stage consistency:dE*ab≤0.25

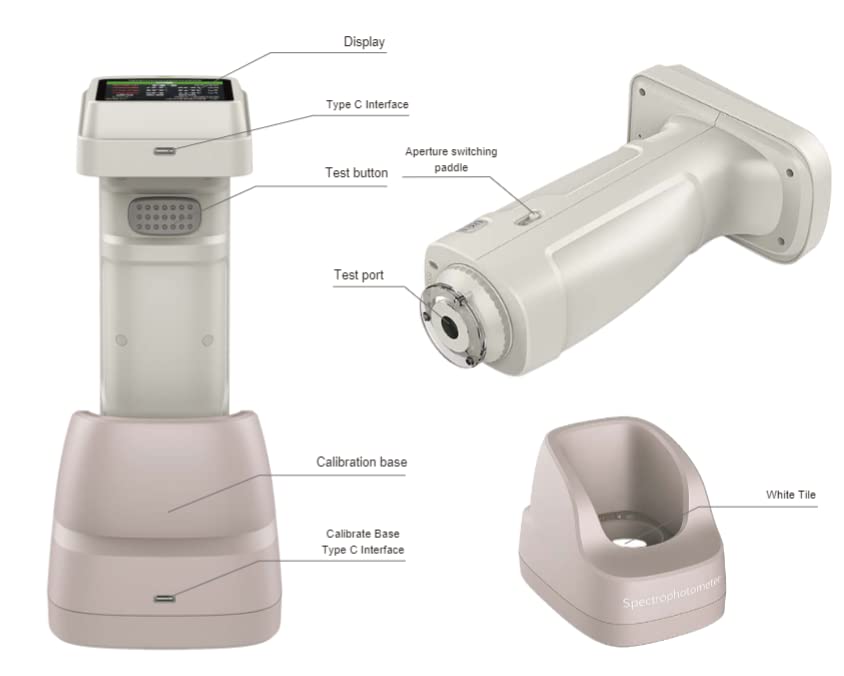

(3)The calibration base and zirconium reference with Mohs hardness of 9 are used to calibrate the instrument, which ensures the long-term stability of the instrument

(4)More than 30 measurement parameters and nearly 40 evaluation light sources are available for selection

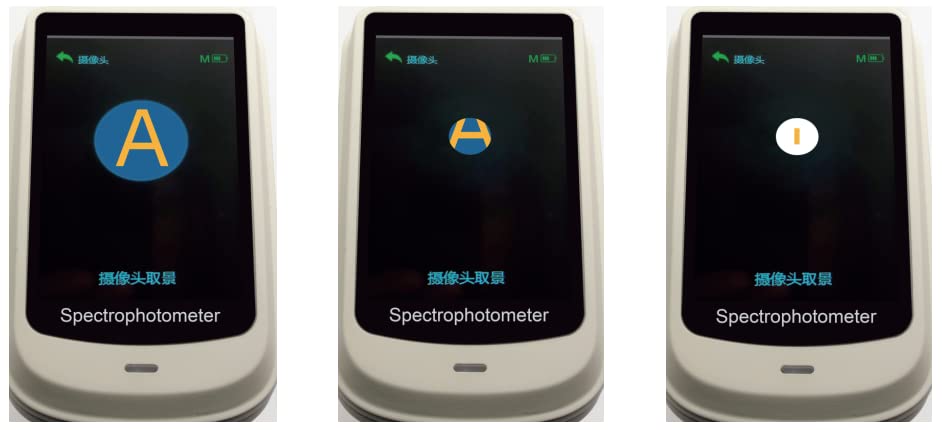

(5)Built-in high-definition camera for clear observation of the tested area

Product Description

Name ：Spectrophotometer

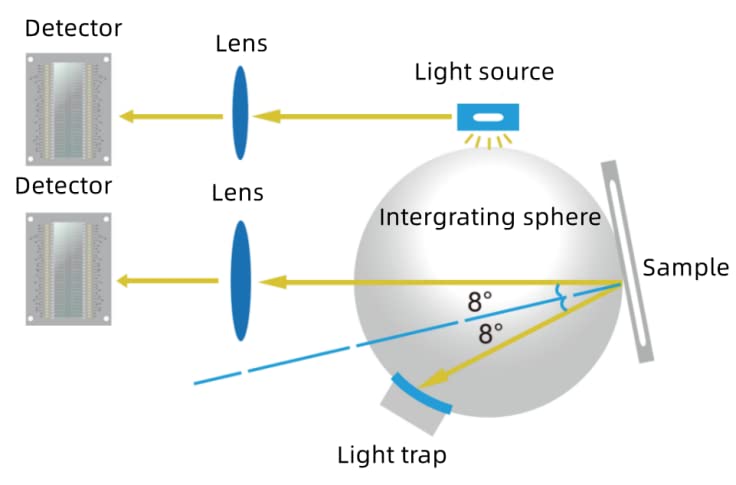

Geometry*：D/8,SCI+SCE

Repeatability**：dE*ab≤0.02

Inter-Instrument Agreement***：dE*ab≤0.25

Display Resolution：0.01

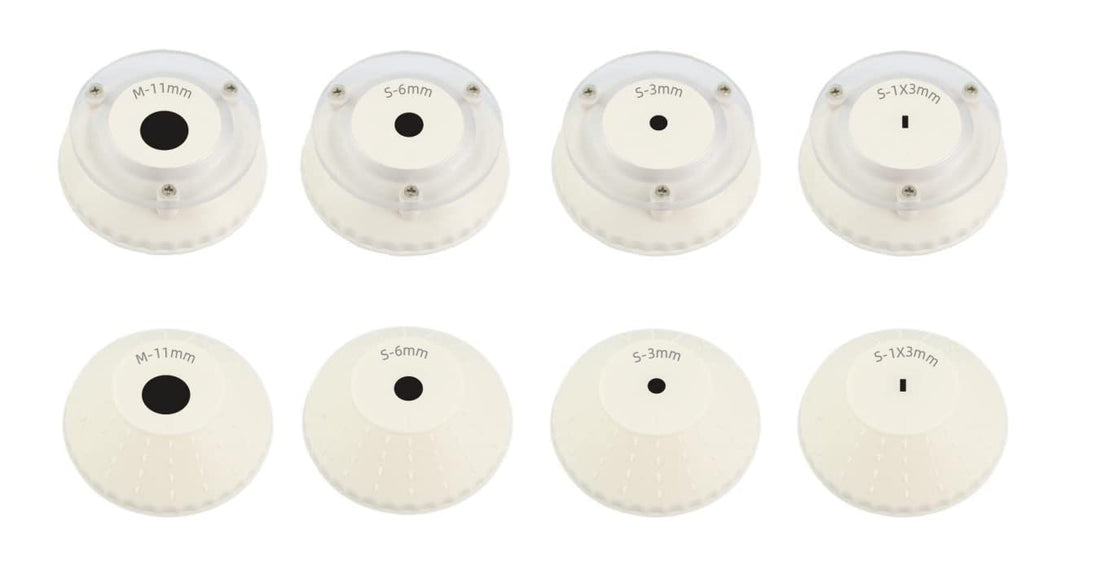

Measuring aperture

8 stable and smart：Φ11mm，Φ6mm，Φ3mm，1*3mm

▽11mm，▽6mm，▽3mm，▽1*3mm

Measurement index

Spectral reflectance,CIE-Lab,CIE-LCh,HunterLab,CIE-Luv,XYZ,Yxy,RGB,

chromatic aberration(ΔE*ab,ΔE*cmc,ΔE*94,ΔE*00),whiteness(ASTM E313-00,ASTM E313-73,CIE/ISO,AATCC,Hunter,Taube Berger Stensby),Yellowness(ASTM D1925,ASTM E313-00,ASTM E313-73),Blackness(My,dM),Color fastness,Staining fastness,Tint(ASTM E313-00),Color densityCMYK(A,T,E,M),Metamerism indexMilm,Munsell,covering power,Force share(Color Strength)

Wavelength interval：10nm

Wavelength range：400-700nm

Reflectance Range：0-200%

Reflectivity resolution：0.01%

Measurement time：About 1 seconds

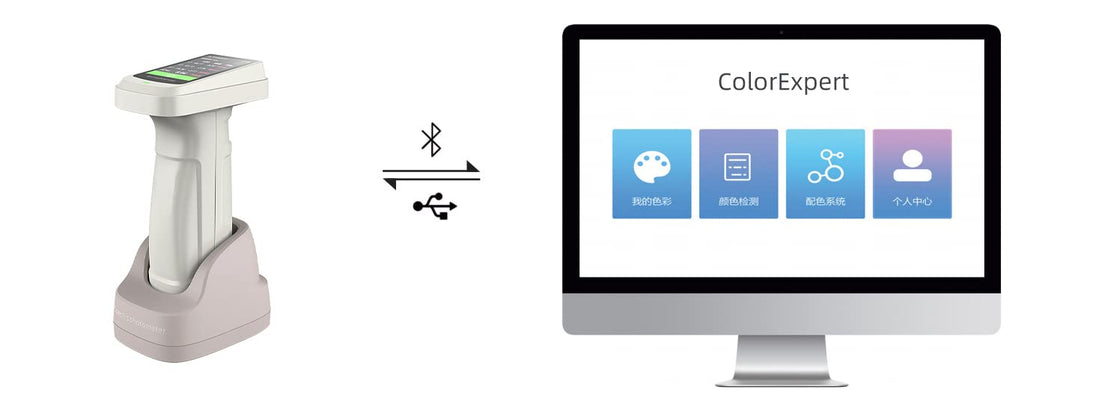

Interface：USB，Bluetooth

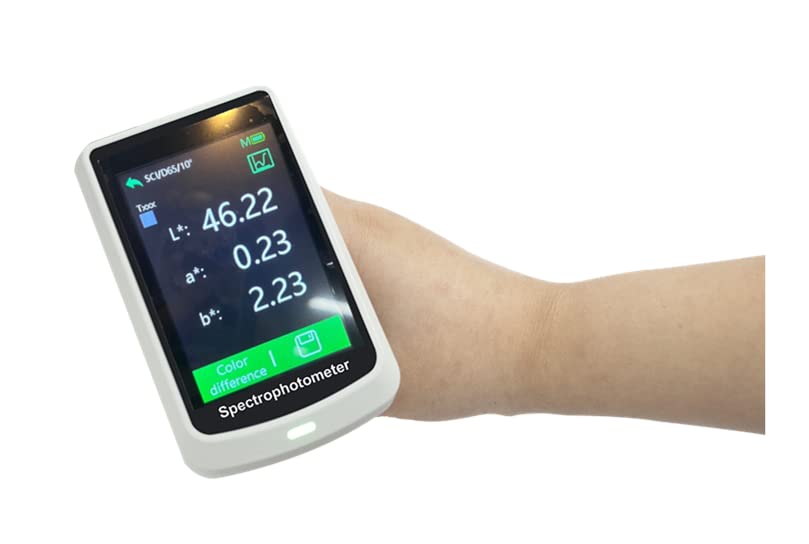

Screen：Full color screen，3.5 inches

Battery capacity：Rechargeable, 8000 times continuous tests， 7.2V/3000mAh

Light source Lifetime：10 years, 1 million tests

Language：Chinese, English

Storage

Instrument: 100 standard samples and 10000 samples; APP: mass storage

Illuminants

A,B,C,D50,D55,D65,D75,F1,F2,F3,F4,F5,F6,F7,F8,F9,F10,F11,F12,CWF,U30,U35,DLF,NBF,TL83,TL84,ID50,ID65,LED-B1,LED-B2,LED-B3,LED-B4,LED-B5,LED-BH1,LED-RGB1,LED-V1,LED-V2

Light Source

Full-band balanced LED light source+UV

Measurement and observation mode

Camera

Calibration

Intelligent automatic calibration

Software support

Andriod,iOS,Windows,WeChat applet

Accuracy

Metrology Level I

Observer Angles

2°，10°

Sphere Size

40mm

Standards

CIE No.15,GB/T 3978,GB 2893,GB/T 18833,ISO7724-1,ASTM E1164,DIN5033 Teil7

Spectroscopic method

Raster

Sensor

Dual row high precision CMOS array sensor
