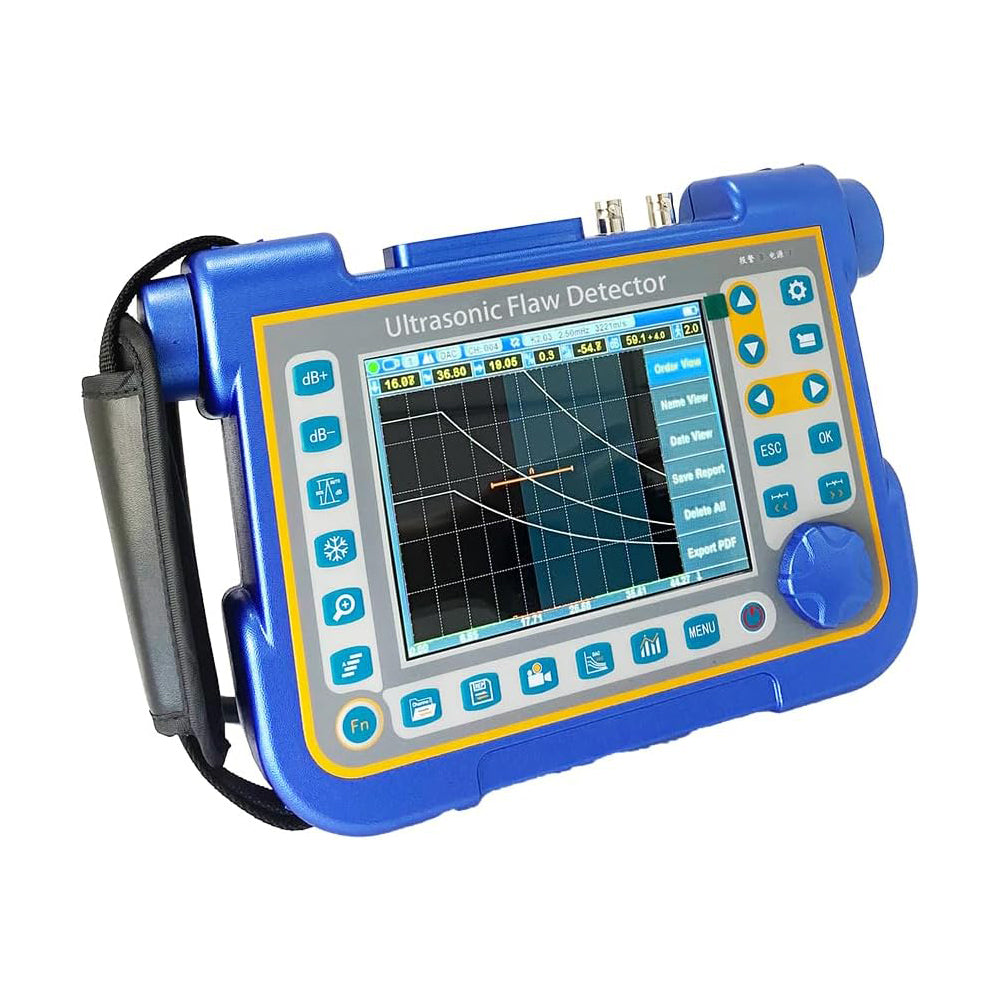

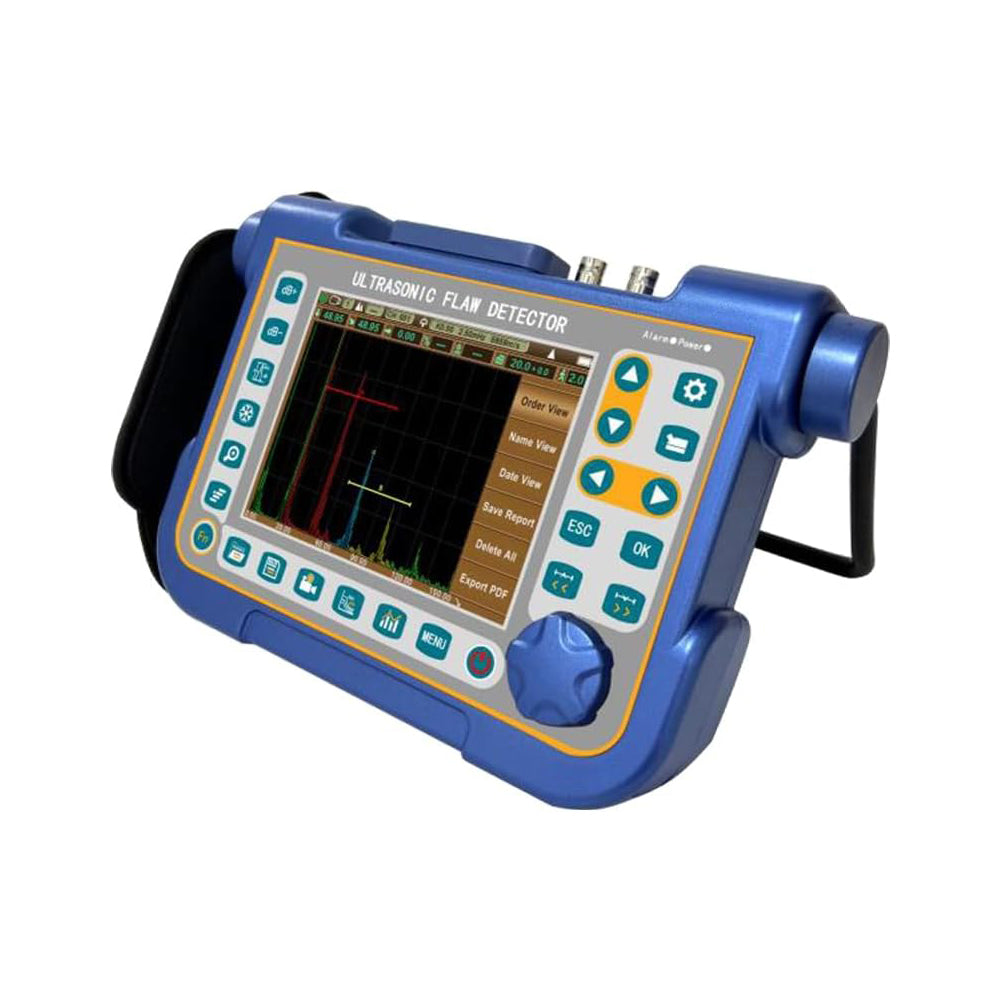

Gates Two fully independent gates offer a range of measurement options for signal height or distance using peak triggering. The echo-to-echo mode allows accurate gate positioning for signals which are extremely close together. High Accuracy ultrasonic flaw detector machine Gate Start: Variable over entire displayed range Gate Width: Variable from Gate Start to end of displayed range Gate Height: Variable from 0 to 99% Full Screen Height Alarms: Threshold positive/negative with LED Flash.

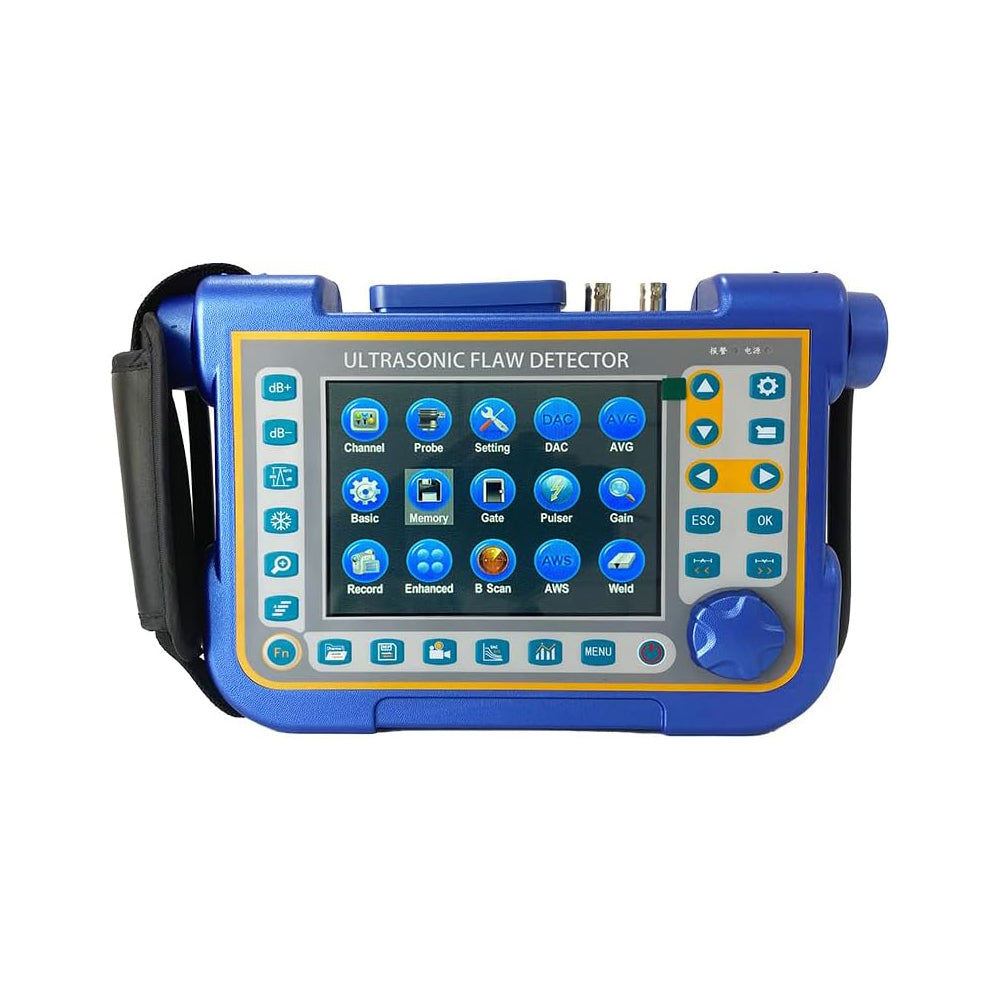

High precision ultrasonic flaw detectors Memory The instrument has a built-in large-capacity memory, and data and files will not be lost due to power failure of the instrument. Memory of 500 channel files to store calibration setups and probe parameter. Memory of 1000 wave report files to store A-Scan wave and settings. All the files can be stored, recalled and cleared. The channel settings and report files can be exported via U disk, and the information can also be stored in unlimited amounts via USB memory.

Video Recorder Video Recorder is useful in many situations, it is very convenient for those who want to analyze the probing activities later. The instrument can record the test process and save it as a video file, which can be played back through the instrument or special software. It supports up to 10 video files, and each video file can be up to 5 minutes long. If you choose to save the video file to the U disk, the number and duration of the video file will not be limited. Recording and replaying the testing process provides great convenience for future study and analysis of flaw detection. Video playback supports pause, fast forward, fast rewind, and stop functions.

Technical Parameters：

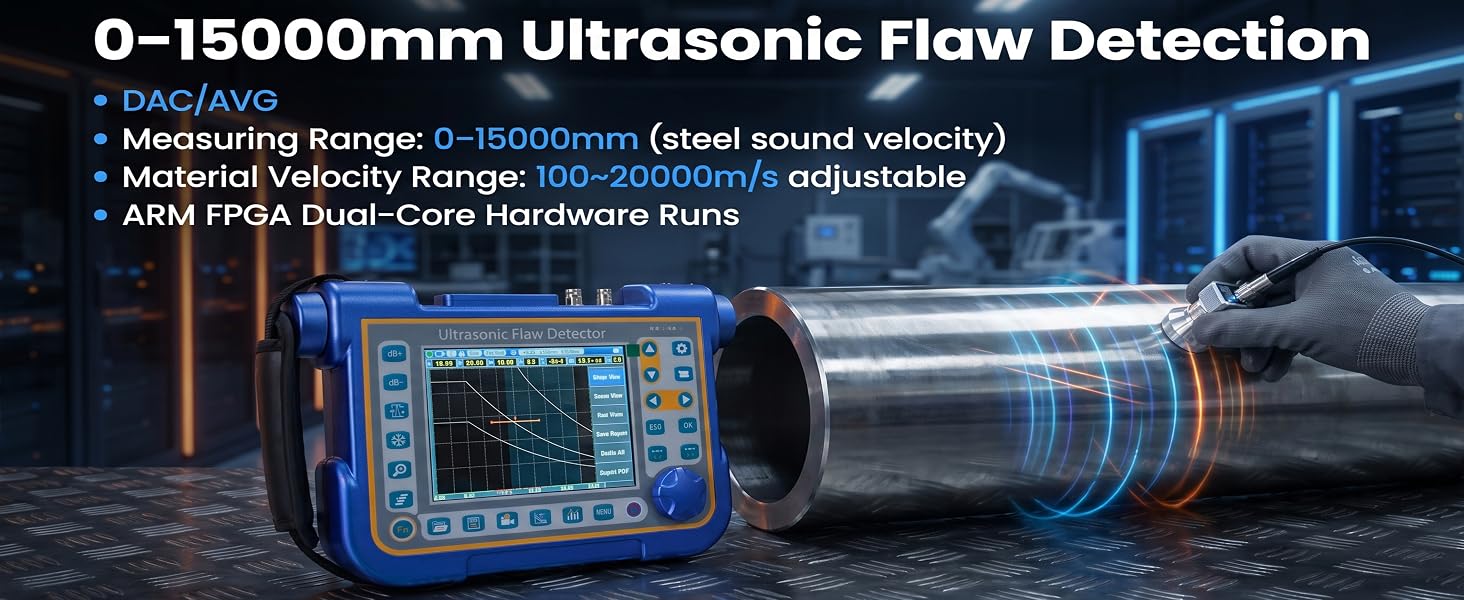

Measuring Range:    0–15000mm (steel sound velocity); max transmission distance up to 30m

Material Velocity Range:    100~20000m/s adjustable

Operational Stability:    Signal amplitude variation ≤±2%; signal time-base offset ≤±0.5%

Blind Zone After Transmit    Pulse: ≤9μs

Available Dynamic Range:    ≥100dB

Equivalent Input Noise:    ≤30 nV/√Hz

Sensitivity Leavings:    Over 50dB (200mm deep Φ2 flat-bottom hole)

Resolving Power:    Over 42dB

Dynamic Pulse Displacement:    Dynamic Pulse Displacement: Over 32dB

Noise Level:    Less than 15%

Display Delay:    -20 ~ 3400μs

Probe Delay / Zero Offset:    0 ~ 99.99μs

Unit Display:    Inch / Millimeter switchable

Probe Frequency Amplifier    Bandwidth Narrowband 1.0M(0.41-2.1) / 2.5M(1.4-3.6) / 5.0M(3.7-6.3) / 10M(8.2-11.8) / 15M(13-17) Wideband 1.0M(0.43-2.3) / 2.5M(1.0-4.0) / 5.0M(3.0-7.0) / 10M(7.5-12.5) / 15M(12.5-17.5)

Signal & Linear Error Index    - Attenuator Error: ≤±1.0dB (20dB span); ≤±2.0dB (60dB span) - Vertical Amplitude Linear Error: ≤2% - Horizontal Time-Base Linear Error: ≤0.5% - Repetition Frequency Accuracy: ±5% (20~2000Hz) - System Linearity: Vertical 1.5% FSH, Amplifier Accuracy ±1dB; Horizontal ±0.1% FSW - Max Gain: 110dB, adjustable steps: 0.1dB / 1dB / 2dB / 6dB - Digital Rejection: 0–90% (no impact on linearity & gain) - Reject Suppression: 0–80% full screen height

Pulse Transmitter System    - Pulse Type: Negative pulse wave - Transmit Pulse Voltage: -100V ~ -500V, grade switchable - Pulse Width: 30ns ~ 1000ns, continuous adjustable - Pulse Shift: -7.5μs ~ 3000μs - Pulse Repetition Frequency: 20Hz ~ 2000Hz - Probe Damping: 50Ω / 150Ω / 300Ω / 400Ω optional

Sampling & Detection Mode:     - Sampling Rate: 12-bit AD, 200Msps high-fidelity waveform collection - Detection Modes: Positive half-wave / Negative half-wave / Full wave / RF wave - Test Modes: Pulse echo / Dual element / Through-transmission

Gate & Trigger & Alarm： - Gate Types: Echo gate / Loss-of-echo gate; single-gate / dual-gate reading - Gate Control: Two independent full-range adjustable monitor gates - Trigger Mode: Peak trigger / Edge trigger - Alarm Functions: Echo alarm / Loss-of-echo alarm / Buzzer alarm / LED flash alarm - Rectification Mode: Positive half-wave / Negative half-wave / Full wave / RF

Storage & Video Recording ：- Testing Channel Storage: 500 groups of channel parameter files - Defect Report Storage: 1000 waveform defect reports - Report Format: Standard PDF testing report - Built-In Video Storage: 10 video files, max 5 mins per file, 30fps real-time waveform - External USB Storage: Unlimited video & report fileS

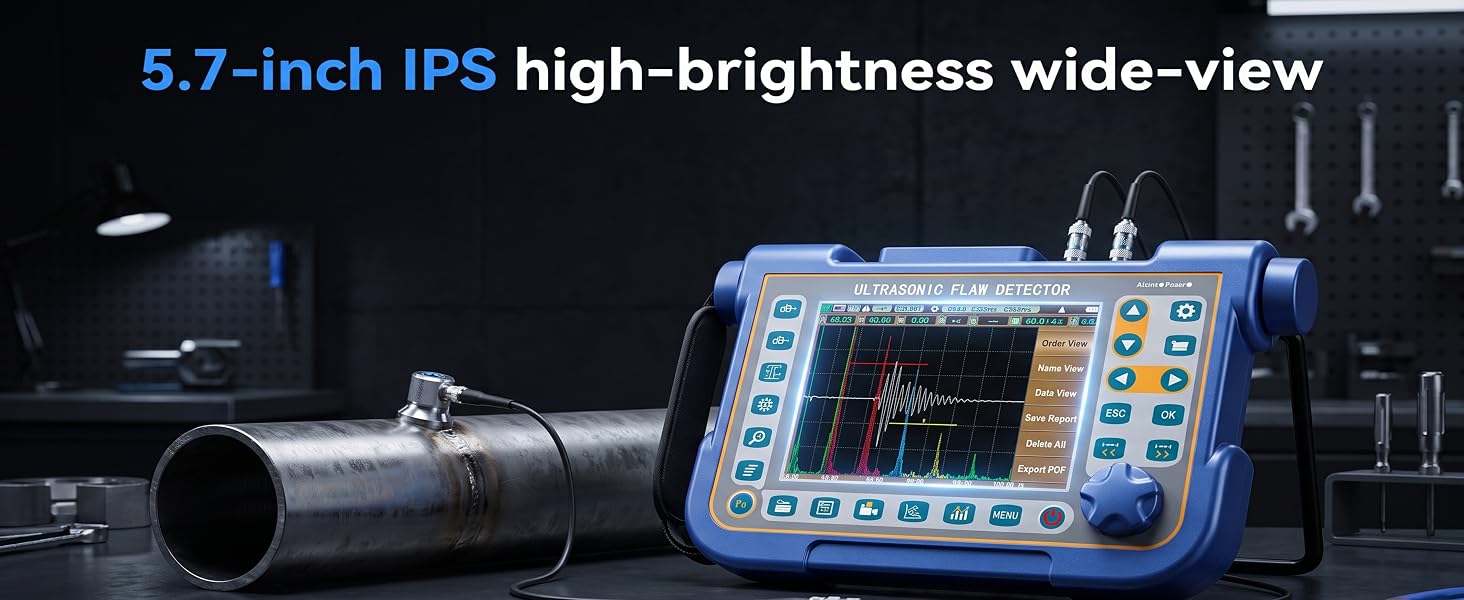

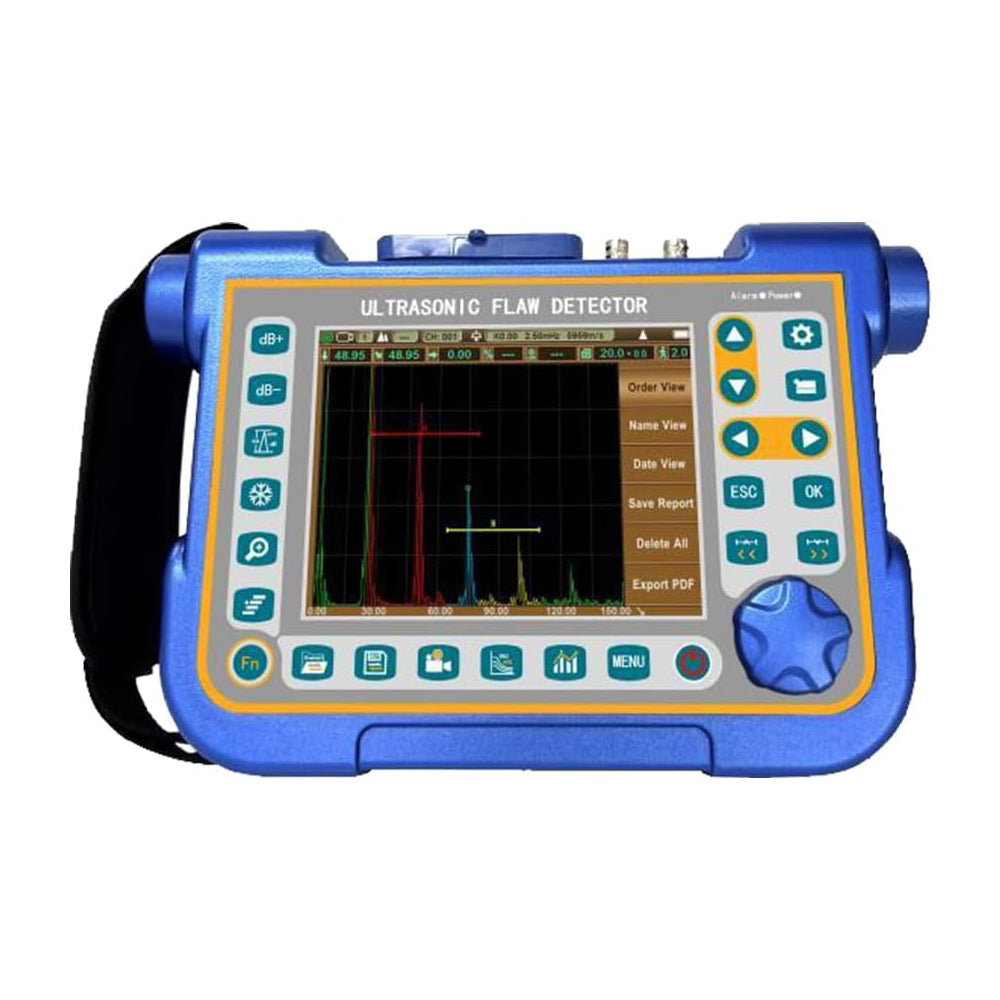

Display Screen Parameter： - Screen Spec: 5.7-inch IPS high-brightness wide-view digital LCD - Resolution: 640×480 - Refresh Rate: 60Hz fast refresh for real-time waveform update

Compatible Probe Interfaces： - Supported Probes: Straight probe / Angle probe / Dual-crystal probe / Through-transmission probe - Probe Zero Value Adjustment: 0μs ~ 999.9μs - Probe Interface: BNC / LEMO dual ports

Communication Interfaces： - Data Interface: USB 2.0 + RS232 dual communication ports

Body, Weight & Environmental： Adaptability - Dimension: 230×157×52 mm - Net Weight: 1.13 kg - Operating Temperature: -30℃ ~ 55℃ - Relative Humidity: 20–95% RH - Protection Grade: IP62 dustproof & waterproof housing

Power Supply：- Main Battery: DC 9V lithium battery, continuous working ≥12 hours - Charger Input: AC 100–240 VAC, 50–60 Hz universal mains

Industry Compliance Standard： - Testing Standard: Fully compliant with EN12668-1 international NDT industrial standard

Auxiliary & Advanced Functions：- Auxiliary Functions: Screenshot / Video record & playback / B-Scan display / Auto DAC/AVG curve generation / AWS acceptance rating / PC data analysis software - Advanced Functions: Weld diagram generation / Automatic probe frequency detection

Communication：Two High speed USB2.0 port. Two USB modes can be selected: U-DISK and U-BRIDGE. In U-DISK mode, channel Configuration files, flaw report files, screenshot pictures and recorded movies can be saved to U-DISK. In U-BRIDGE mode, the instrument exchanges data with DataPro Software

Knob： Two High speed USB2.0 port. Two USB modes can be selected: U-DISK and U-BRIDGE. In U-DISK mode, channel Configuration files, flaw report files, screenshot pictures and recorded movies can be saved to U-DISK. In U-BRIDGE mode, the instrument exchanges data with DataPro Software

Software upgrade：The software can be easily upgraded through U-DISK. The upgrade will not cause damage to the machine.

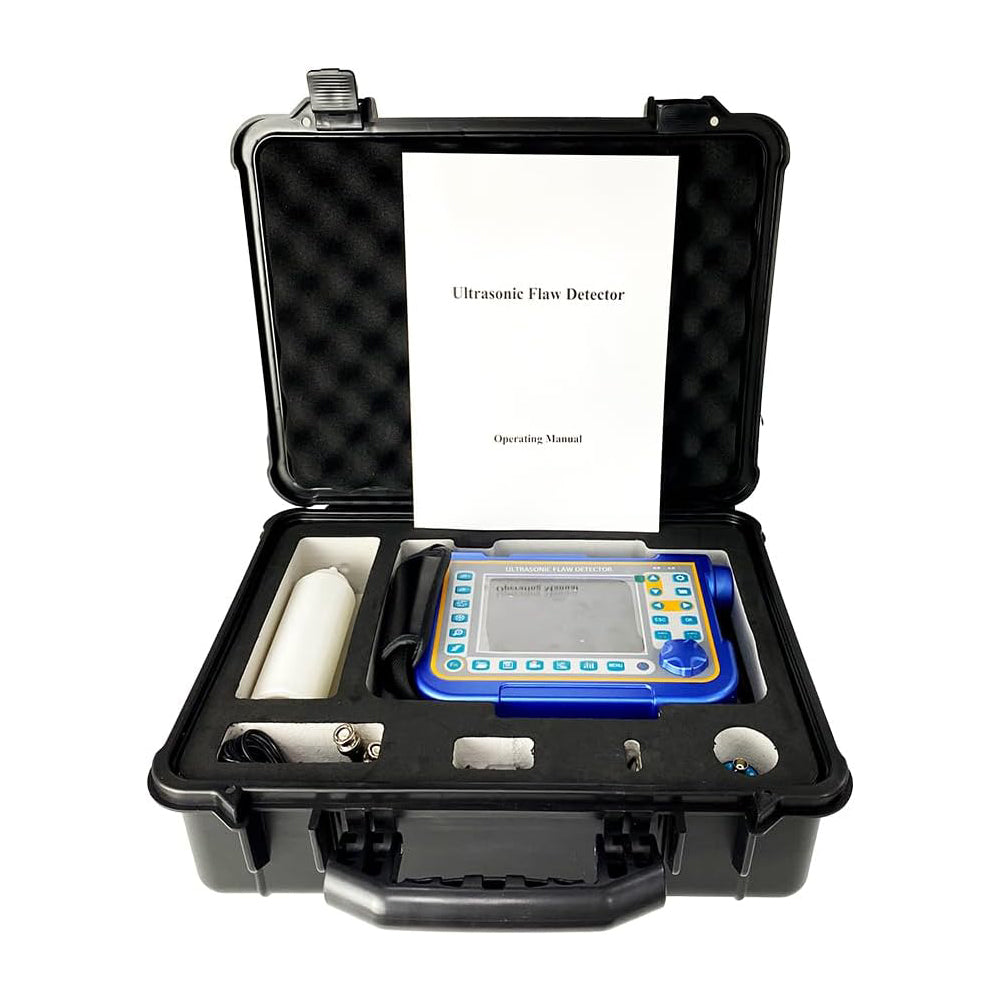

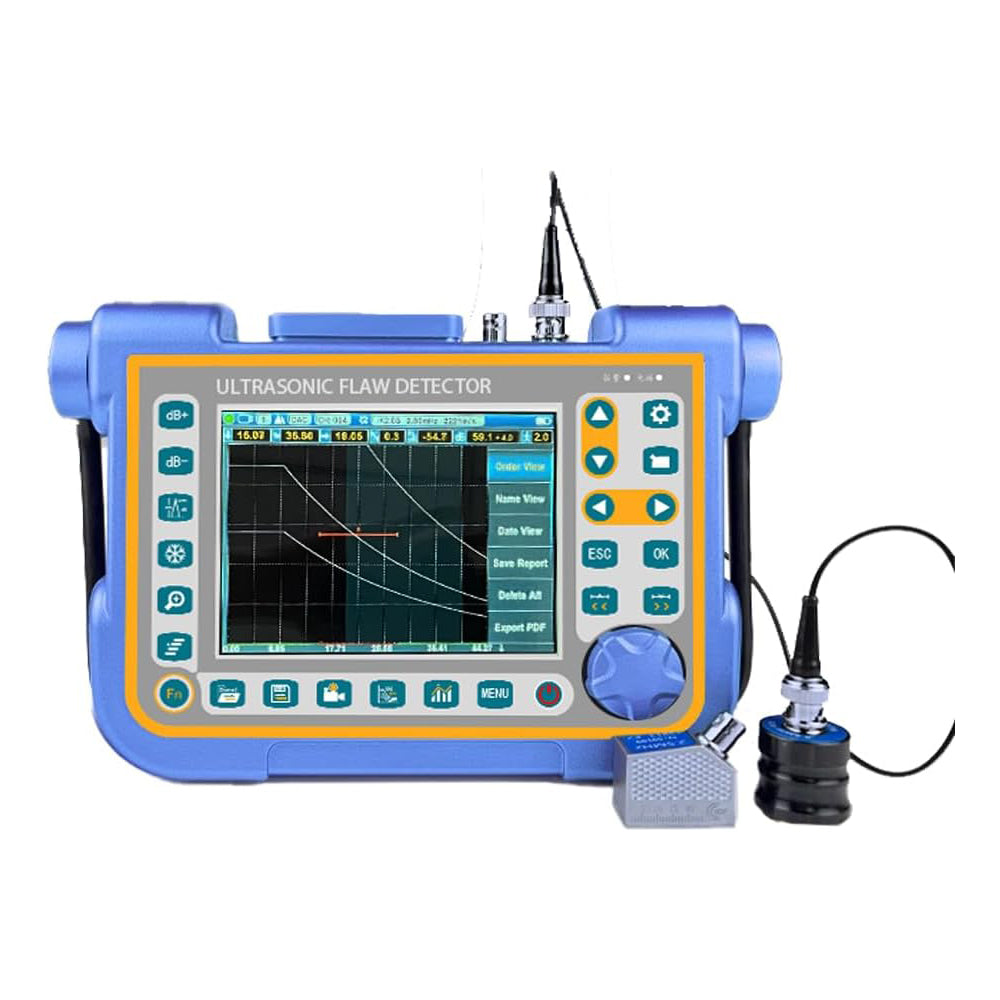

Base Instrument Package：Portable Ultrasonic Flaw Detector with multi-color TFT LCD Display Straight Beam Transducer (2 MHz or 4 MHz, Φ10) Angle Beam Transducer (2 MHz or 4 MHz, 8 mm×9 mm, 60°) Interconnect Cable for the transducer (BNC-BNC，or optional BNC- C5) Power supply/charger unit Operating Manual in English

Alarm Lights：Two alarm lights appear at the below the the instrument’s keypad. One alarm light is marked as ALARM, which is assigned to the gate alarm. When a gate alarm is triggered, this light will illuminate. The other light is marked as CHARGE indicating battery status.
