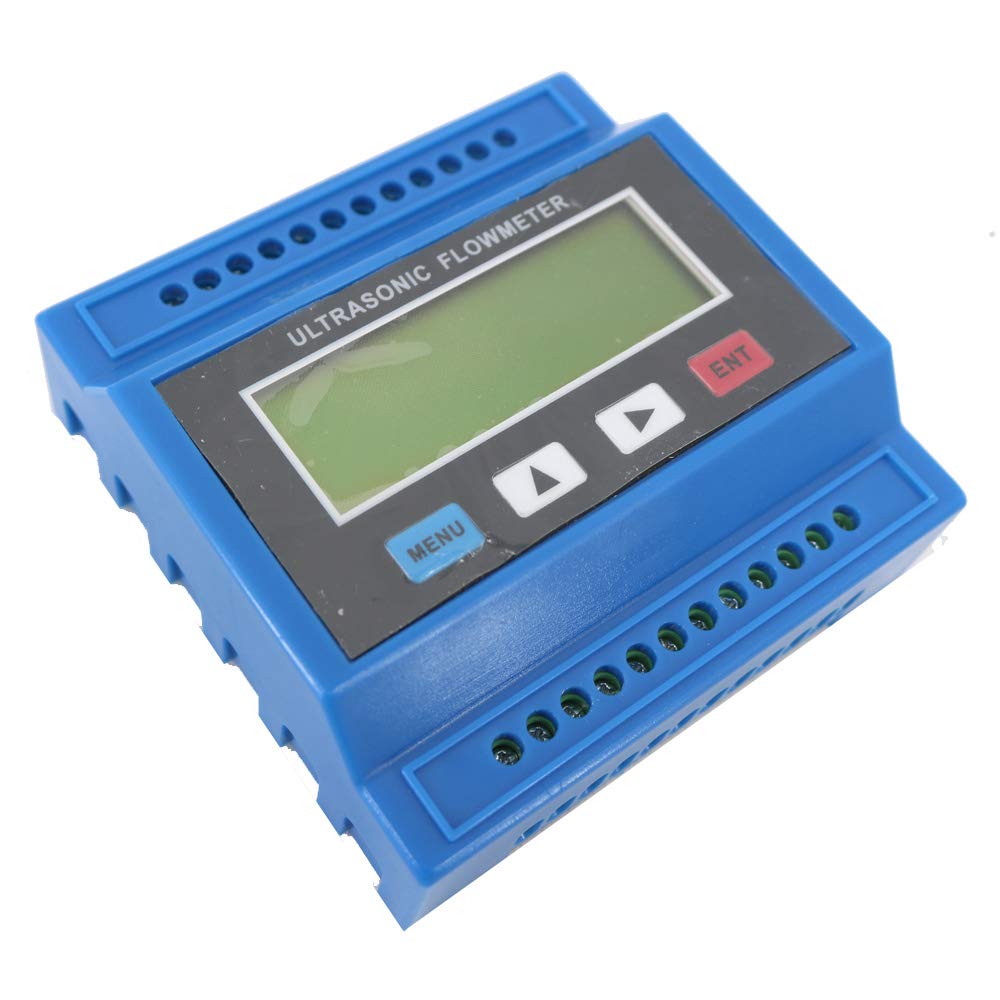

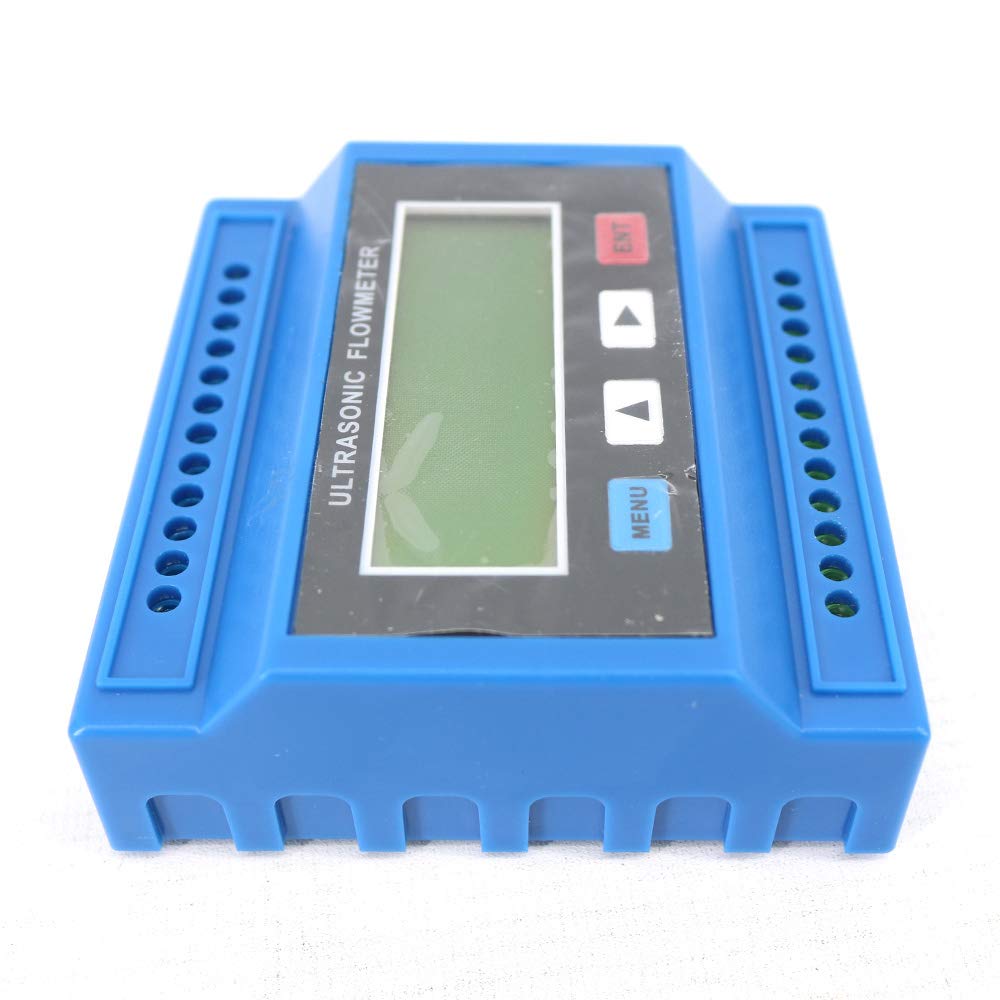

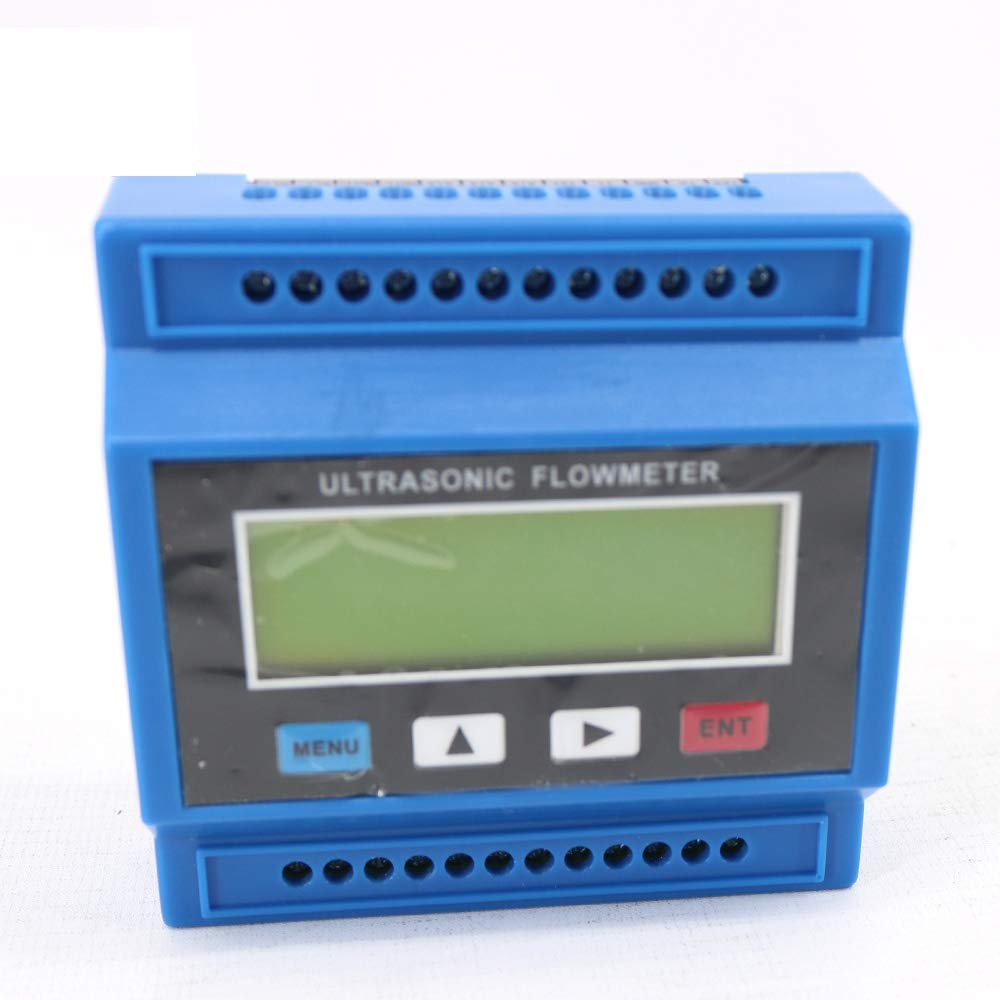

VTSYIQI Ultrasonic Flow Meter Flowmeter Module Flow Meters For Pipe Size DN25-100mm 0.98-3.93in With Clamp-on Small Transducer TS-2

$26500
In stock
$26500

Customer Service

Post your customer service details here.

Return Policy

Post your policy conditions details here.

About this item:

◆ This type Ultrasonic Flowmeter is package with Standard Small Transducer TS-2 for Pipe Diameter DN25~100mm, Temperature : -30~90°C

◆ Accuracy: ≤1%; Velocity range: 0~±10m/s, Bi-directional measurement

◆ Type of liquid: Single liquid can transmit ultrasound, such as water, sea water, sewage, oil, alcohol, etc.

◆ Pipe material: Steel, stainless steel, cast iron, copper, PVC, aluminmum, glass steel, etc. Liner is allowed.

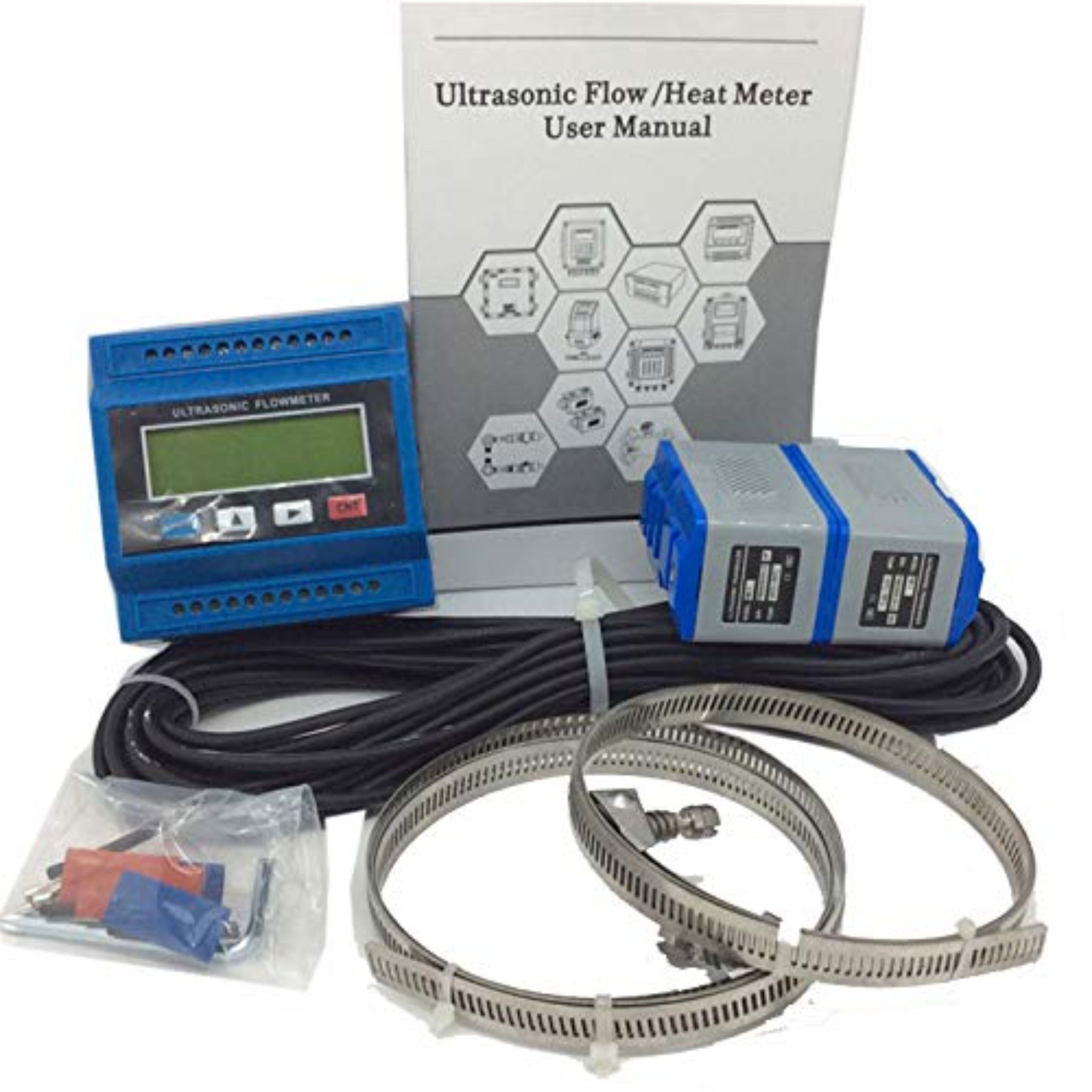

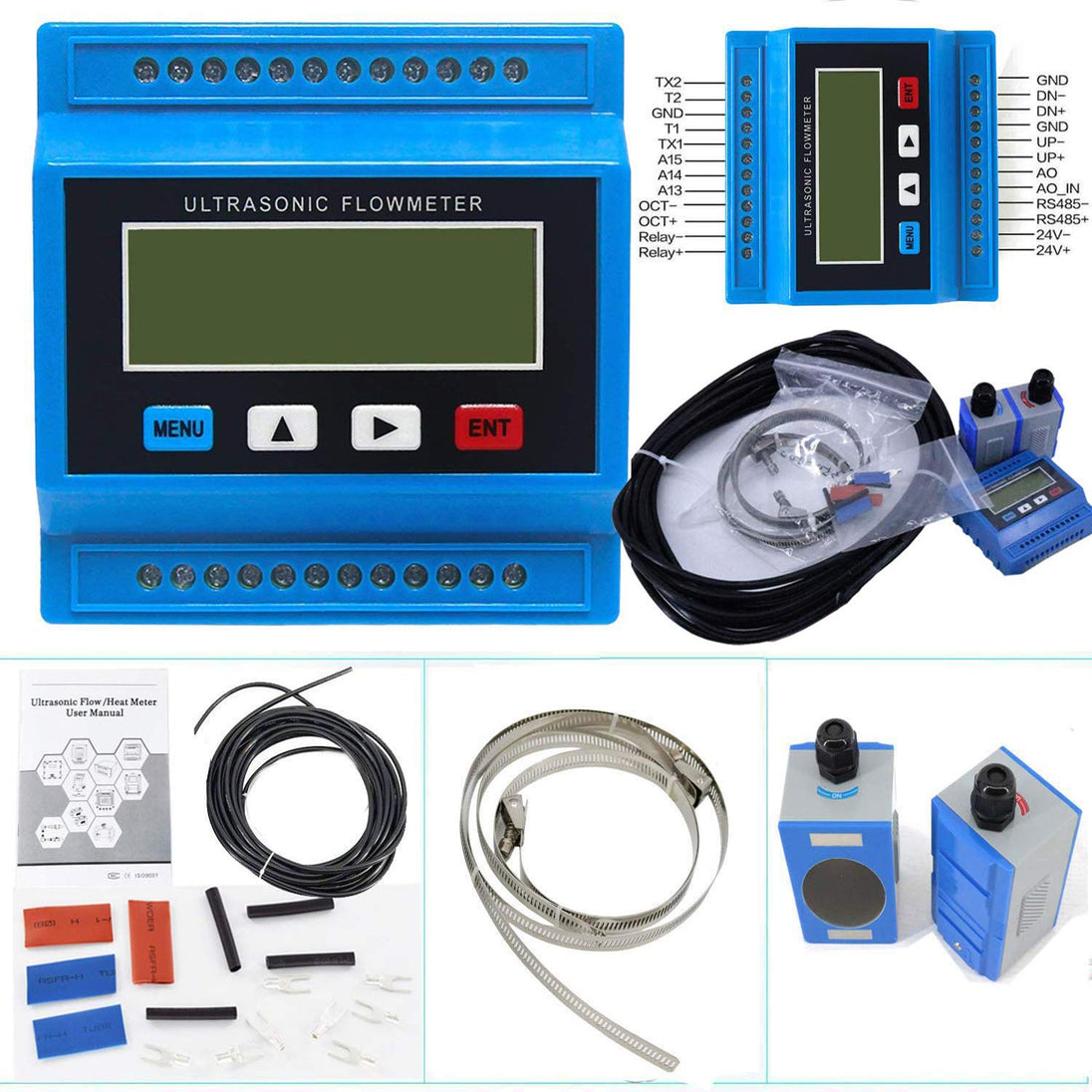

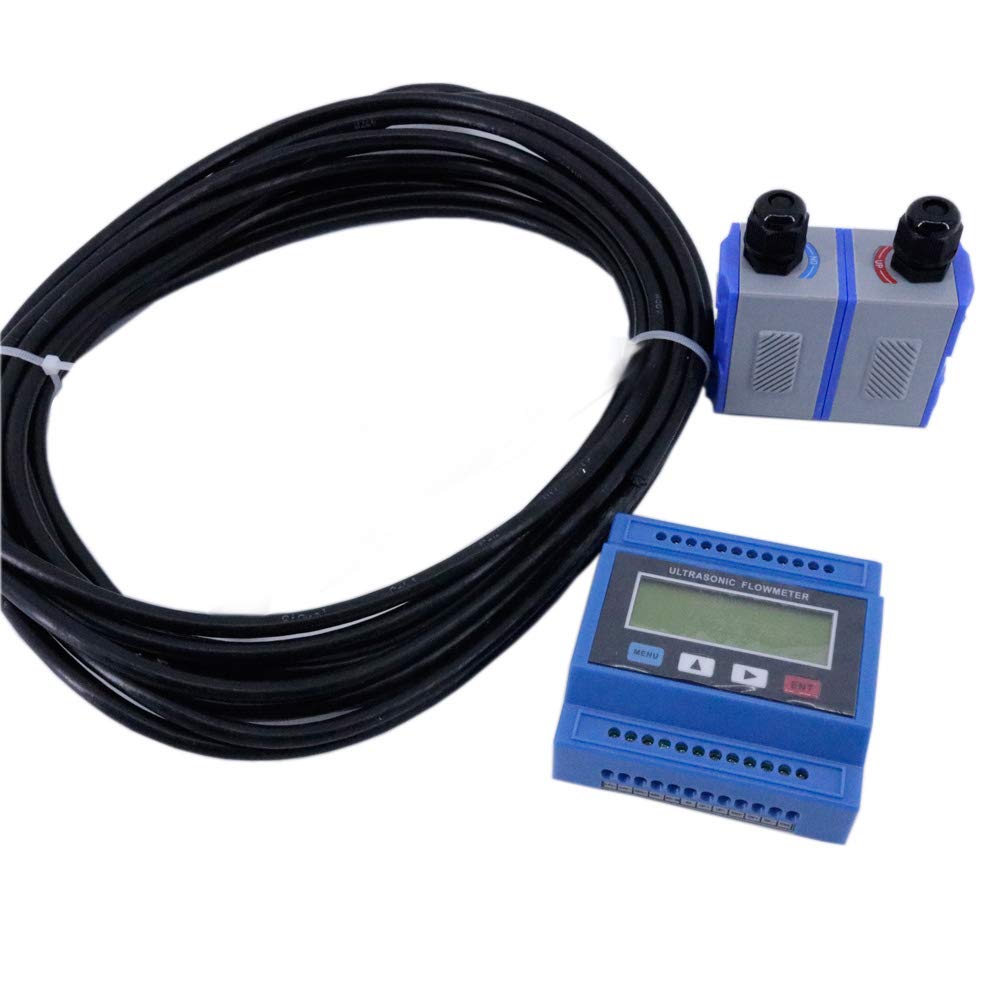

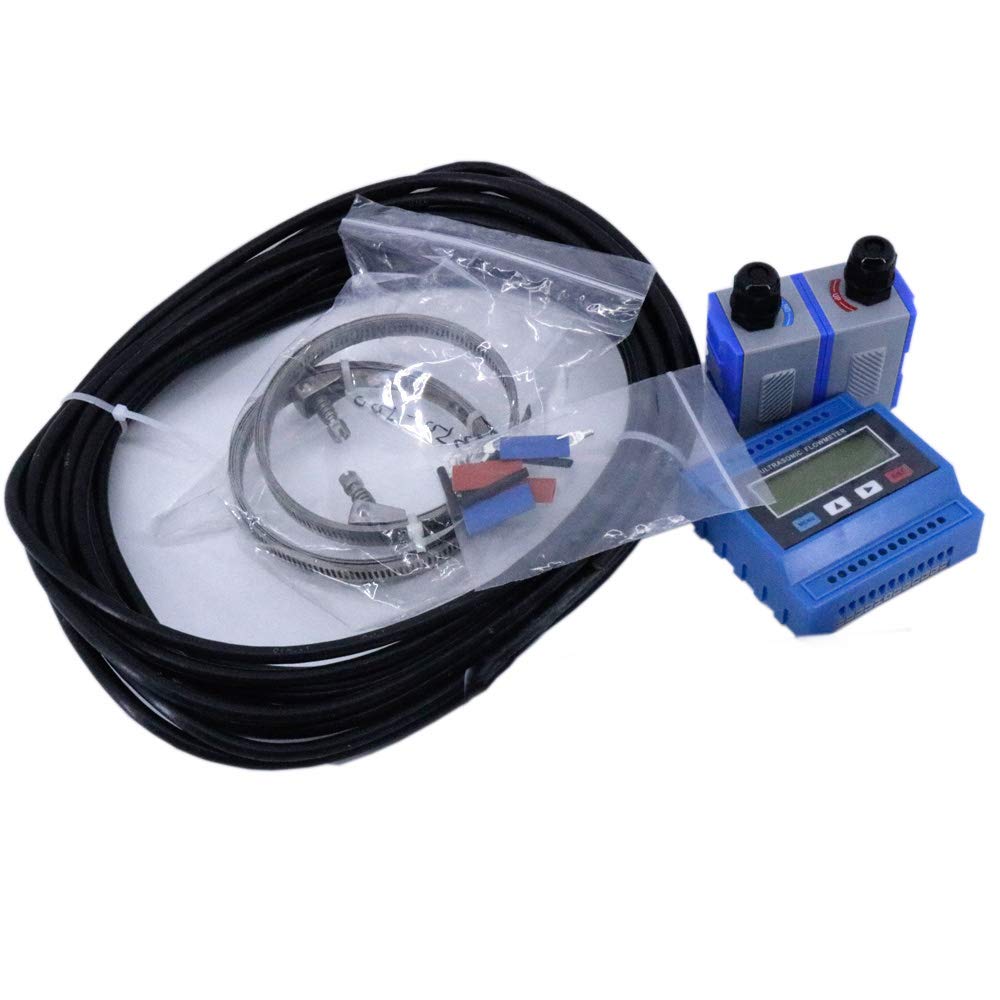

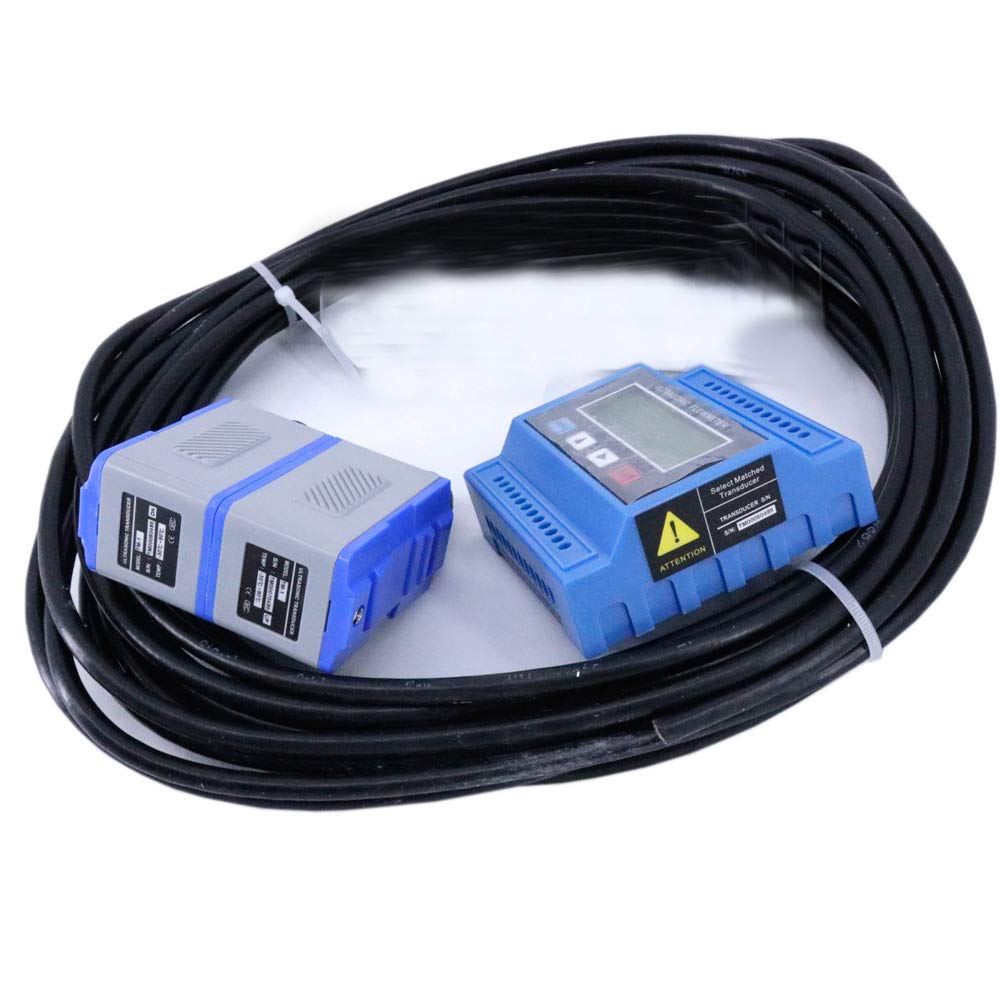

This type Ultrasonic Flowmeter is package with Clamp-on Standard Small Transducer

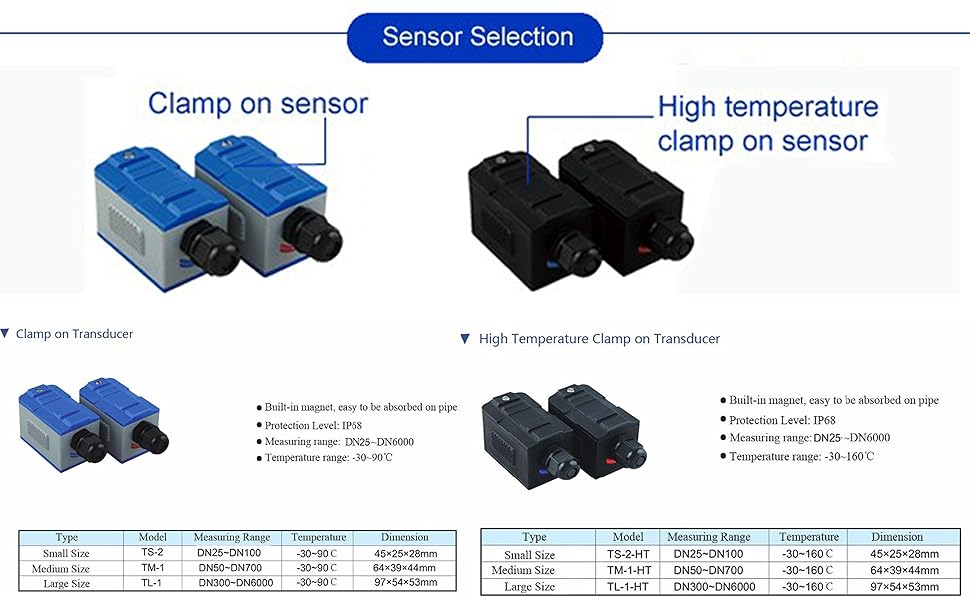

TS-2 (size: 45*25*28mm) for Pipe Diameter DN25~100mm, Temperature : -30~90°C

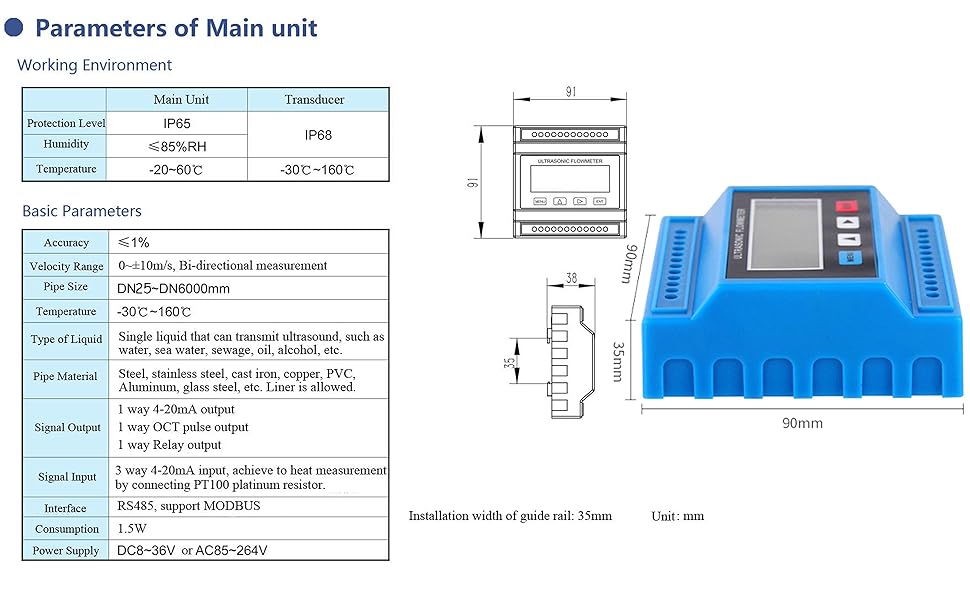

Specifications:

* Accuracy: ≤1%

* Velocity range: 0~±10m/s, Bi-directional measurement

* Pipe size: DN25~DN100mm

* Temperature: -30~90°C

* Type of liquid: Single liquid can transmit ultrasound, such as water, sea water, sewage, oil, alcohol, etc.

* Pipe material: Steel, stainless steel, cast iron, copper, PVC, aluminmum, glass steel, etc. Liner is allowed.

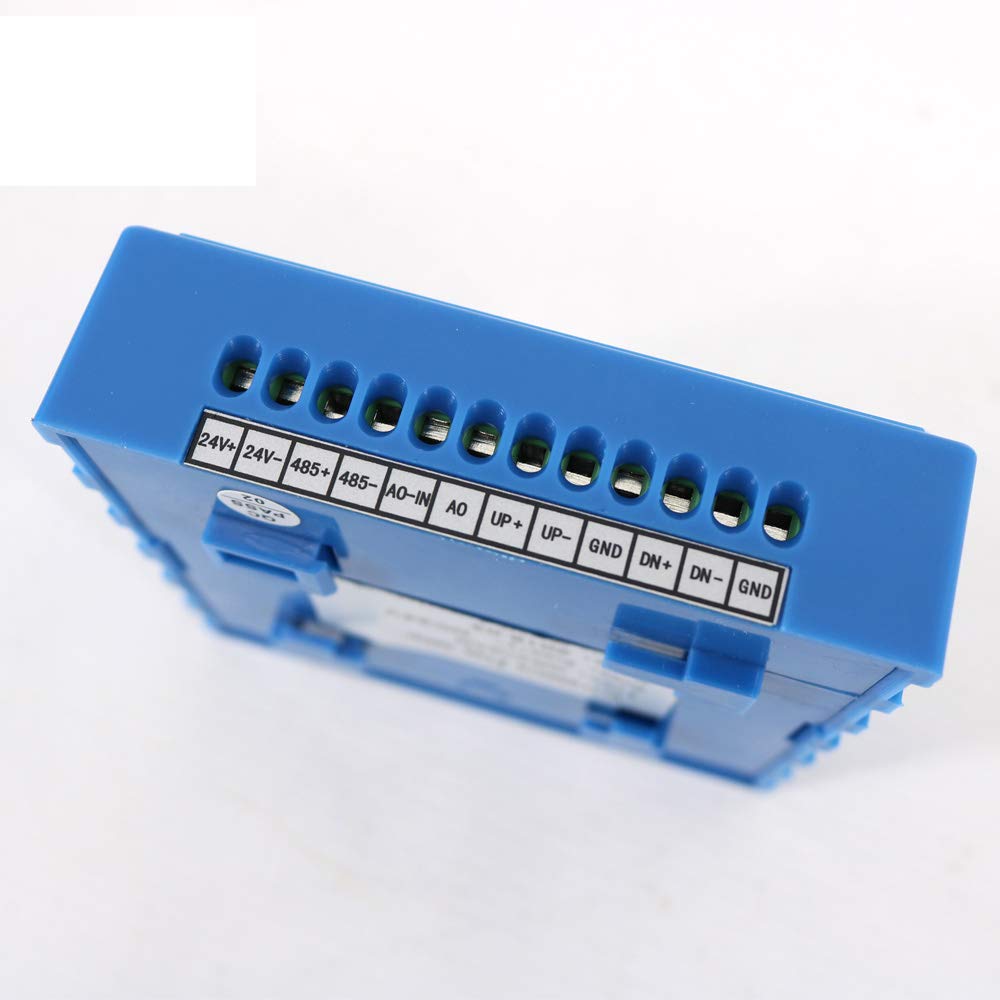

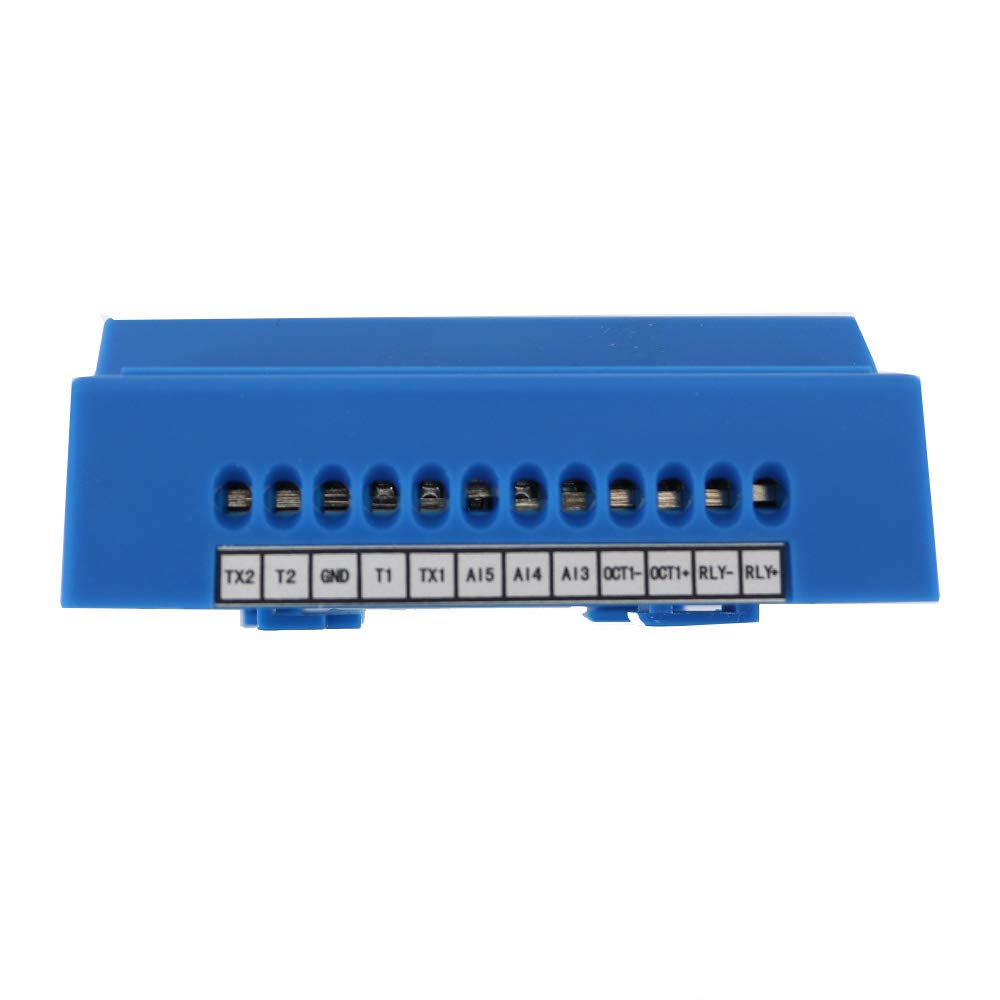

* Signal output:

1 way 4-20mA output

1 way OCT pulse output

1 way Relay output

* Signal input: 3 way 4-20mA input, achieve to heat measurement by connecting PT100 platinum resistor.

* Interface: RS485, support MODBUS

* Power supply: DC8~36V or AC85~264V
