  • VTSYIQI Ultrasonic Flow Meter Flowmeter With Waterproof Clamp on Transducer TS-2-HT For Pipe size DN25-100mm 0.98-3.94in

VTSYIQI

VTSYIQI Ultrasonic Flow Meter Flowmeter With Waterproof Clamp on Transducer TS-2-HT For Pipe size DN25-100mm 0.98-3.94in

$32800
In stock
$32800

Customer Service

Post your customer service details here.

Return Policy

Post your policy conditions details here.

About this item:

◆ This type Ultrasonic Flowmeter is package with Standard High Temperature Small Transducer TS-2-HT for Pipe Diameter DN25~100mm, Temperature : -30~160°C

◆ Accuracy: ≤1%; Velocity range: 0~±10m/s, Bi-directional measurement, quantity and concentration of gas and liquids

◆ Type of liquid: Single liquid can transmit ultrasound, such as water, sea water, sewage, oil, alcohol, etc.Quantity and concentration of gas and liquids

◆ Pipe material: Steel, stainless steel, cast iron, copper, PVC, aluminmum, glass steel, etc. Liner is allowed.

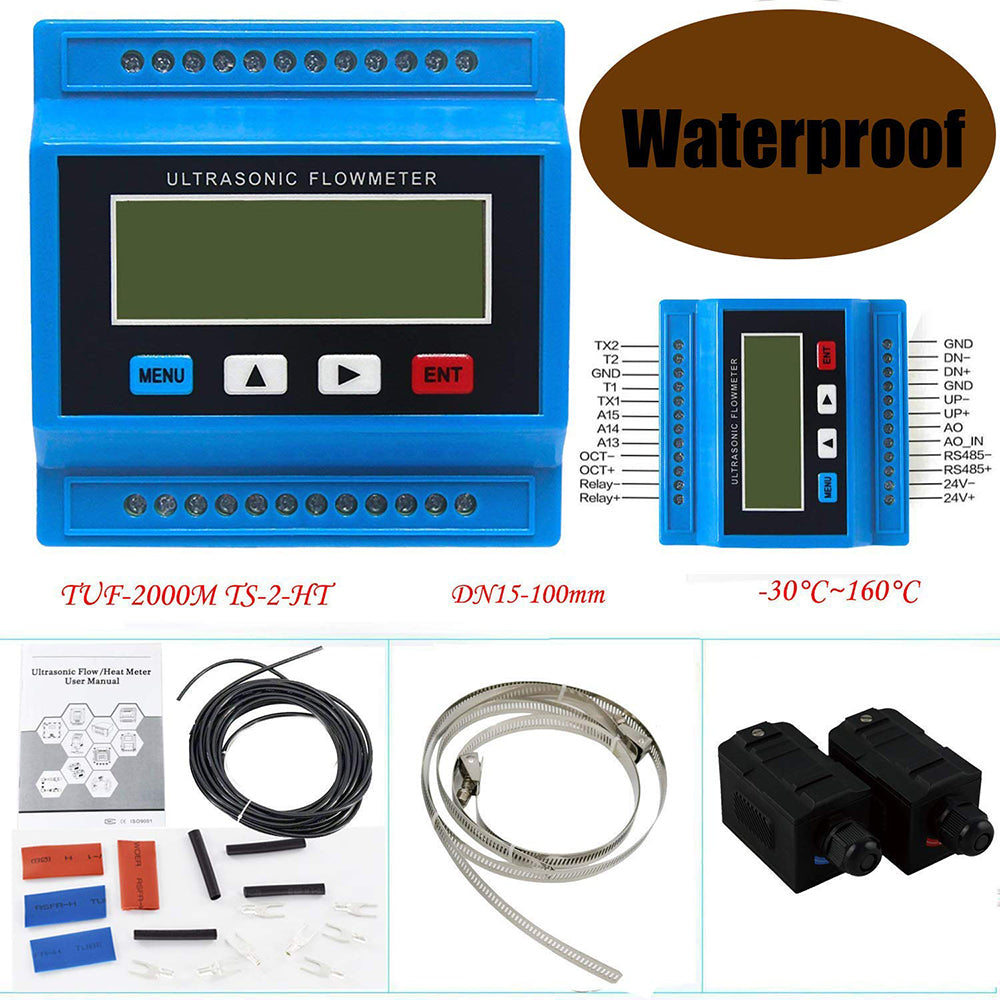

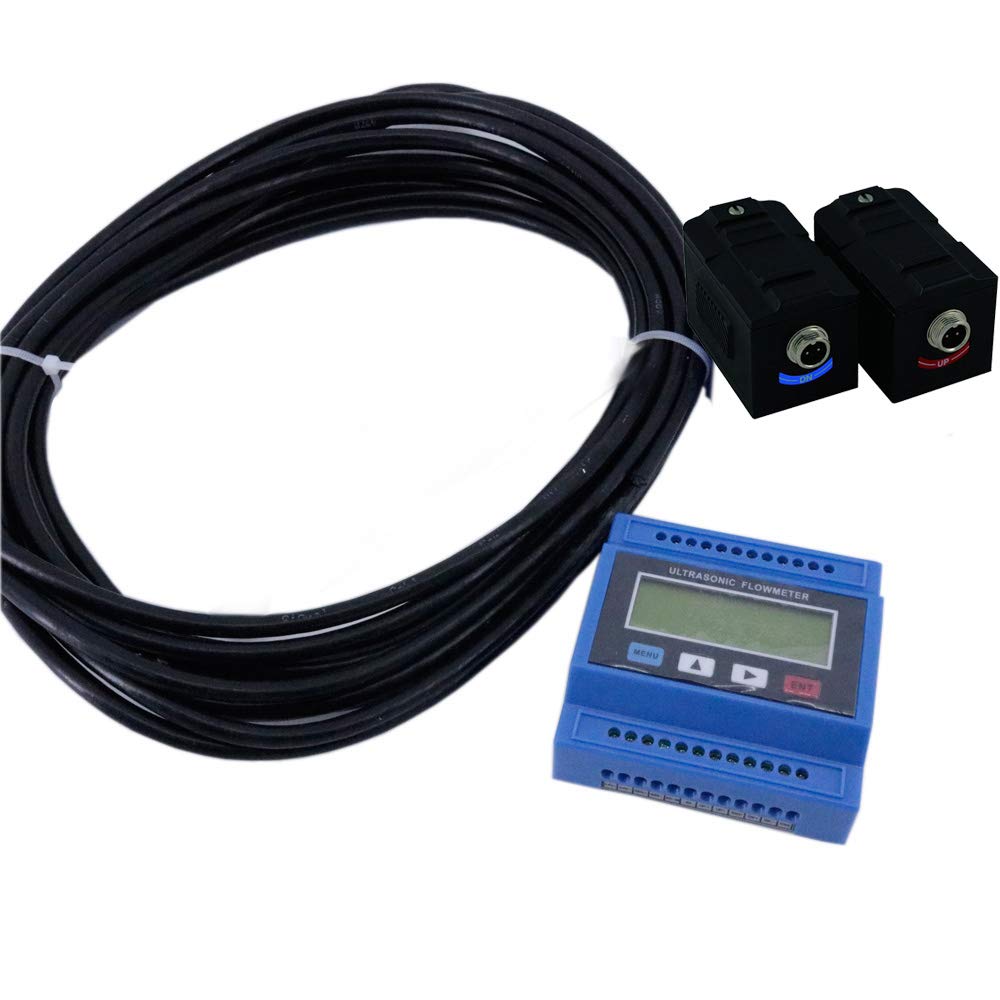

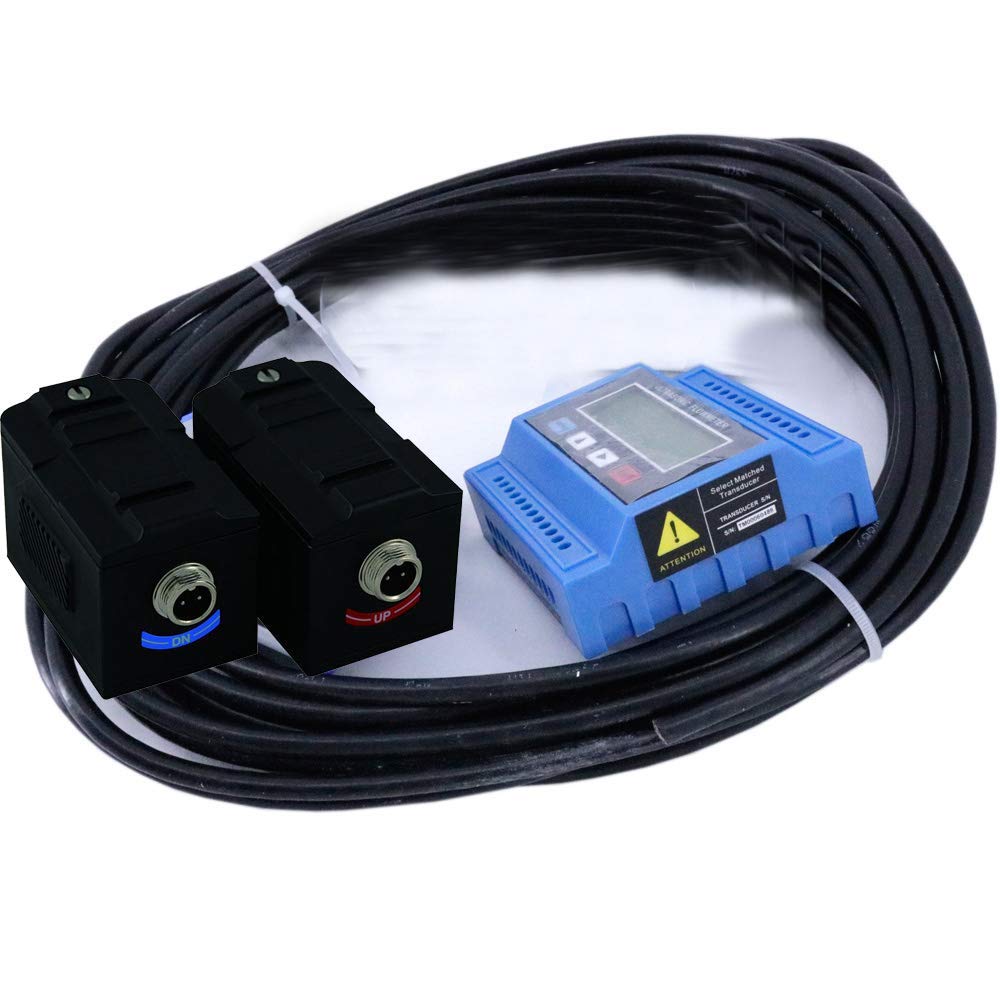

This type Ultrasonic Flowmeter is package with High Temperature Transducer TS-2-HT Standard small (size: 45*25*28mm) for Pipe Diameter DN25~100mm, High Temperature : -30~160°C
Specifications:
Accuracy: ≤1%
Velocity range: 0~±10m/s, Bi-directional measurement
Pipe size: DN25~DN100mm
Temperature: -30~160°c
Type of liquid: Single liquid can transmit ultrasound, such as water, sea water, sewage, oil, alcohol, etc.
Pipe material: Steel, stainless steel, cast iron, copper, PVC, aluminmum, glass steel, etc. Liner is allowed.

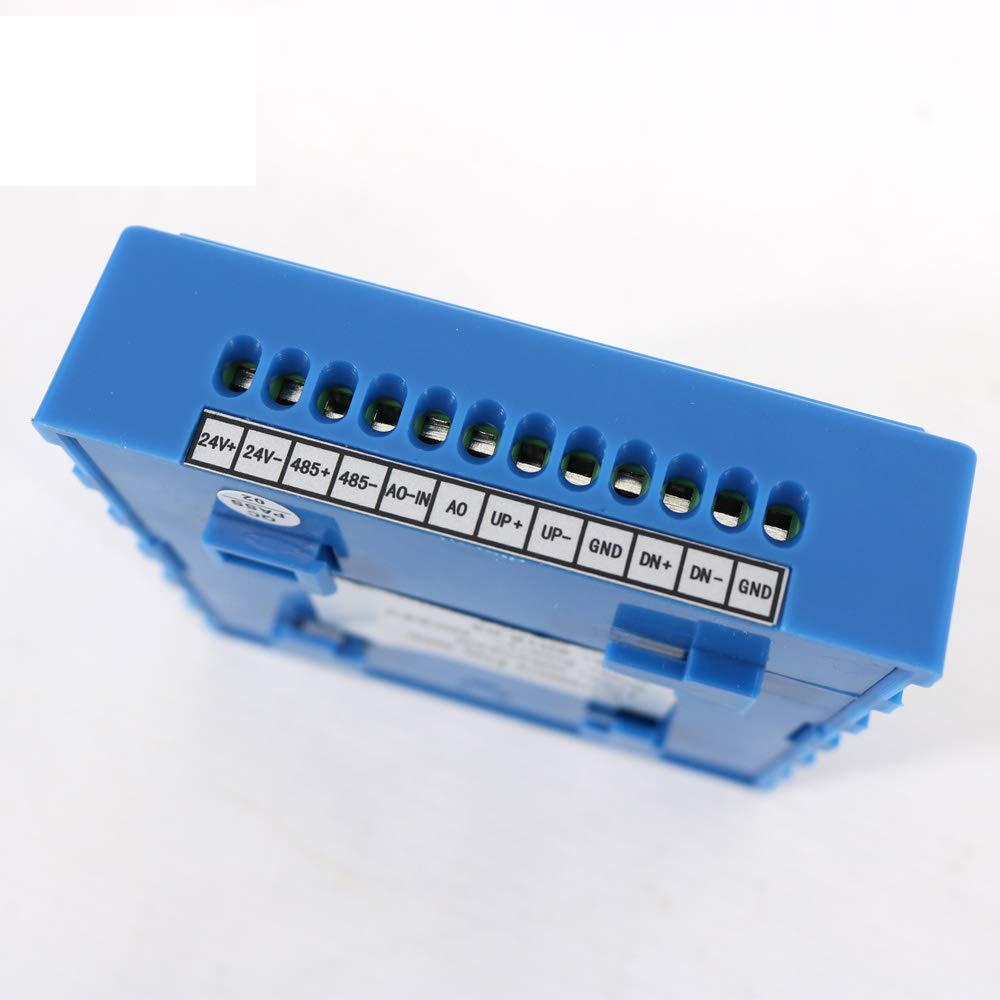

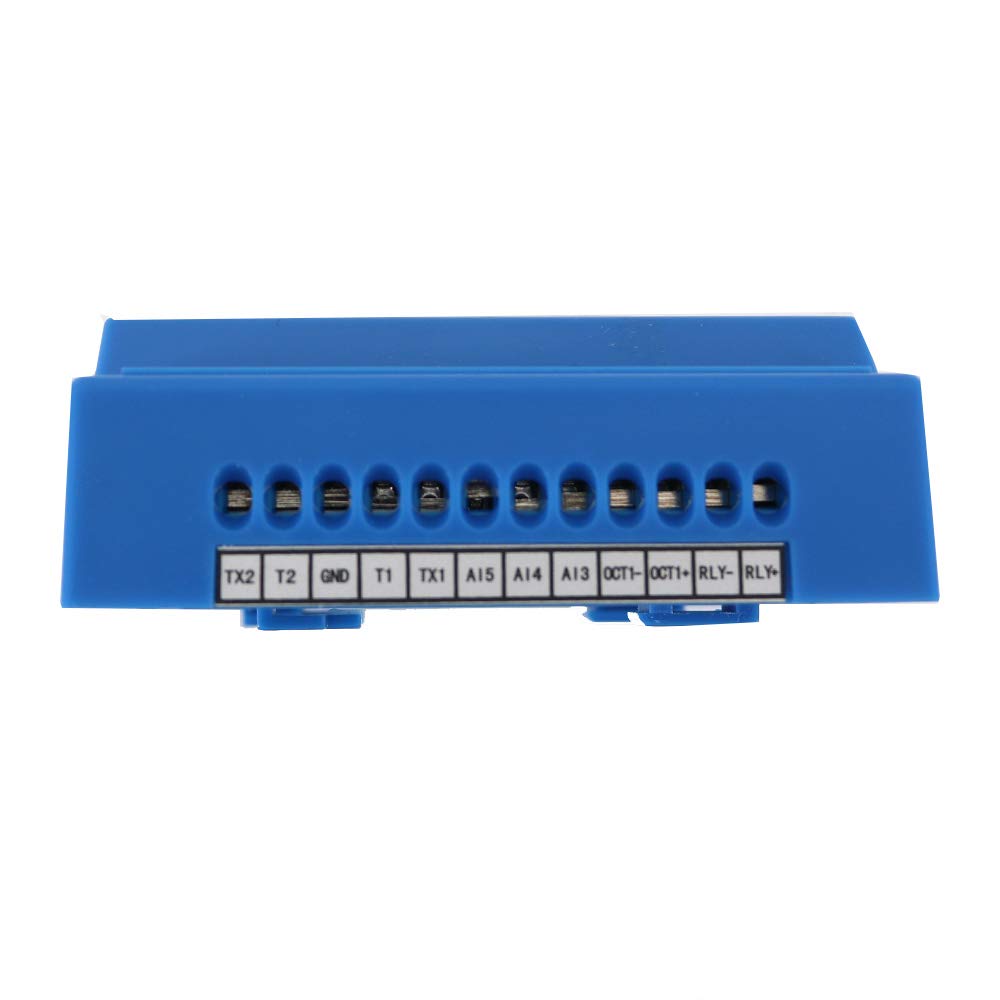

Signal output:
1 way 4-20mA output
1 way OCT pulse output
1 way Relay output
Signal input: 3 way 4-20mA input, achieve to heat measurement by connecting PT100 platinum resistor.
Interface: RS485, support MODBUS
Power supply: DC8~36V or AC85~264V
