  • VTSYIQI Ultrasonic Thickness Gauge Ultrasonic Thickness Measurement with Measuring Range 0.75 to 400 mm/0.03 to 15.74 Inch Storage Function Resolution 0.1mm/0.01mm for Metal Steel Cast Steel Aluminum Plastic Glass Fiber Glass Etc

VTSYIQI

VTSYIQI Ultrasonic Thickness Gauge Ultrasonic Thickness Measurement with Measuring Range 0.75 to 400 mm/0.03 to 15.74 Inch Storage Function Resolution 0.1mm/0.01mm for Metal Steel Cast Steel Aluminum Plastic Glass Fiber Glass Etc

$29800
In stock
$29800

Customer Service

Post your customer service details here.

Return Policy

Post your policy conditions details here.

VTSYIQI Ultrasonic Thickness Gauge Ultrasonic Thickness Measurement with Measuring Range 0.75 to 400 mm/0.03 to 15.74 Inch Storage Function Resolution 0.1mm/0.01mm for Metal Steel Cast Steel Aluminum Plastic Glass Fiber Glass Etc

About this item

Capable of performing measurements on a wide range of material, including metals, plastic, ceramics,composites, epoxies, glass and other ultrasonic wave well-conductive materials.

Probe-Zero function, Sound-Velocity-Calibration function

Auto sleep and auto power off function to conserve battery life.

Two work modes: Single point mode and Scan mode

Measuring Range：(0.75～400)mm (in steel）

Overview:

The model X series are digital ultrasonic thickness gauge. Based on the same operating principles , the instrument is capable of measuring the thickness of various materials with accuracy as high as 0.1/0.01 millimeters. It is suitable for a variety of metallic and non-metallic materials.

Function:

1.Capable of performing measurements on a wide range of material, including metals, plastic, ceramics, composites, epoxies, glass and other ultrasonic wave well-conductive materials.
2.Transducer models are available for special application,including for coarse grain material and high temperature applications.
3.Probe-Zero function, Sound-Velocity-Calibration function
4.Two-Point Calibration function.
5.Two work modes: Single point mode and Scan mode.
6.Coupling status indicator showing the coupling status.
7.Battery information indicates the rest capacity of the battery
8.Auto sleep and auto power off function to conserve battery life.
9.Optional software to process the memory data on the PC And U plate

Product Specifications:

Display：4.5 digits LCD with EL backlight

Measuring Range：(0.75～400)mm (in steel)

Sound Velocity：(1000~9999) m/s

Resolution：0.1mm/0.01mm

Accuracy：±(0.5%H+0.01)mm; H is thickness

Measuring cycle：5 measurements readings per second for single point measurement, and 25 per second for Scan Mode.

Storage ability：memory 700 group

Operating type：Pulse-echo

Units：mm/inch

working voltage：3V 4 AA size, 1.5 Volt alkaline batteries.（Batteries not included in the shipment）

work duration ：≧100h

outside storage connection：USB connection. Can connect U plate

size：150mm×74mm×32 mm

weight：245g

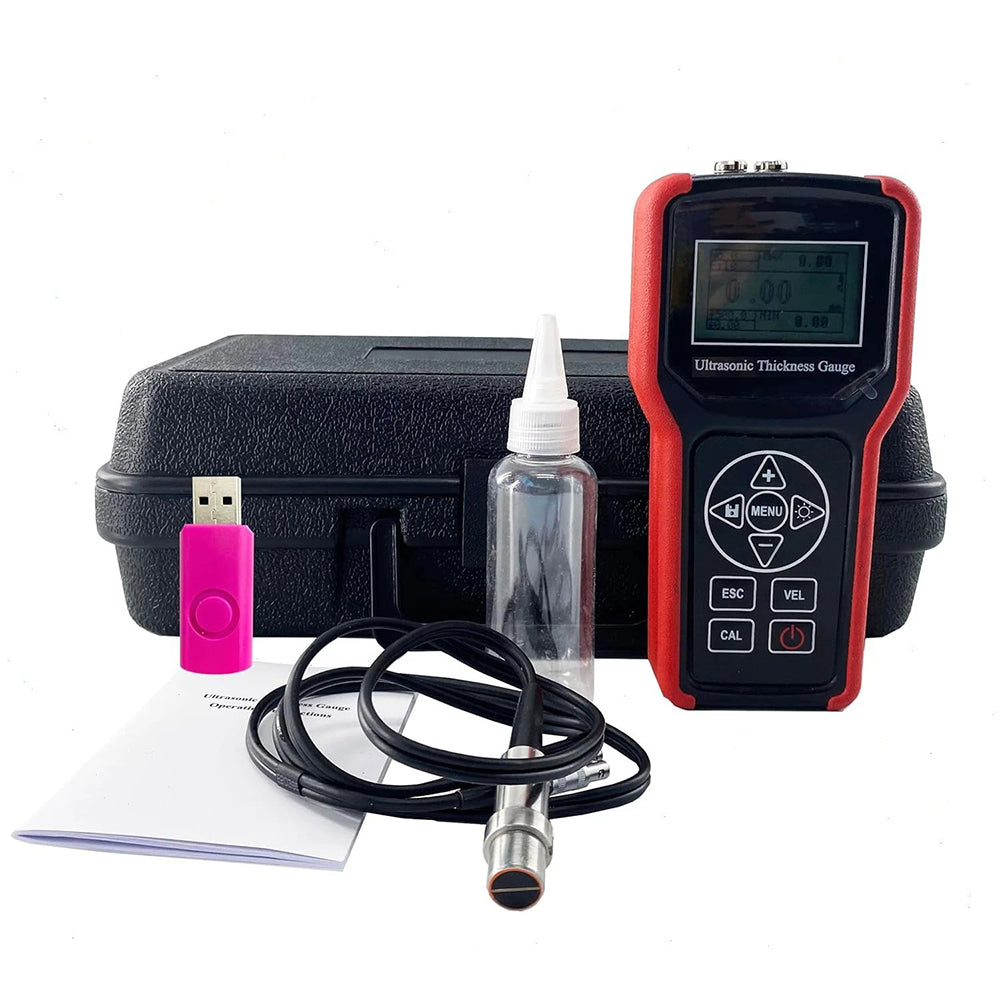

Configuration:

Standard Configuration

  1. Main engine-1
  2. Standard probe(5MHz)-1
  3. Instrument case-1
  4. Random data-1
  5. U disk

Optional Configuration

  1. Coarse grain probe(2MHz)
  2. Standard90 °probe(5MHz)
  3. Micro-diameter probe(7MHz)
  4. Temperature probe(5MHz)
