VTSYIQI Universal Colorimeter Color Meter Spectrophotometer with Caliber 8mm Lab Value Accuracy 0.01 1.14inches IPS Color Screen Auto Calibration USB

About this item

Adopt international used D/8 (Diffused Illumination, 8 degree viewing) geometry and SCI mode to make measurement more accurate.

Adopt spectral sensor to provide reflectance curve/data which make its performance much better than colorimeter.

It can measure whiteness index, yellowness index, color strength, color fastness, opacity and other 20 kinds of parameters with 26 kinds of illuminants.

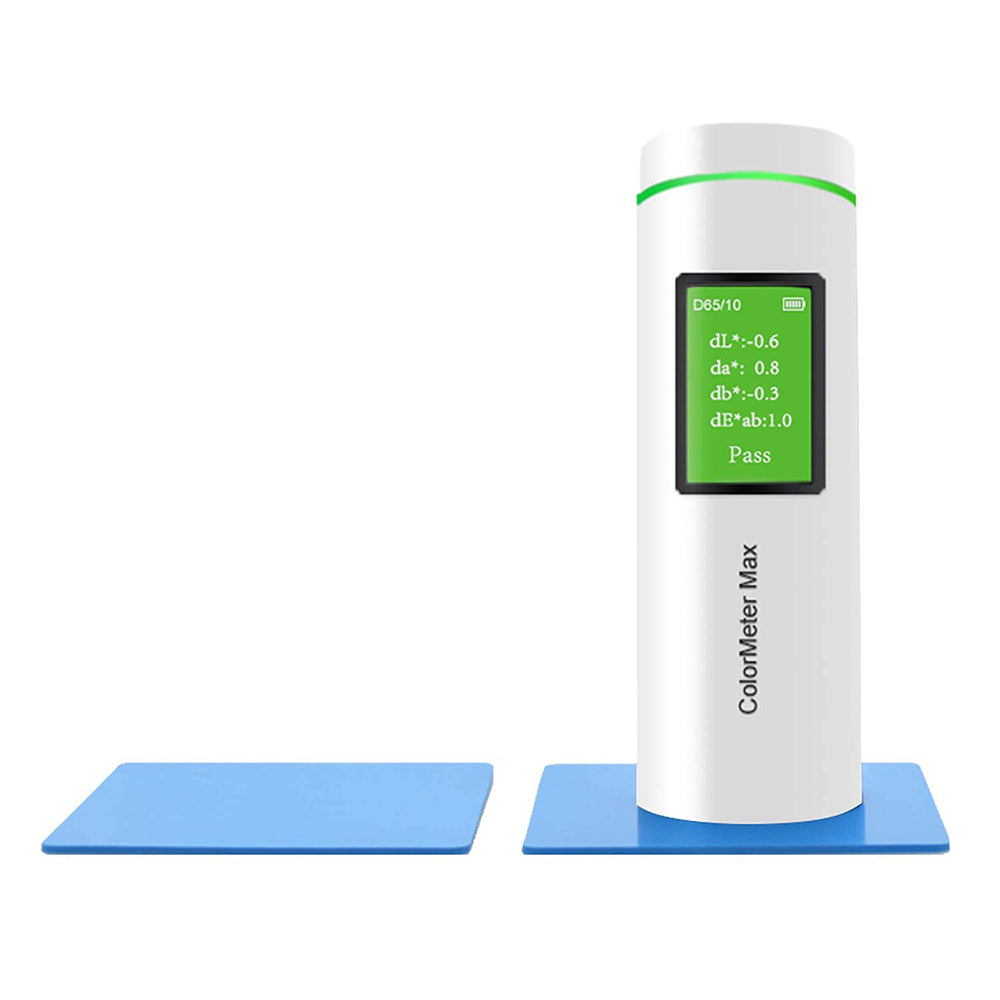

“Pass” or “Fail” judgment can be directly seen from instrument screen.

It can pass the national metrology (Level II), repeatability ≤0.05, test accuracy 0.01 for accurate reading.

Description

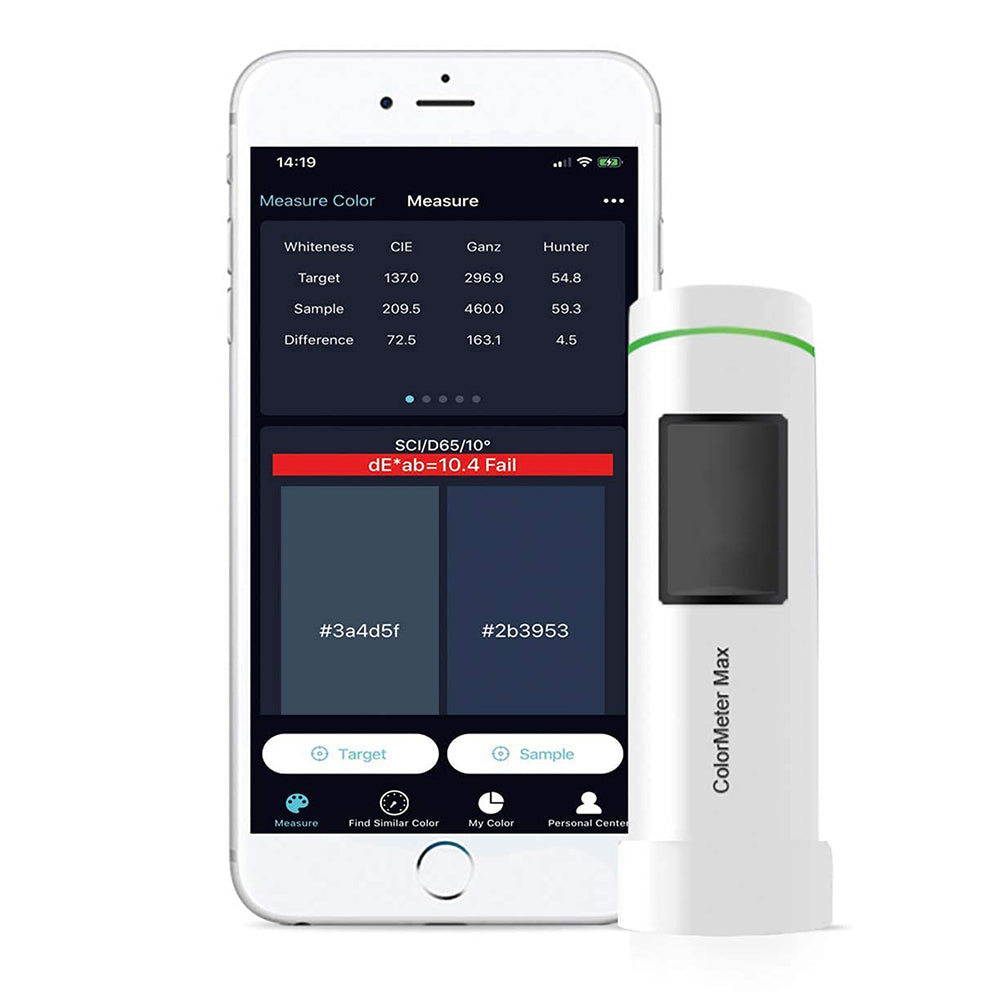

It is an enhanced version of the ColorMeter series. It is a powerful color measuring tool. Excellent performance configuration makes color measurement more accurate. The instrument can be wirelessly connected with Android or IOS devices, which greatly expands its application. It will take you into a new world of color management, which can replace the color card of printing, coating, textile, etc., realize the function of color test and find similar color; the instrument can pass the national metrology (Level II), and repeatability ≤0.05, better than ColorMeter Pro.

Specification

Illumination and Viewing System:D/8, SCI (specular component included)

Color Spaces, Color Difference and Indices:Reflectance, CIE-Lab, CIE-LCh, Hunter Lab, CIE-Luv, XYZ, Yxy, RGB, Color Difference (ΔE*ab, ΔE*cmc, ΔE*94, ΔE*00), Whiteness Index (ASTM E313-00, ASTM E313-73, CIE/ISO, AATCC, Hunter, Taube Berger Stensby), Yellowness Index

(ASTM D1925, ASTM E313-00, ASTM E313-73), Blackness Index(My,dM), Staining Fastness, Color Fastness, Tint(ASTM E313-00), Color Density CMYK(A,T,E,M), Metamerism Index Milm, Munsell, Opacity, Color Strength

Light Source:LED (Full Wavelength Balanced LED Light Source)

Test Aperture:8mm

Wavelength Interval:10nm

Wavelength Range:400-700nm

Repeatability:ΔE≤0.05 (when a white tile is measured 30 times at 5-second intervals after calibration)

Measurement Time:1s

Interface:USB

Illuminants:A,B,C,D50,D55,D65,D75,F1,F2,F3,F4,F5,F6,F7,F8,F9,F10,F11,F12,CWF,U30,U35,DLF,NBF,TL83,TL84

Observer:2°，10°

Display Screen:IPS Full Color Screen（135*240,1.14inch）

Battery:4.2V/760mAh，Rechargeable, 10,000 continuous tests

Language:English and Chinese

Calibration:Auto

Software Support:Andriod,IOS,Windows

Weight:About 90g

Instrument Size:Diameter 31mm , Height 102mm

Pass National Metrology (Level II):Yes

Test Accuracy:0.01
