  • VTSYIQI Vibration Meter Vibrometer Vibrate Testing Gauge for Machinery 0.01 to 400 mm/s with RS232 Software and USB Cable

VTSYIQI

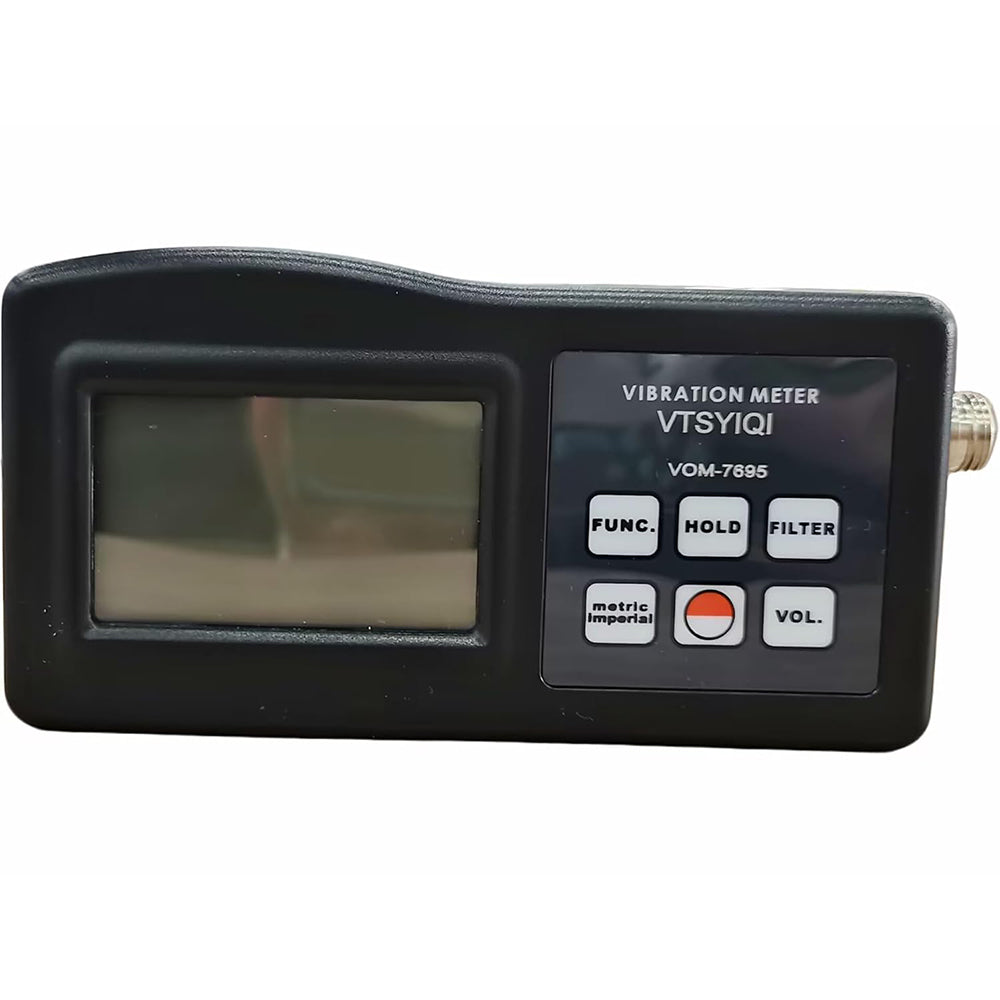

VTSYIQI Vibration Meter Vibrometer Vibrate Testing Gauge for Machinery 0.01 to 400 mm/s with RS232 Software and USB Cable

$38000
In stock
$38000

Customer Service

Post your customer service details here.

Return Policy

Post your policy conditions details here.

About this item：

 Easy operation and good stability,less power consumption, High accuracy ; Individual high quality accelerometer for accurate and repeatable measurements.

Used for measuring periodic motion, to check the imbalance and deflecting of moving

Specially designed for easy on site vibration measurement of all rotating machinery for quality control,commissioning, and predictive maintenance purposes.

Measuring Range: Acceleration: 0.1~400m/s²Equivalent Park; Velocity: 0.01~400mm/s True RMS; Displacement: 0.001~4.0mm Equivalent Peak-peak;

 Frequency Range: Acceleration: 10Hz~10kHz; Velocity: 10Hz~1kHz; Displacement: 10Hz~1kHz;* Accuracy: 5% of Reading+2 digits

Introduction
♦Vibration meter is used for measuring periodic motion, to check the imbalance and deflecting of moving machinery.

Feature:
♦In accordance with ISO 2372, used for periodic measurements, to detect out-of-balance, misalignment and other mechanical faults in rotating machines.
♦Specially designed for easy on site vibration measurement of all rotating machinery for quality control, commissioning, and predictive maintenance purposes.
♦Individual high quality accelerometer for accurate and repeatable measurements.
♦Wide frequency range (10Hz~10kHz) in acceleration mode.
♦Bearing condition monitoring function.

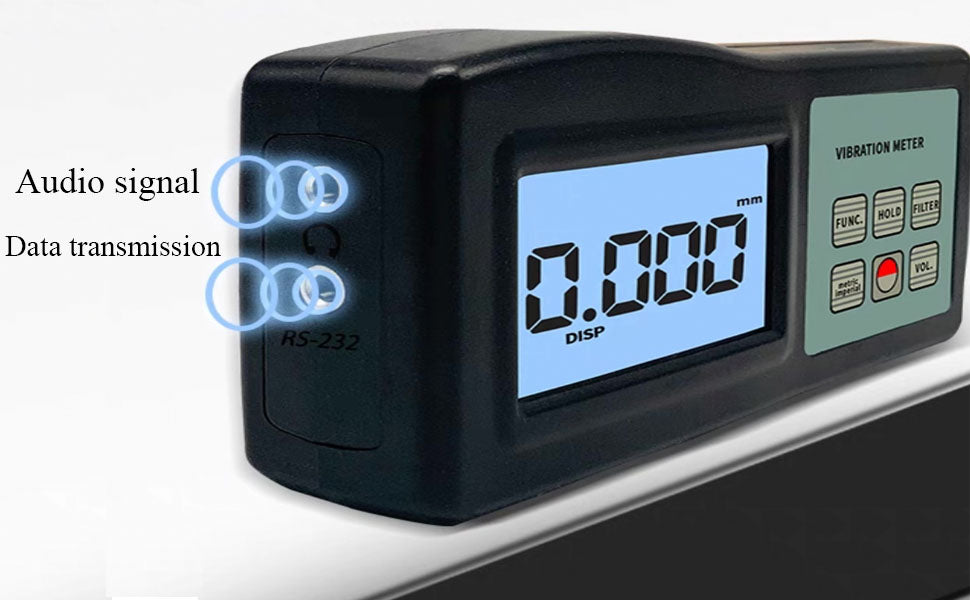

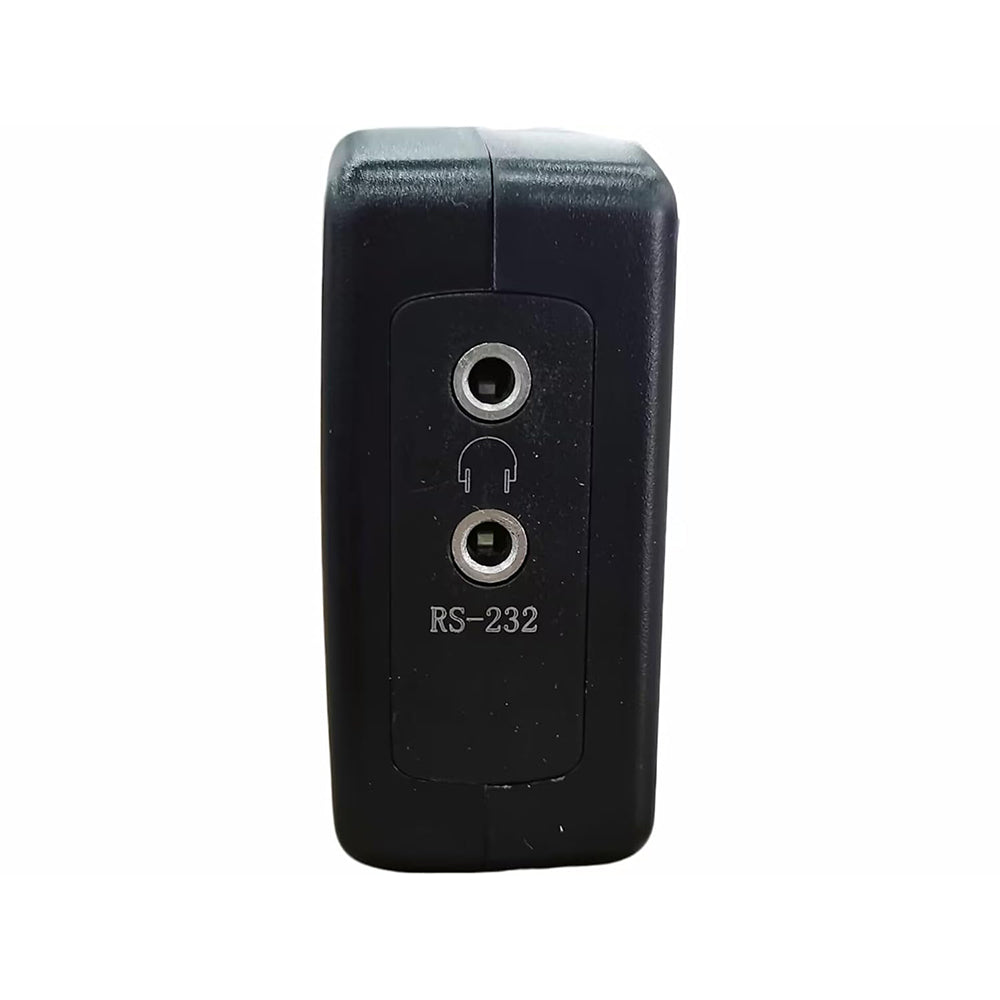

♦Use USB/RS-232 data output to connect with PC.(Optional)
♦Provide Bluetooth data output choice.(Optional)

Specification:
♦Sensor: Piezoelectric Transducer

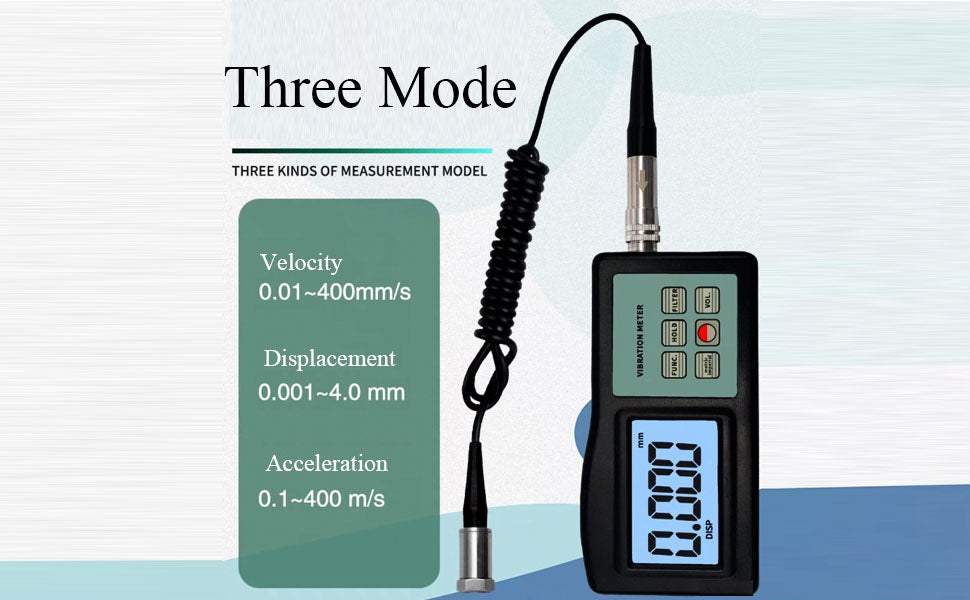

♦Measuring Range:
Acceleration: 0.1~400m/s²Equivalent Park
Velocity: 0.01~400mm/s True RMS
Displacement: 0.001~4.0mm Equivalent Peak-peak
♦Frequency Range:
Acceleration: 10Hz~10kHz
Velocity: 10Hz~1kHz
Displacement: 10Hz~1kHz
♦Accuracy: 5% of Reading+2 digits
♦Operating conditions:Temperature 0~50ºC, Humidity <90%RH

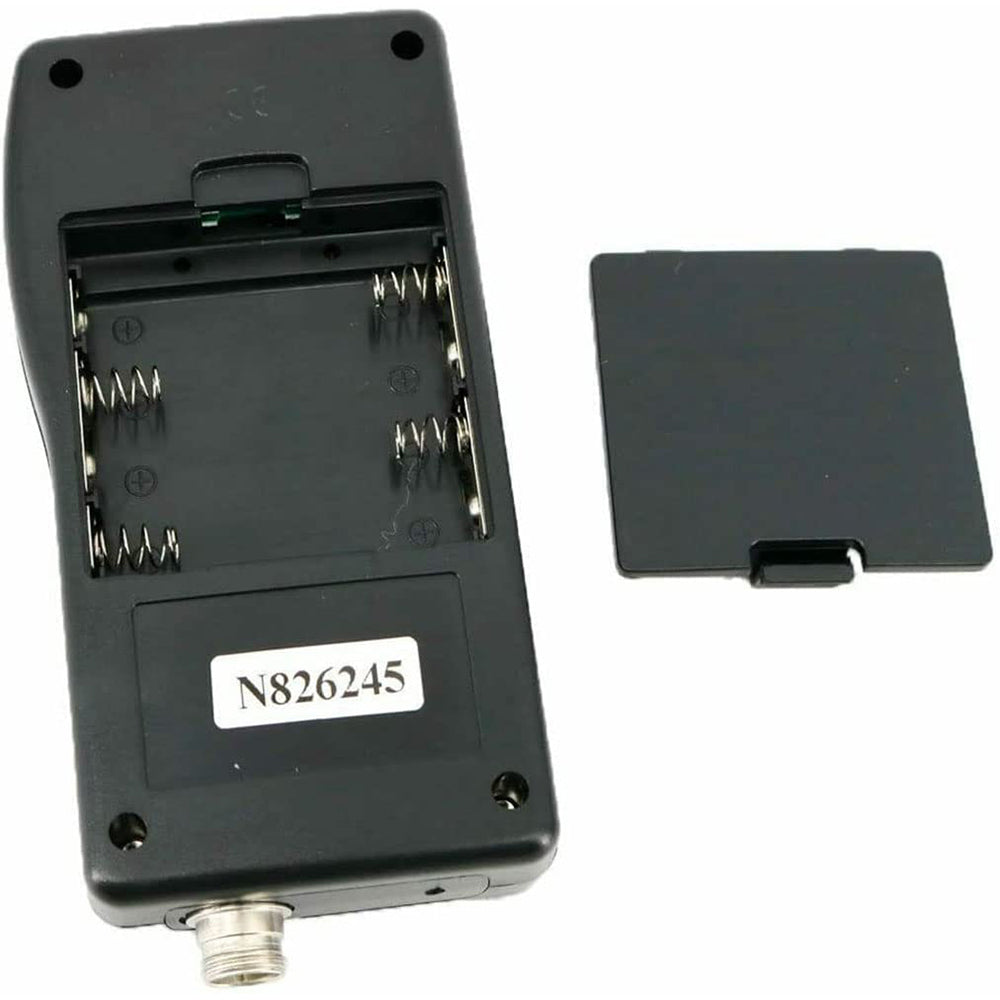

♦Power supply: 4x1.5V AAA (UM-4)battery（Battery Not Included in the Package）
♦Dimensions: 124x62x30mm
♦Weight: 120g (not including battery)

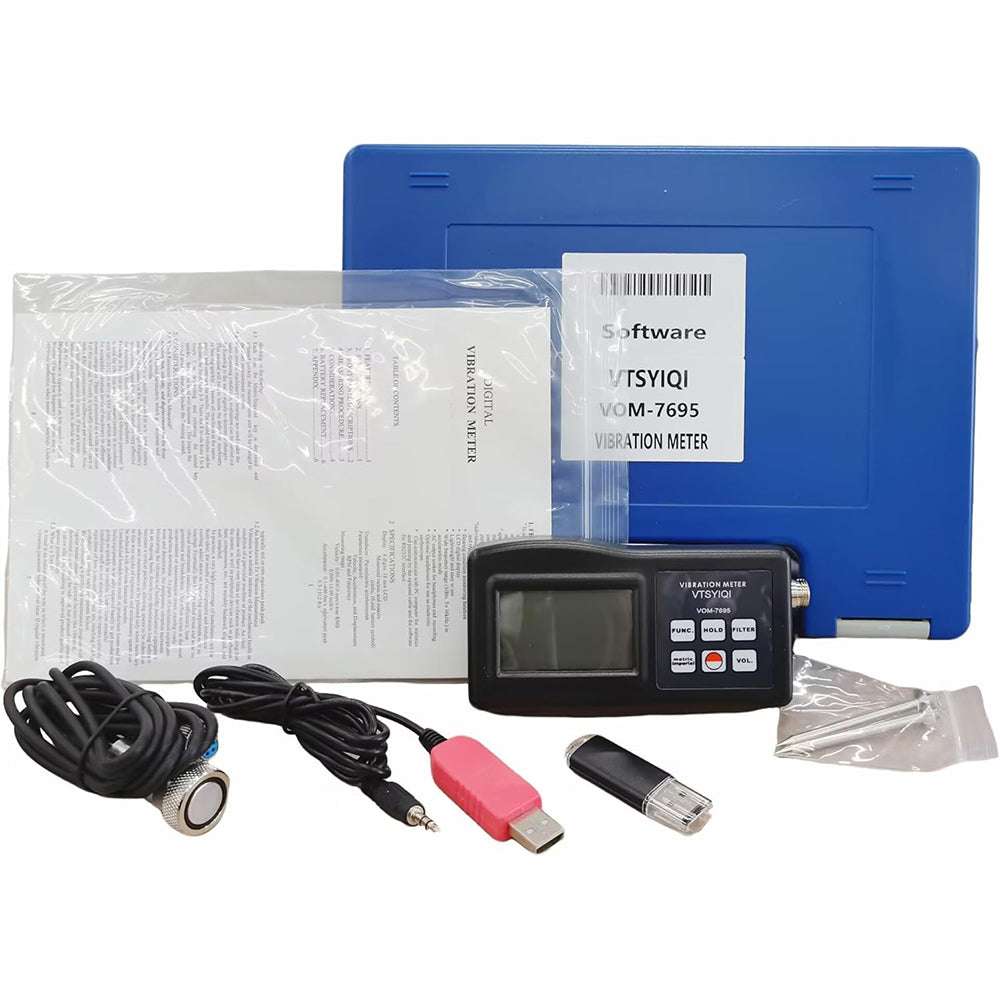

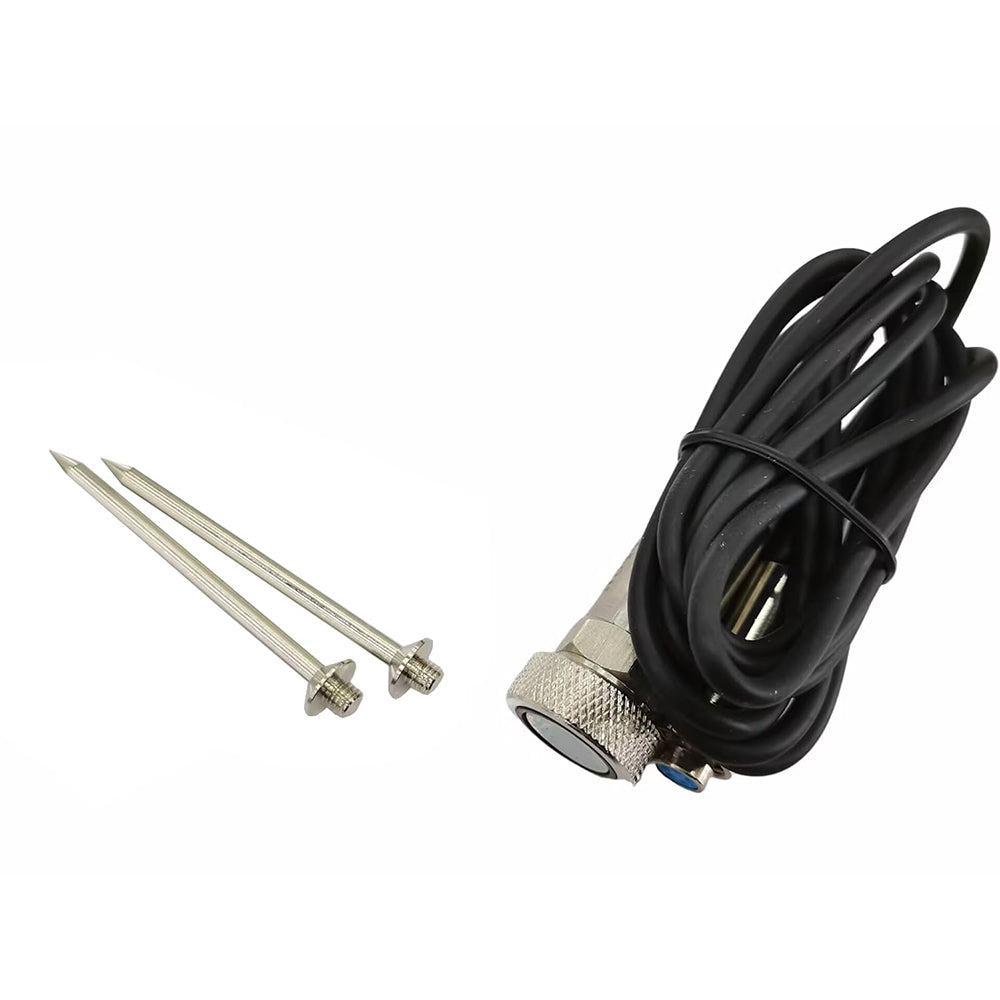

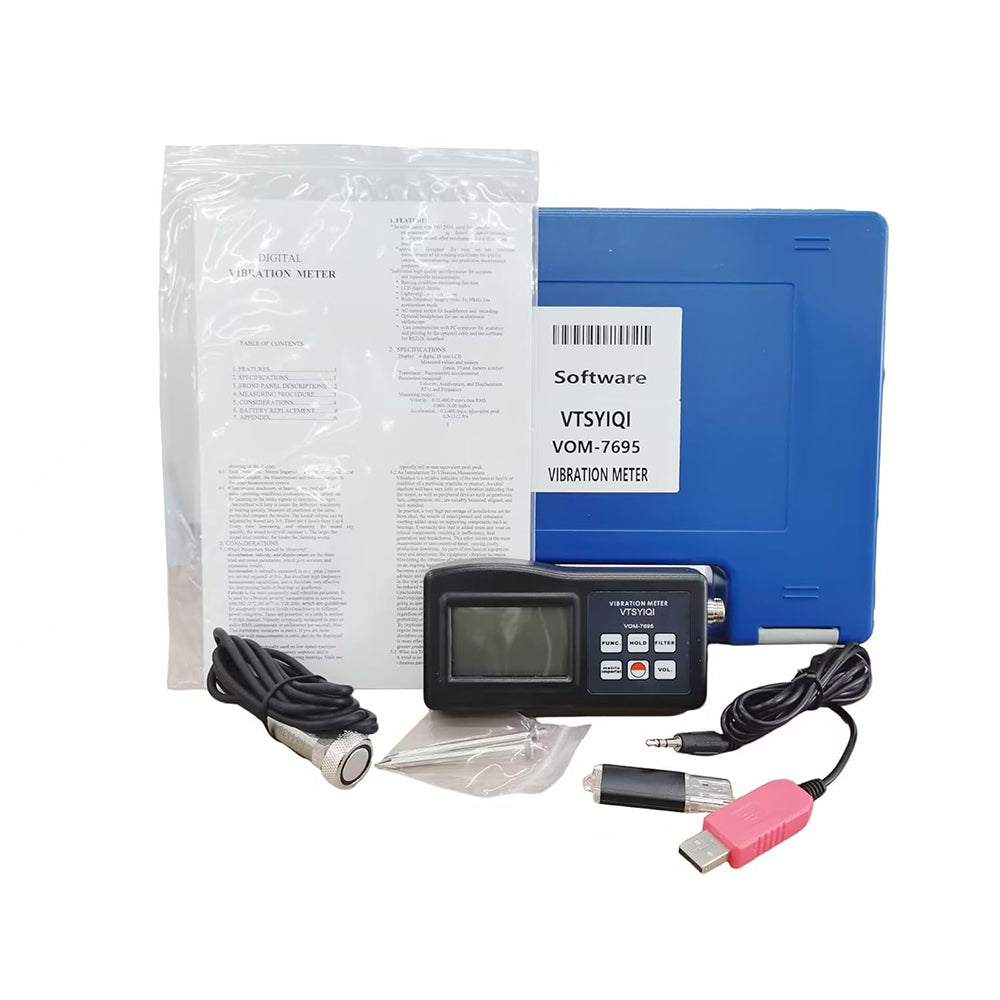

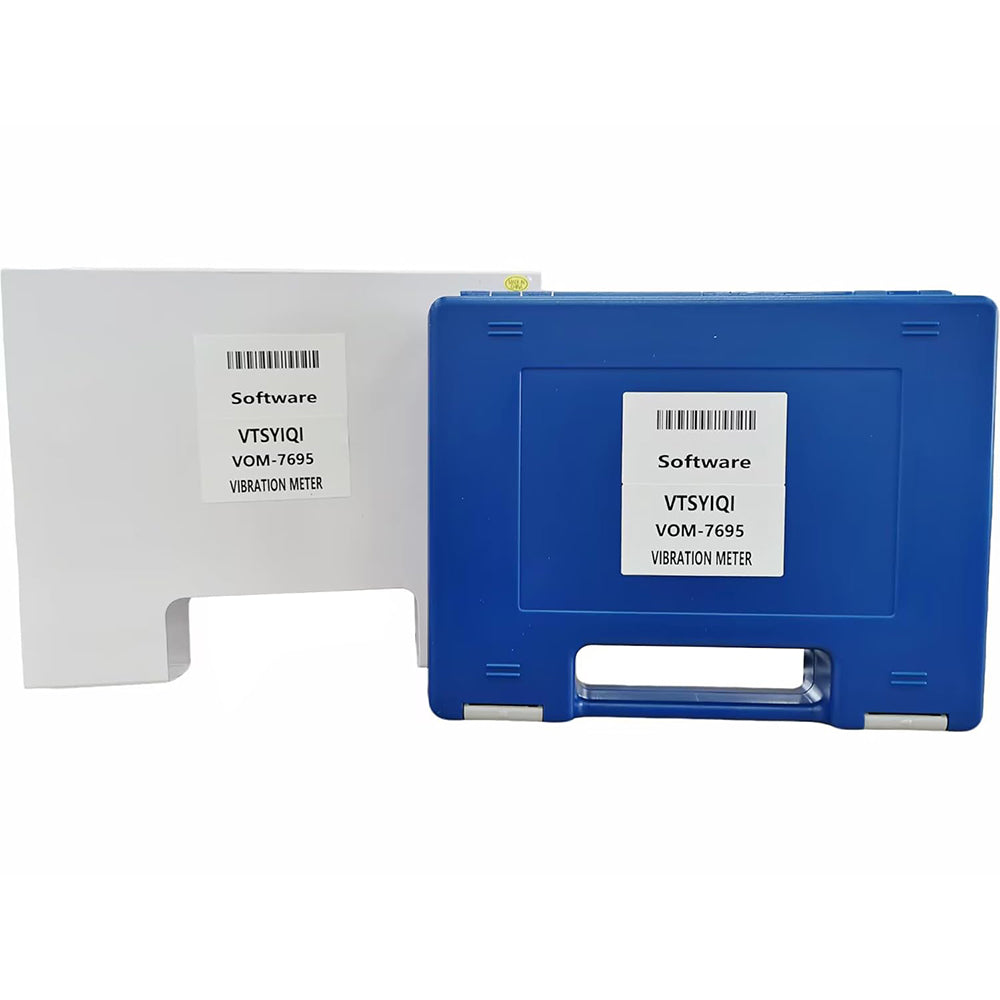

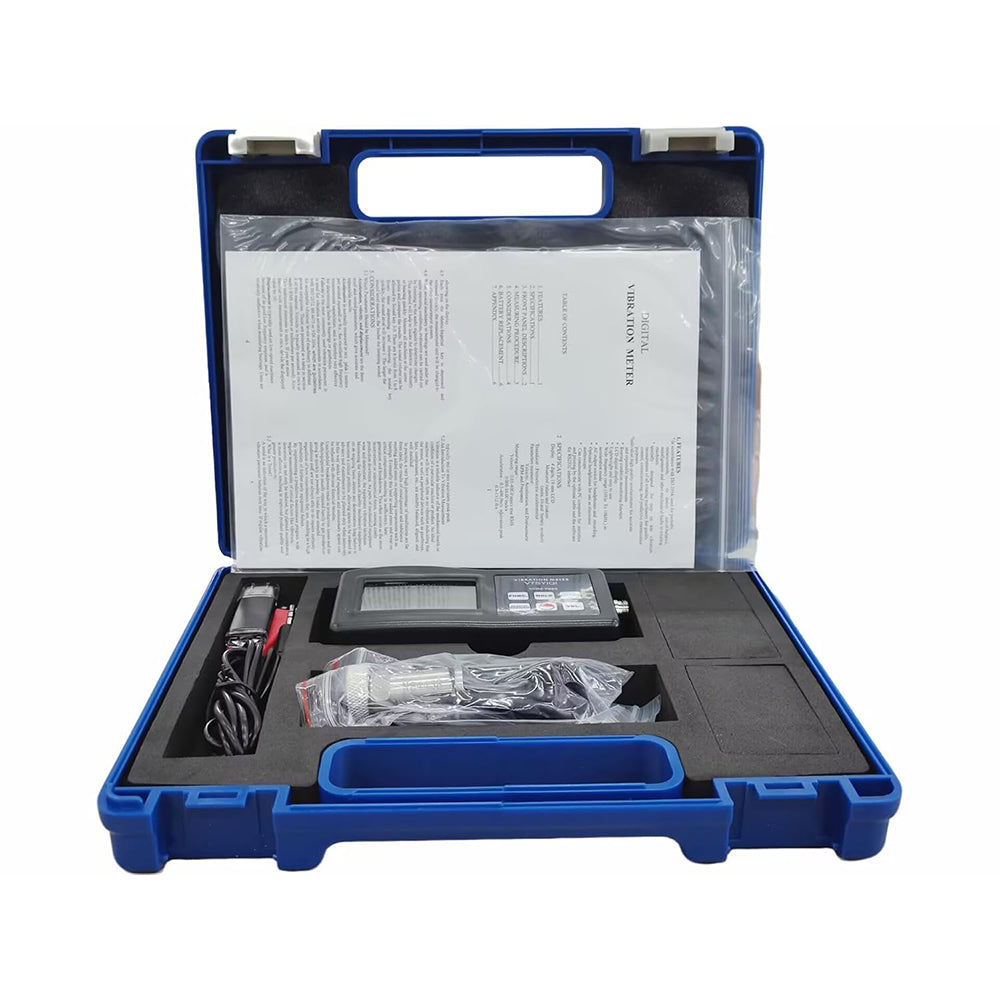

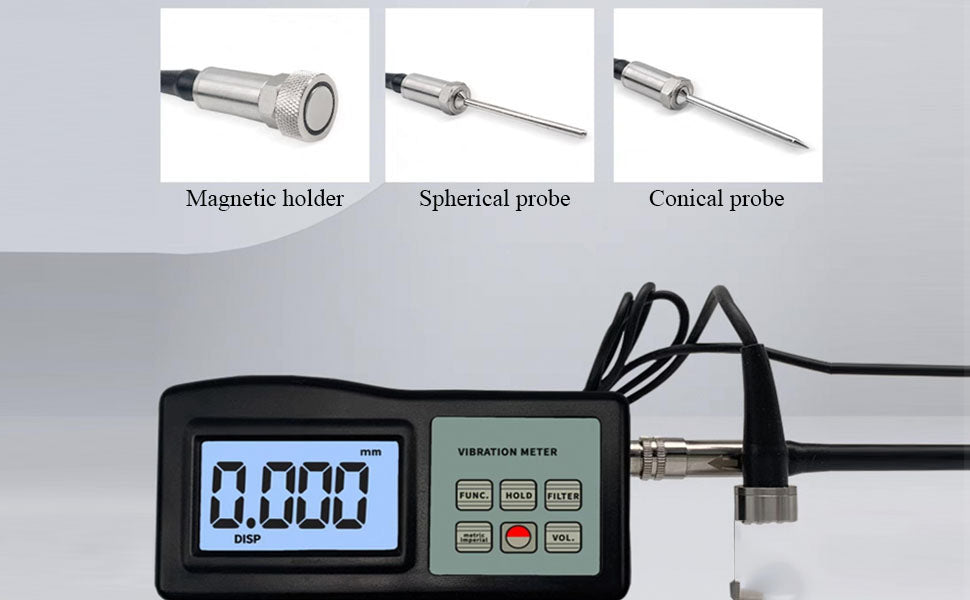

♦Standard Accessories: Main Unit, Piezoelectric Transducer, Powerful Rare Earth Magnet Probe(Cone)&Probe(Spherical), Carrying Case(B04), Manual Book,RS-232C Data Cable with Software,
♦Optional Accessories: Headset,Bluetooth Data Adapter with Software
