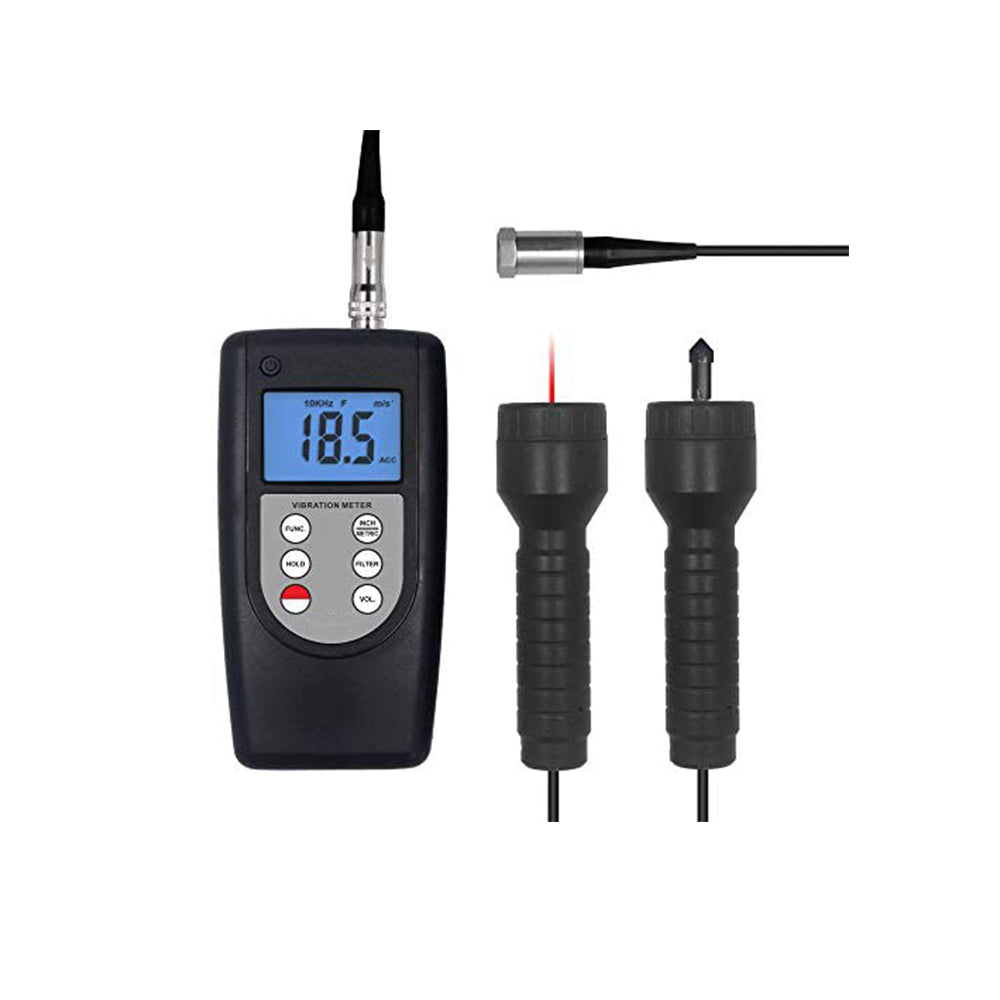

VTSYIQI  Vibration Tachometer Multifunctional Tach Tester Meter Acceleration Displacement Velocity Measuring with Velocity Range 0.01 to 400mm/s 0.004 to 16.0inch/sTrue RMS

About this item

◆ Range:Acceleration: 0.1~400m/s² 0.3~1312ft/s² 0.0~40g Equivalent Peak; Velocity: 0.01~400mm/s 0.004~16.0inch/sTrue RMS; Displacement: 0.001~4.0 mm 0.04~160.0 mil Equivalent Peak-peak

◆ Frequency Range: Acceleration, 10Hz~10kHz; Velocity, 10Hz~1kHz; Displacement, 10Hz~1kHz

◆ Individual high quality ccelerometer for accurate and repeatable measurements; Rotation Rate Range: 60~99,990RPM(r/min) (Reading should be multiplied by 10 if the display shows “10”);

◆ In accordance with ISO 2954, used for periodic measurements, to detect out-of-balance, misalignment and other mechanical faults in rotating machines.

◆ Specially designed for easy on site vibration measurement of all rotating machinery for quality control,commissioning, and predictive maintenance purposes.

Shipping Policy : Battery Not Included During the Shipping
Application
▲ Used for measuring periodic motion, to check the imbalance and deflecting of moving machinery. Also can be used as contact tachometer and photo tachometer.
Features
▲ Multifunctional, one instrument combines Photo Tachometer & Contact Tachometer. Be able to measure rotation rate RPM(r/min) & Frequency Hz.
▲ Individual high quality ccelerometer for accurate and repeatable measurements.
▲ Wide frequency range (10Hz~10kHz) in acceleration mode.
▲ Bearing condition monitoring function.
Technical Specifications
▲ Sensor: Piezoelectric Transducer
Measuring Range:
▲ Acceleration: 0.1~400m/s² 0.3~1312ft/s² 0.0~40g Equivalent Peak
▲ Velocity: 0.01~400mm/s 0.004~16.0inch/sTrue RMS
▲ Displacement: 0.001~4.0 mm 0.04~160.0 mil Equivalent Peak-peak
▲ Frequency Range: Acceleration, 10Hz~10kHz; Velocity, 10Hz~1kHz; Displacement, 10Hz~1kHz
▲ Rotation Rate Range: 60~99,990RPM(r/min) (Reading should be multiplied by 10 if the display shows “10”)
▲ Frequency Range: 1~20,000Hz (Reading should be multiplied by 10 if the display shows “10”)
▲ Accuracy: 5% of Reading+2 digits
▲ Operating Conditions: Temperature, 0~50ºC; Humidity, <90%RH
▲ Power Supply: 4x1.5V AAA(UM-4)Battery（Battery not included in the package）
▲ Dimensions: 140x72x34mm
▲ Weight: 380g

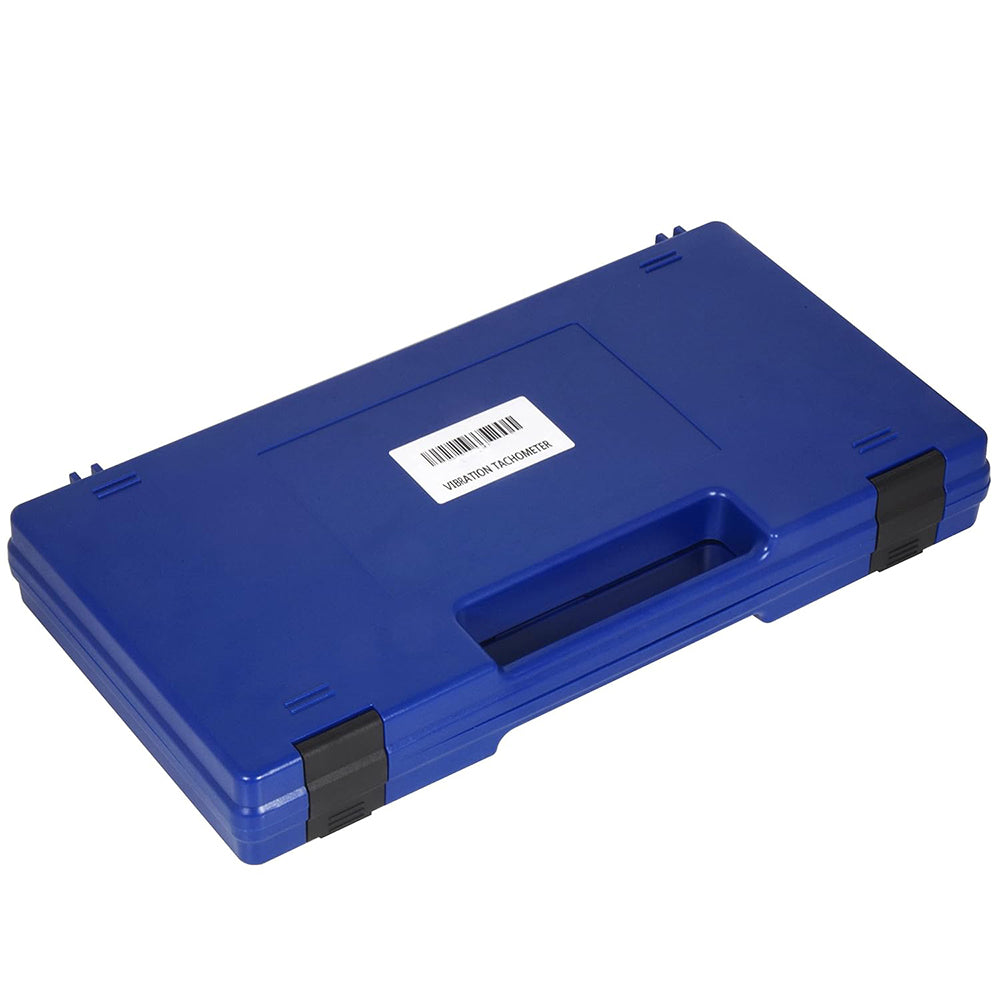

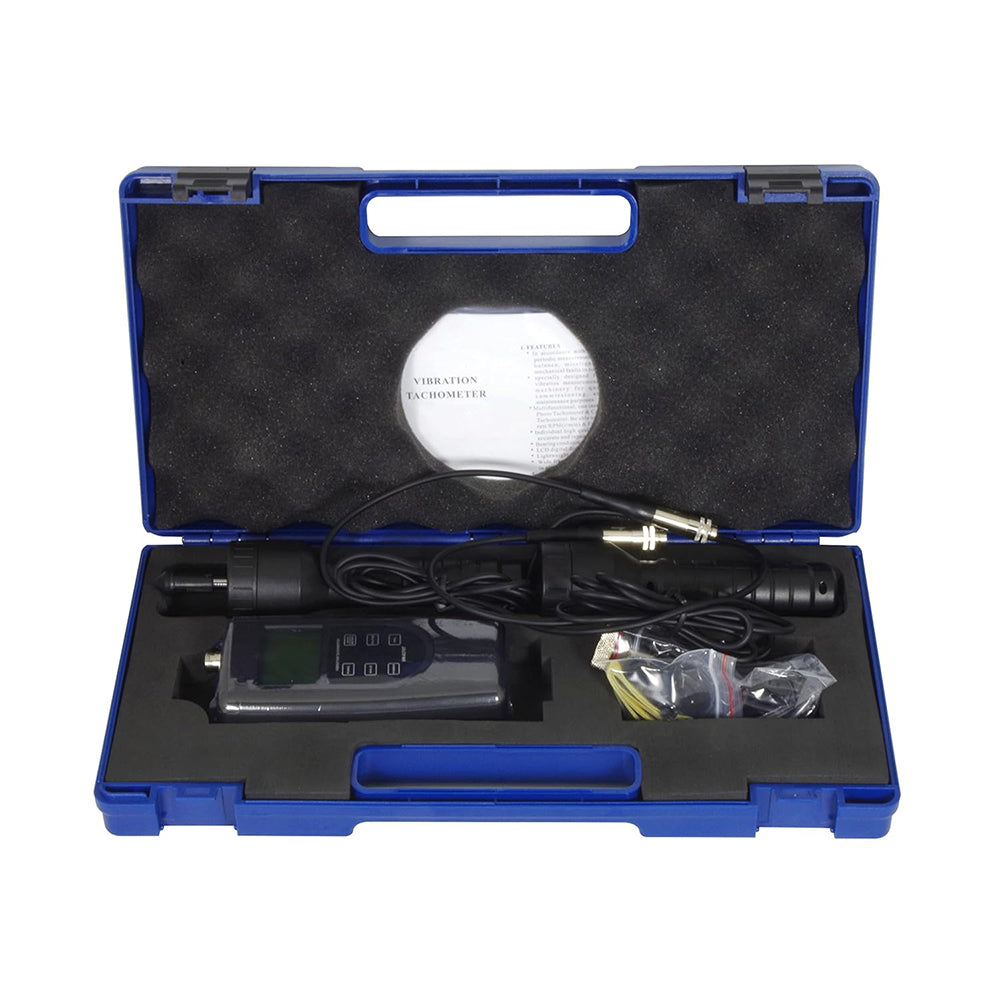

▲ Standard Accessories: Main Unit; Piezoelectric Transducer; Powerful Rare Earth Magnet; Probe(Cone); Probe(Spherical); Contact Tachometer Sensor; Photo Tachometer Sensor; Reflective Tape Marks (350mm); Carrying Case; Manual Book
