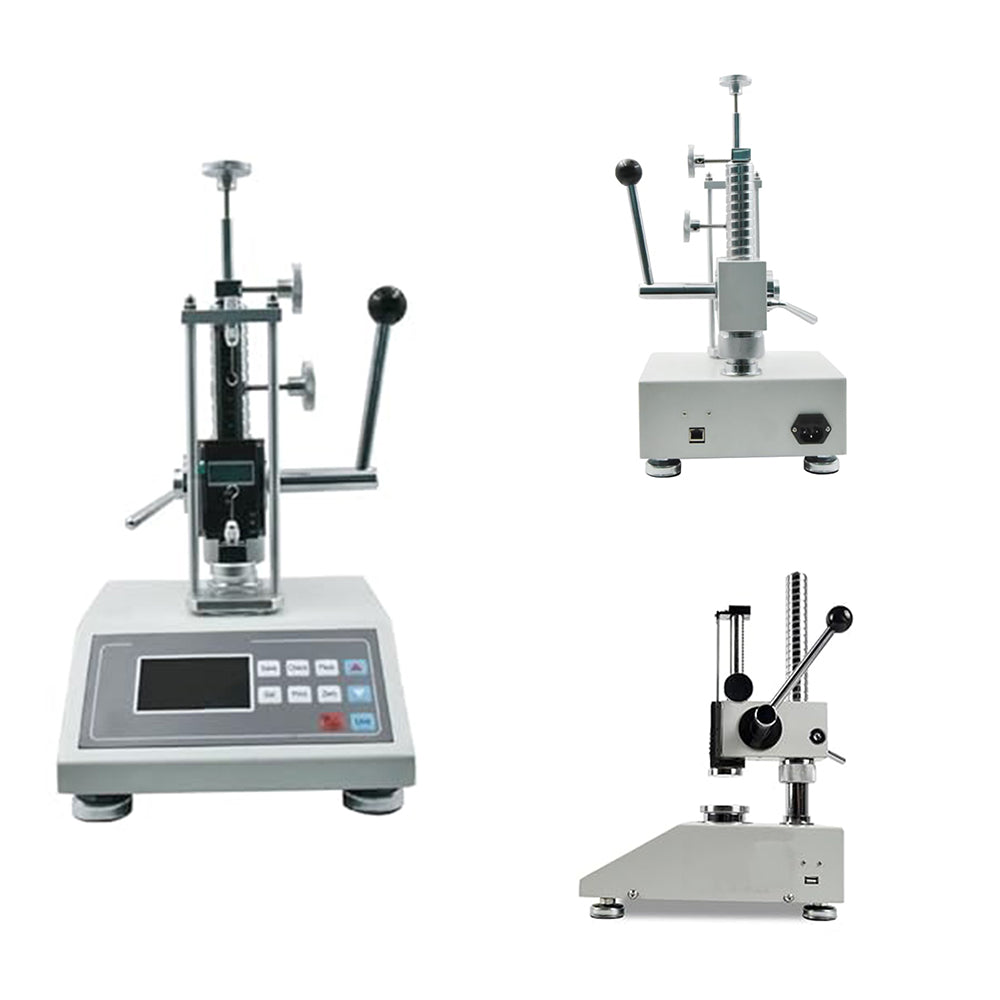

VTSYIQI 10N Spring Tester Spring Tension and Compression Meter with Maximum Test Machine Load 10N/1KG/2.2Lb Resolution 0.001N Measurable Maximum Free Length of Spring 80mm for Measuring the Stretches and Compression Distortion Value of Spring

About this item:

Maximum testing load: 10N/1kg/2.2Lb

Minimum resolution: 0.001N/0.0001kg/0.001Lb

Diameter of the platen: 34mm Indication error: +/-1%

Maximum free length of measurable spring: 80mm

Length of travel of the displacement scale: 60mm

Features:
High precision and high resolution.

Three measurement units have their own switching: N (Newton), kg (Kilogram), Lb(British pound).

Gravity acceleration setting, higher measurement and conversion accuracy.

Store 99 sets of test data, which can be viewed, stored and deleted directly on the machine.

Communication function: It uses USB interface to communicate with PC. The synchronous
test function can be connected to a computer for testing. The computer displays the test force curve and the detailed test force records during the test.

Specification:

Maximum testing load ：10N/1kg/2.2Lb

Minimum resolution ：0.001N/0.0001kg/0.001Lb

Diameter of the platen ：34mm

Maximum free length of measurable spring ：80mm

Length of travel of the displacement scale ：60mm

Division value of the displacement scale 0.01mm

Indication error +/-1%

Power Supply AC 110-220V, 50HZ-60HZ

Power capability (without printer) 13W

Power capability (with printer) 20W

Working temperature 20+/-10C

Temperature of storage and transportation -27C~+70C

Relative temperature 15%~80%RH
