  • VTSYIQI 3 Axis Fluxgate Magnetometer Weak Magnetometer Three Axis Fluxgate Magnetometer with Resolution 10nT Range 0 to 500μT Class 2 Linearity: ± 0.5% 5-Digits Display for Fragmentation Processing Security Check

VTSYIQI

VTSYIQI 3 Axis Fluxgate Magnetometer Weak Magnetometer Three Axis Fluxgate Magnetometer with Resolution 10nT Range 0 to 500μT Class 2 Linearity: ± 0.5% 5-Digits Display for Fragmentation Processing Security Check

$2,01900
有货
$2,01900

Customer Service

Post your customer service details here.

Return Policy

Post your policy conditions details here.

VTSYIQI 3 Axis Fluxgate Magnetometer Weak Magnetometer Three Axis Fluxgate Magnetometer with Resolution 10nT Range 0 to 500μT Class 2 Linearity: ± 0.5% 5-Digits Display for Fragmentation Processing Security Check

About this item:

2% Accuracy: please note that of this Triaxial Fluxgate Magnetometer measurement accuracies is +/-2% .

Range Switch: You can Choose mT(mite) or mG(gauss).

Wide Range of Application:1.Earth's magnetic field measurement, environmental magnetic field detection; 2.Detection of weak magnetic fields in small ferromagnetic bodies or rocks; 3.Measurement of residual magnetism in metal parts processing, package/wrap inspection; 4.Evaluation of the attenuation characteristics of magnetic shielding; 5.Detection of NMR or electron microscopes; 6.Detection of magnetic field drift of precision instruments; 7.Calibration of weak magnetic field sources (solenoids/Helmholtz coils) for laboratory use

USB interface: USB charging AND Communication interface

Tri-axis Fluxgate Magnetometer:Measuring XYZ component, vector synthetic value.

Introduction:

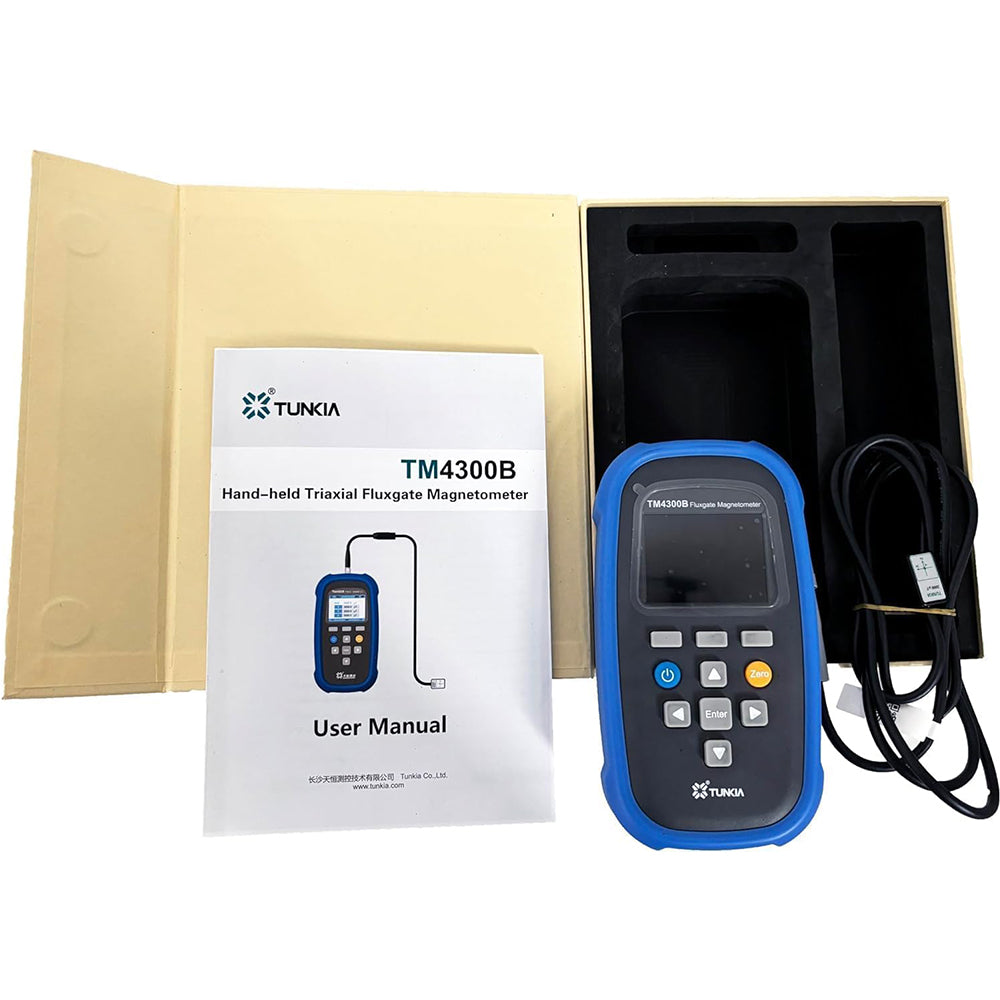

The handheld tri-axis fluxgate magnetometer is a portable, multi-functional weak magnetic measurement instrument equipped with a high sensitivity, high linearity, and low drift tri-axis fluxgate sensor for more accurate and convenient measurement of weak magnetic fields in space compared to Hall effect type magnetic measurement instruments.

Features:

Unit switch: μT, mG.

+/- polarity display.

Relative measurement mode.

Max. hold function.

USB interface.

Measuring XYZ component, vector synthetic value.

Alarm function of exceeding the upper / lower limit.

Display support backlight and battery power.

Magnetic measurement data storage.

Lithium battery, remaining power display.

Application:

Measuring low magnetic field.

Geological prospecting.

Fragmentation processing, security check.

Fault location, research experiment.

Magnetic shielding evaluation.

Calibrating low magnetic field sources.

Detecting magnetic resonance meter.

Detecting electron microscope.

Detecting Magnetic field drift.

Technical Specifications:

Range: (μT):500

Resolution (nT):10

Accuracy(k=2):2%.

Temperature coefficient (%/°C):0.1

Noise: <20nTrms @ 1Hz

Power supply: 4000 mAh lithium battery power, USB charging

Operating temperature: 0°C~45°C; Storage temperature: -20°C~70°C

Operating humidity: 20%~80% R. H non-condensing

Storage humidity: <85% R.H, non-condensing

Weight: approx. 500 g

Communication interface: Magnetic fluxgate probe input interface, USB interface

Dimension: 90 mm(W) X 40 mm(D) X 165 mm(H)

Probe size: 20 mm(L) X 14 mm(W) X 12 mm(H)
