VTSYIQI 3 Axis Tesla Meter Handheld Triaxial Tesla Teter with Range 2 mT～3000 mT Measuring XYZ Component Vector Synthetic Value Accuracy 5% Switching AC or DC Mode for Measuring the Magnetic Density value of DC or AC Triaxial Magetic Field

About this item

Range: 2 mT～3000 mT

Accuracy: 5%

Measuring XYZ component, vector synthetic value

Unit switch: mT, G, A/m

It is applied for measuring the magnetic density value of DC or AC triaxial magetic field.

Overview

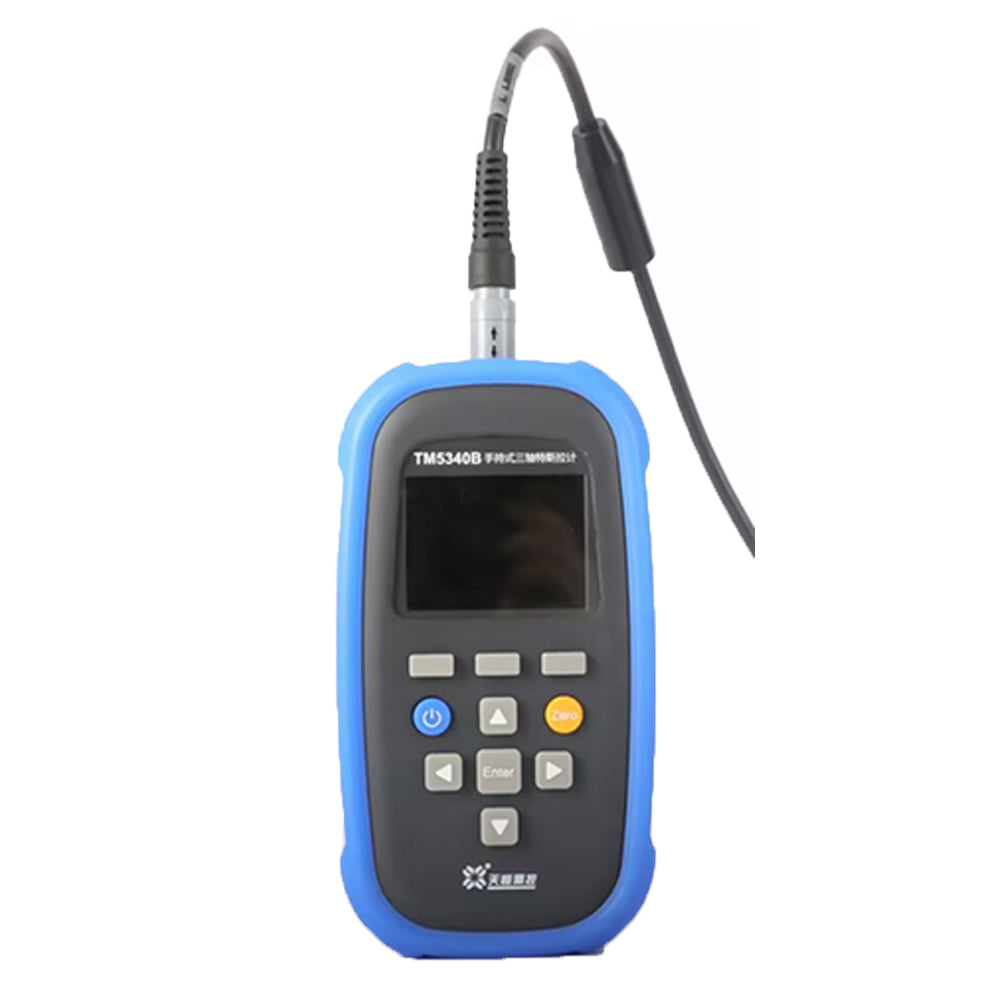

It is a portable, multi-function meter that measures magnetic field, equipped with high sensitivity, low drift triaxial Hall sensor. It is applied for measuring the magnetic density value of DC or AC triaxial magetic field.

Features

Range: 2 mT～3000 mT.

Accuracy: 5%.

Measuring XYZ component, vector synthetic value.

Switching AC or DC mode.

+/- polarity display.

Unit switch: mT, G, A/m.

Relative measurement mode.

Max. hold function.

Alarm of exceeding the upper / lower limit.

Probe temperature compensation.

Magnetic measurement data storage.

Lithium battery, remaining power display.

USB interface.

Specifications

XYZ Range 30 mT R Range 52 mT Resolution 1μT

XYZ Range 300 mT R Range 520 mT Resolution 10μT

XYZ Range 3000 mT(Calibration only covers 2.5T) R Range 5200 mT Resolution 0.1 mT

Measuring Range 2 mT～3000 mT

Accuracy DC: ±(0.5% + 200 μT), AC: ±(3% + 500 μT)

Frequency Range DC,40 Hz～500 Hz

Temperature Coefficient ± 0.06% / K

Zero Drift ± 0.1 mT / h

Display Digits 5

General Specifications

Power Supply 4000 mAh lithium battery, USB charging

Temperature Performance Operating temperature:0°C～45°C

Storage temperature:-20°C～70°C

Humidity Performance Working humidity:20%～80% R·H, non-condensing

Storage humidity:< 85% R·H, non-condensing

Weight About 500 g

Interface Hall probe input interface, USB interface
