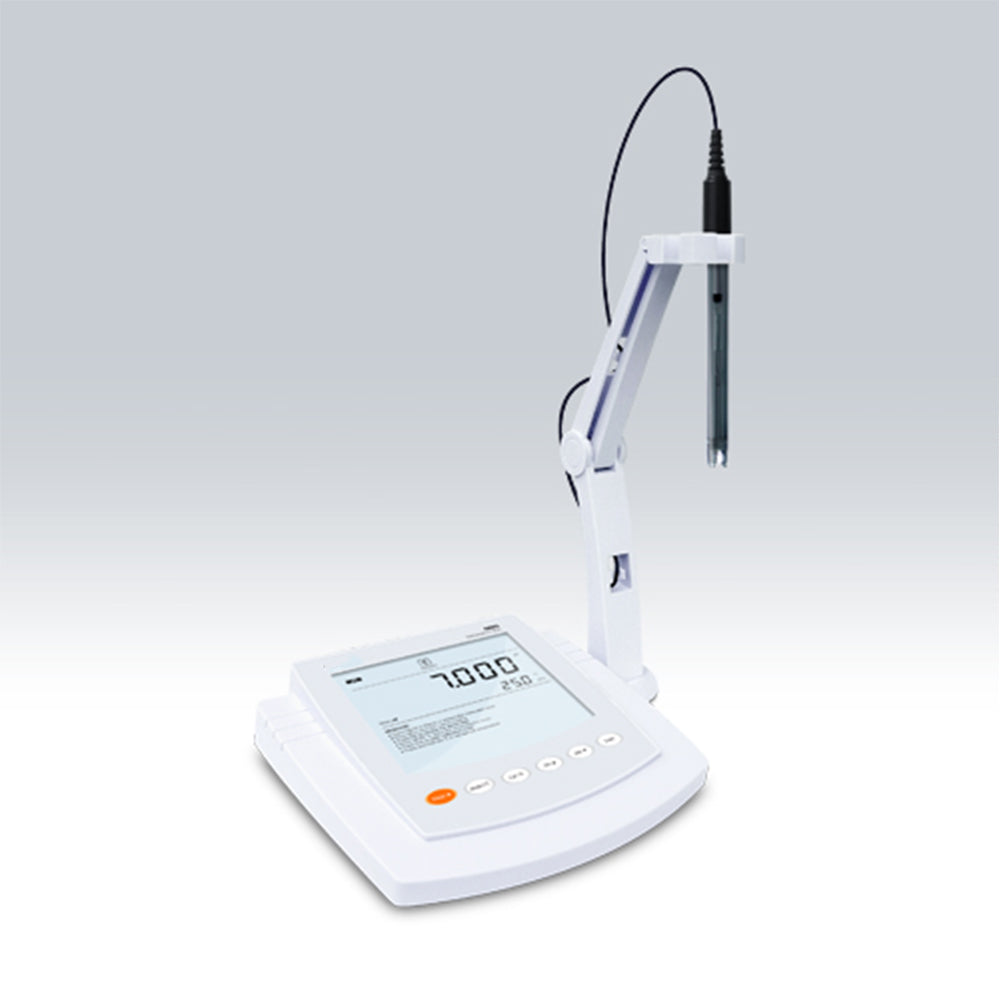

VTSYIQI  Multiparameter Water Quality Meter Water Quality Analyzer with Conductivity Standard Solutions Setup Menu Allows Setting the Number of Calibration Points Range 0.00 to 20.00 mg/L/0.0 to 200.0% Saturation Automatic Temperature Compensation

About this item

Multiparameter water quality meter contains measurement modes for pH, mV, ORP and dissolved oxygen, the setup menu offers 11 customizable options.

Automatic temperature compensation ensures accurate readings over the entire range.

Auto-read function senses and locks the measurement endpoint.

Calibration due alarm reminds user to calibrate the meter regularly.

Setup menu allows setting the number of calibration points, stability criteria, temperature unit, date and time, auto-power off, etc.

pH

Range: -2.000 to 20.000 pH

Resolution: 0.001 / 0.01 / 0.1 pH, selectable

Accuracy: ±0.002 pH

Calibration: 1 to 5 points

pH Buffer Options: USA / NIST / DIN / 2 custom buffers

ORP

Range: -1999.9 to 1999.9 mV

Resolution: 0.1 / 1 mV, selectable

Accuracy: ±0.2 mV

Calibration: 1 point

Measurement Modes: Relative / Absolute mV

Dissolved Oxygen

Range: 0.00 to 20.00 mg/L / 0.0 to 200.0 % saturation

Resolution: 0.01 / 0.1, selectable

Accuracy: ±0.2 mg/L / ±2.0 %

Calibration: 1 or 2 points

Pressure Correction: 60.0 to 112.5 kPa / 450 to 850 mmHg, manual

Salinity Correction: 0.0 to 50.0 g/L, manual

Temperature

Range: 0 to 105°C / 32 to 221°F

Resolution: 0.1°C/°F

Accuracy: ±0.5°C / ±0.9°F

Calibration: 1 point

Calibration Range: Reading ±10°C/°F

Other Specifications

Temperature Compensation: 0 to 100°C / 32 to 212°F, manual or automatic

Hold Function: Manual / Auto-read measurement endpoint

Stability Criteria: Low / High

Calibration Due Alarm: 1 to 31 days or off

Memory: Stores up to 500 data sets

Output: USB communication interface

Connector: BNC, 6-pin mini-DIN, 3.5 mm jack socket

Display: Custom LCD (125 × 100 mm)

Power Supply: 5V DC power adapter

Environmental Conditions: 0 to 50°C / 32 to 122°F, relative humidity < 80%

Dimensions: 210 × 188 × 60 mm

Weight: 1.5 kg

Meter Includes

E201-BNC pH electrode

DO100 dissolved oxygen electrode

TP-10K temperature probe

pH 4.01, 7.00, 10.01 buffer reagents

DO electrolyte solution

DO membrane cap

USB cable

5V DC power adapter
