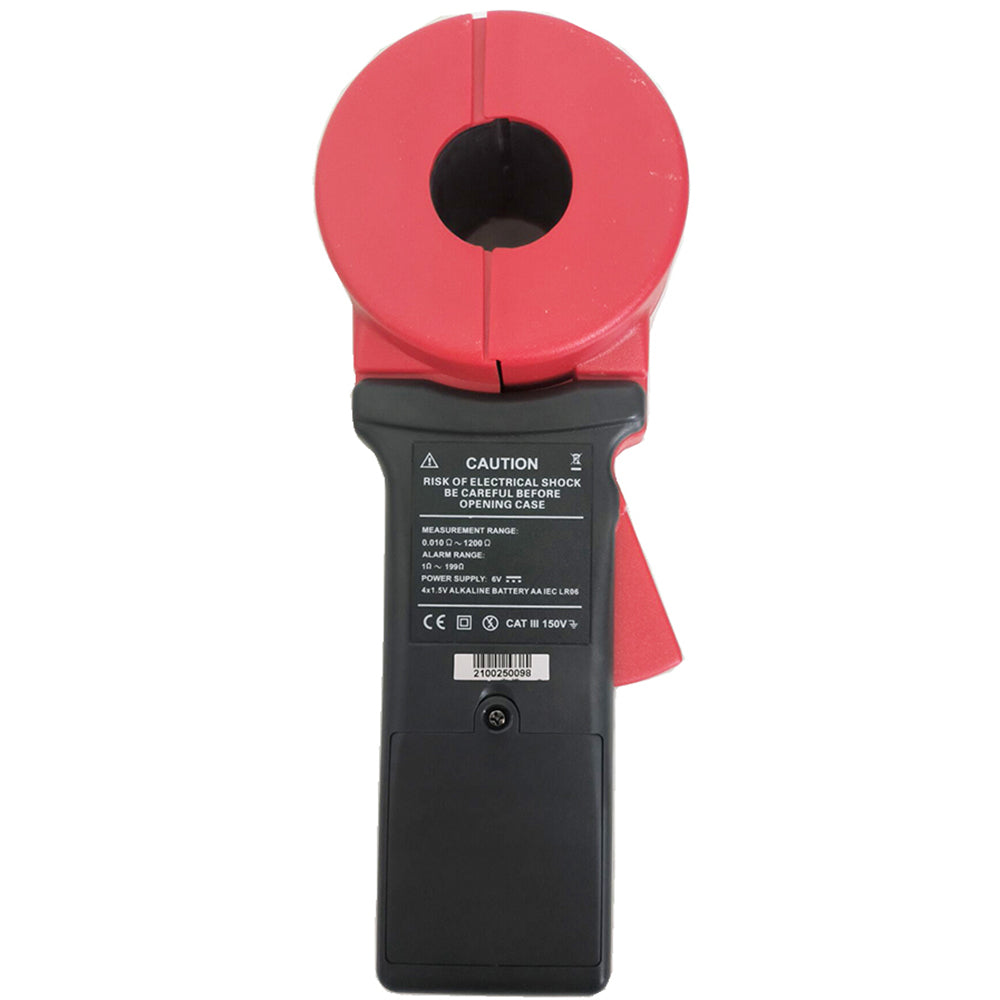

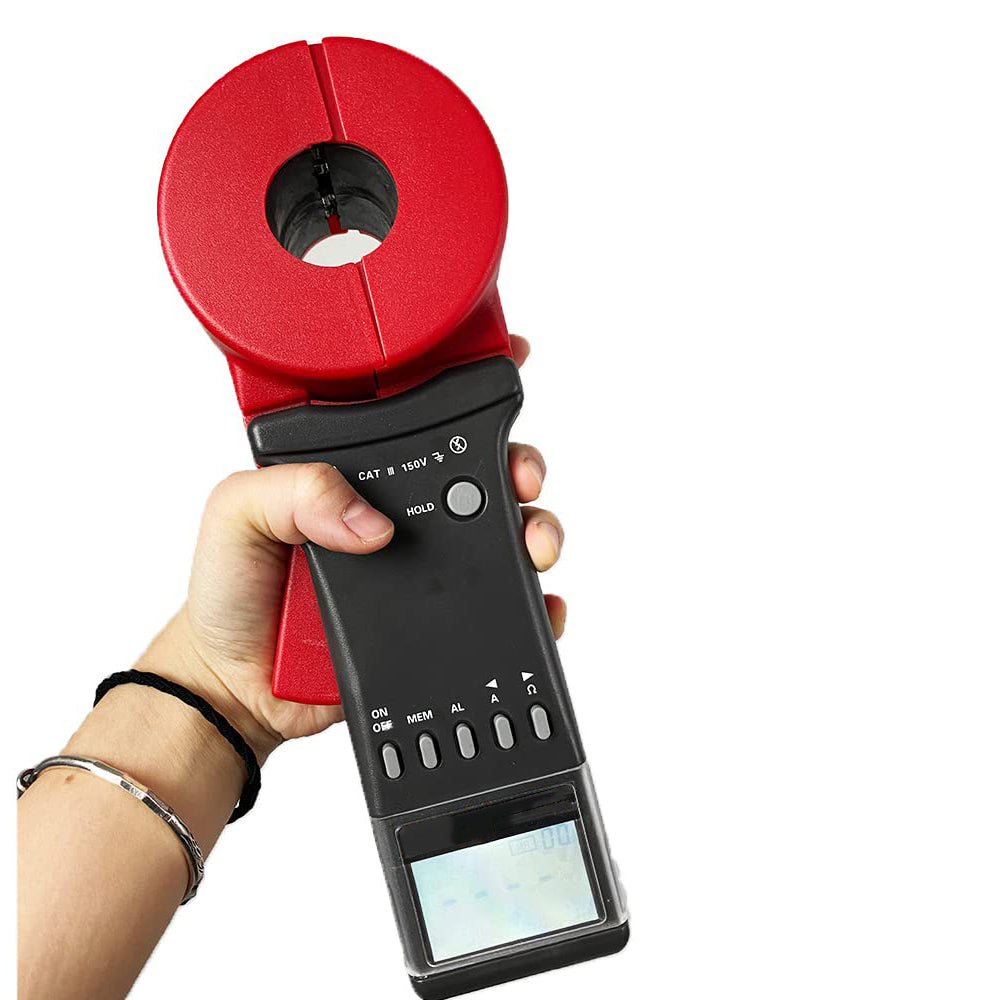

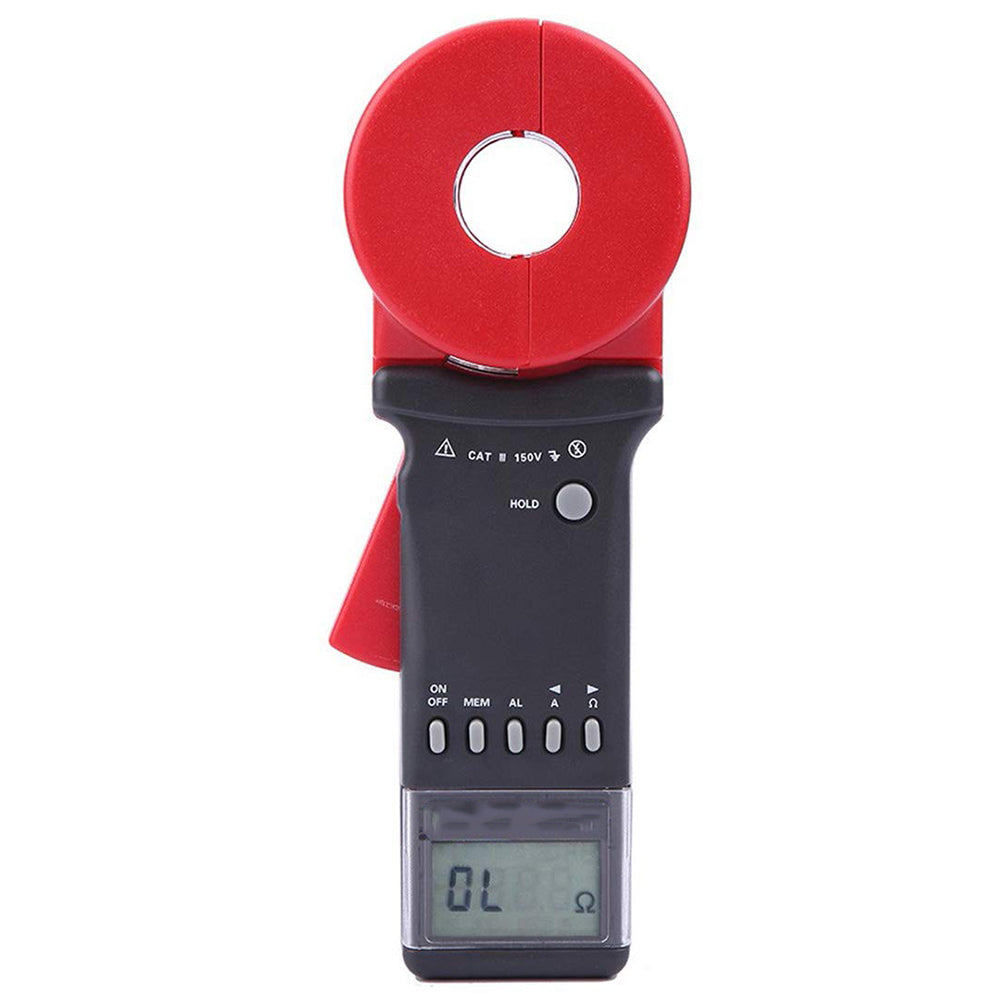

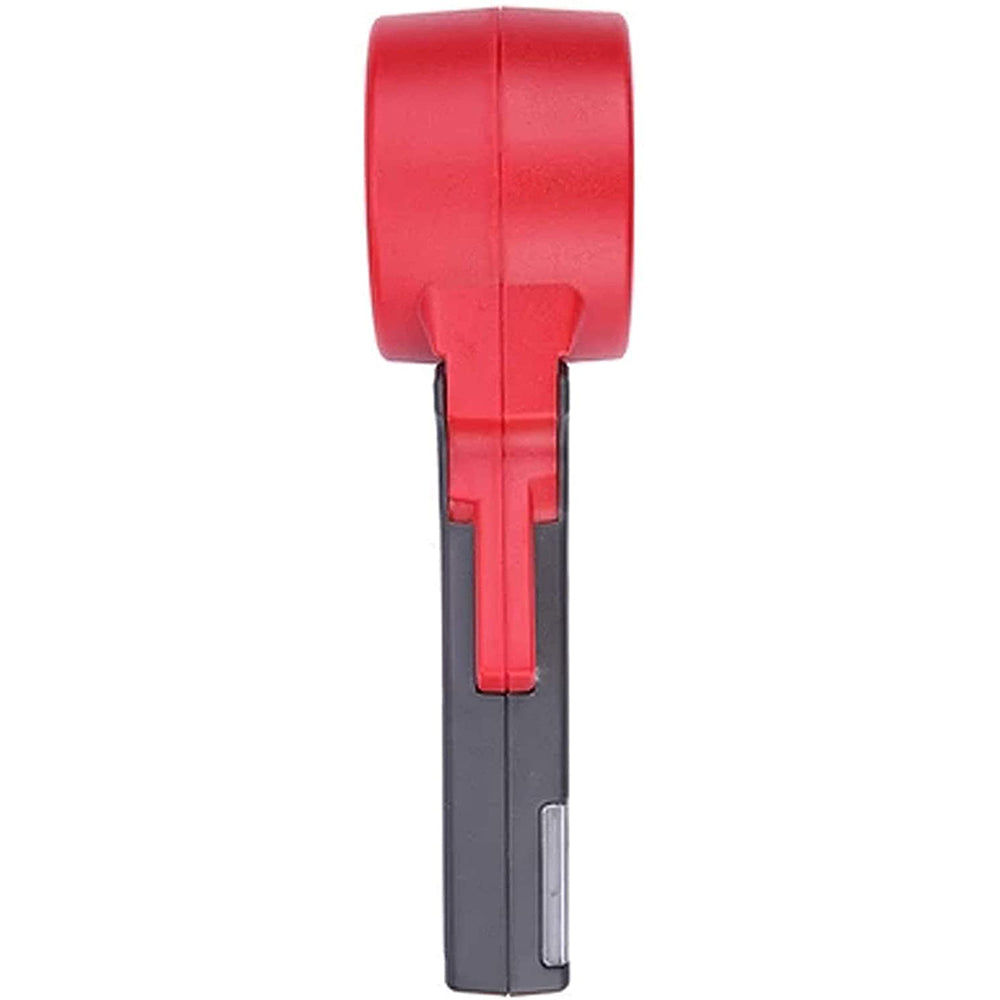

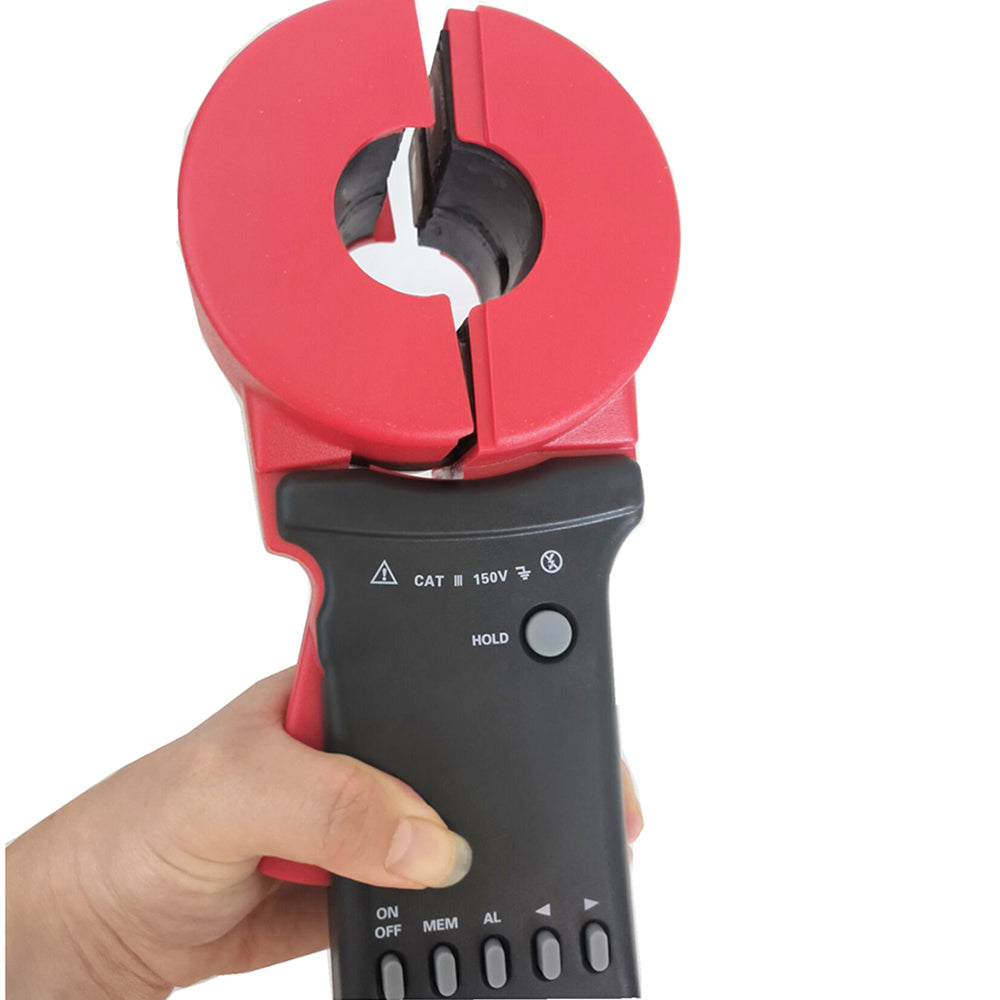

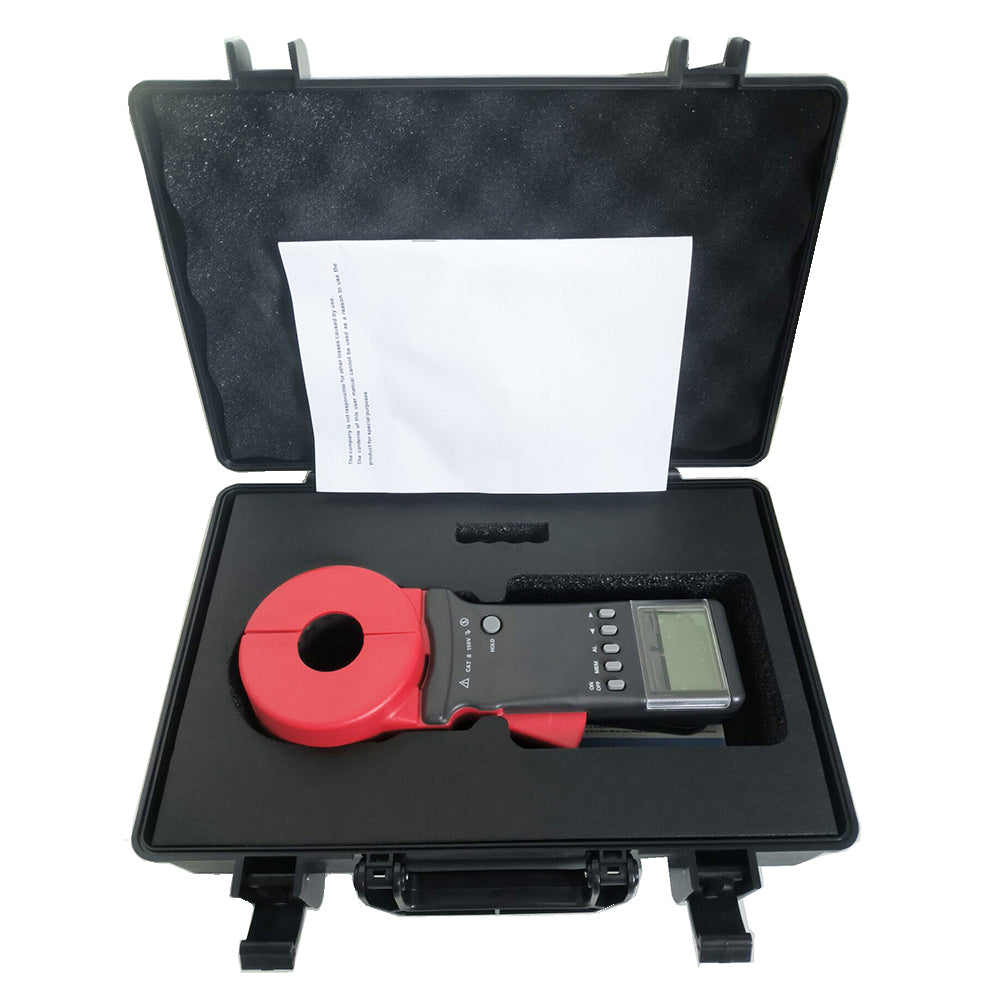

VTSYIQI Ground Resistance Tester Digital Earth Resistance Testers with Resistance Range 0.010Ω~1200Ω Clamp Jaw Size Φ32mm Current Range 0.00mA~20.0A for Loop Resistance Measurement

About this item:

It is applied in measurement of grounding resistance and the loop resistance (range: 0.010 Ω Ω ~ 1200); Leakage current measurement (Range :0.00mA~20.0A).

Data storage function: 99 sets of measurement results can be recorded, saving extra recording time.

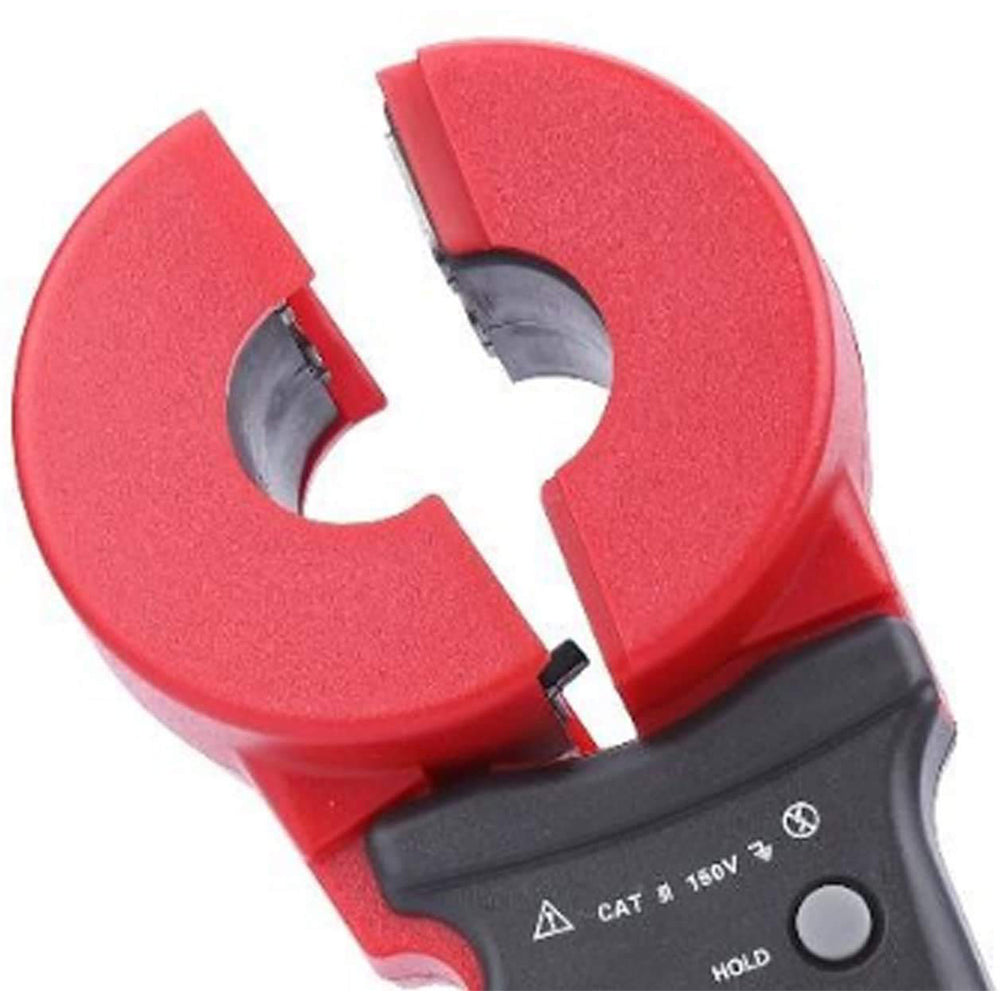

Precision clamp head design: using precision iron core and winding, stable, precise and strong anti-interference.

Boot Time:Self-test in 0.5 second, boot instantly.

Easy to use, safe and fast: When measuring a grounded system with a loop, there is no need to disconnect the ground lead and no auxiliary electrode.

Shipping Policy : Battery Not Included During the Shipping

Product Main Function:

Measurement of earth resistance,loop resistance

Resistance Measure Range: 0.010Ω~1200Ω

Leakage Current Measure Range: 0.00mA~20.0A

Alarm Threshold Setting：1-199Ω

Alarm Function: audible and visible alarm

CT Size:Φ32mm

Technical Specifications

Clamp Size:Φ32mm

LCD Size:4 Digits LCD display, Screen: 47mm×28.5mm

Range:

Resistance: Resistance: 0.010Ω~1200Ω

Current:Current: 0.00mA~20.0A

Resolution:Resistance: 0.001Ω; Current: 0.05mA

Accuracy:Resistance: ±1%±0.01Ω; Current:±2.5%±1mA

Data Storage: 99 sets

Auto Power-off:Automatically power off after 5 minutes without any operate

Power Consumption:≤50mA， continuously working for 30 hours

Alarm Threshold Setting Range:Resistance：1~199Ω

Audible and VisibleAlarm: “Beep-beep-beep” alarm sound, alarm symbol flashing, press ALkey to turn on/off and setting

Protection Level: Double insulation

Structural Feature:Clamp CT

Shift:Automatic shift

External Magnetic Field:＜40A/m

External Electrical Field:＜1V/m

Single Measurement Time: 0.5 second

Resistance Measurement Frequency: ＞1KHz

Measured Current Frequency:50/60Hz Automatic

Low Battery Voltage Indication:When the battery voltage is lower than 5.3V, the low battery voltage symbol is displayed

Storage Full Indication:Storage data full of 99 sets,flashed display "MEM" symbol

Tester Weight:1160g

Tester Dimension:285mm×85mm×56mm
