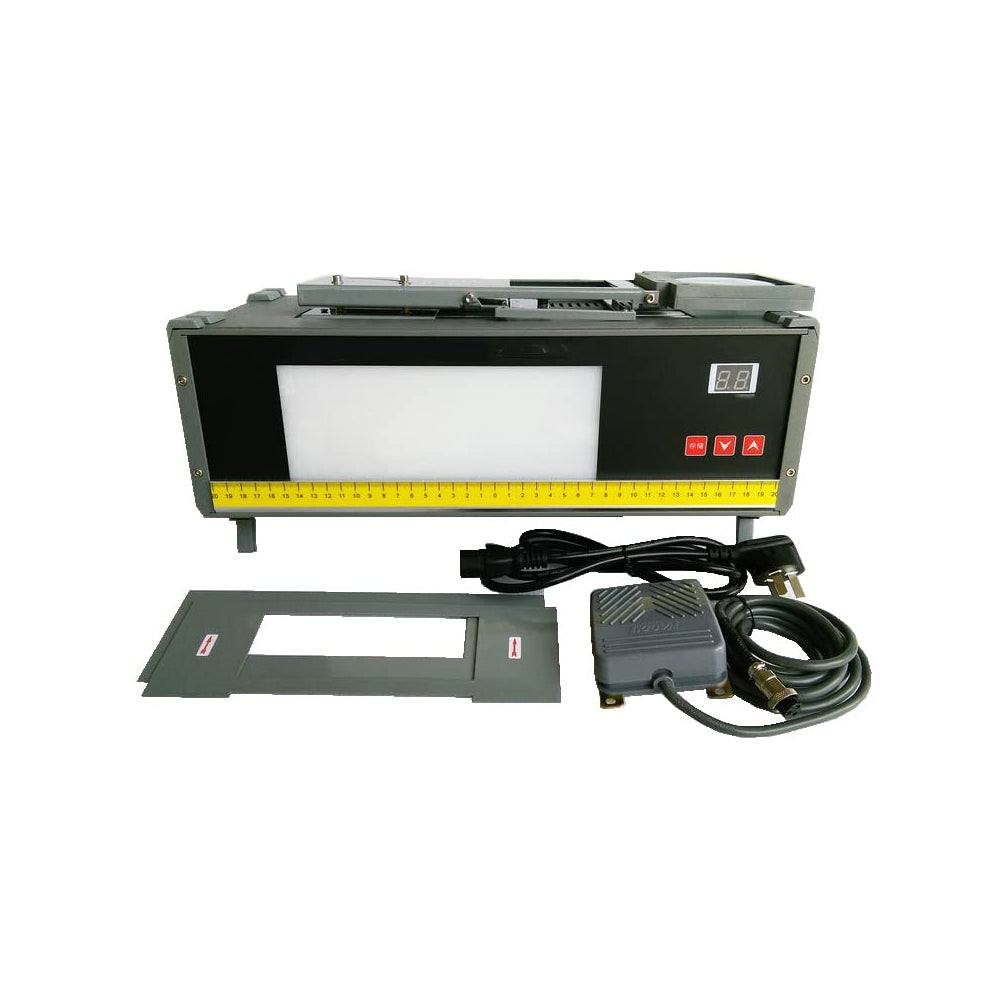

VTSYIQI NDT LED Film Viewer X ray Film Viewer With Maximum Brightness 193000 CD/M2 600000 Lux Film Observable Darkness ≤5.0 for NDT Inspection

Product Overview:

1, it adopts all-digital control mode, compared with the mechanical control of the viewing lamp, the work is more reliable, the performance is more stable, the service life is longer; dimming is more flexible, more convenient, just gently press a few times, you can adjust the light you need.

2、It adopts the temperature acquisition system, realizing the real-time protection of the light source. Users can press the “store” button and hold it for more than 2 seconds, the digital tube on the panel will display its internal temperature. When the temperature of the shell of the frequently touched part of the viewing light reaches 60℃, the viewing light will automatically turn off the brightness of the light.

When the temperature of the part that the viewing lamp touches frequently reaches 60℃, the viewing lamp will automatically adjust the brightness of the light to zui low, and at the same time, the digital tube on the panel will flash the “H H” symbol. When the temperature of the viewing lamp falls to normal, it will automatically return to the original brightness, and the display of the digital tube on the panel will also automatically return to the original black and white density value.

3, the use of white light source technology, with high-brightness high-power LED cold light source, observation screen zui high brightness of 193000cd/m2 (600000Lux), uniformity of 0.9 or more.

4. The material of observation screen adopts acrylic board, which has good light transmittance and diffuse scattering performance, and is not easy to deform and change color.

5、Using PWM low-voltage digital electronic continuous dimming technology, users can adjust the brightness within 5%-100 according to the viewing habits and needs.

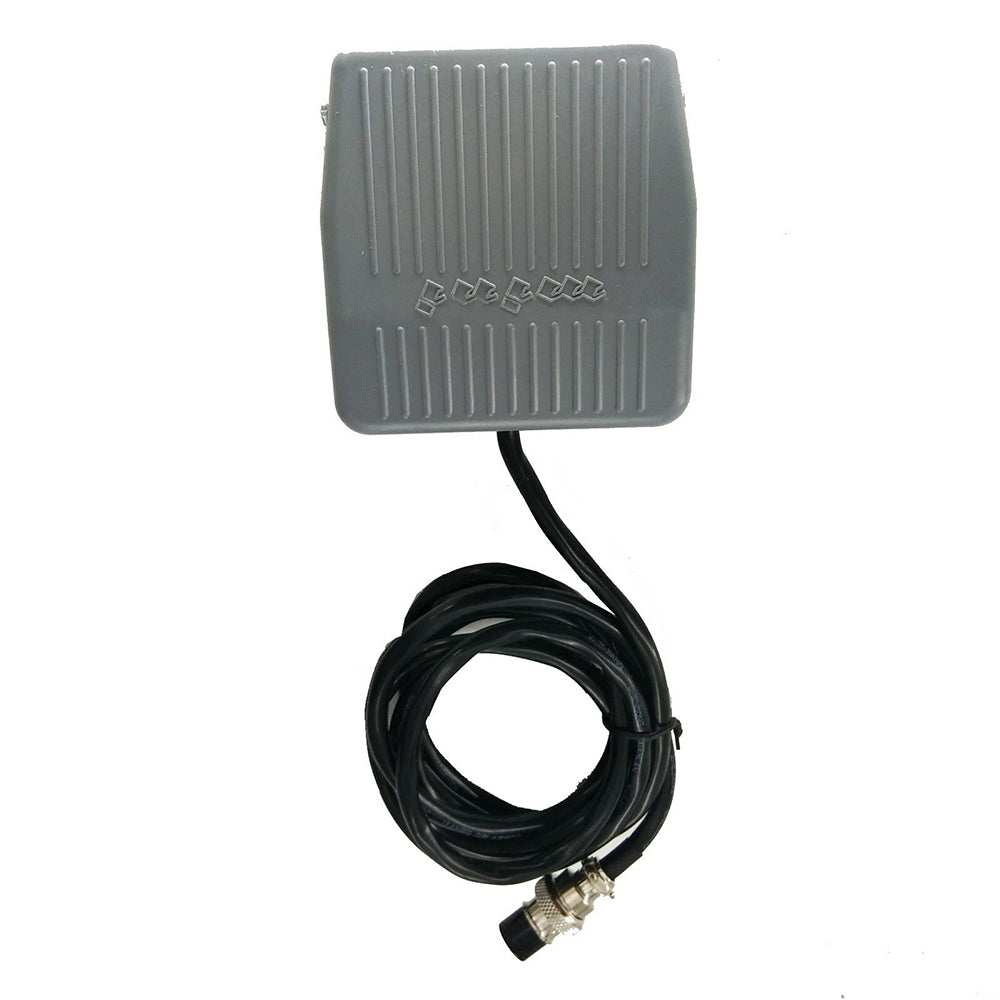

6、The constant current drive mode designed for the film viewing lamp ensures the normal work of LED to a greater extent, thus prolonging the service life of the LED light source, and the foot switch control further protects the user's safety.

7, with the specially designed cooling system, can effectively control the internal temperature of the film viewing lamp, increase the length of continuous operation.

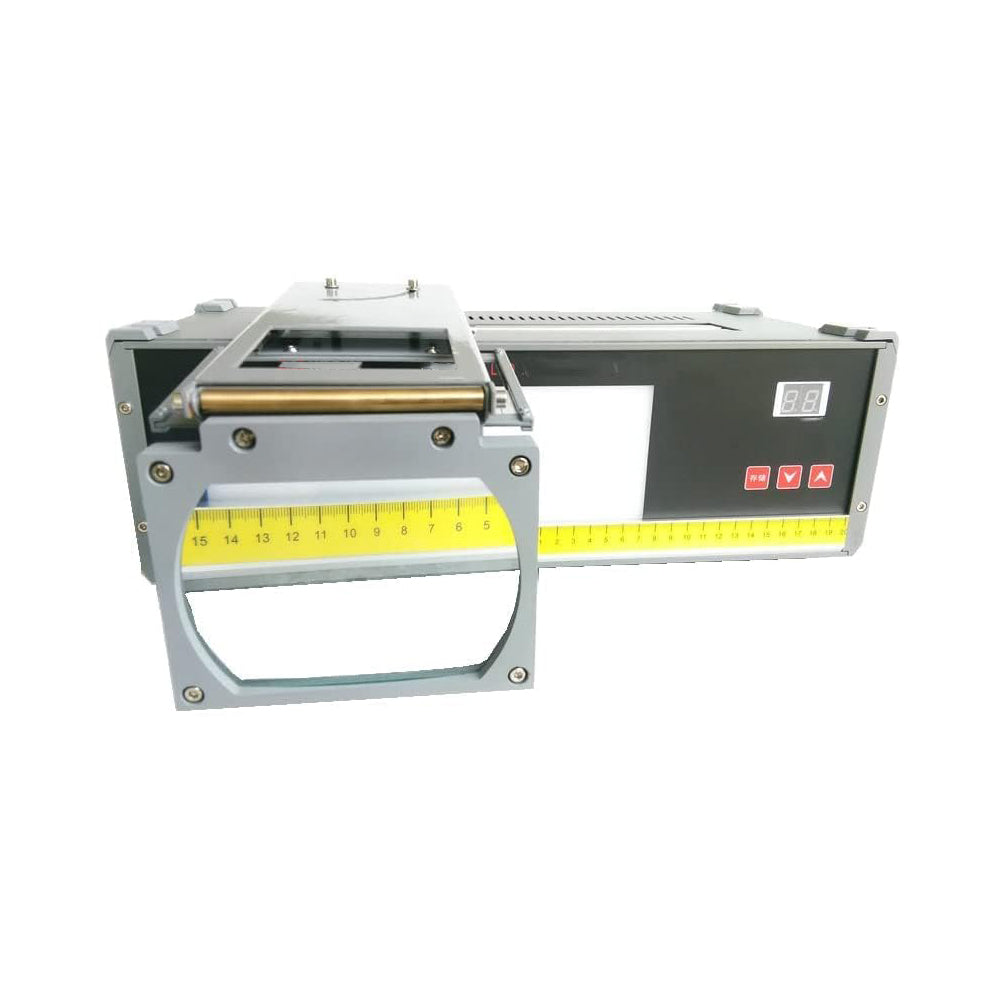

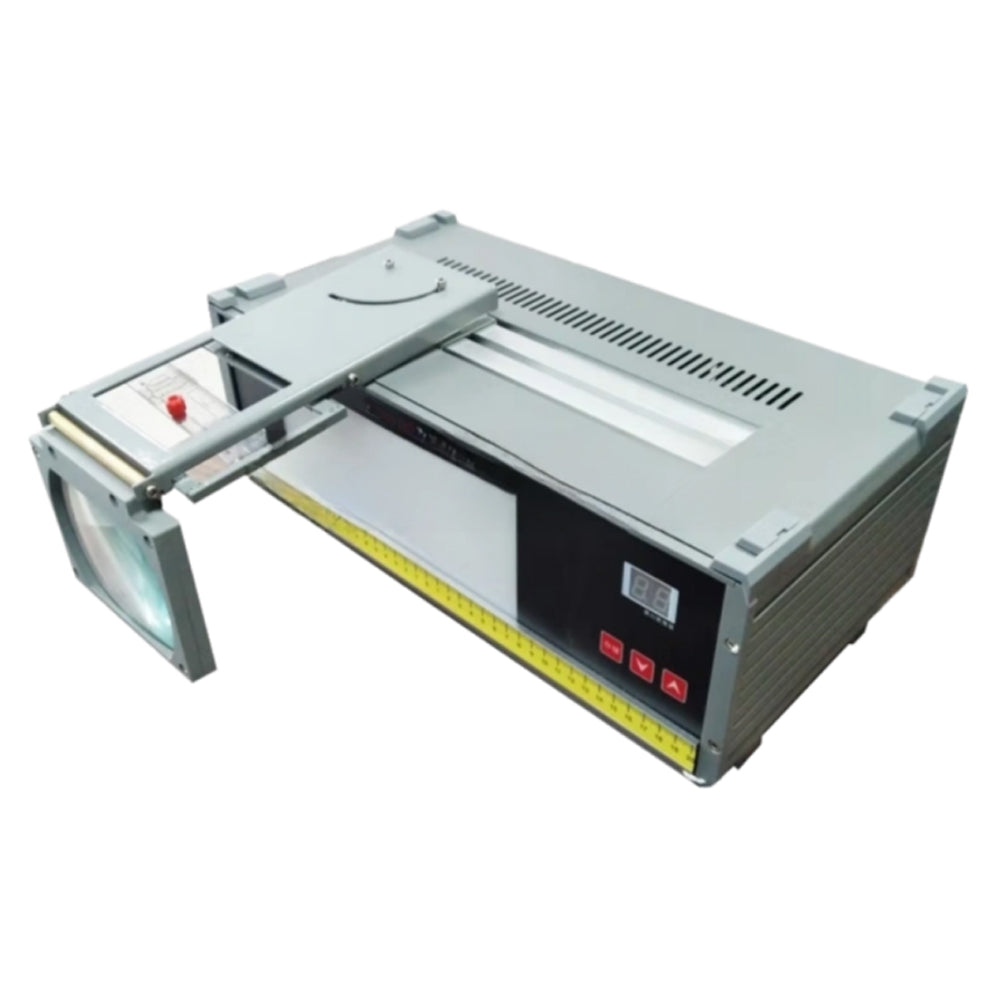

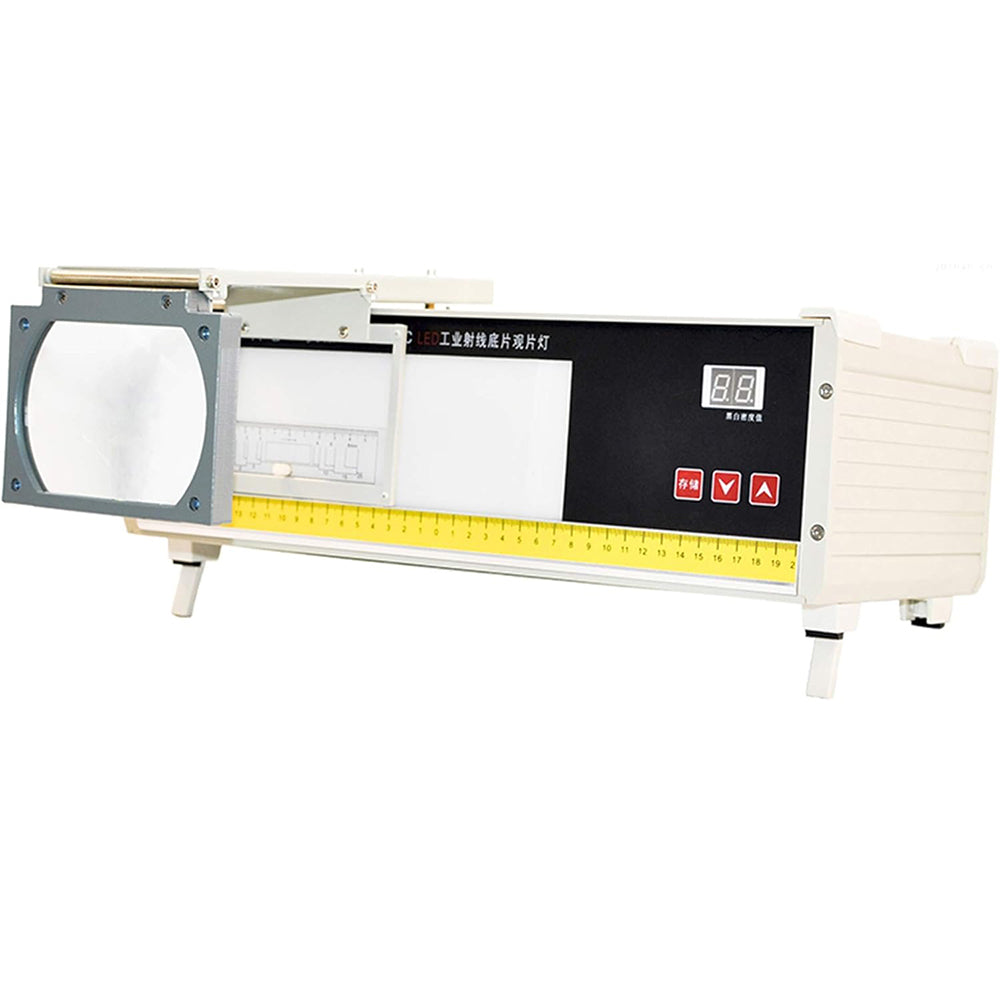

8, the viewing lamp is equipped with a movable magnifying glass to facilitate the identification of defects. If you do not use the magnifying glass, you can conveniently close the magnifying glass on top of the viewing lamp, without affecting the line of sight of the evaluation of the film.

Specifications:

Highest luminance: 193000cd/m2 (600000Lux)

Film observable darkness: ≤5.0

Average color temperature: 8000K

Largest area of observation screen: 220X80mm

Observation evenness: >0.9

Power: 47-63Hz/170-230VAC

Wattage: 120W

Device Size: 430×220×130mm

Magnifying glass: two times the magnifying power of the magnifying glass, Active area 130×90mm

Ambient temperature: -20℃ ~ 40

 Digital tube display range: 1.0~5.0
