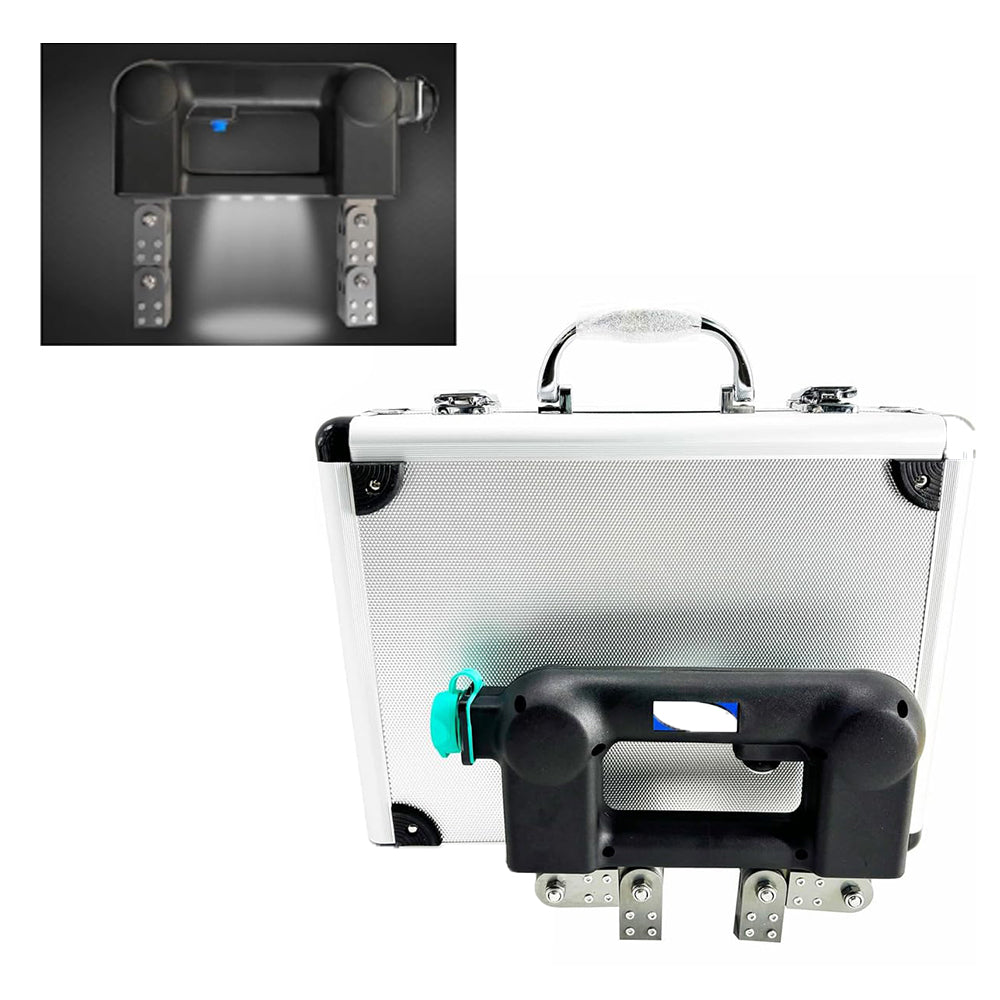

VTSYIQI Magnetic Particle Testing Equipment Particle Testing Magnetic Flaw Detector with White Light(Illumination Purposes) AC110V 50/60Hz Duty Cycle 50% Magnetic Pole Pitch 0-230mm Lifting Force AC >4.5kg (44N)

About this item:

Compact size and light weight .

Integrated molding, comfortable handle .

Special work pocket, easy for carrying magnetization power supply, magnetization suspension , contrast aid , etc .

Single-Phase AC Power Supply AC110V 50/60Hz

White Light for Illumination Purposes

We will provide voltage and plug according to your country

Introduction:

Magnetic Yoke Flaw Detector has the advantageous of compact structure, reasonable layout, compact volume, light weight and convenient to carry.

It is suitable for magnetic particle inspection of surface and near - surface defects of ferromagnetic materials in various kinds including iron and steel structural parts, boilers, pressure vessels, pressure pipes and welding structures in electric power, metallurgy, petrochemical and mechanical industries.

In addition, it can be used directly connected to AC, or optional with AC magnetization power supply and DC magnetization power supply, which is of high efficiency and portability.

Moreover, it is especially suitable for ship hull weld detection, high - altitude steel structure weld detection and pressure vessel internal operation.

Fulfill standards:

JB /T7411-2012/ ASTM E1444-05/ ASTM E709

EN10228-1:1999/ ISO 9934/ ASTM E 3024

Features:

Compact size and light weight .

Integrated molding, comfortable handle .

Special work pocket, easy for carrying magnetization power supply, magnetization suspension , contrast aid , etc .

White light plays a role in lighting. When it is dark, it is used when you can't see clearly. Please note that the white light must use black magnetic powder.

Optional for three power supply modes :Single - phase AC power supply;AC magnetization power supply;DC magnetization power supply

Technical parameter：

Electric source:AC110V 50/60Hz Standard configuration(AC110V 50/60Hz;AC230V 50/60Hz; AC240V50/60Hz OPTIONAL)

Working current:AC 2.2A

Duty cycle:50%

Magnetic pole pitch:0-230mm

Lifting force:AC >4.5kg (44N)

Weight:Probe 3.1kg

Outline dimension:Probe 208×52×146mm
