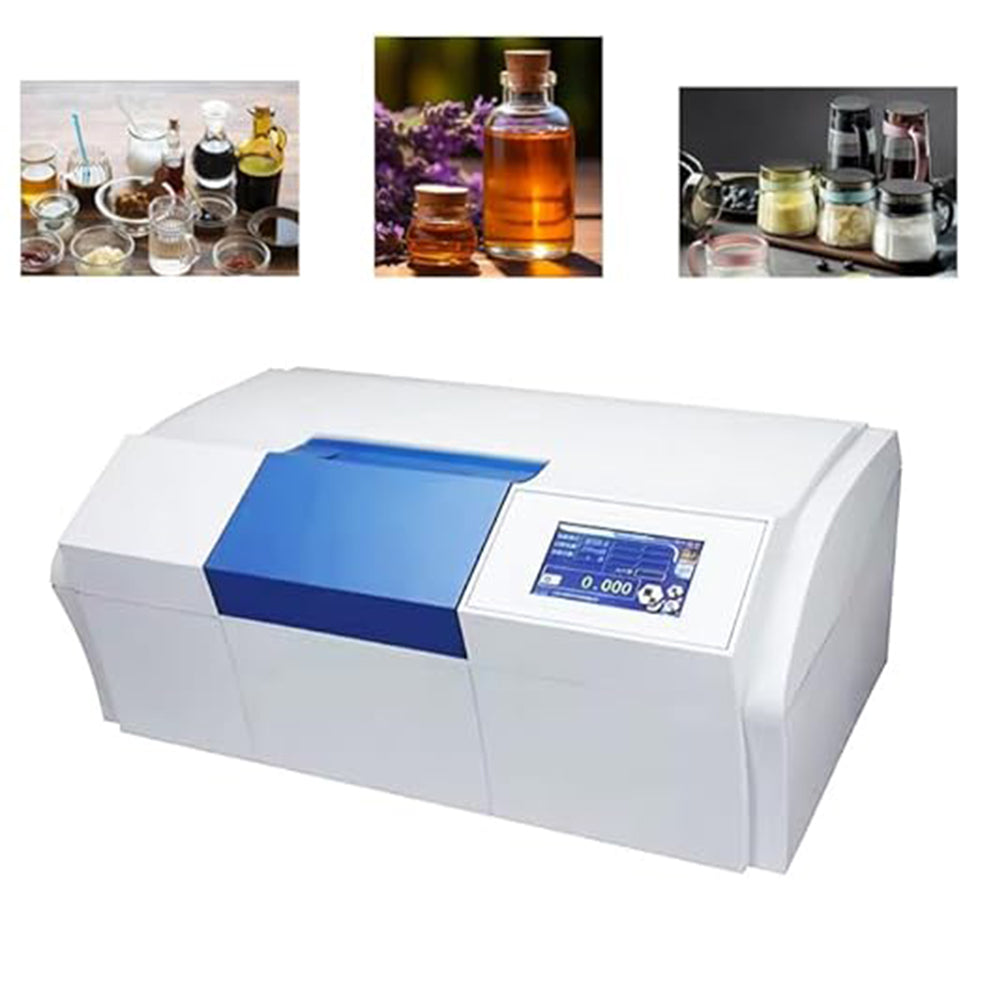

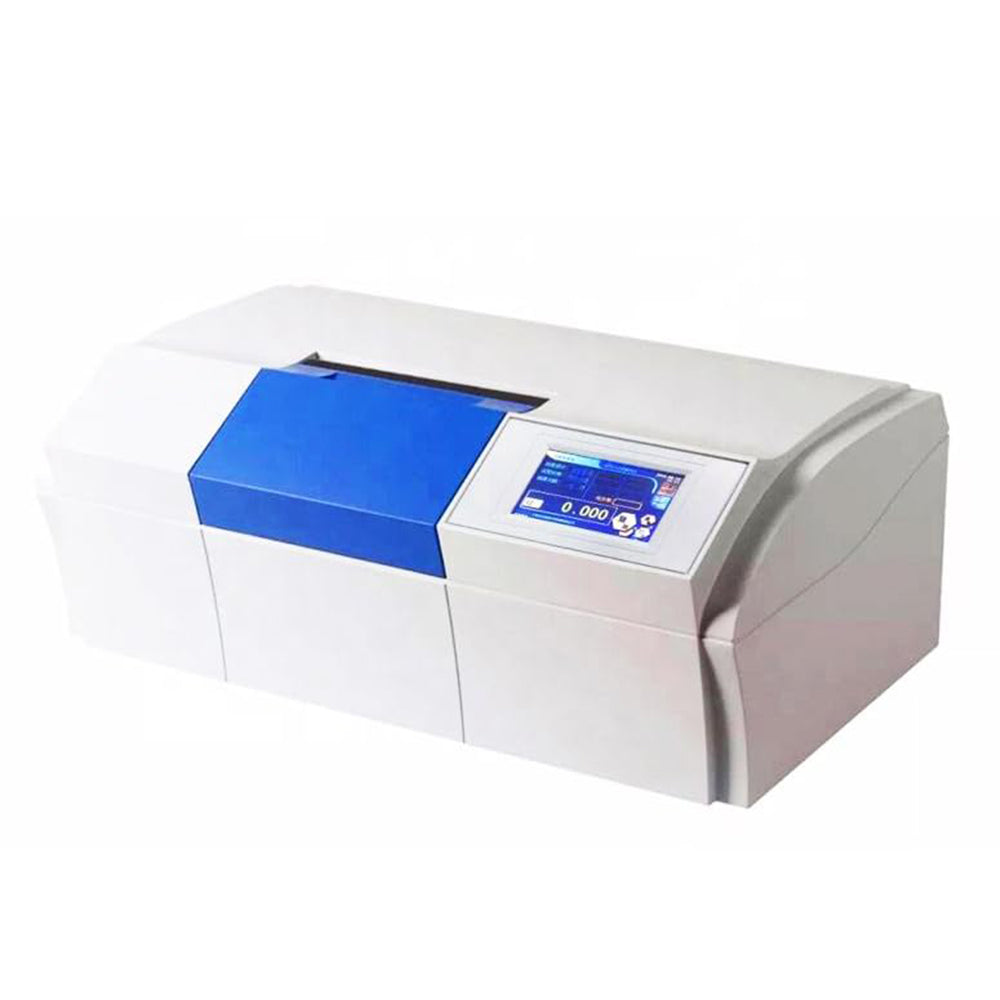

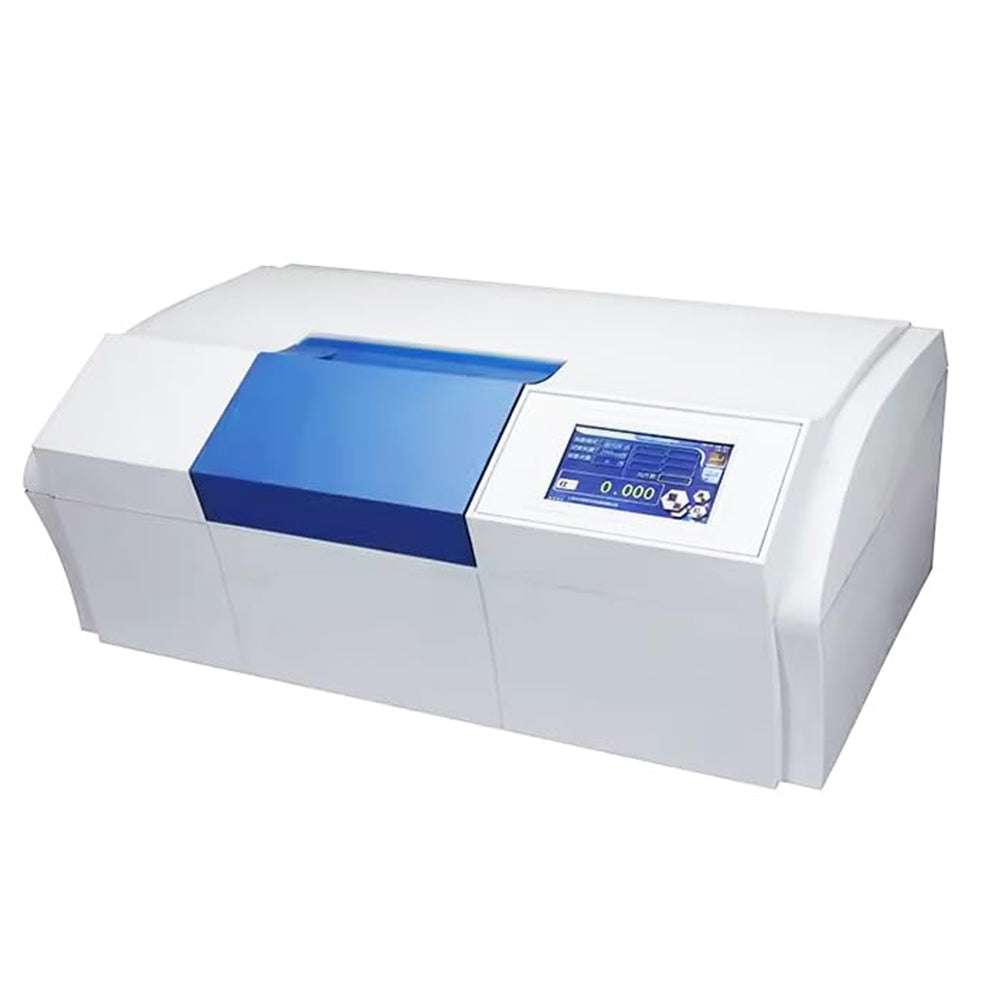

VTSYIQI Digital Polarimeter Automatic Polarimeter Touch Screen Polarimeter with Minimum Indicating Value 0.001° USB Interface Test Tubes 100mm / 200mm (Regular) Accuracy±(0.01+measuring value ×0.05%)°(Optical Rotation)

About this item:

Measuring specificrotation, optical rotation, concentration and sugar degree

Automatic repetition-measurement for 6 times, and calculation of average valueand means square root

It is equipped with USB interface

Wavelength 589nm

Measurement range ±45°(optical rotation), 120°Z(sugar)

Introduction:

The polarimeter is an instrument used for determining the Optical Rotation of substances.

In this way, the concentration, content, purity, etc of certain substances can be found out.

The automatic polarimeter utilizes a photoelectric detection automatic balance principle, measuring results displayed by LCD.

The automatic polarimeter not only preserves the advantages of normal Type polarimeters(stable, small size, high sensitivity, human error-free, easy reading), but also adds four models, can measure optical rotation、specific rotation、concentration and sugar degree, easy operation.

Therefore, the automatic polarimeter can widely be used in various fields of the organic chemical industry.

Agriculture: use in contents analyses of agricultural antibiotic, hormone, microbial agro-pharmaceuticals and agricultural products.

Medication: use in analyses of antibiotic, vitamin and glucose, and in pharmacological research of Chinese medicinal herbs.

Food: use in analyses of sugar, monosodium glutamate and soy sauce; in inspection of their final products and determination of sugar content in food.

Petroleum: use in analyses of mineral oil and in control of oil ferment process.

Essence: use in analyses of essential oil.

Health: use in analyses of diabetics’ urine.

Specifications:

Measurement modes:Optical rotation, specific rotation, sugar degree, concentration

Wavelength:589nm

Light Source:LED + interference filter

Monochromatic light source: LED (589.44nm)

Measurement range:±45°（optical rotation）,±120°Z（sugar）

Accuracy:±(0.01+measuring value ×0.05%)°（optical rotation）

Minimum indicating value:0.001°

Repeatability:≤0.003°（optical rotation）

sample transmittance:10%

Display:Color Touch LCD

Test Tube:100mm/200mm (regular)

Interface:USB

Weight (Gross):36kg

Overall Dimensions:730mm×480mm×470mm
