VTSYIQI Digital Micro Ohmmeter Equipotential Tester DC Low Resistance Meter with Accuracy ±0.1%FS ± 15dgt 200 Groups Data Storage Resistance Range 1mΩ~20.0kΩ Working Current≤1.2A Measure Power≤17.64W IEC61010-1 Standard

About this item

(1) {Function}--------Mainly used for measuring the wire resistance of cables, the contact resistance of switches, connectors and relays, the low DC resistance of windings coils, motors and transformers line resistance, the connection resistance between metal rivets parts and metal components, and the connection resistance between conductors connected at ground grids poles,etc.

(2) {Resistance Range}--------1mΩ~20.0kΩ

(3) {Detection method}--------Precision 4-wire method, 2-channel A/D simultaneous detection

(4) {Data storage}--------200 groups (power down or replace battery will not lose the data)

(5){Backlight Function}--------Yes, suitable for using in dark places

Measuring Range and Accuracy

Introduction:

Portable Milliohmmeter, also named DC Low Resistance Tester, DC Resistance Tester, Ohm Meter and so on), It is accurate and reliable adopt with the microprocessor technology and precision 4-wire method to testing.

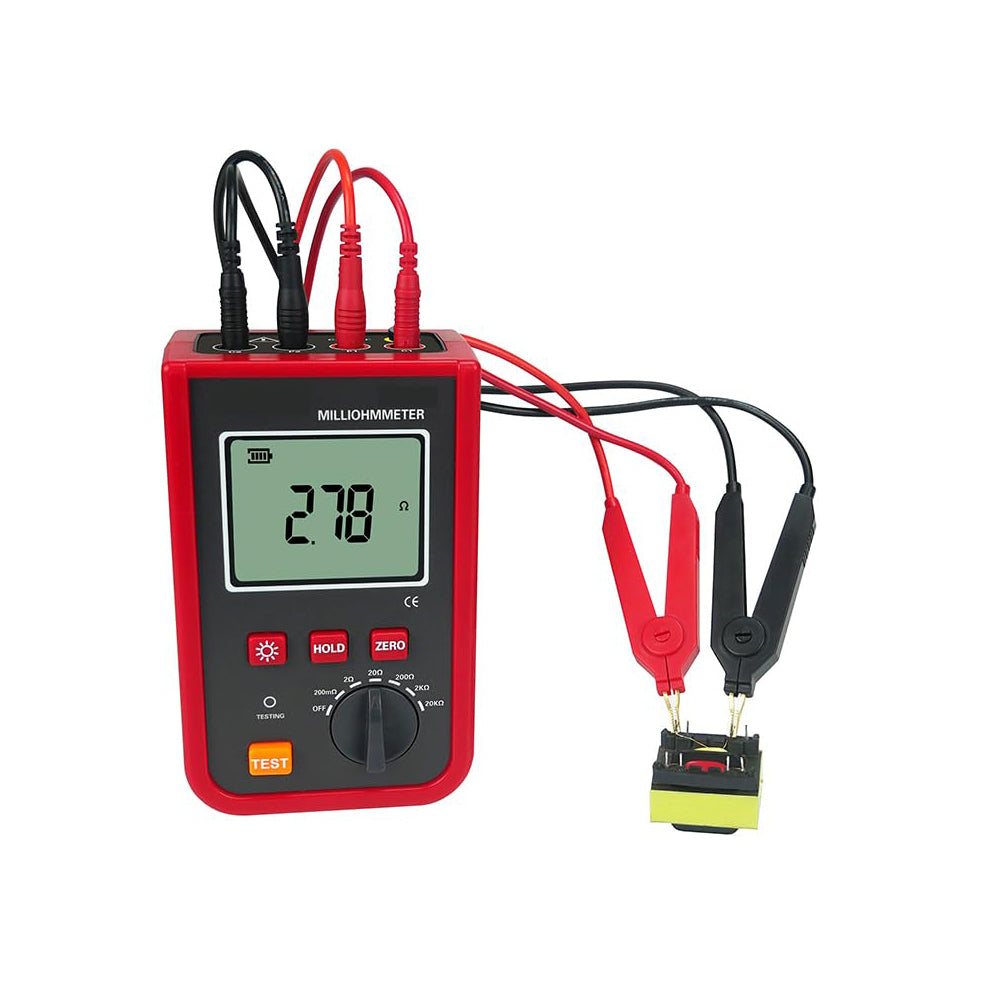

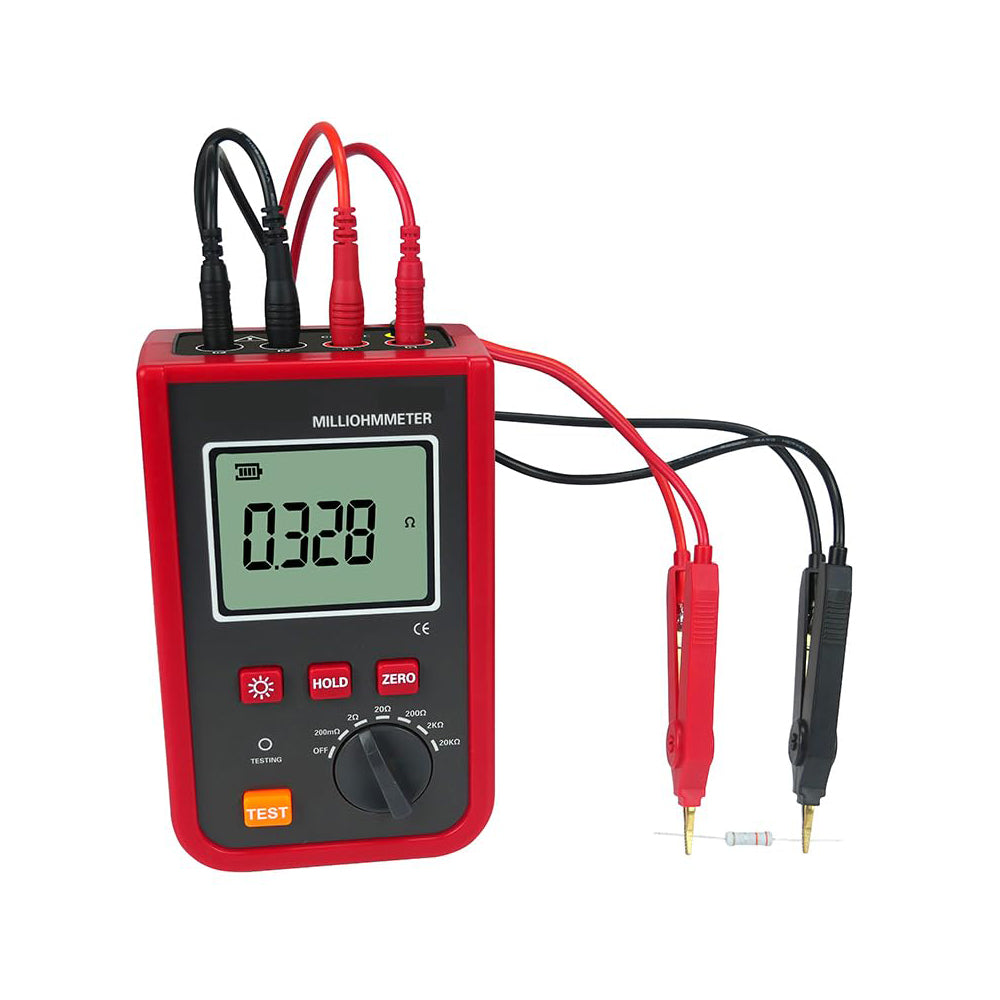

It is mainly used for measuring the wire resistance of cables, the contact resistance of switches, connectors and relays, the low DC resistance of windings coils, motors and transformers line resistance, the connection resistance between metal rivets parts and metal components, and the connection resistance between conductors connected at ground grids poles.

It is widely used in construction quality inspection station, supervision company, construction unit, lightning protection company, electric power department, ship engine factory, etc.

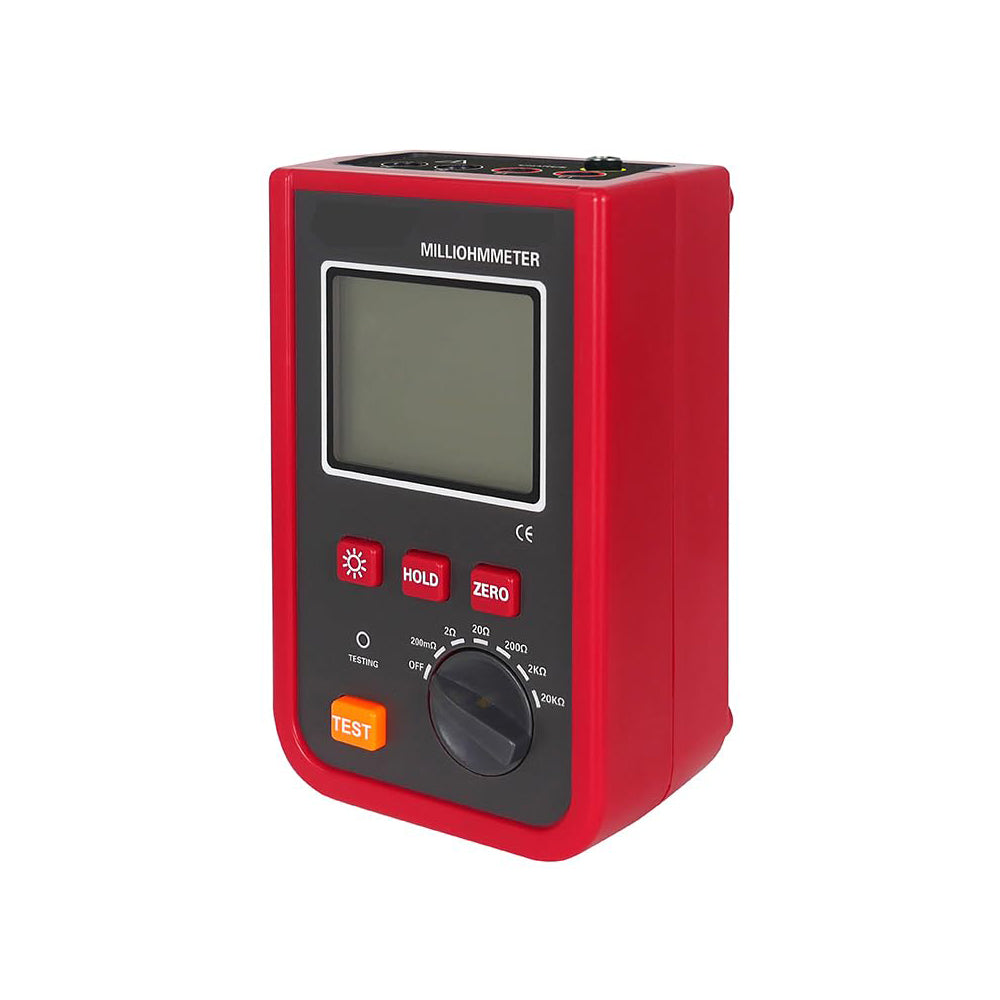

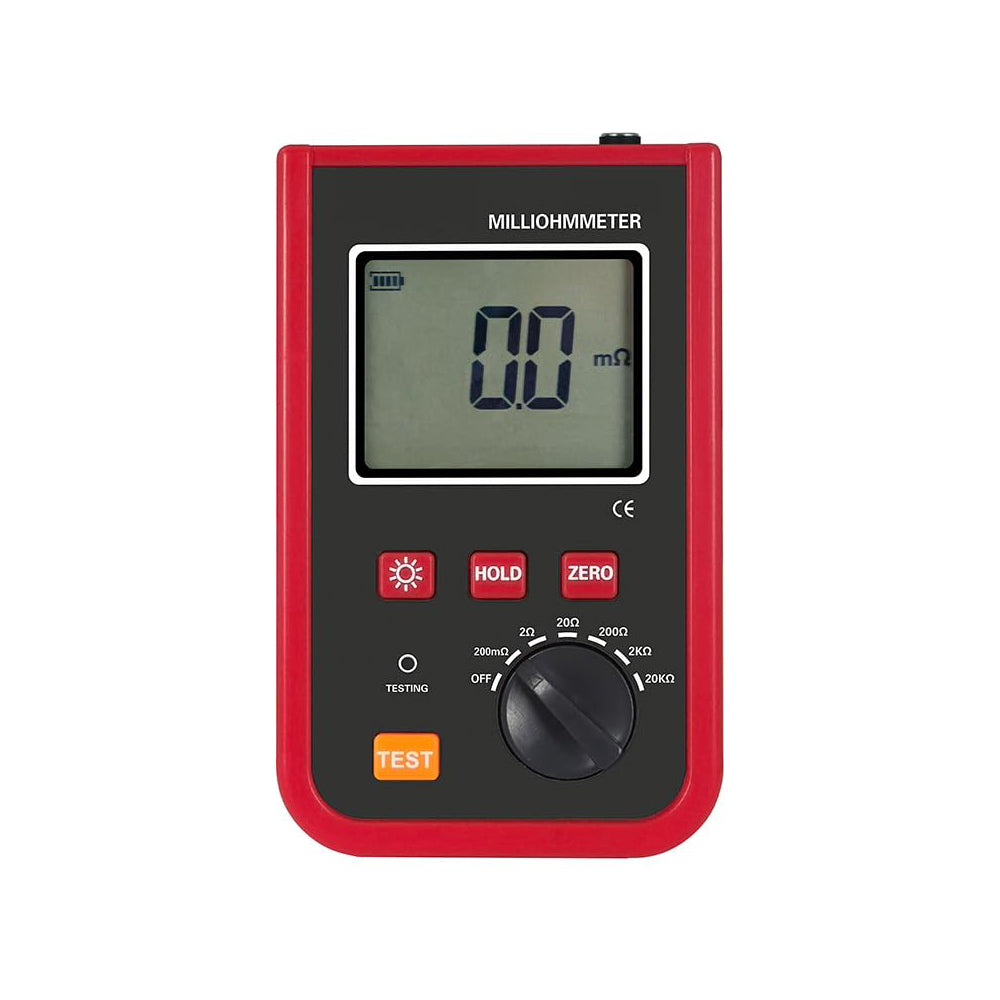

Portable Milliohmmeter consists of the host and test leads. The host with large LCD display, clear and obvious, it can store 200 groups of data at the same time.

The resistance measure range is:1mΩ~20.0kΩ, the max test current is: 1.2A, equip with the rechargeable lithium batteries which the battery capacity is 2000mAh, the tester operate easy and carry.

Technical Specifications:

Function:Mainly used for measuring the wire resistance of cables, the contact resistance of switches, connectors and relays, the low DC resistance of windings coils, motors and transformers line resistance, the connection resistance between metal rivets parts and metal components, and the connection resistance between conductors connected at ground grids poles,etc.

Power Supply:DC 7.4V 2600mAh

Power:Measure power≤17.64W，Working current≤1.2A

Detection Method:Precision 4-wire method, 2-channel A/D simultaneous detection

Range:1mΩ~20.0kΩ

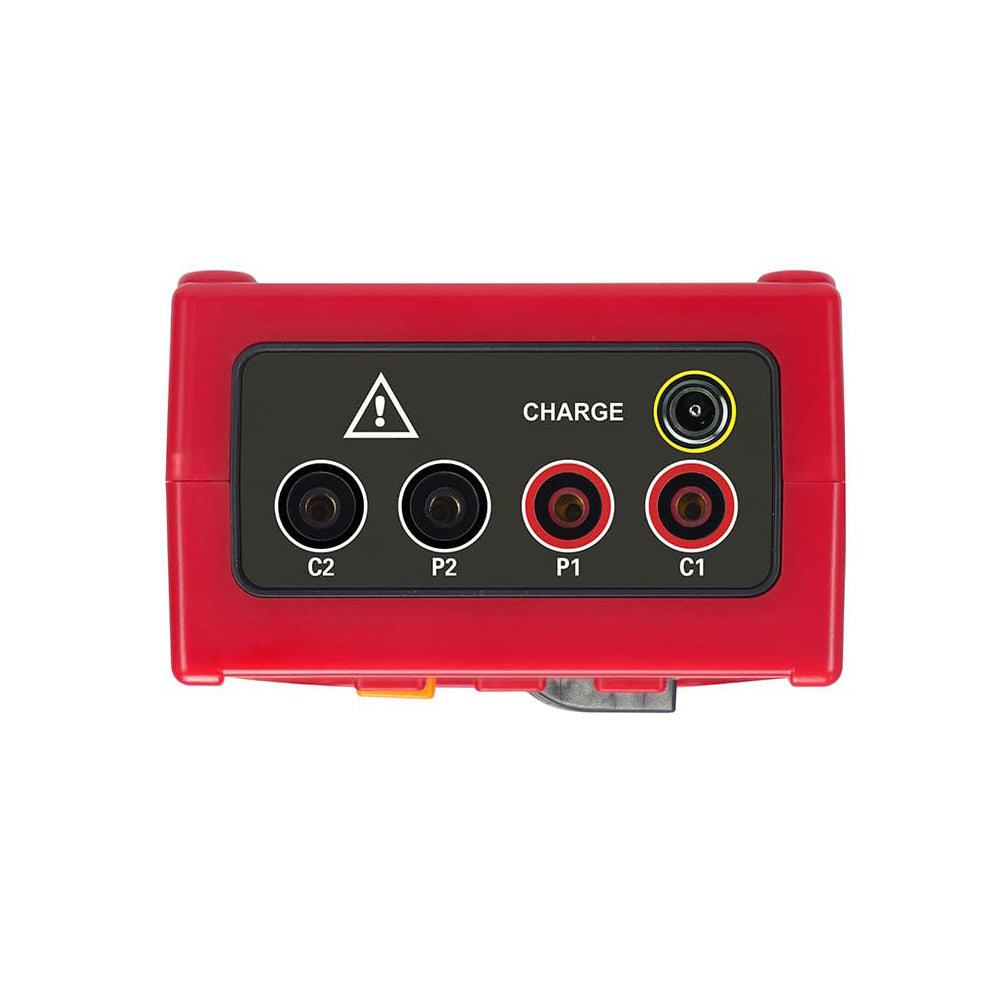

Test interface:C1 current is positive, C2 current is negative, P1 voltage is positive, P2 voltage is negative

Measure Time:2 seconds / time

Data Storage:200 groups (power down or replace battery will not lose the data)

Test Instruction:Blue testing light flashes during testing

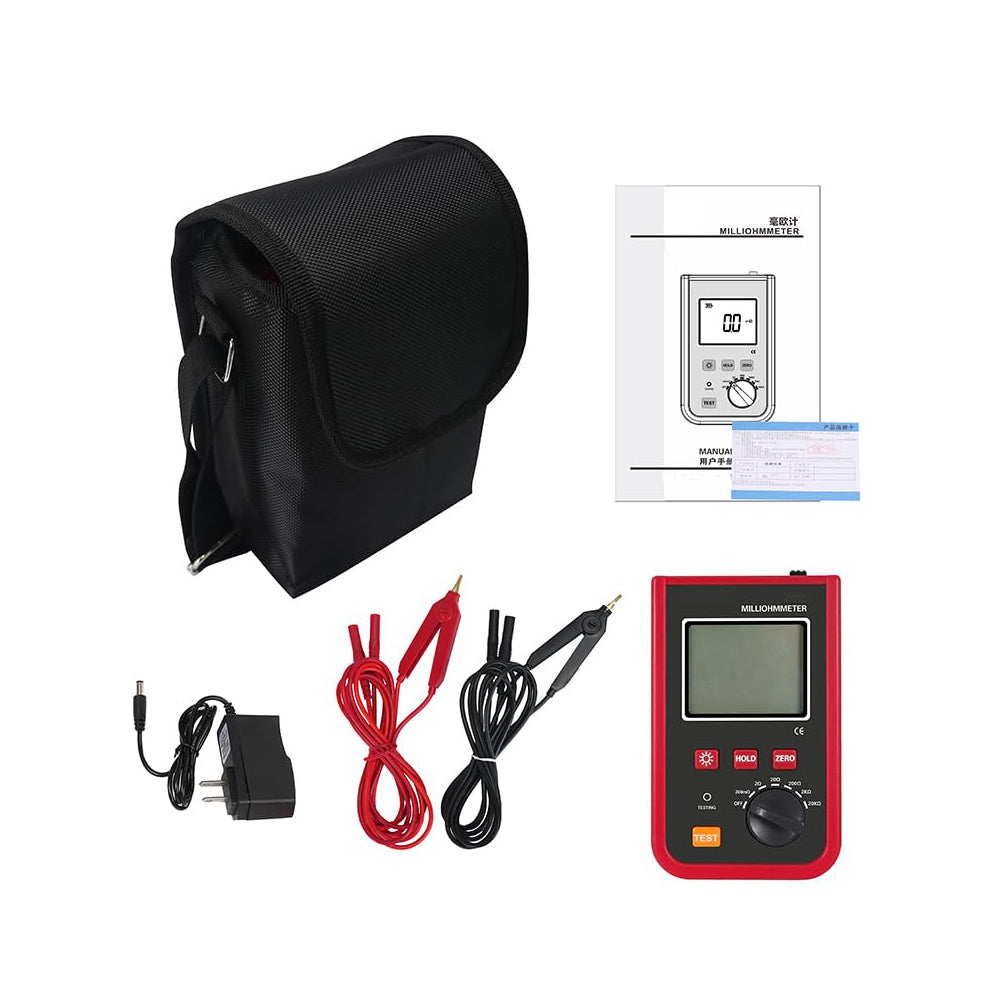

Test Wires:2 groups: each group of red and black, wire length 0.8m

Backlight Function:Yes, suitable for using in dark places

Display Mode:LCD: 58.5mmX46mm

Host Size:159mmX100mmX66mm

Weight:Tester: about 460g (with battery); total weight:640g (with accessories)

Line Voltage:Live line measurement should be avoided

Overflow Display:Over range overflow function: "OL" symbol display

Low voltage indication:When the battery voltage is low and the symbol is displayed, and remind to charge in time.

Working Temperature And Humidity:-10℃~40℃; Below 80%RH

Storage Temperature And Humidity:-10℃~60℃; Below 70%RH

Withstand Voltage:AC 3700V/rms (between the case and the screw)

Suitable Safety Standard:IEC61010-1, CAT III 600V, pollution degree 2, JJG724-1991《DC digital ohmmeter verification procedure》,JJG166-1993《DC resistance verification procedure》,《DL/T967-2005 DL/T967-2005 loop resistance tester and DC resistance fast Tester verification procedure》
