Introduction:

Portable DC Resistance Tester, also known as transformer DC resistance tester, DC resistance rapid tester, grounding conductivity tester, adopts microprocessor technology, four-wire test, safe, precise and reliable.

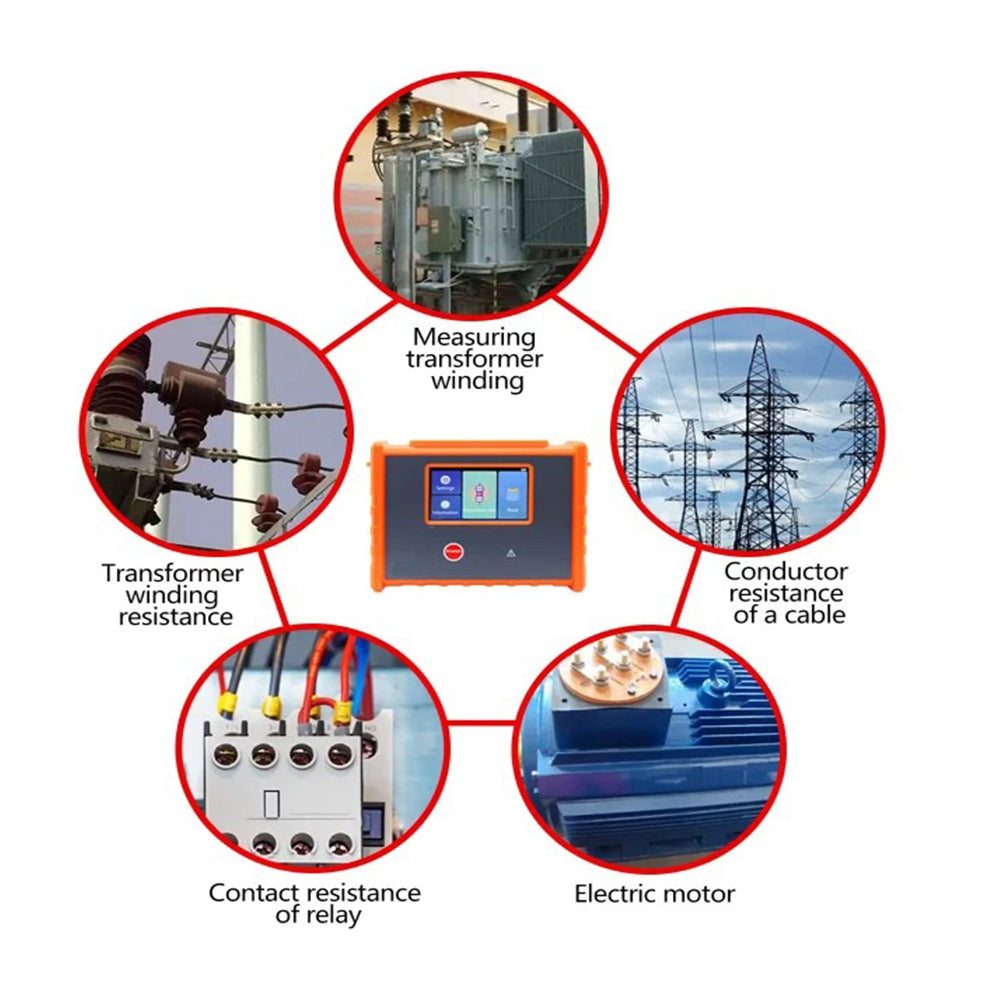

Is mainly used for measurement of transformer winding resistance, transformer winding resistance, ground down lead conduction testing, the wire resistance of the cable, switch, socket, relay contact resistance, winding, motor, shell and equipment, lightning protection zone, ground beam, structure, rack, steel, pipe, Windows, fence, radiator, pipeline connection between objects such as metal components resistance test.

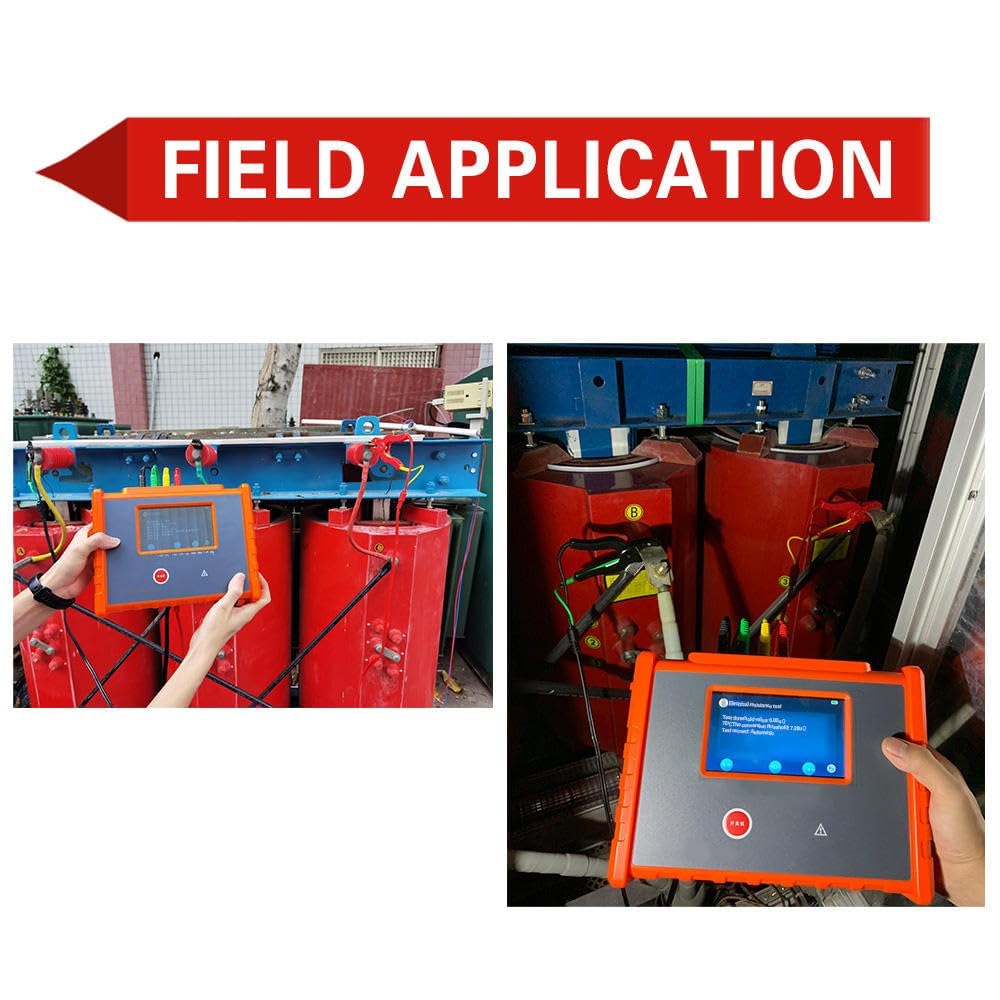

It is widely used in telecommunication, electric power, meteorology, machine room, oil field, electric power distribution line, tower transmission line, gas station, factory grounding grid, lightning rod and so on.

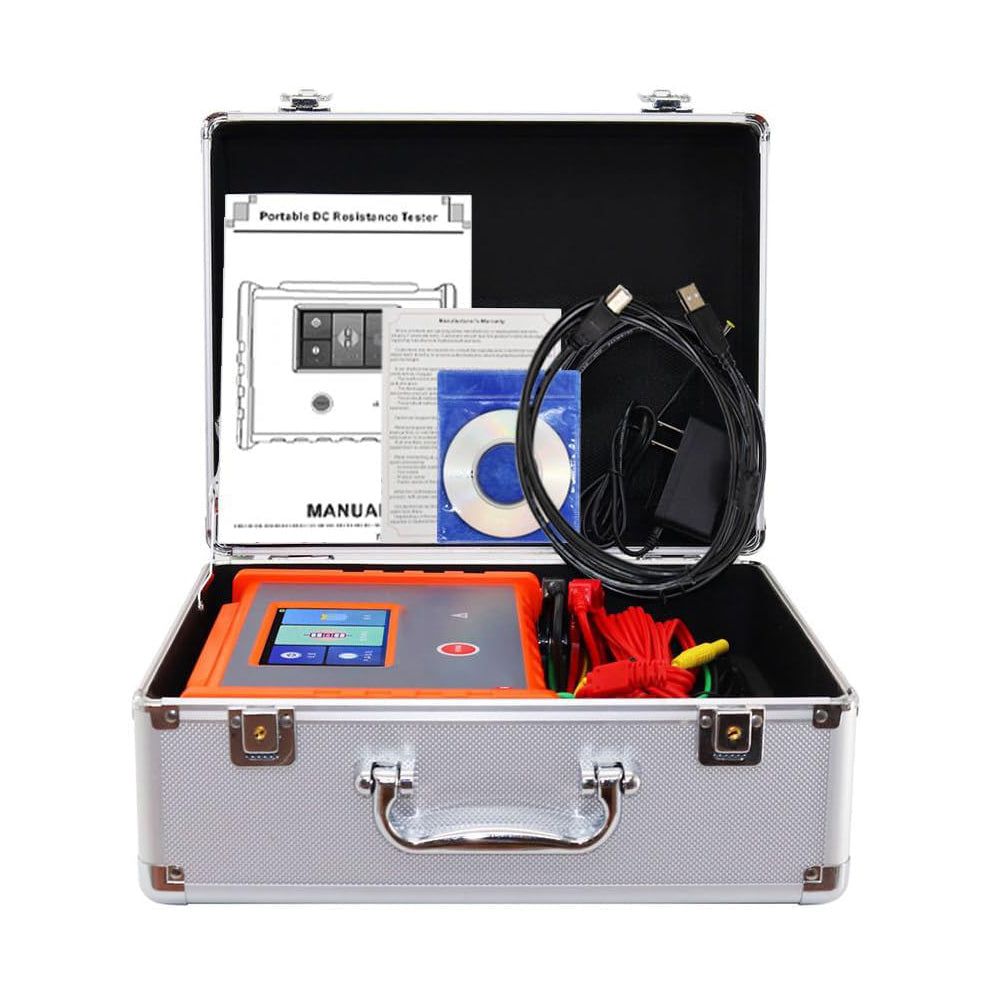

Portable DC Resistance Tester is composed of a host, monitoring software, test line and communication line.

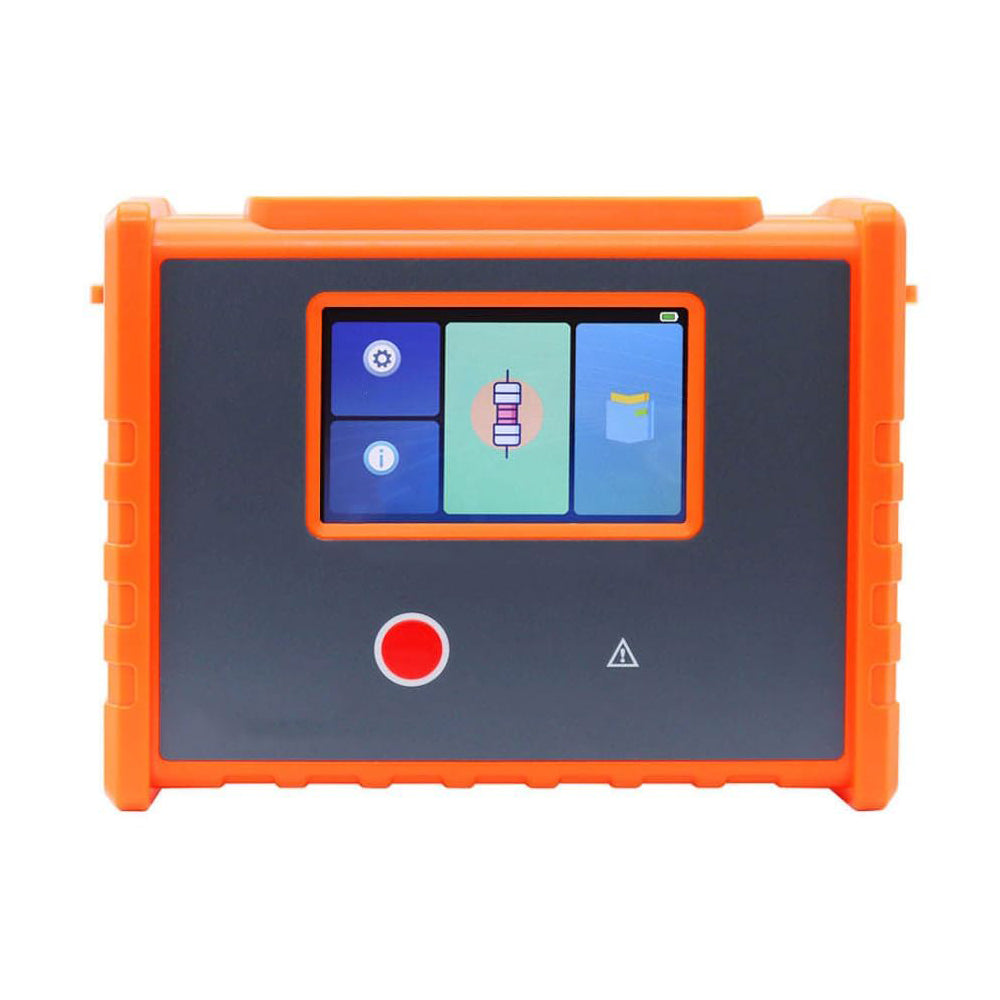

Host handheld portable design is convenient for field application, with charging function without on-site power search, full-color large LCD display, clear at a glance, easy to use touch screen operation, port overload protection function.

Large capacity storage 500 groups of data, resistance measurement range: 10.0 u Ω 50.00 K Ω, measuring accuracy: ±0.2%FS±10dgt.

The upper computer software has the functions of reading, consulting, saving and reporting historical data.

Specifications:

Function:mainly used for measurement of transformer dc resistance, transformer winding resistance, network connectivity, cable conductor resistance, contact resistance of switches, connectors, relays, winding, motor, transformer winding resistance and metal riveting resistance, metal component coupling between resistance test, low resistance testing, contact resistance testing, etc.

Resistance range:10.0uΩ-50.00KΩ

Resolution ratio:0.1 uΩ

Precision:±0.2%FS±10dgt

Detection method:The four-wire test

Test current:10A、5A、1A、0.1A、10mA、1mA

Maximum short-circuit current:10A

overload protection:Yes

Self discharge:Yes

Power:DC12.6v 2500mAh large-capacity lithium battery

Charging function:Yes

Back light:Yes, suitable for dark places

Display mode:LCD Full-color display

Overflow shows:The "OL" symbol is displayed when the overrange overflow occurs

Touch screen operation:Yes

The LCD size：Length and width: 108mm×65mm

Instrument size:length, width and height：240mm×188mm×85mm

Test line length:5 meters, 1 red, 1 black

USB interface:Has a USB interface

Communication line:1 USB communication line

data storage:500 Groups

View Data:Data access function

Cell voltage:The battery power is displayed in real time, indicating that the battery should be charged in time when the battery voltage is low

Auto power-off:Turn off the meter after no operation for about 15 minutes

Power dissipation：Standby: approx. 116mA (20% brightness); Measurement: 27W Max

Weight：Instrument: 1100g(including batteries);Test line: 850g

Operating temperature and humidity：-10℃～40℃；70%rh under

Storage temperature and humidity：-20℃～60℃；70%rh under

Insulation resistance：More than 10 m Ω (circuit between the shell and 500 V)

withstand voltage：AC 3700V/ RMS (between circuit and housing)

Electromagnetic property：IEC61010-4-3, wireless frequency electromagnetic field ≤1V/m
