VTSYIQI Dual Apertures Spectrophotometer Portable Spectrophotometer with Touch Screen Reflectivity 0-200% ASTM ISO Standard D/8 SCI Measurement Calibre Ø8mm Ø4mm Repeatability 0.03 Camera Locating Met

About this item

1. Silicon photodiode array (double 32 array) sensor The dual-32 array sensor with larger area has strong light but not saturate, higher sensitivity of low light and wider spectral response range, which ensures the measurement speed, accuracy, stability and consistency of the instrument. Mastering the core technology and fully compatible with international standards.

2. Adopt full-band balanced LED light source The full-band balanced LED light source ensures sufficient spectral distribution in

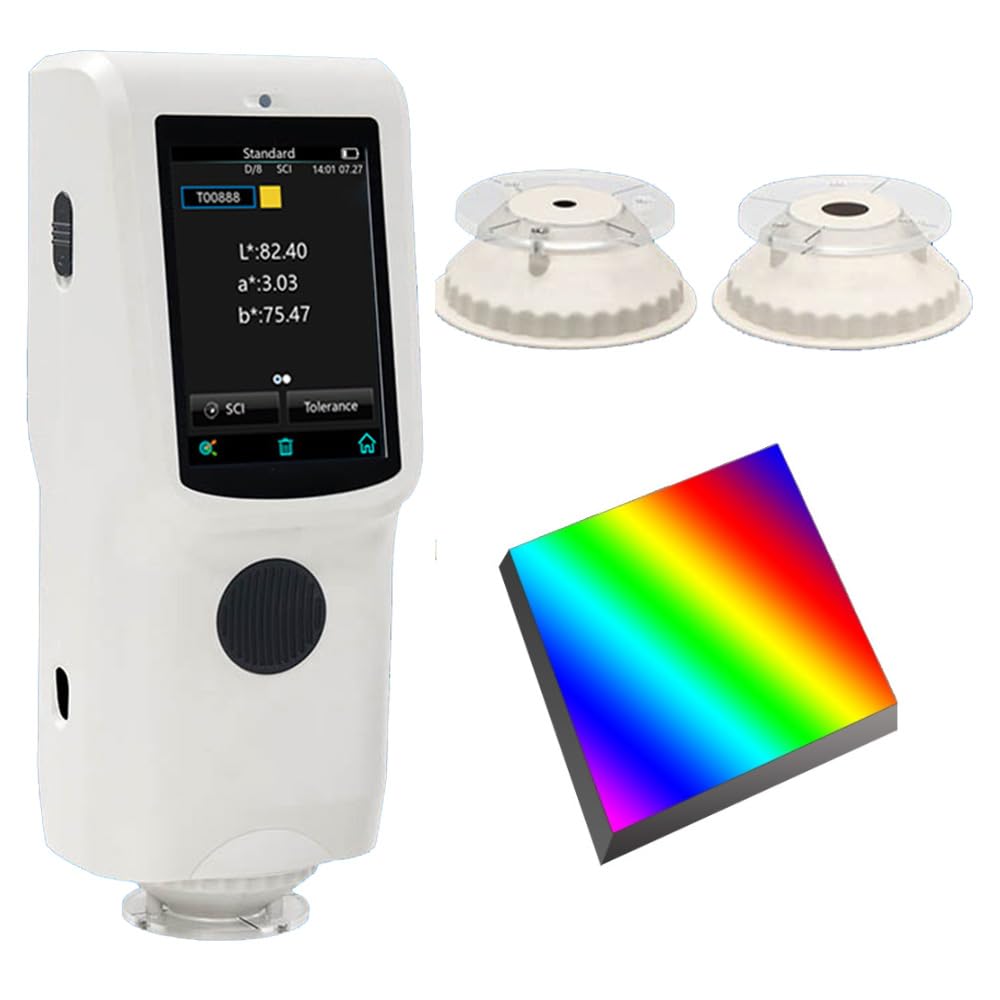

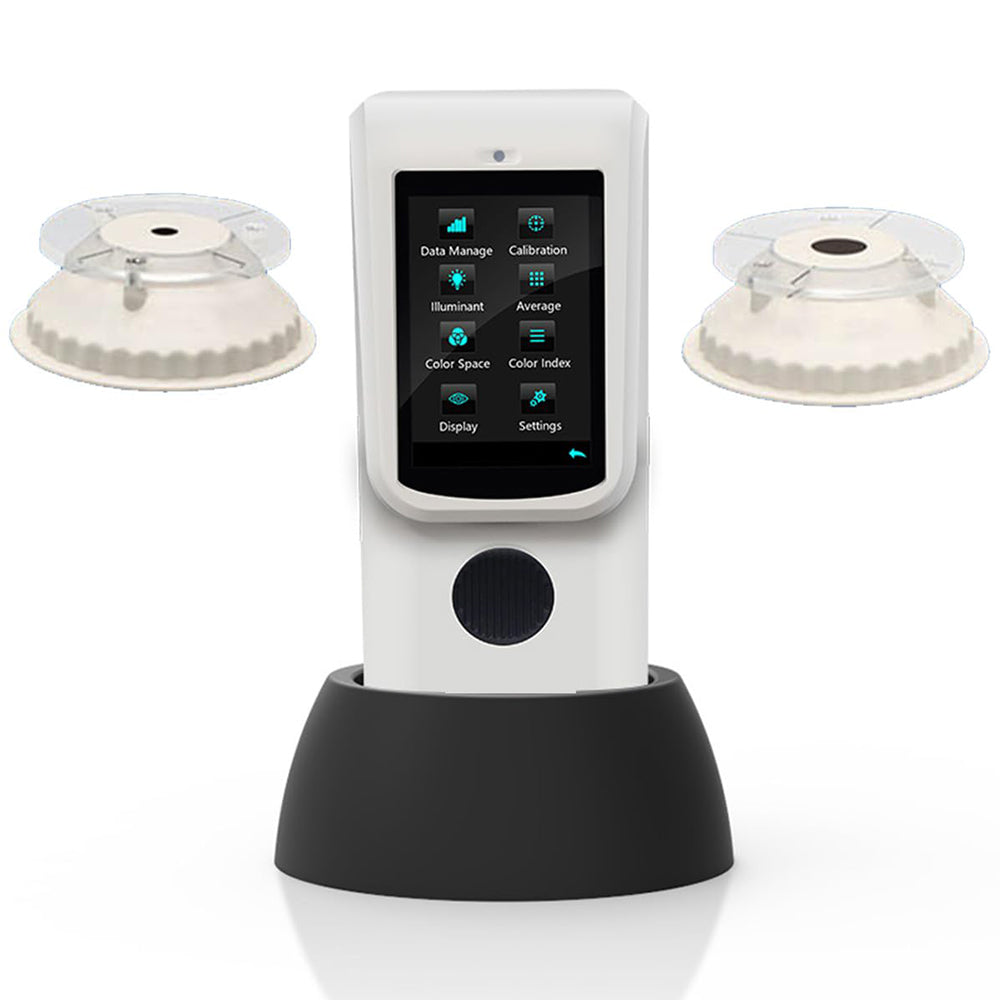

3. Grating Spectrophotometric technology Using grating spectrophotometric technology, it has higher resolution and makes color measurement more accurate. 4. Place the base safely to ensure that the whiteboard is not dirty.

5. Professional whiteboard, a promise that will never change color forever.

6. Fast charging Special fast charging method, low-voltage reminder to charge or use of off-hours to charge, to ensure the capacity and life of the battery (note: frequent repeated charging

7. Novel and fashionable appearance design based on ergonomics The position of the hand grip and the measurement button are carefully designed to meet different gripping habits. The smooth and fine surface is derived from the art of high-precision appearance processing.

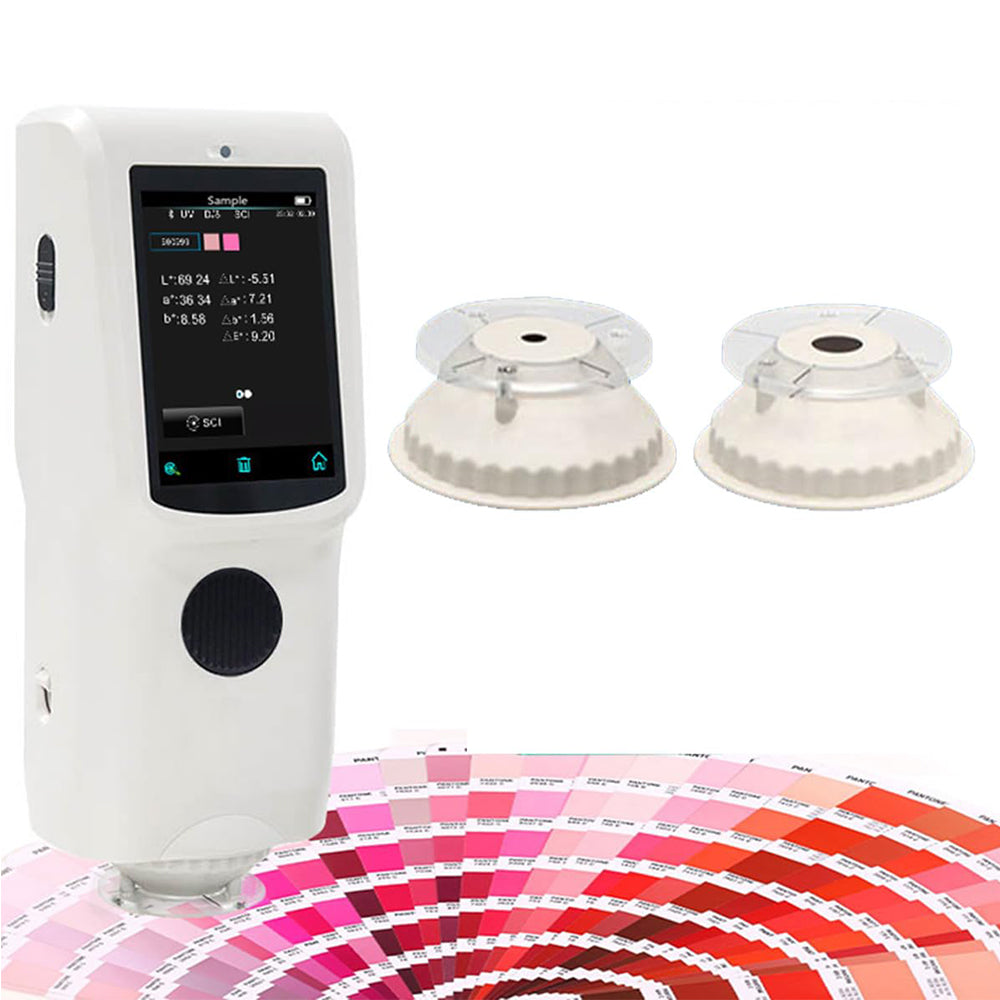

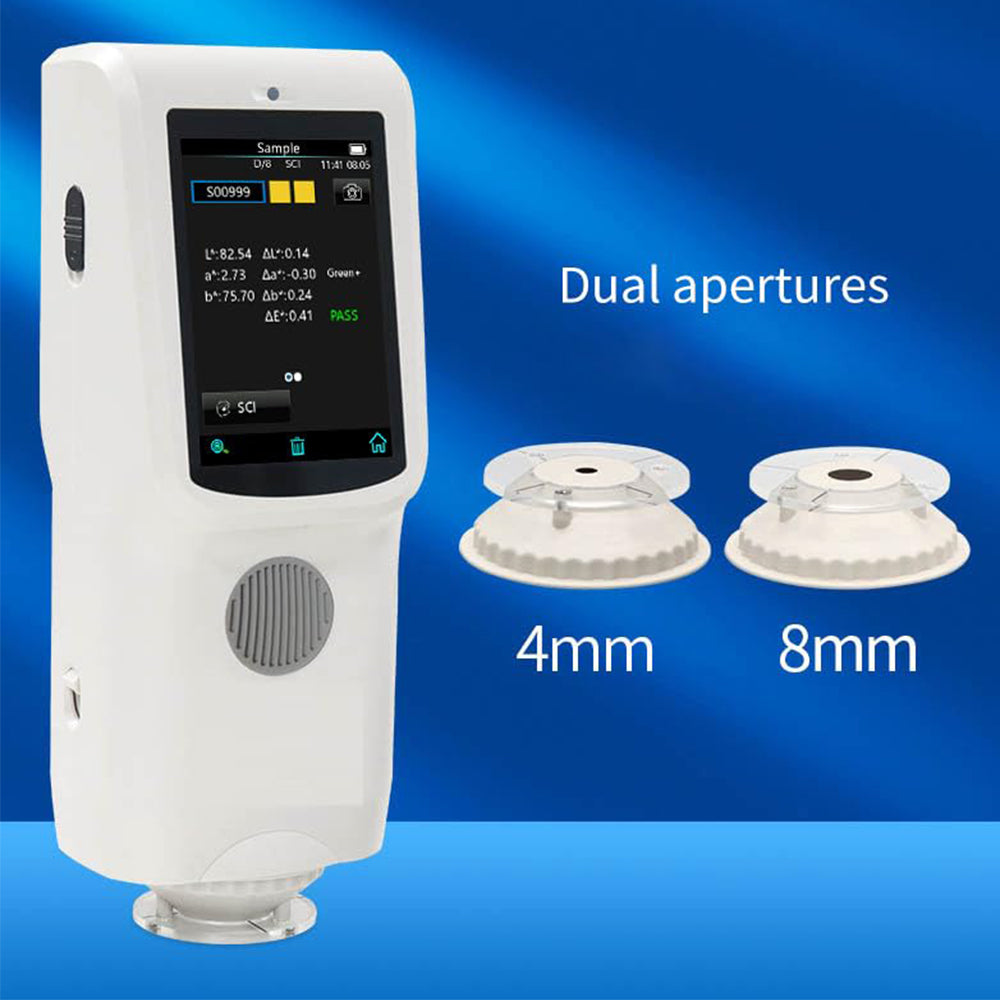

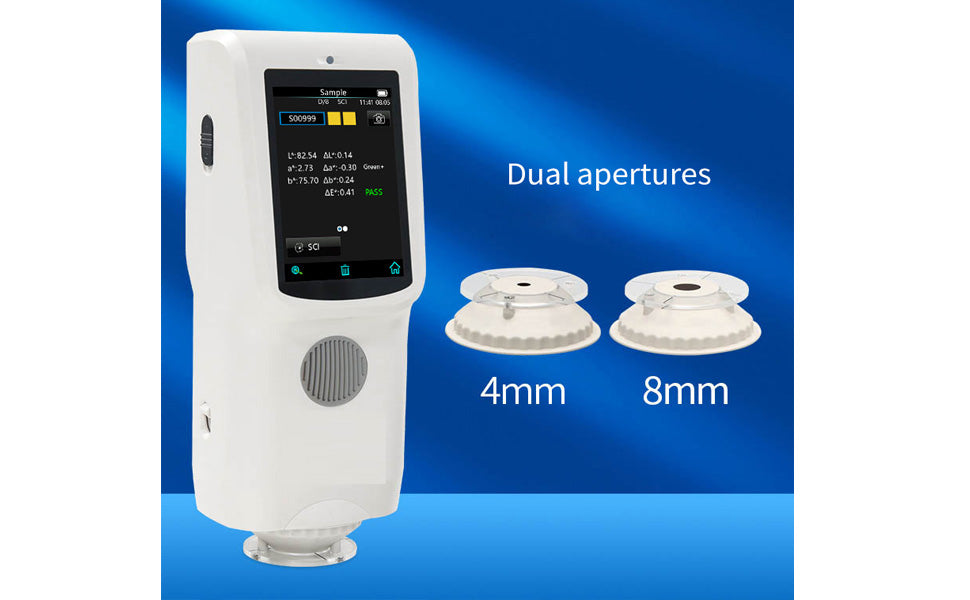

8. Equipped with 4/8mm dual measuring apertures to meet the measurement needs of different samples Spectrocolorreader (Advanced) is equipped with Ø8mm and Ø4mm

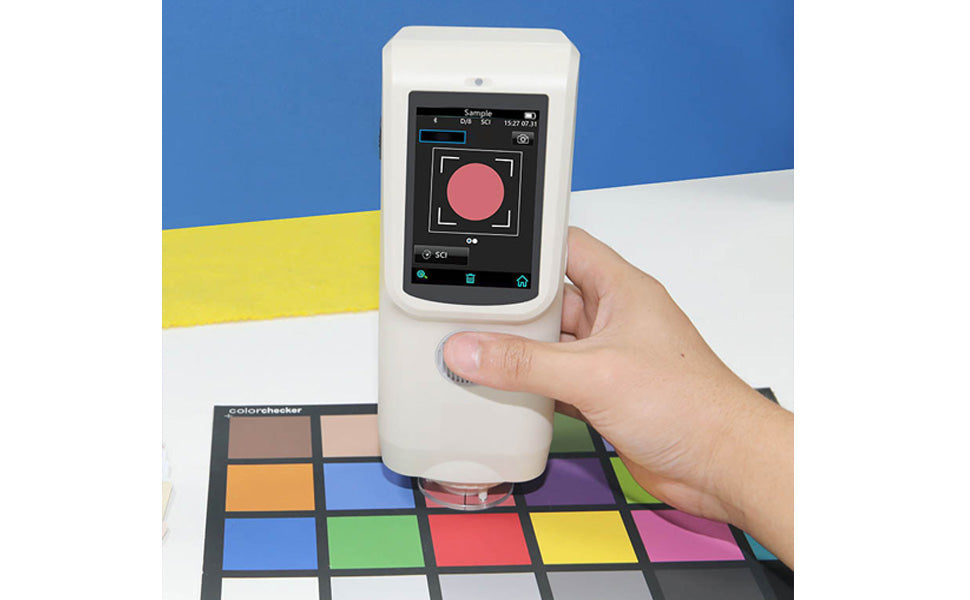

9. Camera locating, can clearly observe the measured area Spectrocolorreader (Advanced) has a built-in camera for framing and positioning. Through the real-time framing of the camera, it can accurately determine whether the measured part of the object is the center of the target, which improves the measurement efficiency and accuracy.

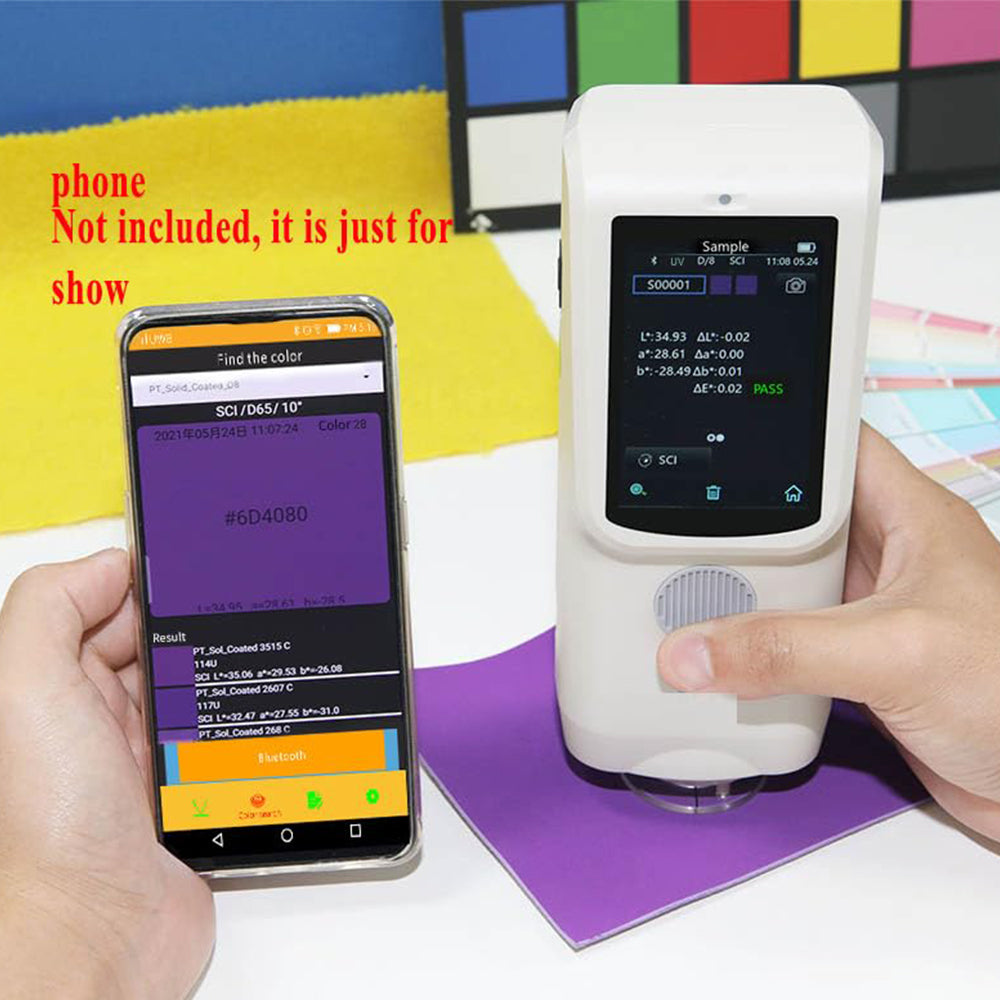

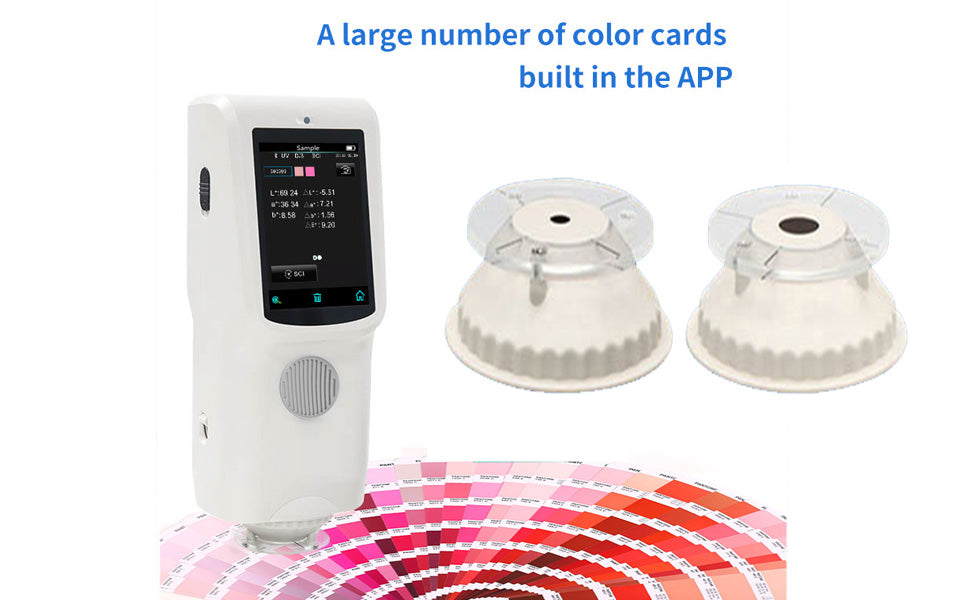

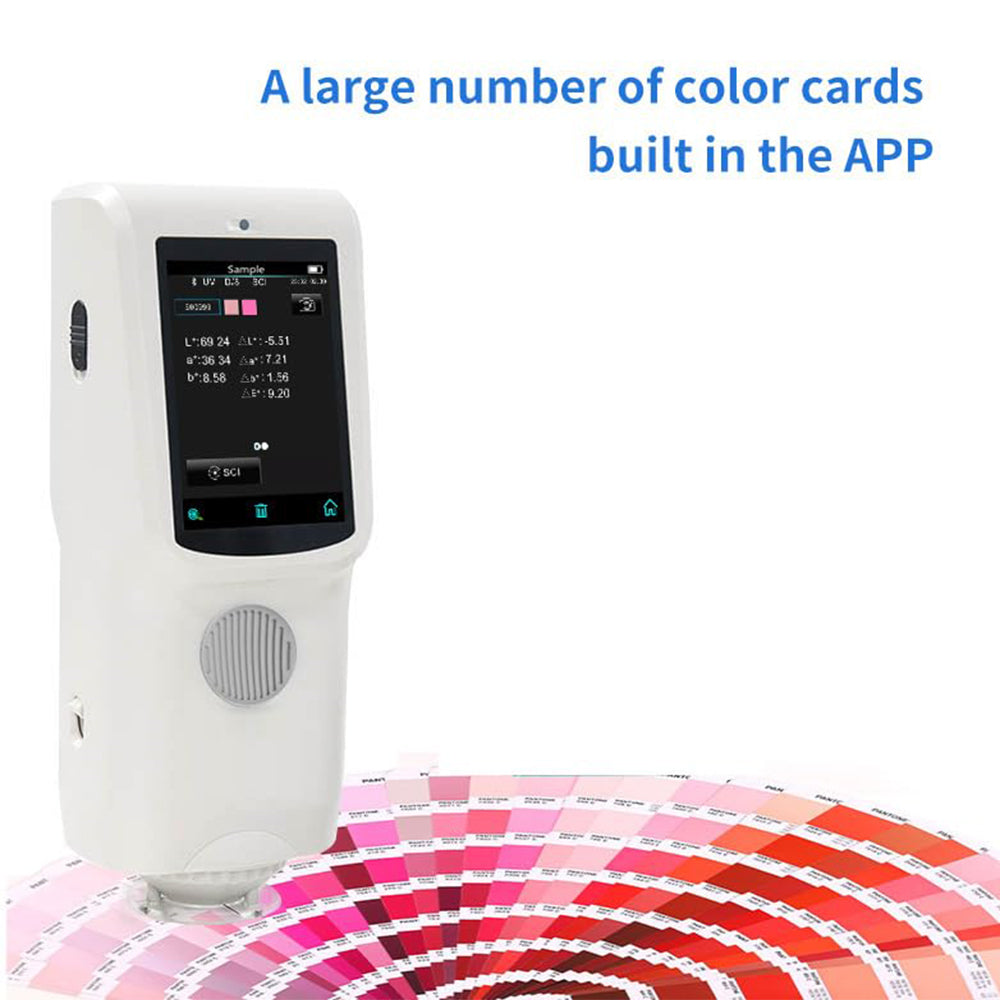

10. Massive color card database The instrument stores 1000 standard and 30,000 samples, and the APP synchronously stores a large amount of data, which can quickly check color data, analyze and compare. Use the App to build your private color database in the cloud. You don't need to carry a heavy color card. You can use CR9 colorreader to find the closest color in multiple color cards anytime and anywhere.

11. Excellent inter- instrument error and repeatability to ensure the consistency

Specification

Optical geometry :

D/8 (diffuse illumination, 8° direction reception)

SCI/SCE measurement

Comply with standard CIE No.15,GB/T 3978,GB 2893,GB/T 18833,ISO7724-1,ASTM E1164,DIN5033 Teil7

Characteristics : Dual measurement aperture, wider adaptability; used for accurate color measurement and quality control in plastic and electronic, paint and ink, textile and garment printing and dyeing, printing, ceramics and other industries

Integrating sphere size : Φ40mm

Light source : Combined full-spectrum LED light source, UV light source

Spectroscopic method : Planar grating

Sensor : Silicon photodiode arrays (dual row 32 groups)

Wavelength range : 400~700nm

Wavelength interval : 10nm

Semiband Bandwidth : 10nm

Measurement range :

L:0~120

Reflectivity: 0~200%

Measurement aperture : Dual apertures：Φ8mm、Φ4mm

Focusing method : Optical Focus

Specular component : SCI&SCE

Color space : CIE LAB,XYZ,Yxy,LCh,CIE LUV,s-RGB,βxy,DIN Lab9,DIN Lab99 Munsell(C/2)

Color difference formula : ΔE*ab,ΔE*uv,ΔE*94,ΔE*cmc(2:1),ΔE*cmc(1:1),ΔE*00, DINΔE99

Other colorimetric indexs :

WI(ASTM E313, CIE/ISO,AATCC,Hunter).

YI(ASTM D1925, ASTM 313),

Metamerism index Mt

staining fastness,color fastness,strength, opacity,color card search

Observer angle : 2°/10°

Illuminant : D65,A,C,D50,D55,D75,F1,F2(CWF),F3,F4,F5,F6,F7(DLF),F8,F9,F10(TPL5),F11(TL84),F12(TL83/U30)

Displayed data : Spectrogram/data, chromaticity value, color difference value/graph, pass/fail result, color simulation, color offset

Display Accuracy : 0.01

Measurement time : Approx. 1.5s (Measure SCI & SCE about 3.2s)

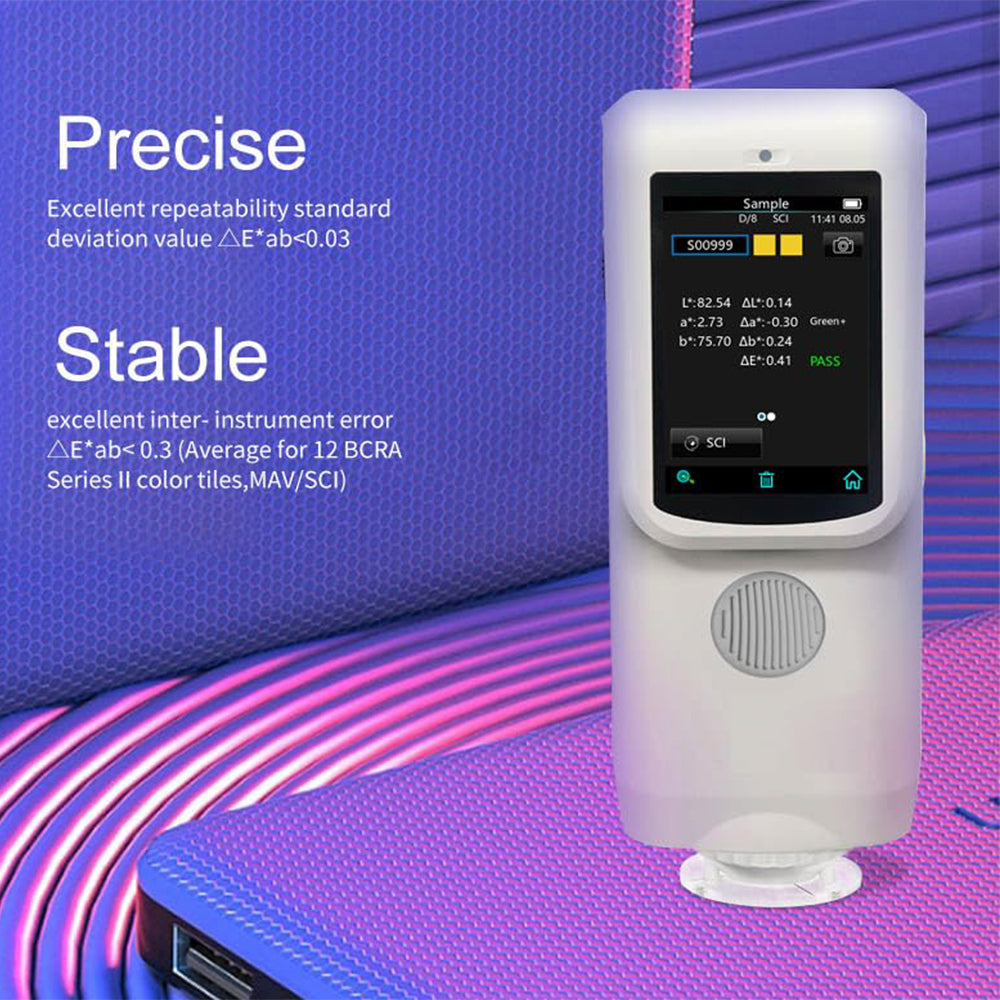

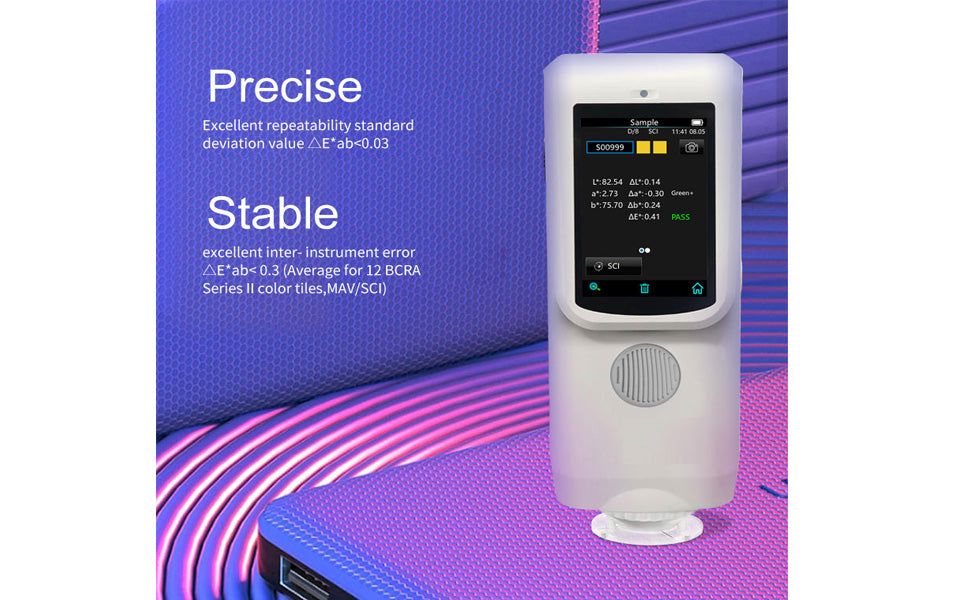

Repeatability : Chromaticity value: MAV/SCI, ΔE*ab within 0.03 (When a white calibration plate is measured 30 times at 5 second intervals after white calibration)

Inter-instrument error : MAV/SCI, within ΔE*ab 0.3 (Average for 12 BCRA Series II color tiles)

Measurement method : Single measurement, average measurement (2~99 times)

Locating method : Camera locating,stabilizer locating

Size : LxWxH=81X71X214mm

Weight : About 460g

Battery power : Lithium battery, 6000 times in 8 hours

Illuminant life span : 5 years, more than 3 million times measurements

Display : TFT true color 3.5inch, capacitive touch screen

Data port : USB, Bluetooth 5.0

Data storage : 1000 standard samples, 30,000 samples (a piece of data can include SCI/SCE at the same time), APP mass storage

Language : Simplified Chinese, English, Traditional Chinese

Operating temperature range : 0~40℃, 0~85%RH (no condensation), altitude< 2000m

Storage temperature range : -20~50℃, 0~85%RH (no condensation)

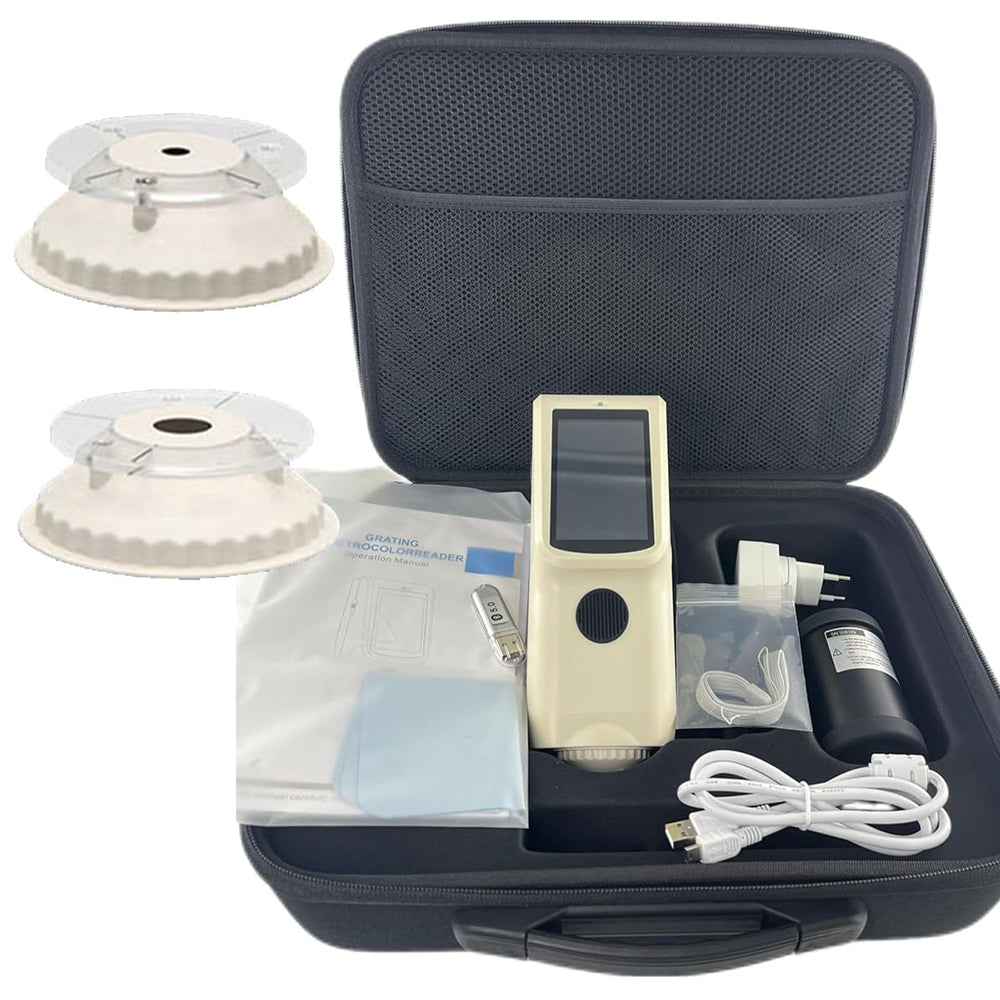

Standard Accessories : Power adapter, data cable, manual, SQCX quality management software (official website download), black and white calibration box, protective cover, wrist strap, dual aperture: Ø8mm + Ø4mm platform aperture, MOBCCS APP (official website download)

Optional Accessories : USB micro printer, powder test box, Bluetooth micro printer,holder base

Notes. : Technical parameters are for reference only, subject to the actual sales of products
