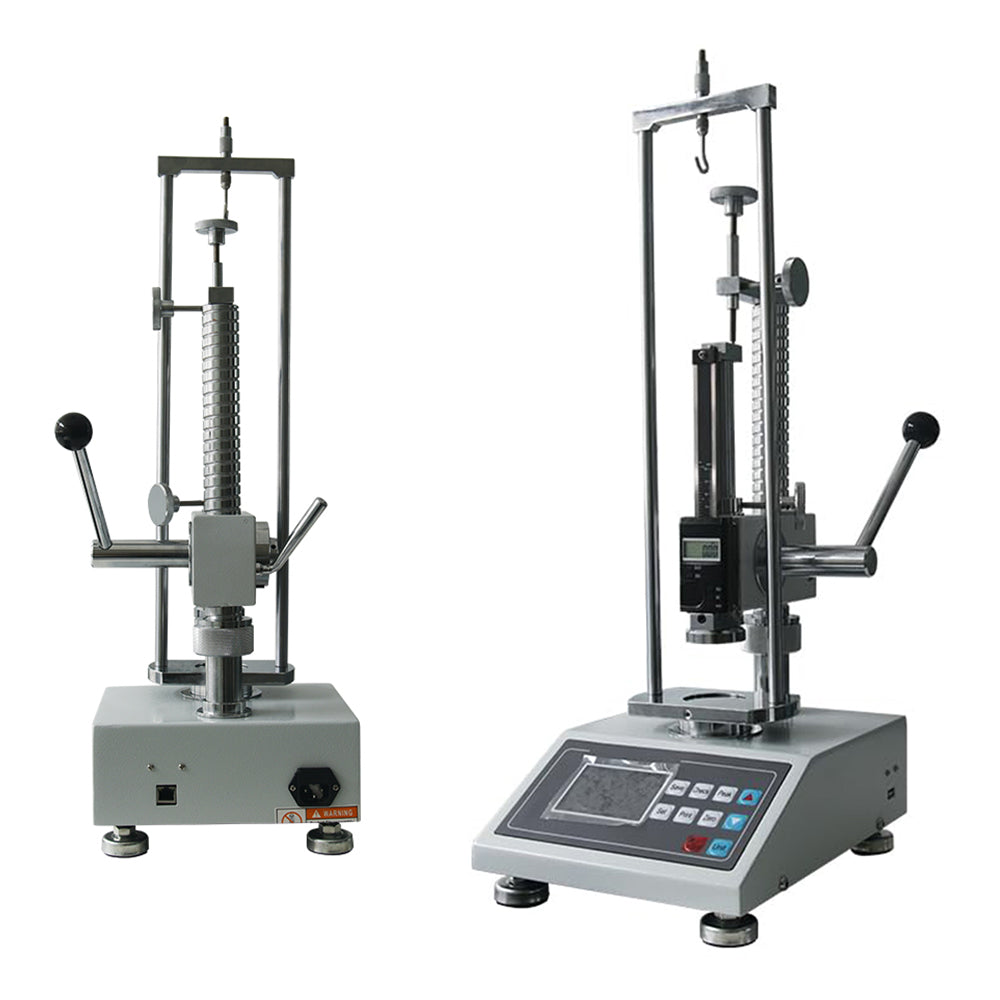

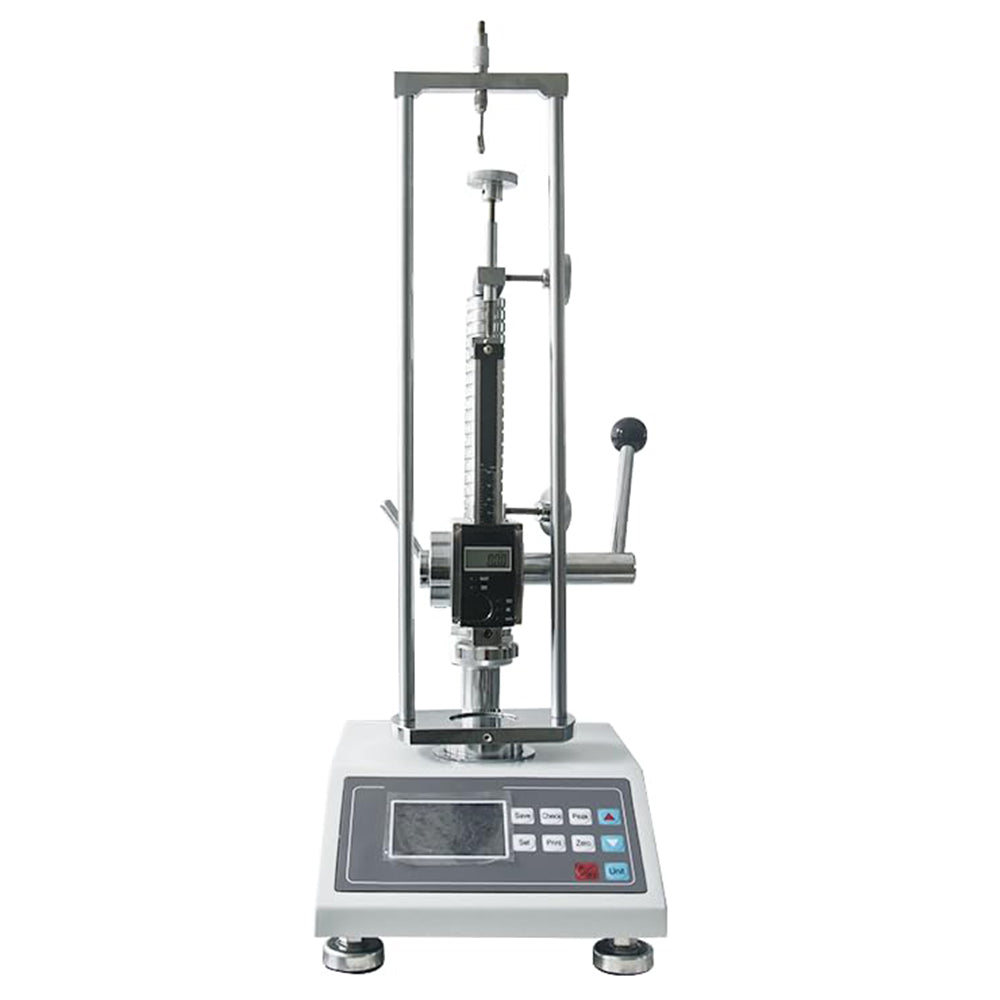

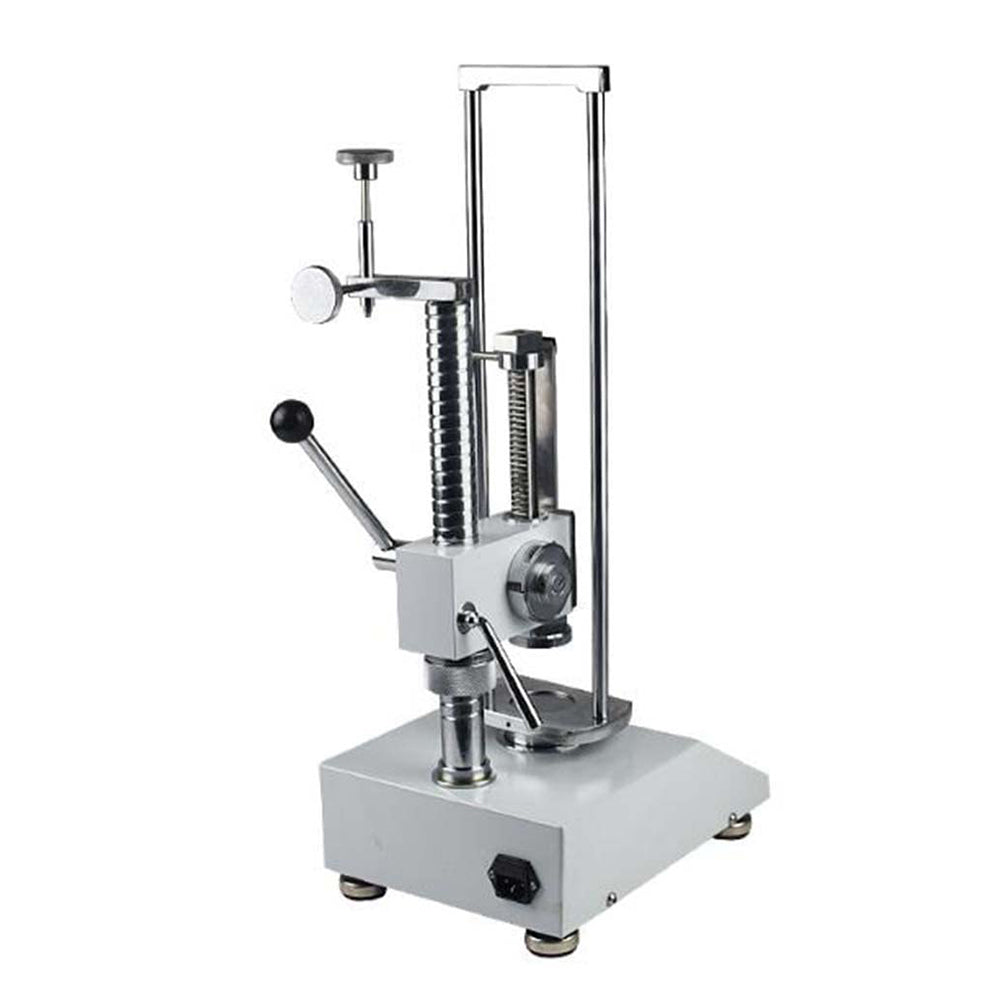

VTSYIQI Spring Pressure Tester Spring Load Testing Machine with Printer Function Maximum Test Machine Load 500N/50KG/110Lb Measurable Maximum Free Length of Spring 150mm Resolution 0.01N/0.001KG/0.001Lb for Test Extension and Compression Force

About this item:

High precision and resolution, Maximum testing load: 500N/ 50Kg/ 110Lb

Liquid crystal display (English); better Human Machine Interface (HMI); Minimum resolution:0.01N/0.001Kg/0.001Lb

Diameter of the platen:48mm; Maximum free length of measurable spring: 150mm; Length of travel of the displacement scale: 90mm

Three kinds of measurement units can be selected(N, Lb and Kg); Indication error: ±1%

Function: The spring pull pressure test stand is specially design for measuring the stretches and compression distortion value of spring, and the load relations characteristic. It is applied in measuring the working load of spring when it on the certain length stretched and compressed.

Overview:

As a special-purpose instrument, this testing machine is used to test amount of deformation and characteristic of load relation of extension and compression springs. It can be applied to the testing of working load of extension and compression springs under certain working length. Advanced and highly integrated chip microprocessor is adopted by this machine, which also has liquid crystal display (English) and metal enclosure.

Technical Specifications:

Maximum testing load: 500N/ 50Kg/ 110Lb

Minimum resolution:0.01N/0.001Kg/0.001Lb

Diameter of the platen:48mm

Maximum free length of measurable spring: 150mm

Length of travel of the displacement scale: 90mm

Division value of the displacement scale: 0.01mm

Indication error: ±1%

Power Supply: AC 110-220V, 50HZ-60HZ

Working temperature: 20±10℃; Relative temperature: 15%～80%RH

Temperature of storage and transportation: -27℃～+70℃

Size: 490x280x300mm

Functional Features:

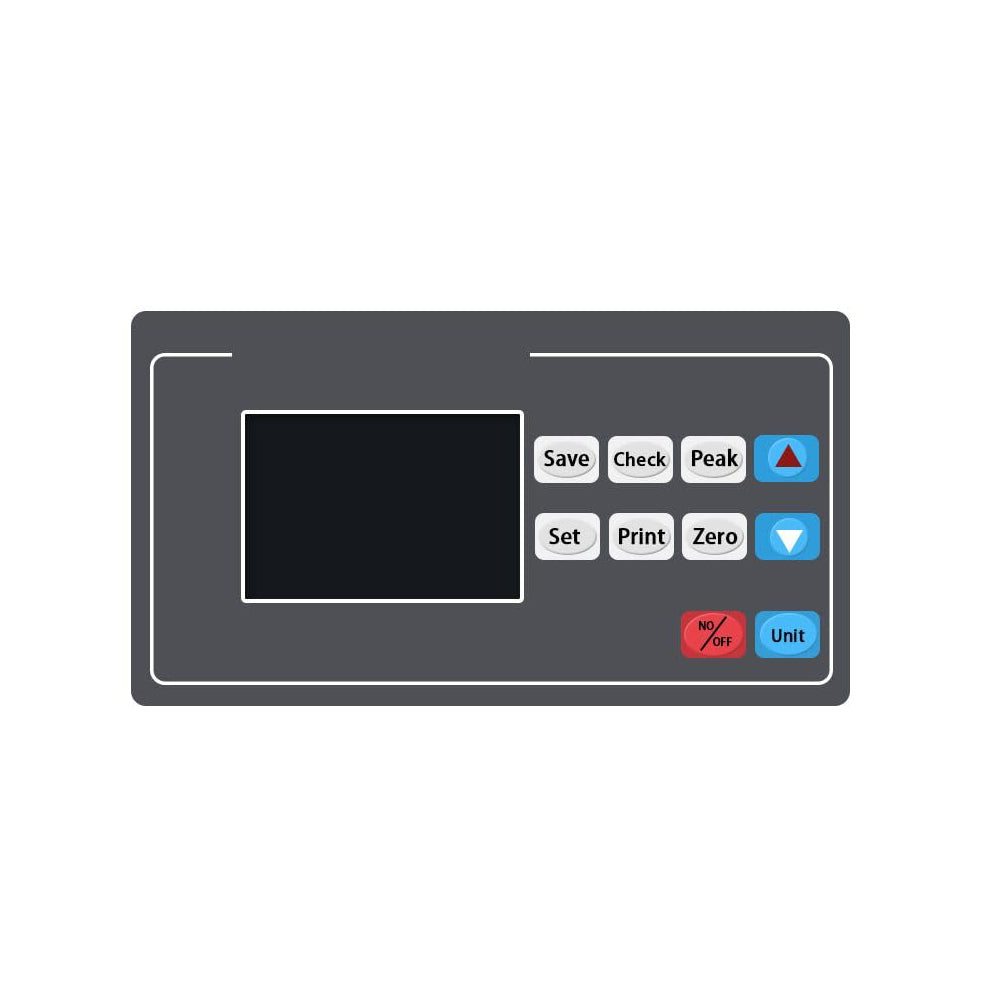

Liquid crystal display (English); better Human Machine Interface (HMI)

Three kinds of measurement units can be selected(N, Lb and Kg); inter-conversion is available

The user can independently set up acceleration of gravity of the place of usage. In this way, the testing and unit conversion would be more accurate

The user can freely shift among the following three patterns: Real-time and peak-value patterns and the pattern of automatic peak value

It has the function of client setup and free setup of upper and lower limits (corresponding to audible and visual alarms), storage value, holding value, automatic storage time of peak value, automatic shutdown time (non-operation), etc
