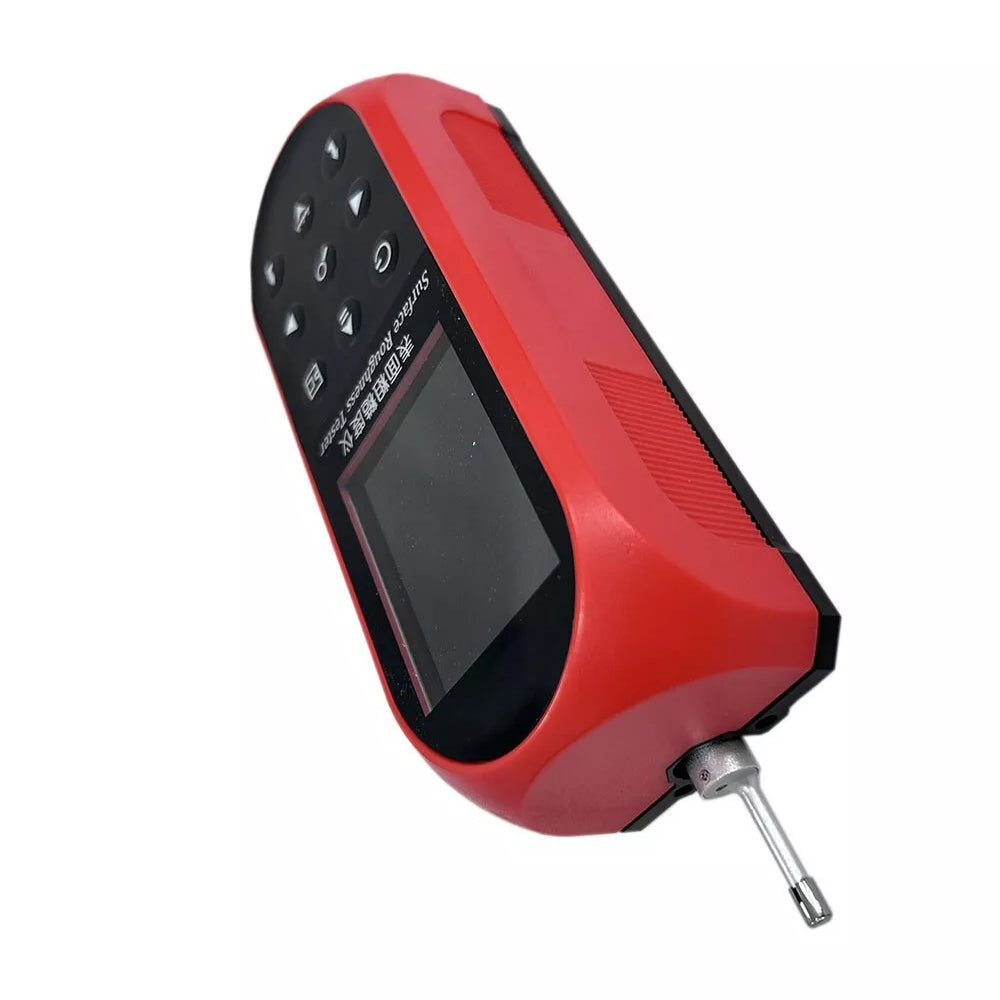

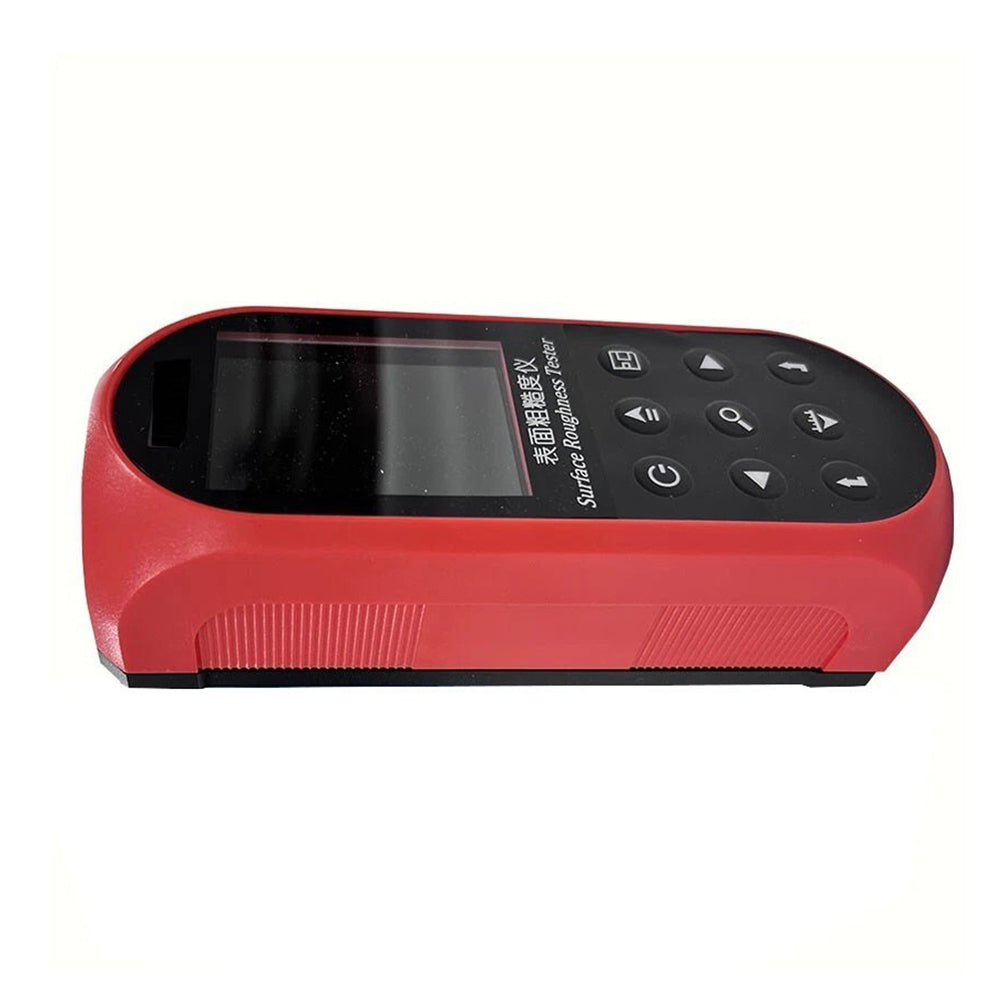

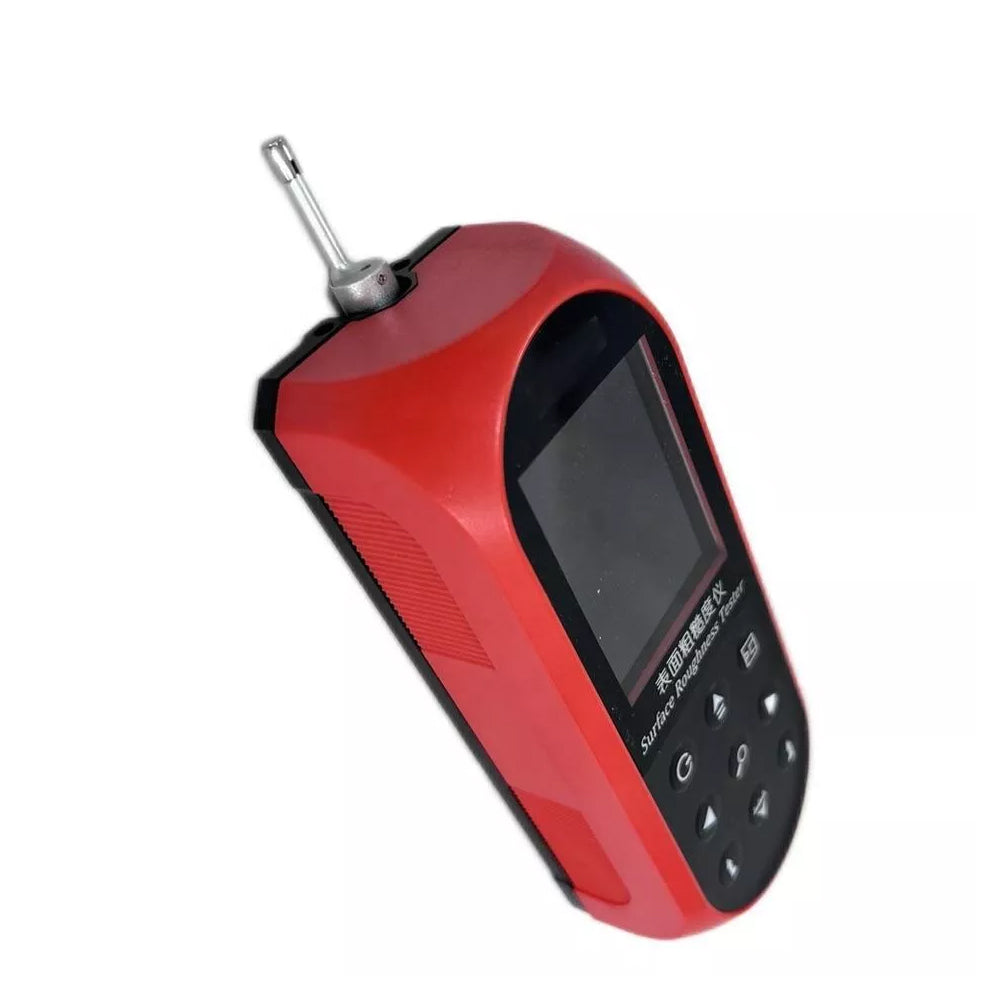

VTSYIQI Portable Surface Roughness Tester Surface Roughness Gauge with Red Shell 2,4inch IPS Display Parameter Measuring Range Ra, Rq 0.005μm~16μm Rz, R3z, Ry, Rt, Rp, Rv 0.02μm~160μm Rsk 0~100% Rs, Rsm 1mm Rmr(tp) 0~100%

Introduction:

The surface roughness measuring instrument is a handheld instrument suitable for the on-site and mobile measurement.

It can measure a variety of machined parts, is capable of evaluating surface textures with a variety of parameters according to various international standard.

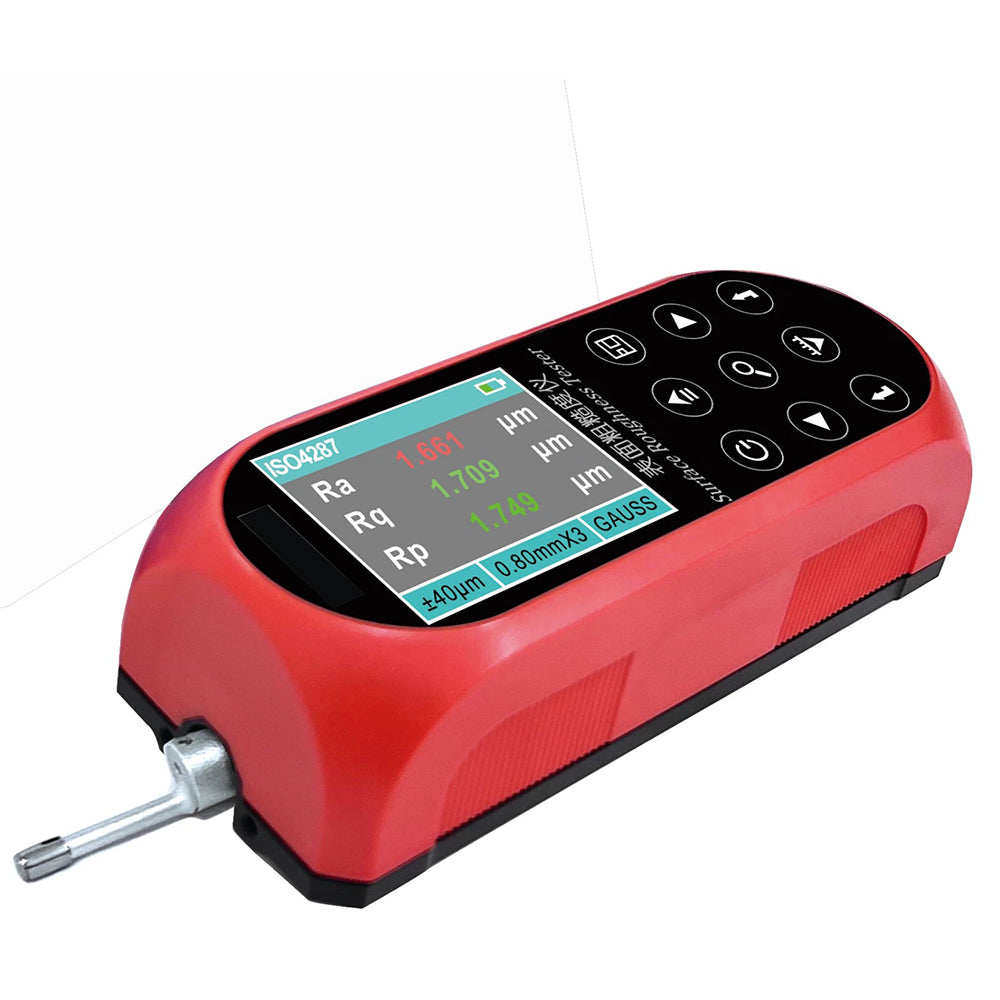

The measurement results are displayed digital/graphically on the color graphic LCD display.

Features:

Mechatronic design, small size, light weight, easy to use;

Adopting DSP control and data processing, fast speed and low power consumption;

Automatically switch the range and display;

Real-time dynamic display of sampling waveform;

Real-time query of measurement results, historical data and waveform profile;

TYPE C and Mini USB dual USB interface design, used in communication and automatic control.

Switchable display direction, convenient for left and right hand operation.

ISO, DIN, ANSI, JIS and other national standards can be selected.

Alarm limits for measurement results can be set.

Single or batch printing of history records and waveforms.

Delete history records individually or completely

Rich and intuitive display of all parameters and graphs.

Built-in lithium-ion rechargeable battery and charge control circuit, high capacity, no memory effect.

Remaining power indication icon, prompting users to charge in time.

Charging process indication can be displayed so that the operator can understand the charging degree at any time.

Continuous working time is more than 20 hours

Large capacity data storage, can store 100 groups of raw data and waveforms.

Real-time clock setting and display, convenient for data recording and storage.

Power-saving functions such as auto-sleep and auto-power-off.

Reliable anti-motor dead circuit and software design.

Displays measurement information, menu prompts, error messages, and switching on and off the machine and other prompts and explanatory information;

Ergonomic case design, sturdy, compact, portable and highly reliable.

Chinese / English language selection;

Can be connected to a computer and printer;

Can print all parameters or print any parameters set by the user.

Calibration sample block adopts optical glass matrix, high precision, not easy to scratch, long service life.

Optional accessories such as curved surface sensor, very small hole sensor, deep groove sensor, measuring platform, sensor sheath, extension rod and so on.

Parameters:

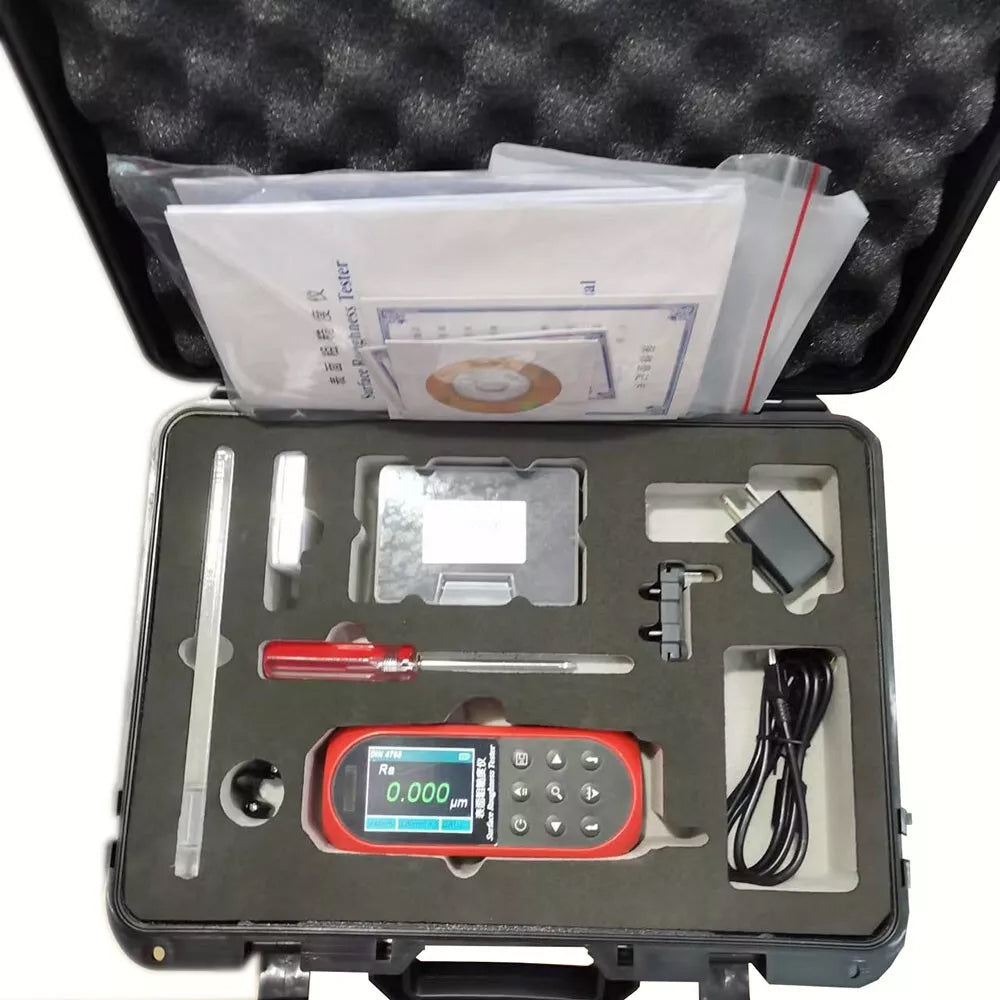

Packing List:
