  • VTSYIQI Handheld Textile Hardness Tester Yarn Package Durometers with Indenter Ball 10mmΦ Testing Range 10~90H Accuracy ≤±1H Resolution 0.1H Measuring Spring Force 0.55~8.065Nfor Very Loosely Wound Bobbins of Thick Yarns

VTSYIQI

VTSYIQI Handheld Textile Hardness Tester Yarn Package Durometers with Indenter Ball 10mmΦ Testing Range 10~90H Accuracy ≤±1H Resolution 0.1H Measuring Spring Force 0.55~8.065Nfor Very Loosely Wound Bobbins of Thick Yarns

$44300
有货
$44300

Customer Service

Post your customer service details here.

Return Policy

Post your policy conditions details here.

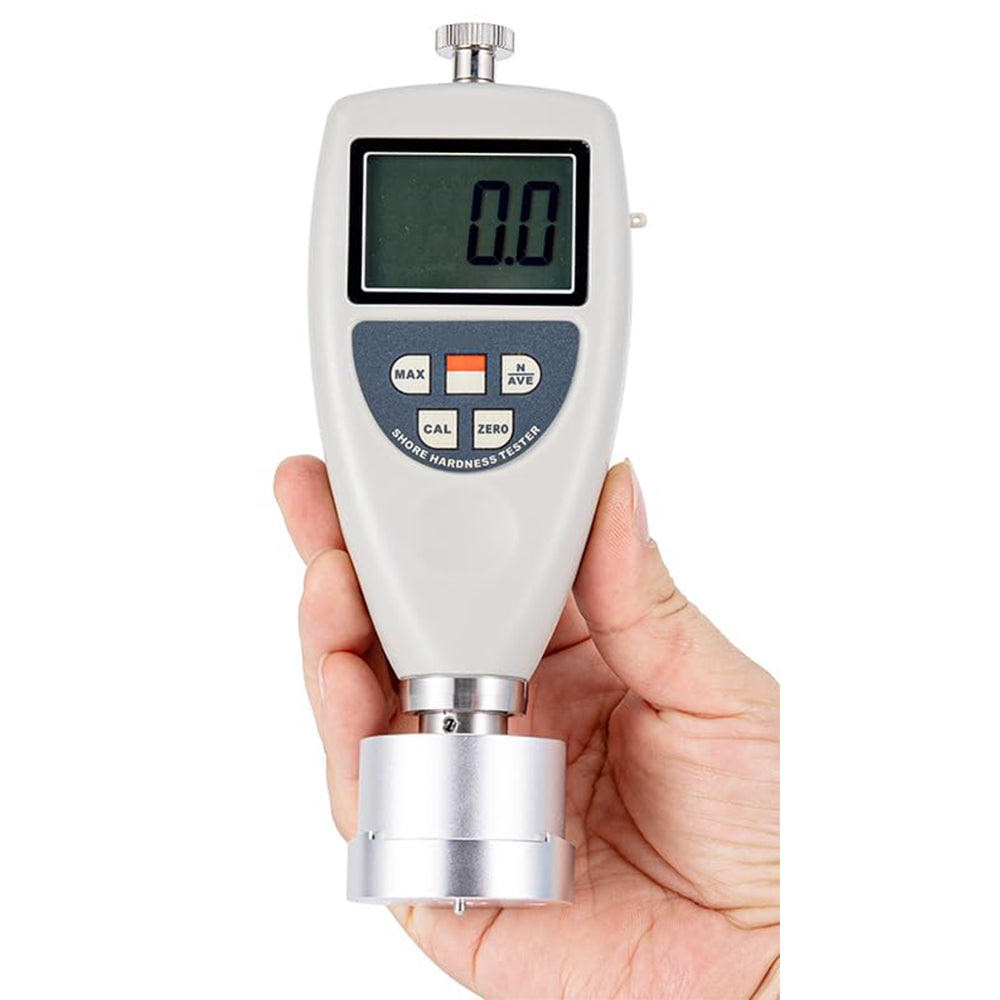

VTSYIQI Handheld Textile Hardness Tester Yarn Package Durometers with Indenter Ball 10mmΦ Testing Range 10~90H Accuracy ≤±1H Resolution 0.1H Measuring Spring Force 0.55~8.065Nfor Very Loosely Wound Bobbins of Thick Yarns

About this item:

Indenter: Ball10mmΦ

Display Range: 0-100H; Testing Range: 10-90H; Resolution: 0.1H; Accuracy: ≤±1H

For very loosely wound bobbins of thick yarns, such as carpet yarns

Average value calculation, maximum value locking, under-voltage alarm indication function. Adopt USB data line output to communicate with PC.Provides Bluetooth Bluetooth data output option

Convertible probe, the curved end of the probe is used for barrels with a diameter less than or equal to 400mm, and the flat end of the probe is suitable for barrels with a diameter greater than 400mm

Product Description:

It is used to measure the winding density (hardness) of textile bobbins, beams, spools, cones, dye packages etc. For measuring the hardness, the spring loaded outer ring of the housing is pressed downwards until the edge of the ring meets the measured object on the housing. This ensures a constant pressure and prevents measuring error.

Product Principle:

The principle used to measure textile hardness is based on measuring the resistance force of the penetrat of a ball against the spool under a known spring load.

The measuring principle is the same as for the Shore A hardness test.

Product Feature:

Convertible probe, the curved end of the probe is used for the bobbin with a diameter less than or equal to 400mm, and the flat end of the probe is suitable for the bobbin with a diameter greater than 400mm.

With average calculate, peak value deposit function.

With data output function. Measurement data can be transmitted to computer by USB cable or Bluetooth adapter for various analysis.

Product Parameters:

Parameters:Tested Result / Mean Value / Max. Value

IndenterBall:10mmΦ

Convertible Probe:The curved end of the probe is used for the bobbin with a diameter less than or equal to 400mm, and the planeend of the probe is suitable for the bobbin with a diameter greater than 400m

Area Of Application:For very loosely wound bobbins of thick yarns, such as carpet yarns

Display Range:0~100H (hardness graduation marks

Testing Range:10~90H (hardness graduation marks)

Accuracy:≤±1H

Resolution:0.1H

Battery Indicator:Low Battery Indicator

Auto Switch Off:√

Depth Of Indentation:0~2.5mm

Test Pressure:Approx. 12.5N

Measuring Spring Force:0.55~8.065N

Scale Diameter:51mm

Working Face Radius:55mm (when using the curved end of the probe)

Working Face Flat:45mmΦ (when using the plane end of the probe)

Working Environment:Temperature 0~40°C

Humidity :<80% RH

Size:178×65×45 mm

Power Supply:2x1.5v AAA (UM-4) battery

Weight:290g (Not including Batteries)

Standard Accessories:

Main Unit

Carrying Case

Operation Manual
