VTSYIQI

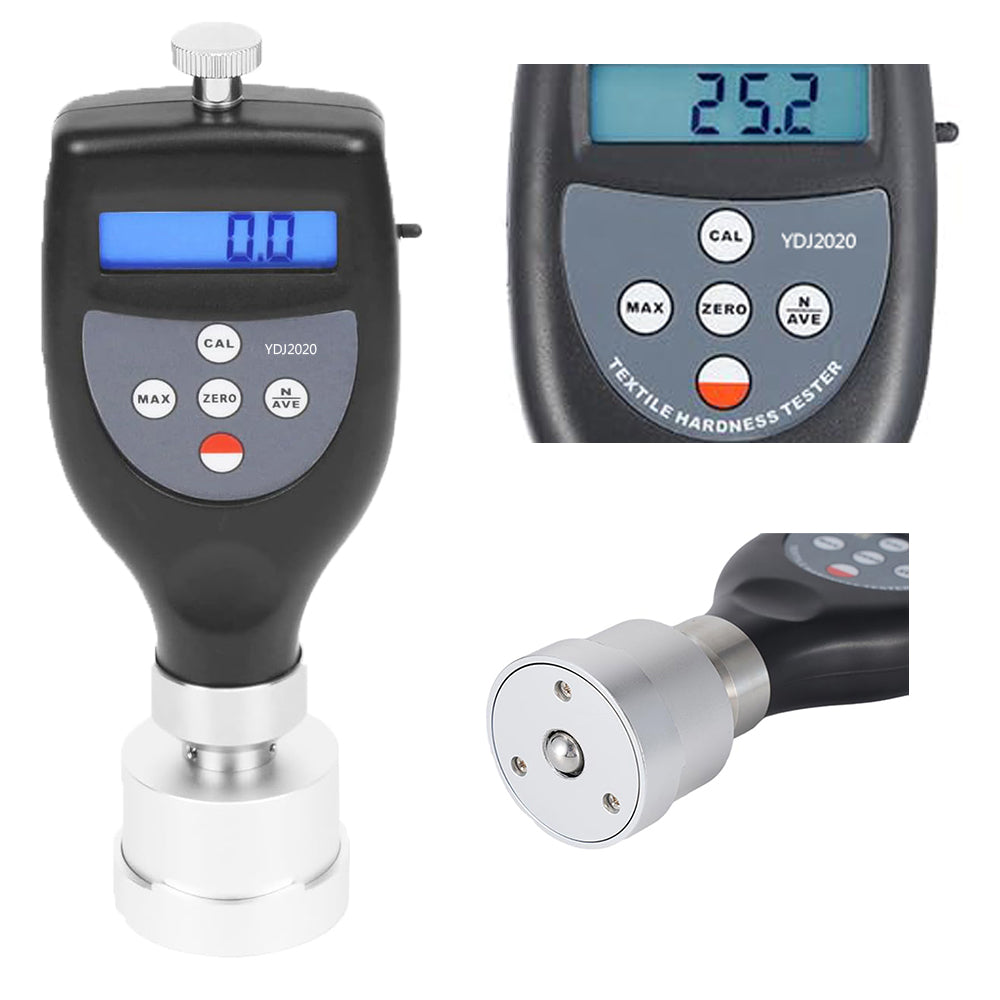

VTSYIQI Textile Yarn Package Hardness Tester Digital Textile Hardness Meter with Indenter Ball 5mmΦ Display Range 0-100H Accuracy≤±1H Test Pressure Approx. 12.5N for Textile Beams Spools Cones Package Testing
- 常规价格
- $440.00

VTSYIQI Textile Yarn Package Hardness Tester Digital Textile Hardness Meter with Indenter Ball 5mmΦ Display Range 0-100H Accuracy≤±1H Test Pressure Approx. 12.5N for Textile Beams Spools Cones Package Testing
About this item:
Textile Durometer With average calculate function.
Digital Textile Durometer Peak value deposit function.
Digital Textile Hardness Tester Under-voltage alarm function.
Textile Hardness Tester Parameters:Tested Result/Mean Value/Max.Value
Display Range:0-100H (hardness graduation marks) Testing Range:10-90H (hardness graduation marks) Resolution:0.1H Accuracy:≤±1H
Features:
Convertible probe, the curved end of the probe is used for the bobbin with a diameter less than or equal to 400mm, and the flat end of the probe is suitable for the bobbin with a diameter greater than 400mm.
With average calculate function.
Peak value deposit function.
Under-voltage alarm function.
Spec: To measure the winding density (hardness) of textile bobbins, beams, spools, cones, dye packages etc.
The principle used to measure textile hardness is based on measuring the resistance force of a ball against the spool under a known spring load. The measuring principle is the same as for the Shore A hardness test.
Specifications:
Parameters: Tested Result/Mean Value/Max.Value
Indenter: Ball 5mmΦ
Convertible Probe: The curved end of the probe is used for the bobbin with a diameter less than or equal to 400mm, and the plane end of the probe is suitable for the bobbin with a diameter greater than 400mm
Area Of Application: For loosely wound bobbins of synthetic fibers and closely wound natural fibers, yarns and threads
Display Range: 0-100H (hardness graduation marks)
Testing Range: 10-90H (hardness graduation marks)
Resolution: 0.1H
Accuracy: ≤±1H
Battery Indicator: Low Battery Indicator
Auto Switch Off: √
Depth Of Indentation*: 0-2.5mm
Test Pressure**: Approx. 12.5N
Measuring Spring Force*: 0.55-8.065N
Scale Diameter: 51mm
Working Face Radius: 55mm (when using the curved end of the probe)
Working Face Flat: 45mmΦ (when using the plane end of the probe)
Operating: Temperature:0~40ºC Humidity:<80%RH
Power Supply: 2x1.5V AAA(UM-4)Battery
Dimensions: 177x65x45mm; Weight: Approx. 285g (Not including batteries)
Standard Accessories: Main Unit; Carrying Case; Operation Manual
