VTSYIQI Ultrasonic Flow Meter Liquid Flow Meter Detector Measurement With TM-1 Standard Medium Transducer DN50 to 700mm 1.97 to 27.56in
Feature Principle： transit-time ultrasonic flowmeter Accuracy： Accuracy :over 1%-2%; Repeatability: over 0.2% Display ：4 line x 16 character LCD with backlight Dimension： 200*93*33cm: 390g Operation： Support 16 key light touch keyboard and the Simulation keyboard software...常规价格 $990.00 -
VTSYIQI Digital Portable Ultrasonic Flow Meter Flowmeters DN50~700mm 1.97-27.56in With Standard Medium Transducer For DN50-700mm pipe size

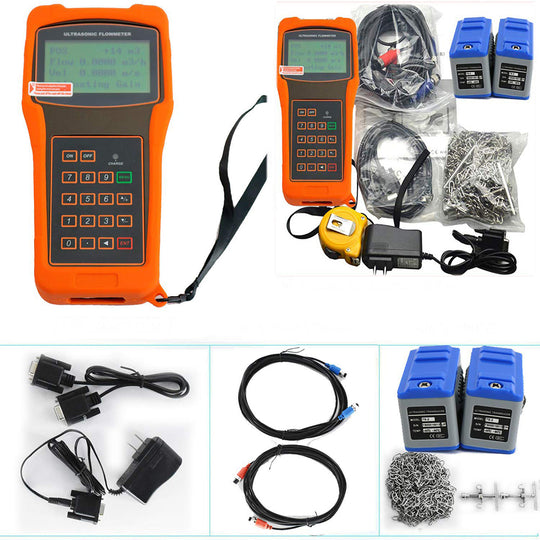

Product Description*This listing is for DN50-700mm pipe size, the water temperature is from -40-90 degree*It comes with one pair of TM-1 transducer; 5m*2 signal cable;metal clamp fixture; one aluminium case; tape ruler;adaptor; data line*The couping agent...常规价格 $990.00 -
VTSYIQI Portable Ultrasonic Flow Meter Digital Liquid Flow Meter With TL-1 Transducer Measuring Range DN300 to 6000mm 11.8 to 236.22in
FeatureItems： Performance and ParameterMain Unit：Principle： transit-time ultrasonic flowmeterAccuracy： Accuracy :over 1%-2%; Repeatability: over 0.2%Display ：4 line x 16 character LCD with backlightDimension： 200*93*33cm: 390gOperation： Support 16 key light touch keyboard and the Simulation keyboard softwareData interface：Insulate RS232 serial interface, upgrade the flew meter software by computer, support the MODBUS, etc. Signal Output： 1 way OCT outputSpecial Cable ：Twisted-pair cable, ;Select the RS232 communication.;Generally, the standard is 5m*2, optional 10m*2 Pipe Condition ：Pipe Material ：Steel, Stainless steel, Cast iron, Copper, Cement pipe, PVC, Aluminum, Glass steel product, liner is allowed.Pipe Diameter ：DN 300---6000mmStraight length pipe：Transducer installation should be satisfied: upstream10D, downstream 5D, 30D from the pump.Measuring Medium：Type of Liquid ：Water ; Ultra-pure liquids; Solvents and other liquids Temperature： Standard Transducer: -30--90℃; High-temperature transducer: -40--160℃Turbidity： under 10000ppm and less bubble Flow rate ：0--±10m/sFlow Direction ：Measuring two (plus-minis) direction of flow rate Working Environment：Temperature：Main Unit: -20--60℃Flow transducer: -40--160℃; Temperature transducer: according to the customer’s demands.Humidity： Main Unit: 85% RHPower Supply： AC 110V-240V常规价格 $1,005.00 -
VTSYIQI Digital Portable Ultrasonic Flow Meter Flowmeter With Transducer Measuring Range DN300-6000mm 11.8-236.22in For the Water Temperature -40-90 Degree
This listing is for DN300-6000mm pipe size, the water temperature is from -40-90 degreeIt comes with one pair of TL-1 transducer; 5m*2 signal cable;metal clamp fixture; one aluminium case; tape ruler;adaptor; data lineThe couping agent can...常规价格 $1,005.00 -
VTSYIQI Ultrasonic Flow Meters Flowmeter With Transducer For Measuring Range DN300-6000mm 11.8-236.22in
Description: *This listing is for DN300-6000mm pipe size, the water temperature is from -40-90 degree*It comes with one pair of TL-1 transducer; 5m*2 signal cable;metal clamp fixture; one aluminium case; tape ruler;adaptor; data line*The couping agent...常规价格 $1,005.00 -
VTSYIQI Handheld Digital Ultrasonic Flow Meter Flowmeter For DN15 to 100mm Pipe Size -40 to 160 Degree High Temperature
Product Description *This listing is for DN15 to 100mm pipe size, the water temperature is from -40-160 degree*It comes with one pair of TS-2-HT transducer; 5m*2 signal cable;metal clamp fixture; one aluminium case; tape ruler;adaptor; data...常规价格 $1,007.00
