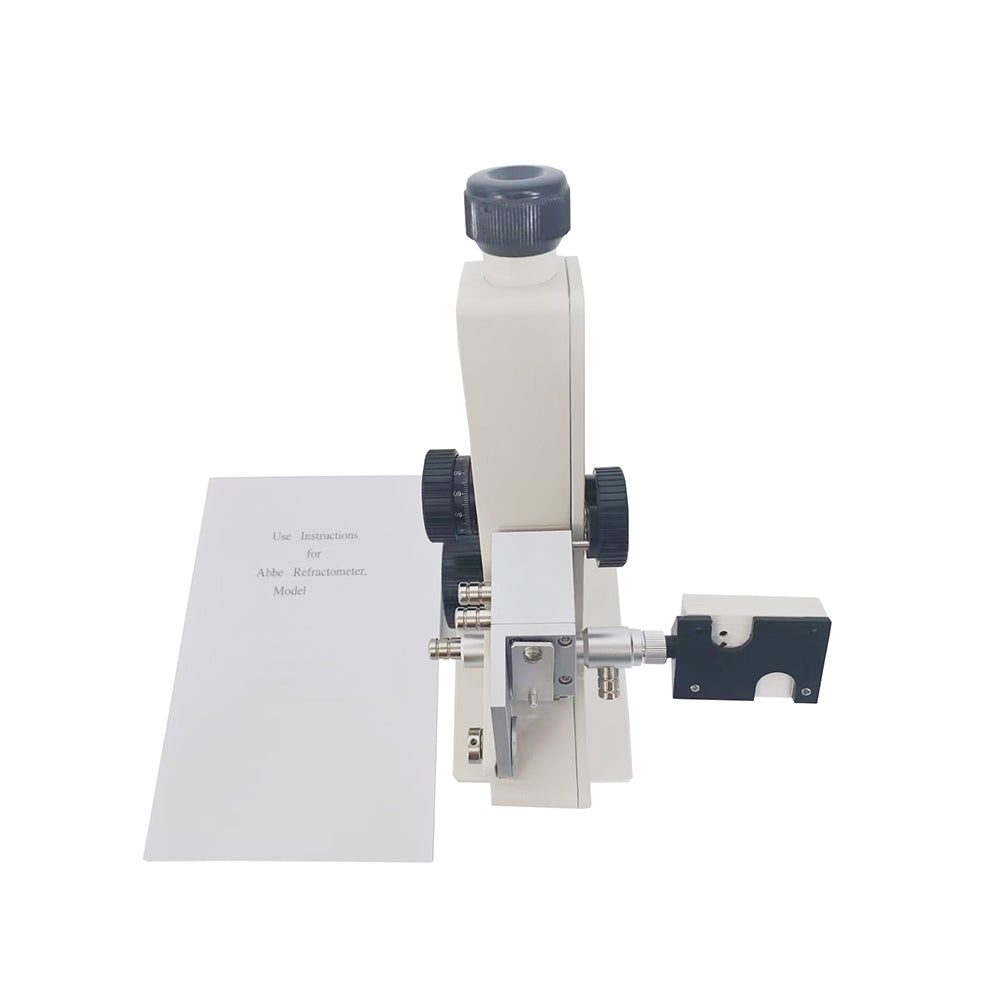

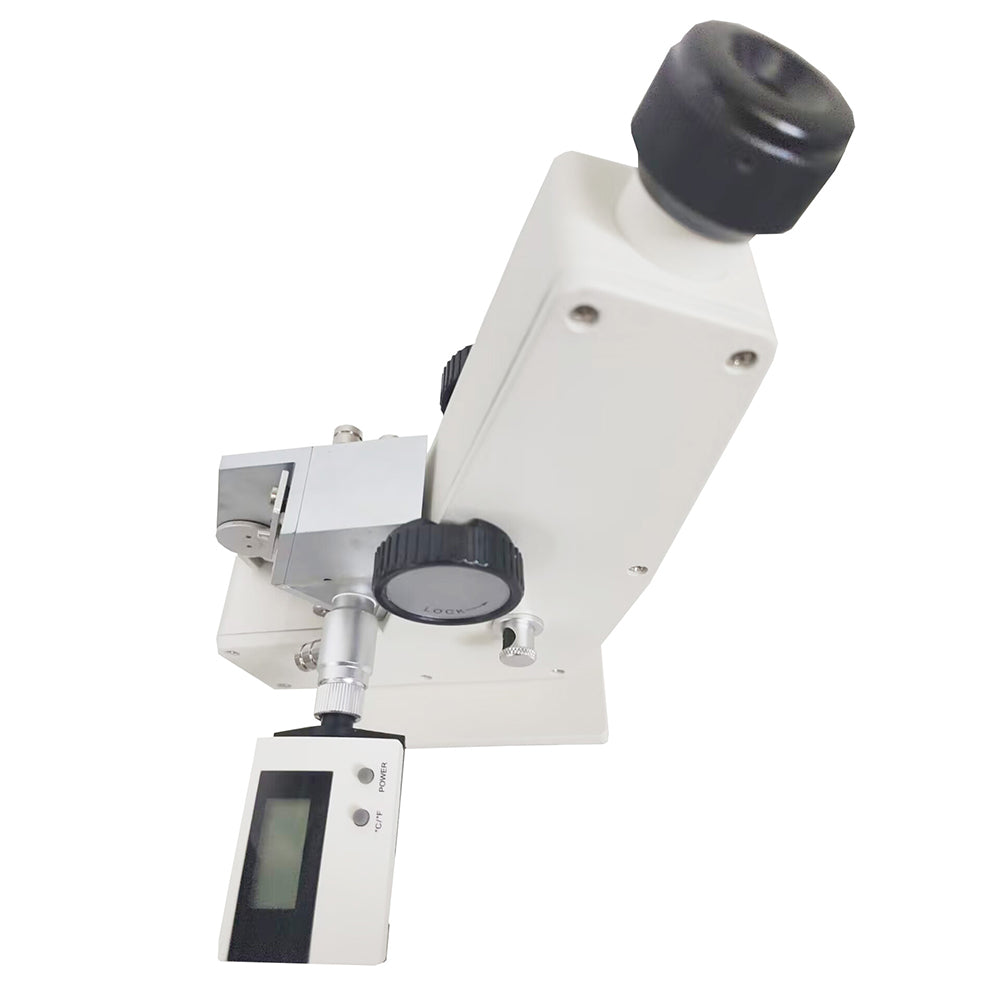

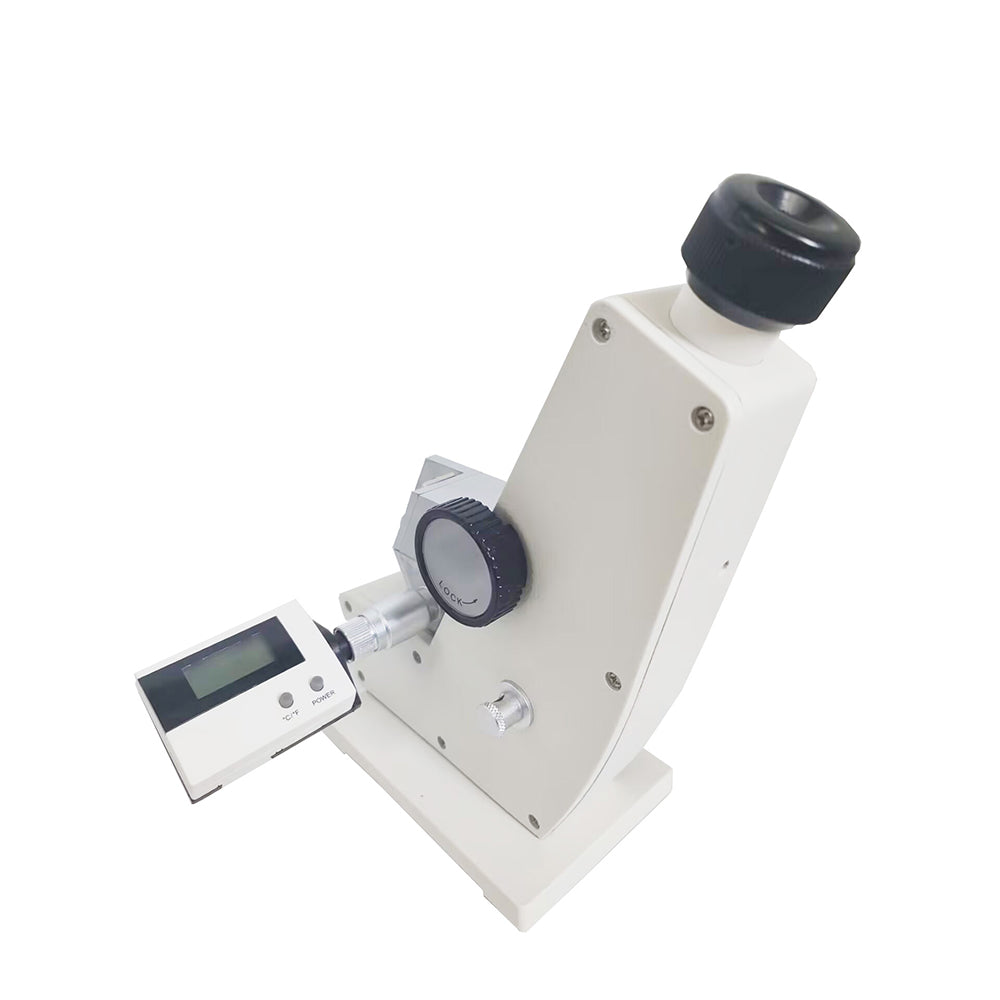

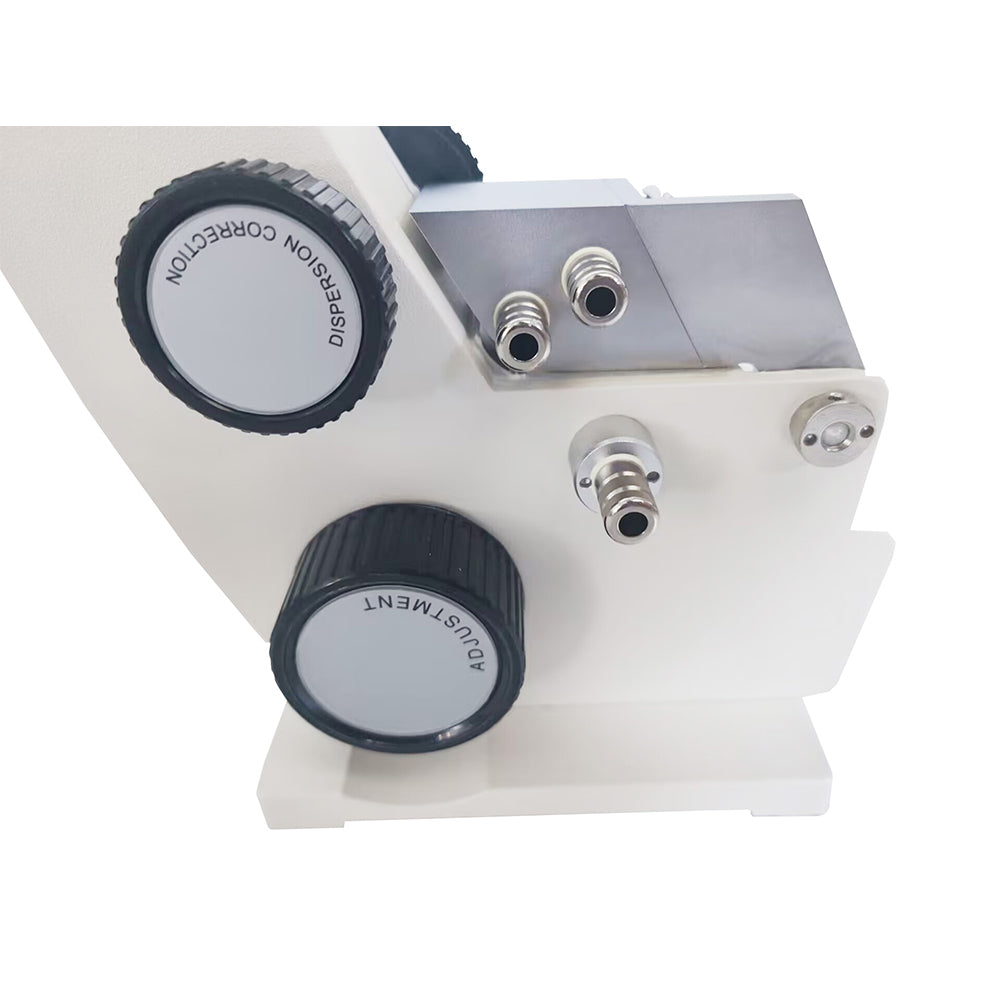

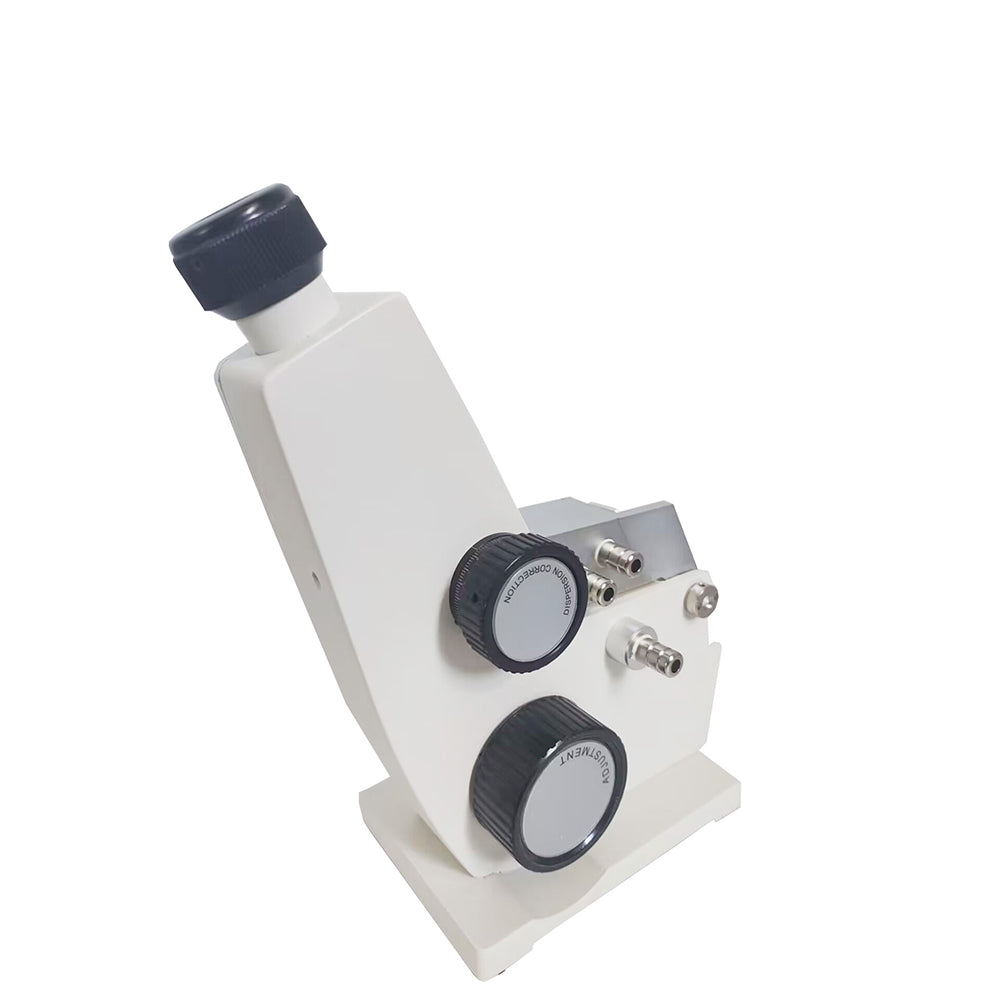

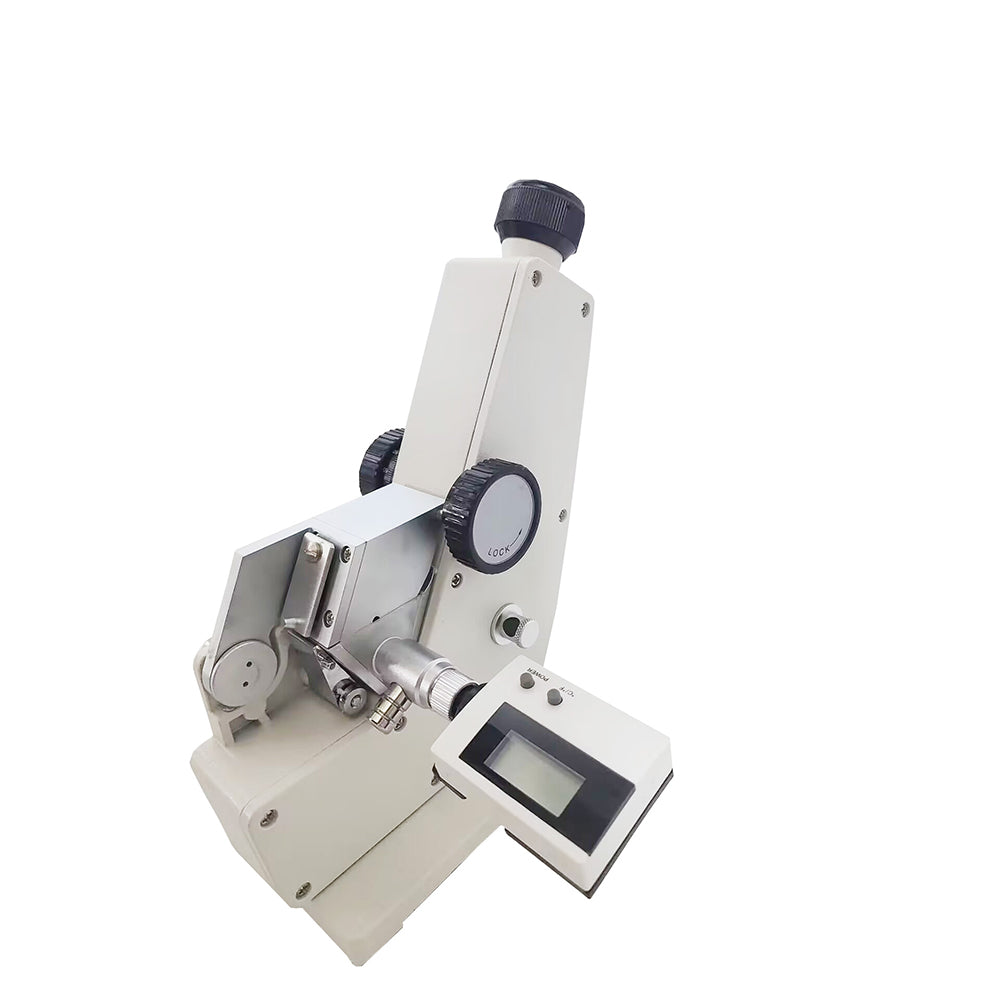

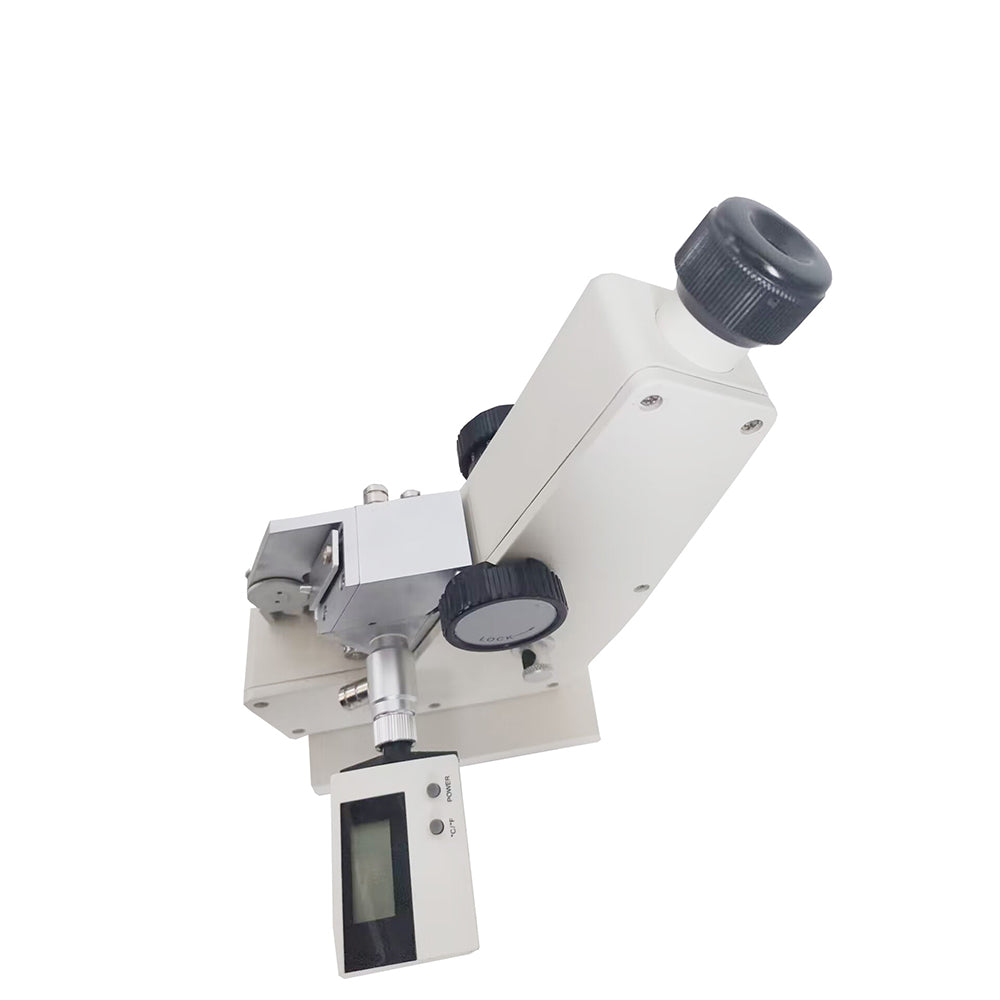

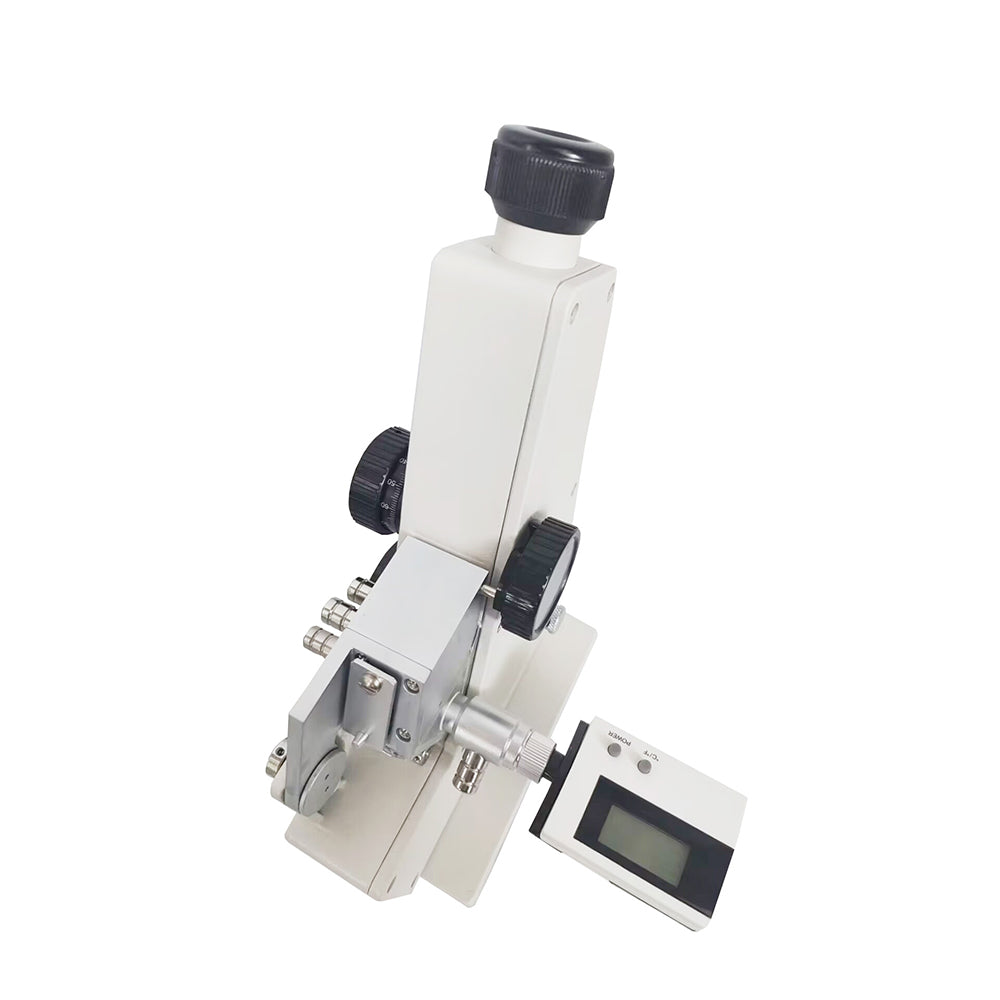

VTSYIQI ABBE Refractometer Monocular Abbe Refractometer Digital Abbe Refractometer with Accuracy ±0.0002 Digital Thermometer Measuring Range 1.3000-1.7000 nD Dissolved Solids Brix 0-95%

VTSYIQI ABBE Refractometer Monocular Abbe Refractometer Digital Abbe Refractometer with Accuracy ±0.0002 Digital Thermometer Measuring Range 1.3000-1.7000 nD Dissolved Solids Brix 0-95%

常规价格 $500.00 USD
常规价格 促销价 $500.00 USD
销售额 售罄
结账时计算的运费

VTSYIQI ABBE Refractometer Monocular Abbe Refractometer Digital Abbe Refractometer with Accuracy ±0.0002 Digital Thermometer Measuring Range 1.3000-1.7000 nD Dissolved Solids Brix 0-95%

About this item

Application Areas---Measurement of refractive index nD, average dispersion nF-nc of transparent or translucent

Object to be measured---liquid and solid substances

Object to be measured---Measurement of mass fraction (Brix) of cane sugar solution

Widely Application Areas---Widely used in the field of sugar, beverage, petroleum, food, chemical

Areas of strengths---industries as well as research institutes and educational department, Visual aim, optical index-plate reading Easy and reliable

Purpose:

The Abbe Refractometer is intended for measuring the refractive index nD and the average dispersion nF – nC of transparent or translucent liquid, or solid substance (of which mainly intended for measuring transparent liquid).

In case of the instrument being connected with a thermostat, it will be able to measure the refractive index nD at a temperature between 0°and 70°.

Both the refractive index and average dispersion are the important optical constants, through which we can understand the optical performance, purity, concentration, as well as dispersion of a substance.

In this instrument, based on the formula provided by the International Commission of Uniform Method of Sugar Analysis (ICUMSA) in 1974, the refractive index is converted into the mass fraction (Brix) of cane sugar solution, with a range of conversion from 0 to 95%.

Therefore, this instrument has found an increasingly wide utilization in the fields as petroleum, oil, pharmaceutical, paint, food, chemical and sugar refining industries, as well as in geological prospecting enterprises, colleges, universities and scientific research institutions.

Feature:

Measurement of refractive index nD, average dispersion nF-nc of transparent or translucent liquid and solid substances

Measurement of mass fraction (Brix) of cane sugar solution

Widely used in the field of sugar, pharmaceutical, beverage, petroleum, food, chemical industries as well as research institutes and educational department

Visual aim, optical index-plate reading

Easy and reliable

 Specification:

Refractive index nD:1.3000-1.7000

Accuracy (nD):±0.0002 (Estimate Reading)

Dissolved Solids Brix:0-95%

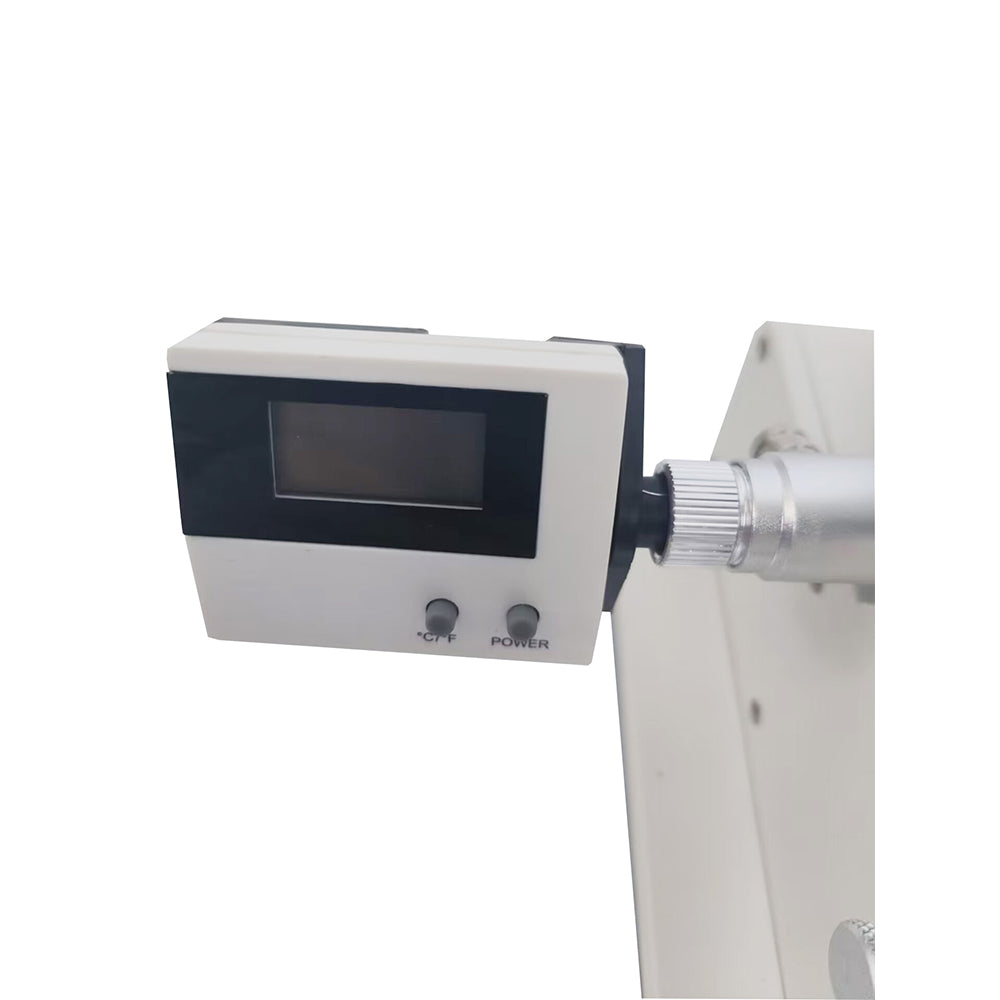

Temperature display:Digital thermometer

Observation mode:Monocular

Weight (Gross):3kg

Overall Dimensions:270mm×180mm×370mm

Standard Accessories:

Abbe Refractometer---1 set;

Special – purpose thermometer (with protecting jacket)---1 set;

Screw driver---1 piece

Standard sample (K9)---1 piece

Naphthalene bromide---1 bottle

Plastic cover hood for the instrument---1 piece

Operating instructions---1 copy
