VTSYIQI

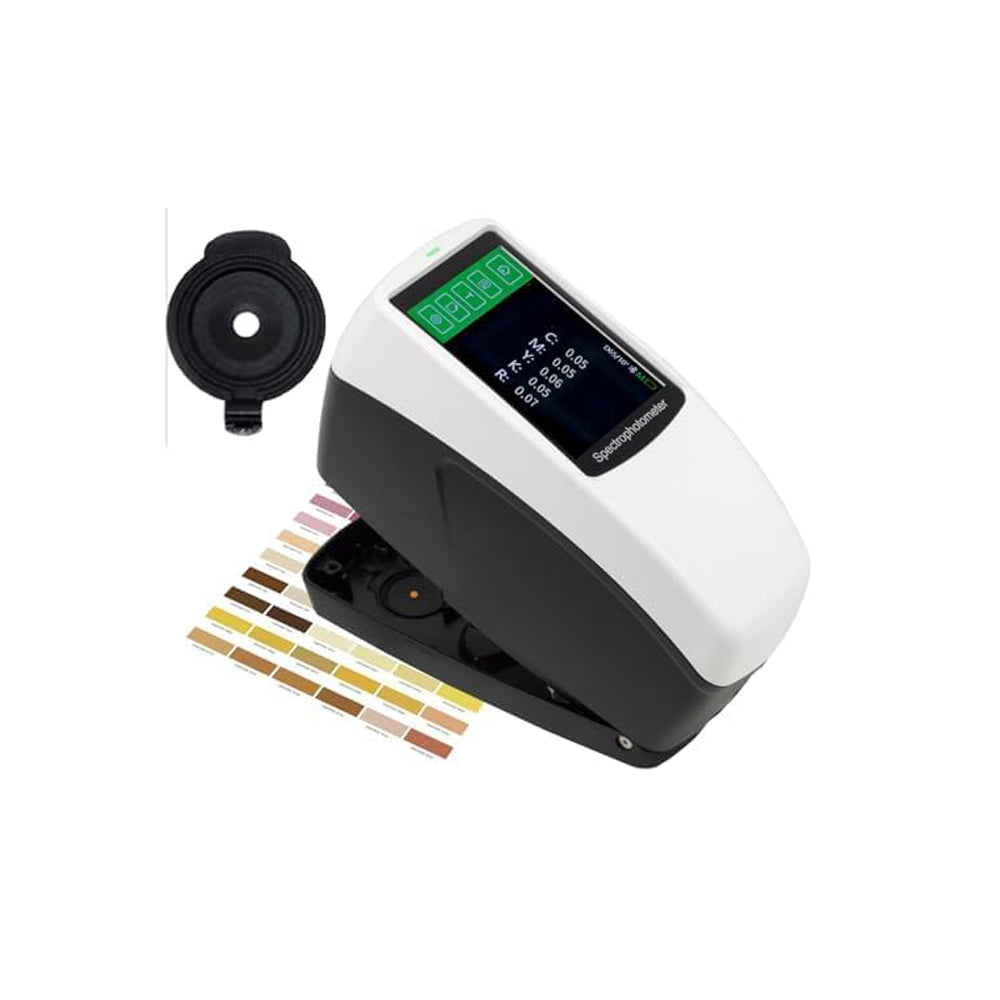

VTSYIQI Spectrodensitometer Color Density Meter Spectro Densitometers Measurement With USB Bluetooth 5mm Caliber 0.02 Repeatability For Color Density Dot Area Overprint Rate Printing Contrast Grayscale 1000 Items Storage

VTSYIQI Spectrodensitometer Color Density Meter Spectro Densitometers Measurement With USB Bluetooth 5mm Caliber 0.02 Repeatability For Color Density Dot Area Overprint Rate Printing Contrast Grayscale 1000 Items Storage

常规价格 $1,148.00 USD
常规价格 促销价 $1,148.00 USD
销售额 售罄
结账时计算的运费

VTSYIQI Spectrodensitometer Color Density Meter Spectro Densitometers Measurement With USB Bluetooth 5mm Caliber 0.02 Repeatability For Color Density Dot Area Overprint Rate Printing Contrast Grayscale 1000 Items Storage

Feature:

Horizontal compression measurement, physical positioning observation window The Color Densitometer adopts a horizontal design with a low center of gravity, which can be stableMeasure the surface being measured. During the measurement process, you can follow the observation windowCheck the measurement position at all times to avoid measurement position errors.

Provide printing-specific measurement indicators to help users adjust colors efficiently Color density measurement, dot area measurement, overprint rate measurement, printing contrast measurement, hue error and grayscale measurement.

Ultra-high repeatability accuracy:dE*ab ≤0.02 Repeatability accuracy is the most important indicator to describe the performance of a Color Densitometer. The Color Densitometer adopts high-precision nanometer spectroscopic devices, which enables the repeatability accuracy of the instrument to reach a level of dE*ab≤0.02 that is difficult to match with similar products.

supports 1 measurement calibers The Color Densitometer supports 1 apertures, Φ5mm,and can be flexibly applied to a variety of samples of different sizes and testing conditions.

More than 30 measurement parameters and nearly 40 evaluation light sources Color Densitometer provide spectral reflectance, CIE-Lab, CIE-LCh,ΔE*ab, covering power, whiteness, yellowness and other 30+ measurement indicators; A, B, C,There are nearly 40 evaluation light sources to choose from such as D50, D55, and D65, covering almost all industries All color measurement metrics and light source types included.

Main Feature:

Measuring structure : D/8,SCI+SCE

NetProf network calibration : /

Integrated physical positioning holes : support

Measurement repeatability : dE*ab≤0.02

Display accuracy : 0.01

lighting source : Full-band balanced LED light source

UV light source : /

caliber : Φ5mm

Light source conditions : A,B,C,D50,D55,D65,D75F1,F2,F3,F4,F5,F6,F7,F8,F9,F10,F11,F12CWF,U30,U35,DLF,NBF,TL83,TL84,ID50,ID65,LED-B1,LED-B2,LED-B3,LED-B4LED-B5,LED-BH1,LED-RGB1,LED-V1,LED-V2

Accuracy guaranteed : Ensure measurement is qualified

field of view : 2°,10°

Integrating sphere diameter : 40mm

follow standards : CIENo.15,GB/T3978,GB2893,GB/T18833,ISO7724-1,ASTME1164,DIN5033Teil7

Spectral method :High-precision nano spectroscopic device

sensor:Silicon photodiode array dual 16 groups

Wavelength interval : 10nm

Wavelength range : 400-700nm

Reflectivity measurement range : 0-200%

Reflectance resolution : 0.01%

measure time : about 1 s

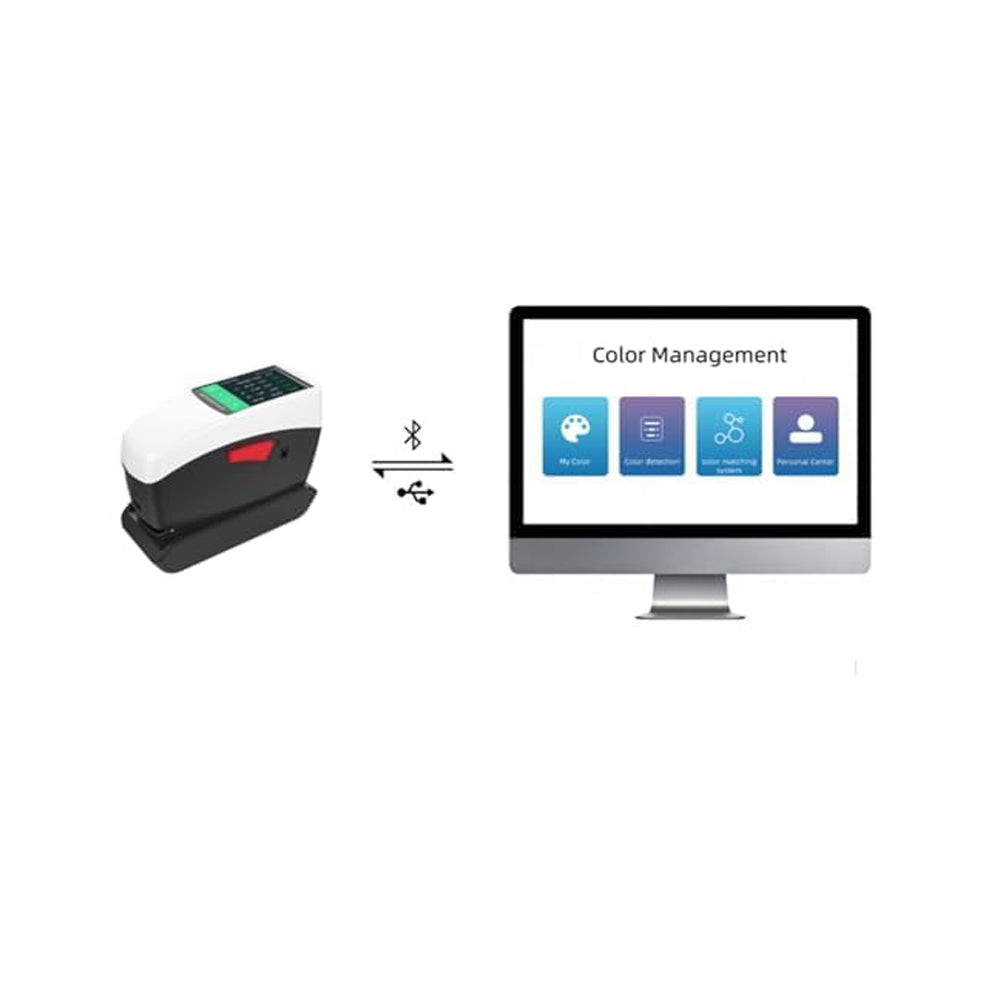

interface : USB, Bluetooth

Screen : Full color screen, 3.5 inches

battery capacity : Can continuously measure 8000 times on a single charge, 7.2V/3000mAh

Light source life : 5 million times

language : Simplified Chinese, English

storage :Instrument: 10,000 items;

APP: Mass storage
