VTSYIQI Digital 16 Channels Temperature Recorder Meter Temperature Data Logger With -20 Degree to 200 Degree K/J/T Type thermocouples TFT-LCD Display USB Interface
VTSYIQI Digital 16 Channels Temperature Recorder Meter Temperature Data Logger With -20 Degree to 200 Degree K/J/T Type thermocouples TFT-LCD Display USB Interface
无法加载取货服务可用情况
About this item
- ★It's the latest economical multi-channel temperature measuring instrument developed by Amber Instruments. It adopts ARM microprocessor control, multi-channel parallel test, and collects, alarms and communicates with 16 channels of temperature at the same time. Compatible with a variety of temperature sensors, fast response, stable data, and break detection.
- ★Using the most advanced test principle, the temperature test resolution is 0.1 degree.The instrument comes standard with RS-232 interface and USB interface, and provides free communication software, which can easily collect, analyze and print data through PC software.
- ★Similarly, the product has a wide range of adaptability and supports K/J/T type thermocouples. The test range is from -20 ° C to 200 ° C.
- ★The product uses the proprietary Amber instrument operating system ATOSTMv4 to make the test instrument easier and more convenient to operate. At the same time, it relies on ATOSTMv4, and the instrument can be well compatible. Capacity storage and powerful PC communication capabilities.
- ★The product features a rugged, vibration-resistant housing for operation in demanding environments. Fully isolated digital and analog signals are safe and reliable. The product comes standard with a USB flash drive and supports real-time data storage.
Product Description
Application:
Suitable for multi-point temperature testing of manufacturers and quality inspection departments in home appliances, motors, electric appliances, thermostats, transformers, ovens, thermal protectors, power supplies, lighting, electric power, LED, etc
Feature:

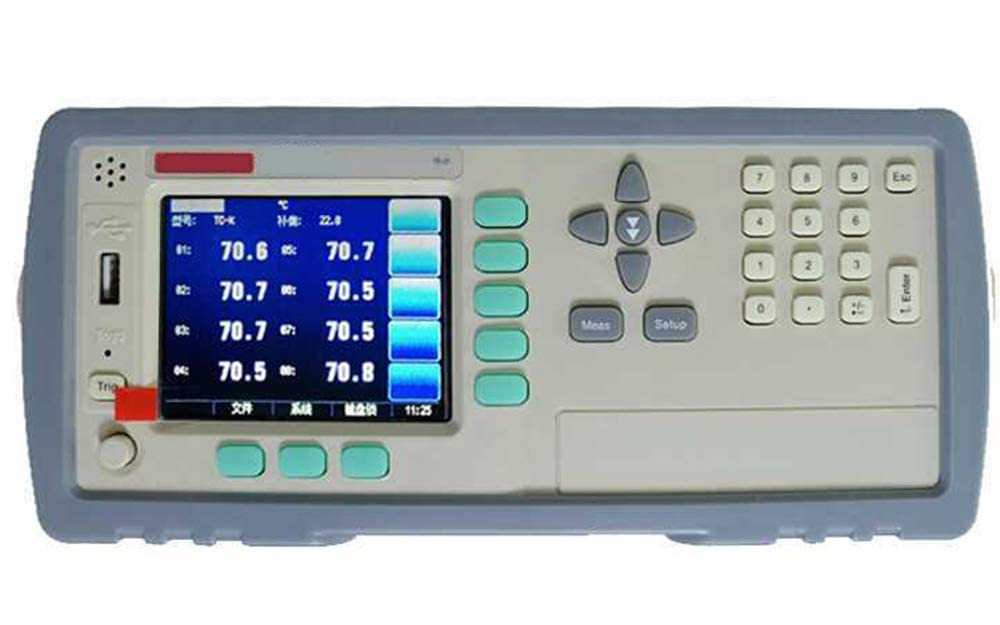

TFT true color LCD display, three display fonts.
Fast, medium and slow three-level scanning speed
Cold junction compensation
Standard USB disk interface, support for large-capacity storage devices.
Standard RS232C interface and USB interface
Automatic detection of broken couple
Specified channel scan
Standard AT41 data acquisition software
Specification:
Graduation ：Thermocouple：K/T/J
Accuracy ：0.2℃±2 digits
Range ：-20℃~200℃（Varying depend on graduation）
Resolution ：0.1℃
Channels ：16 channels
Speed ：Fast：100ms/channel Medium：500ms/channel Slow：1s/channel
Correction ：None
Comparator ：High/low beep Individual setting high/low value for each channel

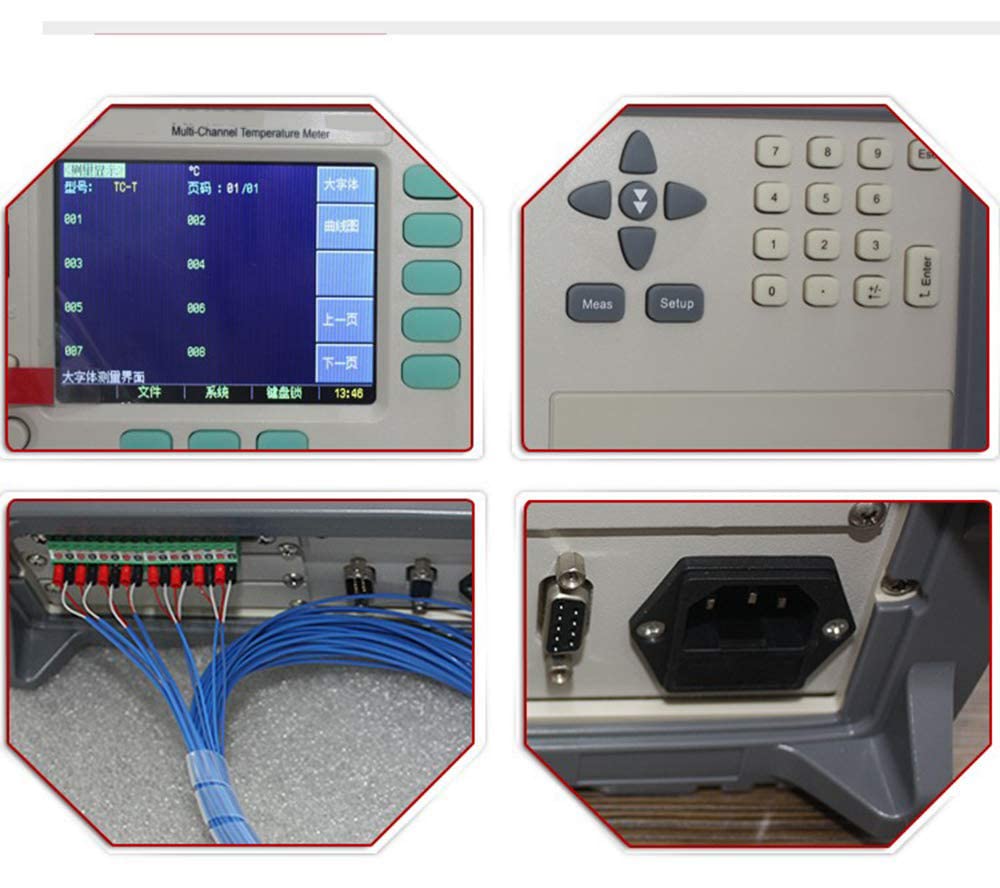

Interface ：RS232C interface U-disc interface USB communication interface
ATS41 data acquisition software
Cold Junction ：
Accuracy：0.5℃
TFT-LCD True-color LCD display，broken thermocouple check function
Voltage：85VAC～260VAC Frequency：50Hz/60Hz Power：10VA
216mm(Width)x88mm(Height)x300mm(Depth) 3kg
K Type thermocouple 16 teams(2m/team) data acquisition software
