Product Features

Over 30 Measurement Indicators

Evaluate whether the color is jumping light, and provide nearly 40 evaluation light sources

Contains SCI measurement mode

Contains UV for fluorescent color measurement

Calibration base and zirconium reference with a Mohs hardness of 9 to calibrate the instrument, ensuring long-term stability

The series supports 3 measuring apertures for selection（11mm，6mm，3mm）

Built-in HD camera for clear observation of the measured area

Support WeChat applet, Android, Apple, Hongmeng mobile APP

Use the powerful PC-based colour management system ColorExpert

Specification

Measuring structure : D/8，SCI

Measurement repeatability : ΔE*ab≤ 0.03

Display accuracy : 0.01

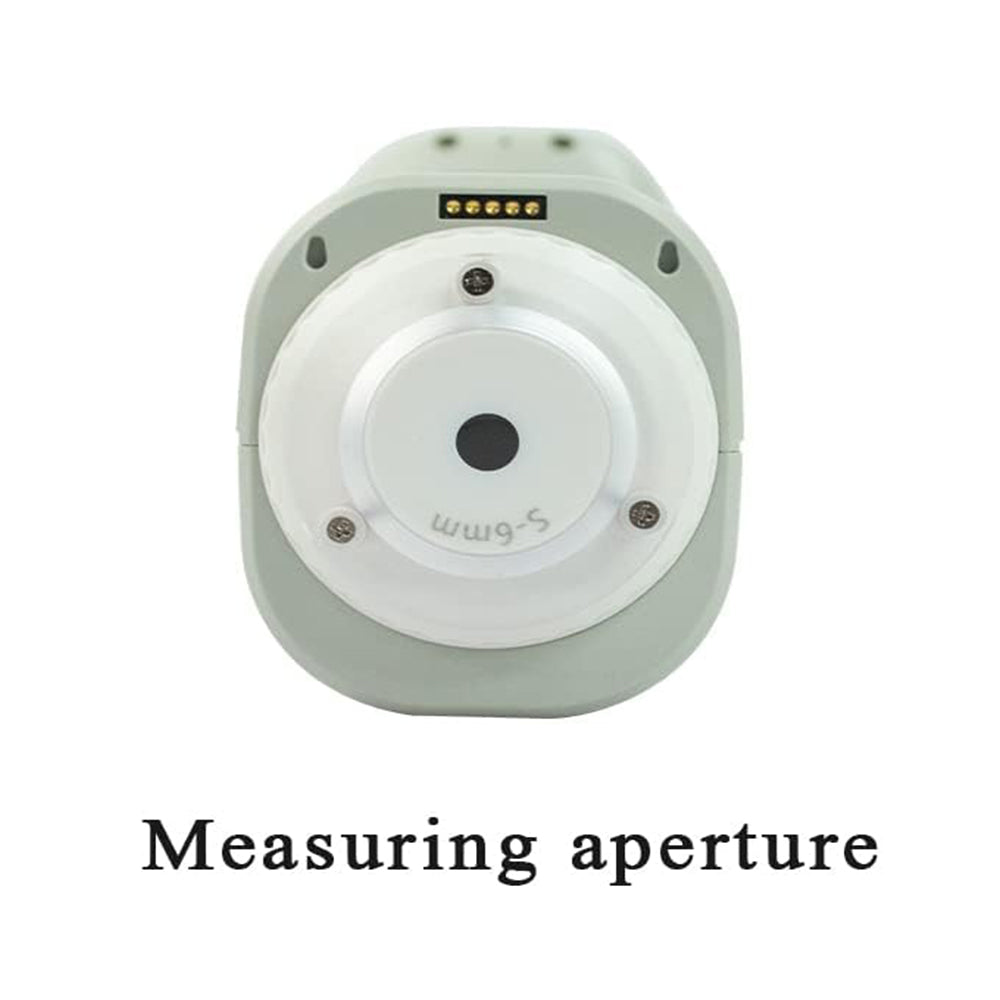

Measuring aperture : Φ6mm

Color Spaces and Indices : Reflectance, CIE-Lab, CIE-LCh, HunterLab, CIE Luv, XYZ, Yxy, RGB, Color difference(ΔE*ab, ΔE*cmc, ΔE*94,ΔE*00),WI(ASTM E313-00,ASTM E313-73,CIE/ISO,AATCC, Hunter, Taube Berger Stensby), YI(ASTM D1925,ASTM E313-00,ASTM E313-73), Blackness(My,dM),Color Fastness

Source condition : A,B,C,D50,D55,D65,D75,F1,F2,F3,F4,F5,F6,F7,F8,F9,F10,F11,F12,CWF,U30,U35,DLF,NBF,TL83,TL84,ID50,ID65,LED-B1,LED-B2,LED-B3,LED-B4,LED-B5,LED-BH1,LED-RGB1,LED-V1,LED-V2

Light source : LED

Measurement observation method : Visual

Software support : Andriod, iOS, Windows, Wechat app

Guaranteed accuracy : Guaranteed measurement

Observer : 2°，10°

Integrating sphere diameter : 40mm

Standards : CIE No.15,GB/T 3978,GB 2893,GB/T 18833,ISO7724-1,ASTM E1164,DIN5033 Teil7

Ways of spectral : Nano-integrated spectral devices

Sensor : Silicon photodiode array Dual 16-group

Wavelength interval : 10nm

Wavelength range : 400-700nm

Reflectance determination range : 0-200%

Reflectance resolution : 0.01%

Measurement method : Single measurement, average measurement (2 to 99 measurements)

Measurement time : Approx. 1 second

Interface : USB, Bluetooth

Screen : Screen Full colour screen, 2.4

Battery capacity : 8000 continuous measurements on a single charge, 3.7V/3000mAh

Life of light : 10 years and 1 million cycles

Language : Simplified Chinese, English

Storage : Instrument : 10,000 data; APP: mass storage
