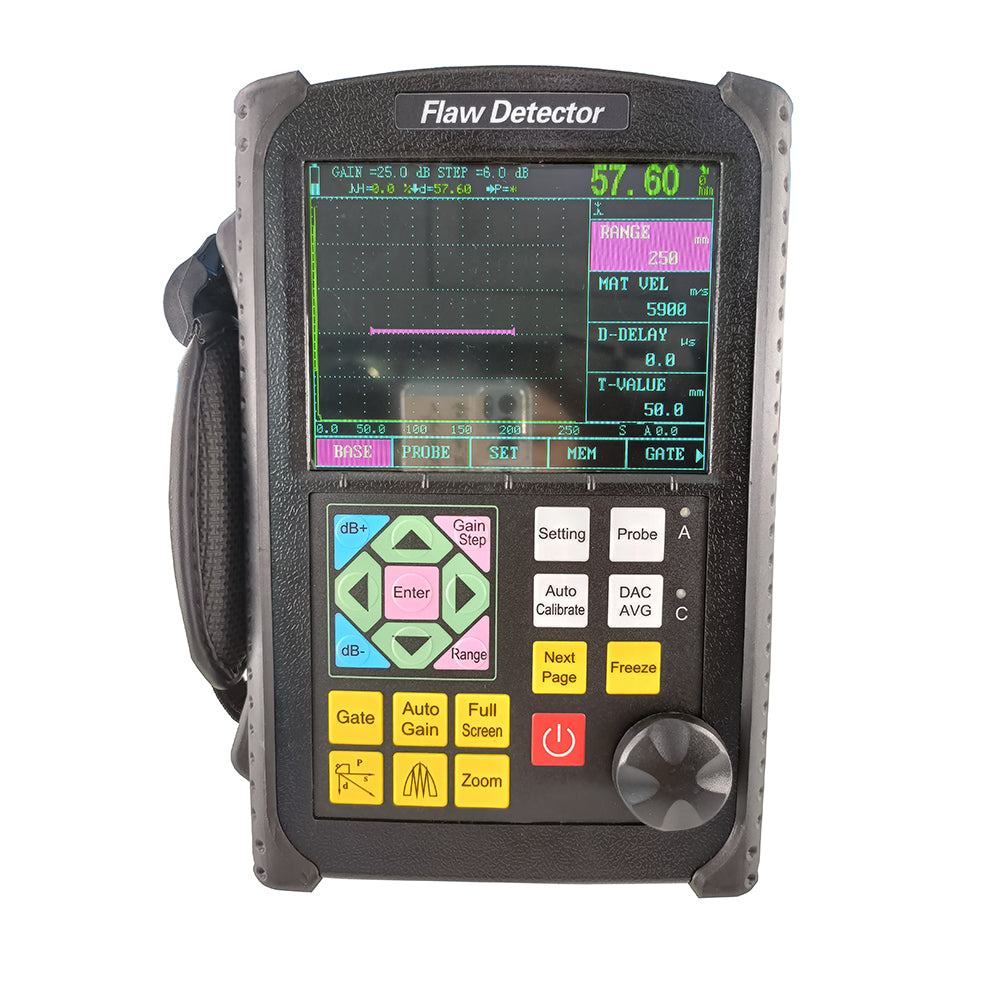

VTSYIQI Digital Ultrasonic Flaw Detector Ultrasonic Flaw Tester with Measuring Range 0~10000mm D-Delay -20~+3400μs P-Delay 0~99.99μs Frequency Range from 0.5 to 15MH Resolution 0.1mm(2.5mm~100mm) 1mm(>100mm) LED True Color

About this item：

*Automated display precise flaw location(Depth d, level p,distance s,amplitude,sz dB,ф), utomated to switch; *Automated calibration of transducer Zero-point, angles, front edge and material velocity.

*Convenient to make and use DAC/TCG and AVG to evaluate the echo, the curve can be modified and compensated; *6dB DAC functions, standards of test for DAC is saved.

*Gate and DAC alarm, display freeze; *B scan, AWS D1.1; *Max 500 independence setup, any criterion can be input freely, can work in the scene without test block.

*Big memory Max 1000 A graph, unlimited of video time, automated make video of test process and play; *Automated gain and gain scan; *Peak hold and peak memory; *Powerful PC software,reports can be export to excel.

*The embeded software can be online updated; *Automated echo degree; *Big memory Max 1000 A graph; *Electronic clock calendar, lock and unlock function of system parameters; *Two gates setting and alarm indication.

Specification:

Measuring Range: 0~10000mm

Frequency Range :0.5~15MHz

Sound Speed :1000~15000m/s

Gain :0~120dB

Measurement Mode :Single, dual, thru

D-Delay :D-Delay -20~+3400μs

P-Delay :0~99.99μs

Resolution :0.1mm(2.5mm~100mm) 1mm(>100mm)

Power :Li-battery (working time>10 hours)

Display :LED true color

Humidity :20%~90%RH

Temperature :-20°C~70°C

Size: 238x155x46mm

Weight :1kg

Standard delivery:

Straight Probe 10mm 4MHz :1 PC

Angle Probe 8x9 60°4MHz: 1 PC

Probe Connecting Cable: 2 PCs

9V Power Adaptor & Cable :1 PC

PC Software :1 PC

Communication Cable :1 PC

Calibration Certificate: 1 PC

User Manual: 1 PC

Instrument Case :1 PC
