About this item
- ◆ Wireless connectivity between accelerated sensor and PDA allows easy and more flexible usage on site. PDA can work up to 10 meters away from the accelerated sensor
- ◆Real time on-site processing such as smoothing, differential, filtering, exponent and linear amplification can be given to tested waveform
- ◆The signal noise can be eliminated by taking average superposition of multiple signals. Superposition signals can be checked at any time, and poor-quality signals can be rejected , New wavelet processing method can effectively judge the integrity of foundation pile in complex situation
- ◆Project/pile testing data can be easily saved, accessed, edited, or deleted , Intelligent sensor can complete the acquisition work, and upload the data to the computer through the Wi-Fi, get rid of signal wire entanglement, efficient, fast and smooth
- ◆Gain value can be adjusted according to length of pile and top surface condition of pile , True 24 bit A/D data acquisition makes test waveform more real, avoiding the noise and signal distortion caused by floating point amplification
Product Description
Field of use
By using the reflected wave method, the device is used to assess the integrity of concrete pile and identify the extent and location of the pile defect. It can be used for testing bored concrete pile and hammer pile.
It can also be used for testing the constructions with an exposed top surface such as pillars.
specification

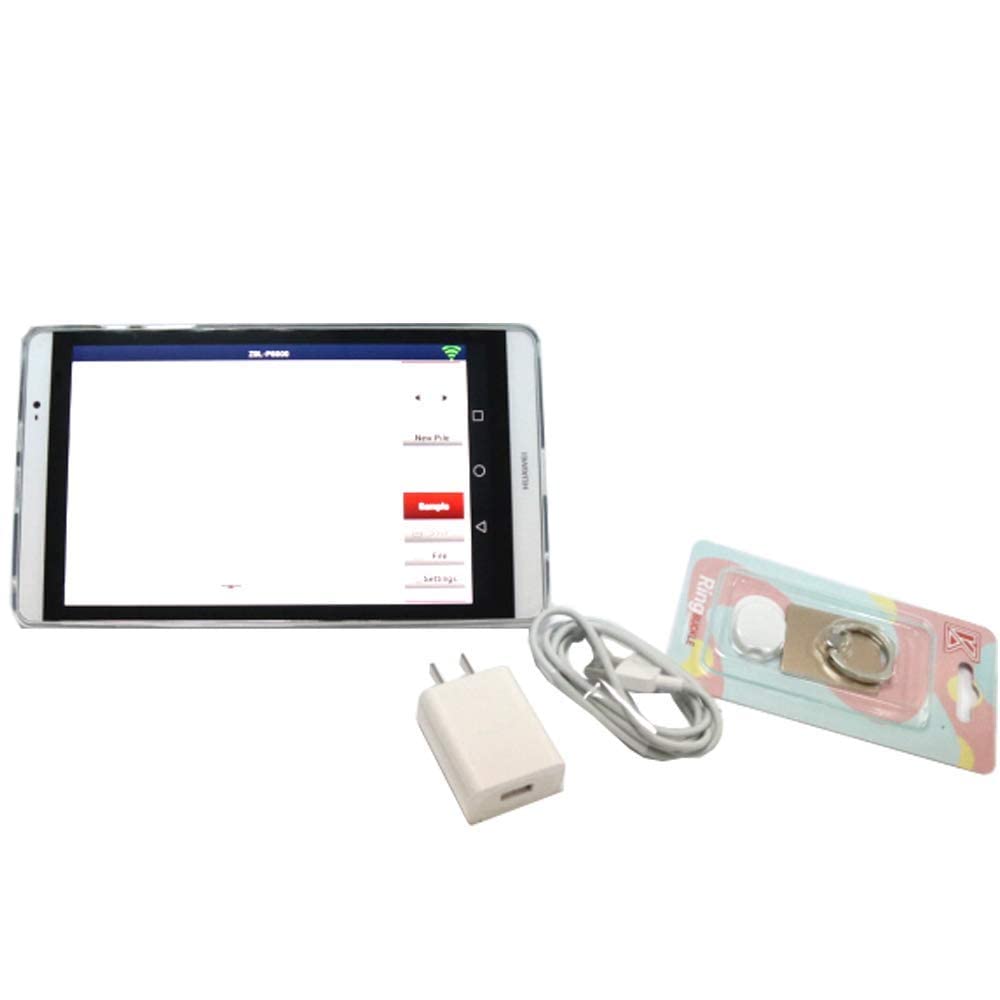

Model :ZBL-P8000
Control Mode : Android platform
Screen : High brightness, TFT color LCD screen
Data Storage : ≥8GB
Operation Mode : touch screen
Sentinel magnify (time): 1、2、4、8、16、32 adjustable
A/D resolution (bit) : 24 bits A/D
Sampling time intervals(μs) : 6.4～1638.4 adjustable
Max length of sampling :≥2048
Trigger :Signal trigger
Noise voltage of the system (mV): ≤2
Dynamic range（dB） :≥180
Amplifier frequency range（Hz） : 1～10k
Max storage length :2048
Amplitude nonlinear degree :≤10%
Fixed point magnification :1, 2, 4, 8, 16, 32,64
Error of time indication: ≤1%
Time resolution（us） : 6.4
Gain error（dB） : ≤1
Continuous working time(h) :>5
Number of channels : 1
Interference between the channels :no
Transducer/Probe Sensitivity（acceleration mode）（mv/g）：:≥100
Frequency range of Probe（Acceleration probe） （Hz）：0.5 ~ 9000
Power
Internal : Built-in-battery
External : 220V AC/DC
Wi-fi : yes
Weight（kg） : 0.34kg（lithium battery included）
Total volume(mm) :φ5×120
