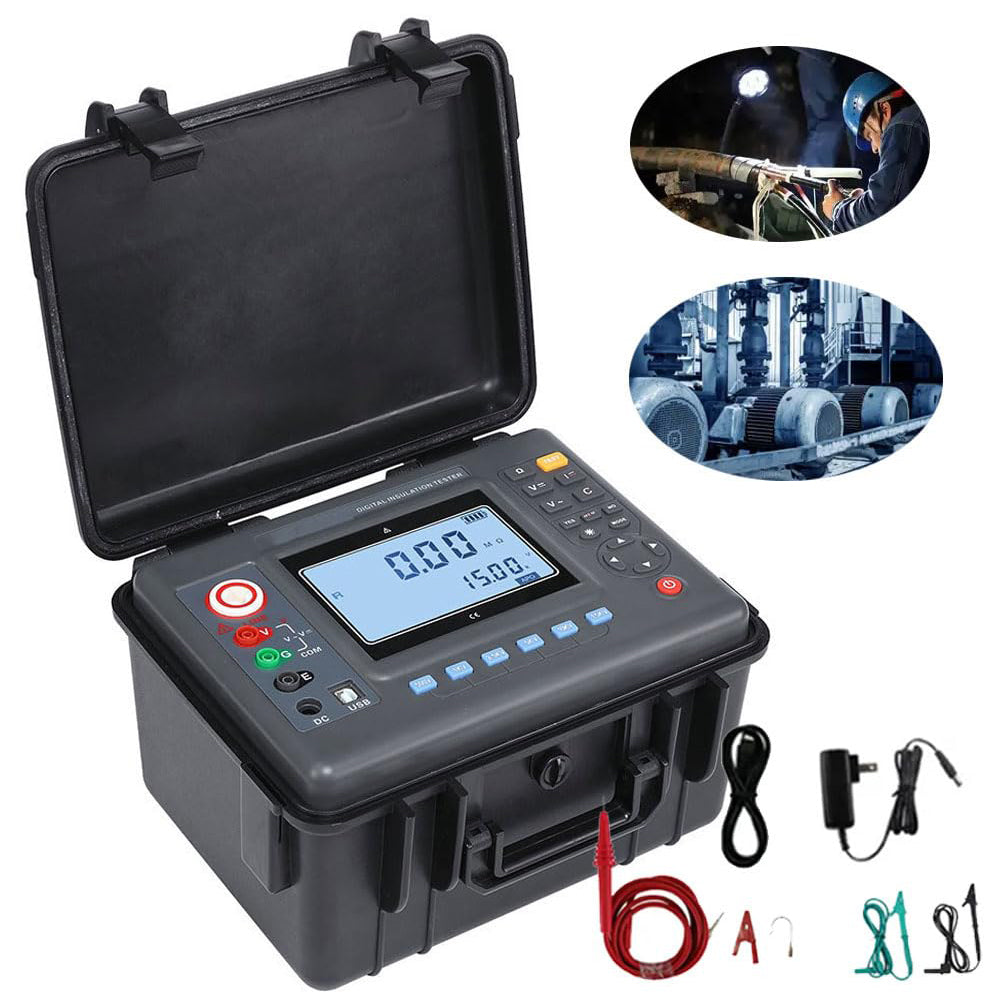

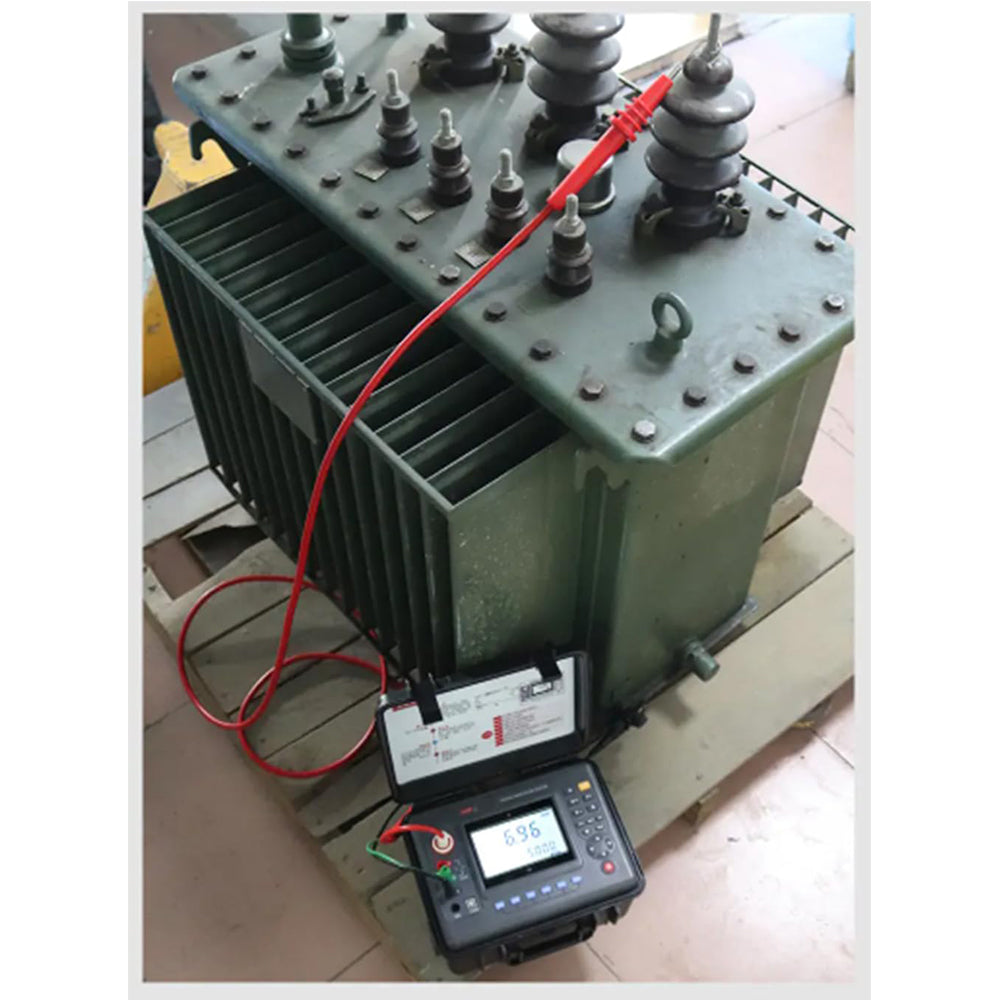

VTSYIQI High Voltage Insulation Resistance Tester Detector with 5KV 10TΩ USB Interface Rated Voltage 100V 250V 500V 1000V 2500V 5000V Resolution 0.01MΩ for Motors Cables Insulating Materials

VTSYIQI High Voltage Insulation Resistance Tester Detector with 5KV 10TΩ USB Interface Rated Voltage 100V 250V 500V 1000V 2500V 5000V Resolution 0.01MΩ for Motors Cables Insulating Materials

Faeature:

Function---Insulation resistance tester, voltage test, DC current test, capacitance test Basic condition:23℃±5℃，below 75%rh Rated voltage:100V、250V、500V、1000V、2500V、5000V Insulation resistance range:0.01MΩ～10TΩ resolution：0.01MΩ

Test Voltage---Test Voltage(V):rated voltage×（1±10%） DC Voltage Range:0～1000V Resolution: 0.1VAC Voltage Range:0～750V Resolution: 0.1V DC Current:0.1nA～6mA Resolution: 0.1nA

Capacitance---Capacitance:10nF～50uFResolution: 10nF Output short-circuit Current:≥6mA@15KV Absorption Ratio and Polarization Index Measurement:Have Power Supply:12.6V rechargeable battery Backlight:Controllable gray screen backlight, suitable for use in dim places

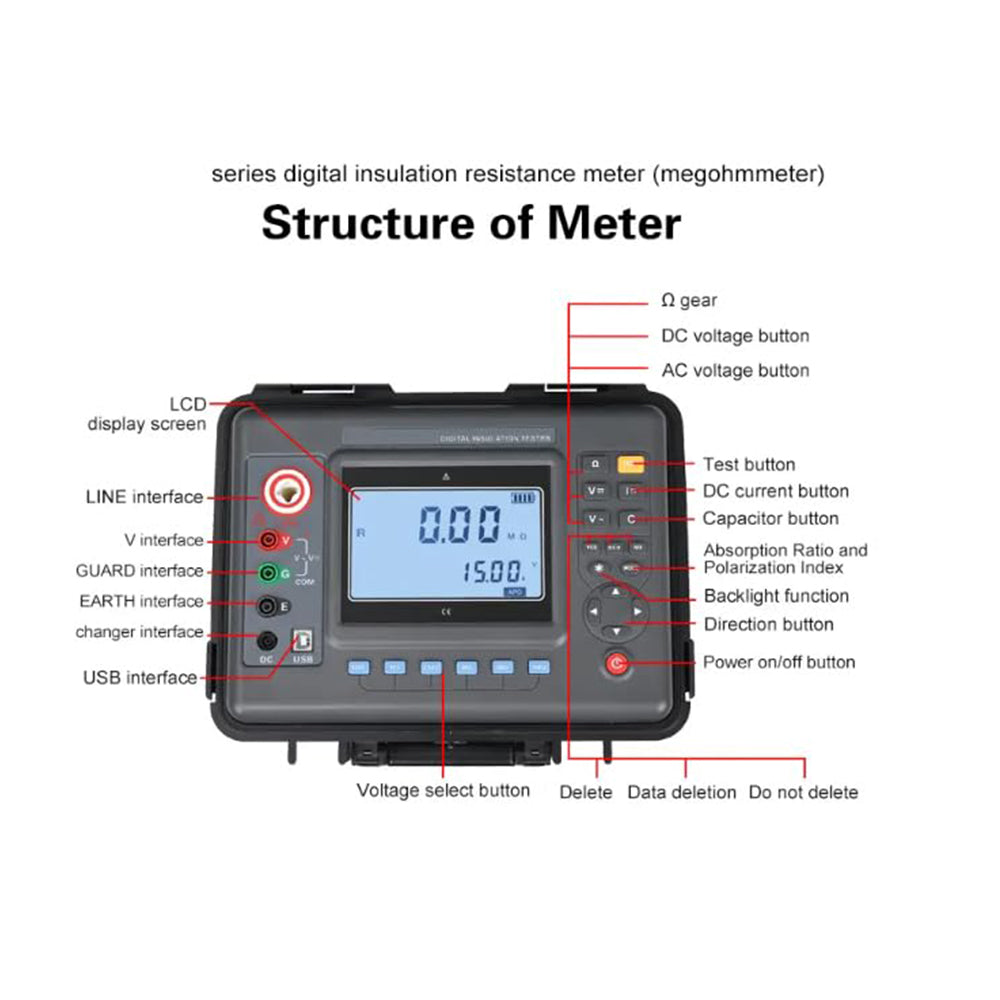

Dispaly---Dispaly mode:4-bit large LCD display, gray screen backlight LCD display size:108mm×65mm Instrument size:L/W/H：240mm×188mm×85mm USB interface:With USB interface, software monitoring, storage data can be uploaded to the computer, save and print

USB Connect---Communication Line:USB communication line 1PC Test Line:High voltage rob red 3meter, high voltage test line black 1.5meter, green 1.5meter Data Storage:500 groups, "FULL" symbol indicates that storage is full Data Review:Data review function: "MR" symbol display

Overflow Display---Exceed measurement range overflow function: “> ” symbol display Alarm Function:Alarm when the measured value larger or smaller than the alarm setting value Power Consumption:Standby: 30mA Max(backlight off), Turn on backlight: 42mA Max Measure:200mA Max(backlight off)

Weight---Instrument weight:2750g(including battery) Battery voltage:When the battery voltage is low, low battery symbol “ ”will display Automatic shut-down:automatic shutdown after 15 minutes boot Insulation Resistance:≥50MΩ(between Measuring line and housing) Pressure Resistance:AC3kV/50Hz 1min
