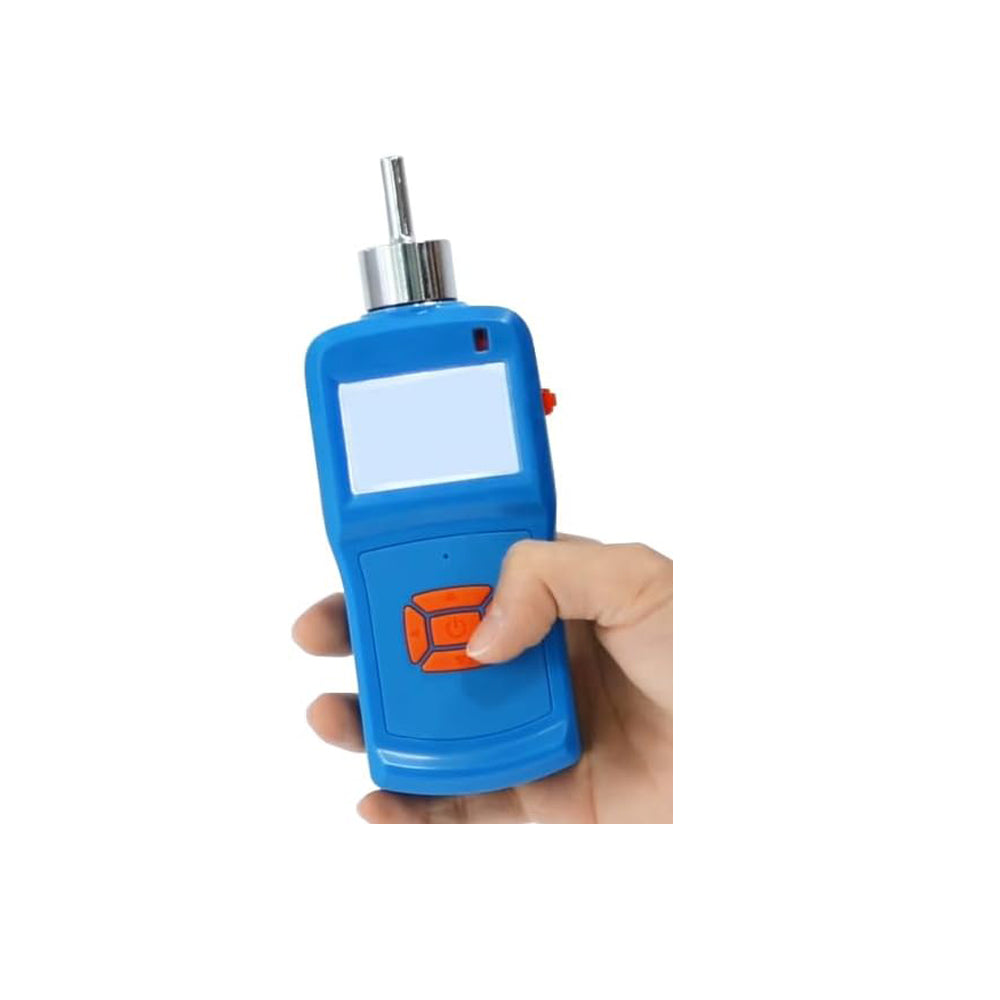

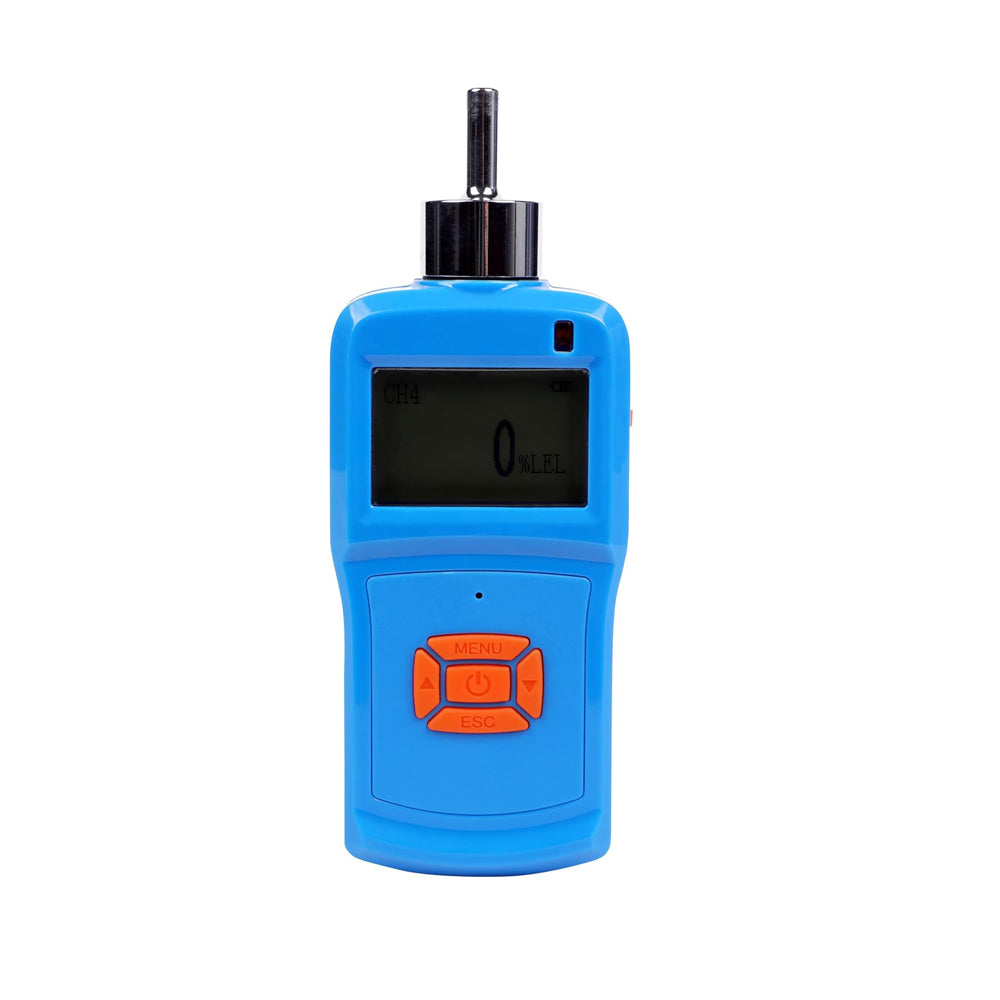

VTSYIQI Hydrogen Sulfide Gas Detector H2S Gas Monitor Hydrogen Sulfide Gas Concentration Measurement Instrument with Measuring Range 0 to 100PPm Resolution Ratio 1/0.1PPm for Refinery Chemical Plant Gas Test
VTSYIQI Hydrogen Sulfide Gas Detector H2S Gas Monitor Hydrogen Sulfide Gas Concentration Measurement Instrument with Measuring Range 0 to 100PPm Resolution Ratio 1/0.1PPm for Refinery Chemical Plant Gas Test
VTSYIQI Hydrogen Sulfide Gas Detector H2S Gas Monitor Hydrogen Sulfide Gas Concentration Measurement Instrument with Measuring Range 0 to 100PPm Resolution Ratio 1/0.1PPm for Refinery Chemical Plant Gas Test
About this item:
Gas detected:Hydrogen Sulfide H2S;Measuring Range:0-100PPm;Optional Range:0-50、200、1000PPm;Resolution Ratio:1/0.1PPm
It is one portable gas detector with built-in miniature sampling pump.
It can be connected with computer through USB data interface for copy & print detecting data.
This device is configured with large-screen liquid crystal lattice display technology for direct reading function.
It adopts comfortable ABS flame retardant plastic shell, imported detection sensor to ensure device’s stability and reliability.
Features:
Gas detected:Hydrogen Sulfide H2S
Measuring Range:0-100PPm
Optional Range:0-50、200、1000PPm
Resolution Ratio:1/0.1PPm
Upload to computer function (optional)
6000 alarm record inquiry function
Built-in high-power suction pump
Automatic collision and manual calibration platform
Simple user interface, large screen operation menu
Charging power display, low potential warning
Simple calibration results storage, and calibration of functional departments
Could be connected to the computer for viewing the data
Solid structure, flame retardant ABS plastic material
Simple operation, ergonomic design
Sound and light, visual and vibration alarm
Smart sensor calibration
Solid structure, easy maintenance
Technical Parameters:
Detection mode:pump-suction type
Detection principle:Electrochemical / catalysis / thermal conductivity / infrared
Interface definition:U3 port (USB)
Charged battery:3.7V-1700mAh lithium ion battery
Alarm method:Sound, light and vibration alarm
Work temperature:-20℃ ~ 60 ℃(Combustible)
Sound:LED flashing> 90 dB
Battery:Large capacity 2000mA rechargeable lithium battery
Lasting time:>8 hours for continuous work
Charging time:<6 hours
Shell:flame retardant plastic
Protection level:IP65
Explosion-proof certificate number :CNEx19.5602X
Certification mark:Ex ib IIB T3 Gb
Size:(178 * 68 * 33)mm
Weight:300g
