VTSYIQI Industrial LED Film Viewer X-ray Film Viewing Machine NDT Instrument with Max Luminance 103,000Cd/M2 Uniformity 0.95 Rugged Aluminum Frame

VTSYIQI Industrial LED Film Viewer X-ray Film Viewing Machine NDT Instrument with Max Luminance 103,000Cd/M2 Uniformity 0.95 Rugged Aluminum Framee

Feature

LED Film Viewer is developed according to Norm of ISO5580 Industrial radiographic illuminators - Minimum requirements. Inherited fine traditions of FV-2008, adopt powered LED area light source, enable the viewer to high luminance and excellent uniformity, theoretical lifetime span up to more than 50,000 hours.

Luminance : 103,000Cd/M2 (323,420Lux)

Uniformity: 0.95, Diffusion factor:0.95

12 hours continues maximum luminance, Surface temperature rise≤15℃

Rugged aluminum frame,engineering plastic

Specification:

The LED Film Viewer is developed according to Norm of ISO5580 Industrial radiographic illuminators - Minimum requirements. Inherited fine traditions of FV-2008, adopt powered LED area light source, enable the viewer to high luminance and excellent uniformity, theoretical lifetime span up to more than 50,000 hours.
Thanks to the portable, rugged and smart design, it is extremely suitable for fieldwork. Can view films to 4.0H/D, meet the needs of daily use. It adopt constant current power which is specially designed to the viewer. With its help, the LED will be protected notablely, so the lifetime can be extended. For the sake of Safety use, low voltage PWM unlimited dimmer is used. Foot mode and hand mode are equipped.

Characteristic:

Luminance : 103,000Cd/M2 (323,420Lux)
Uniformity: 0.95, Diffusion factor:0.95
Weight less than 2.5 Kg
12 hours continues maximum luminance, Surface temperature rise≤15℃
Unlimited dimmer from 5%-100%
Rugged aluminum frame,engineering plastic
Free 2 years service guarantee
After 12 hours continues maximum luminance

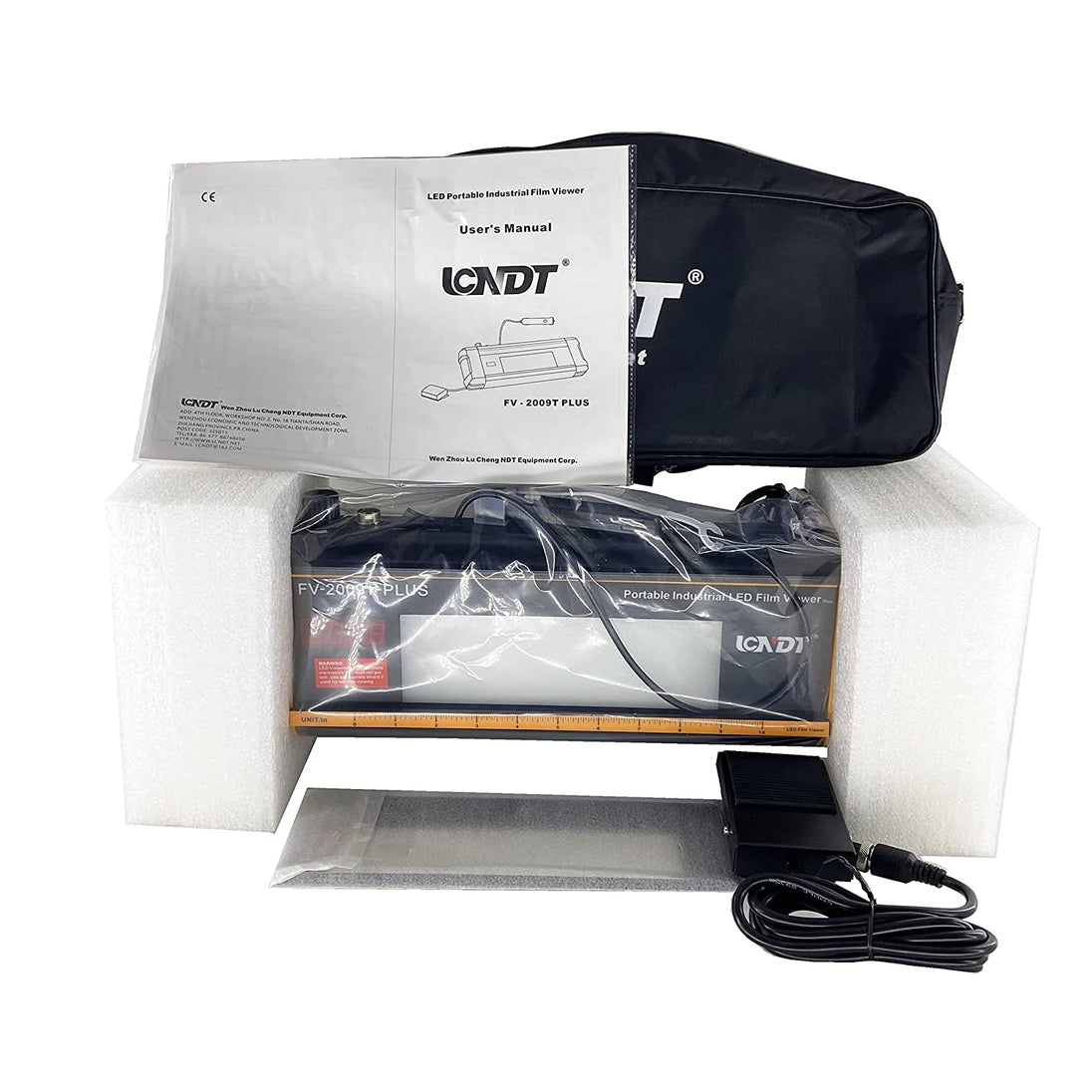

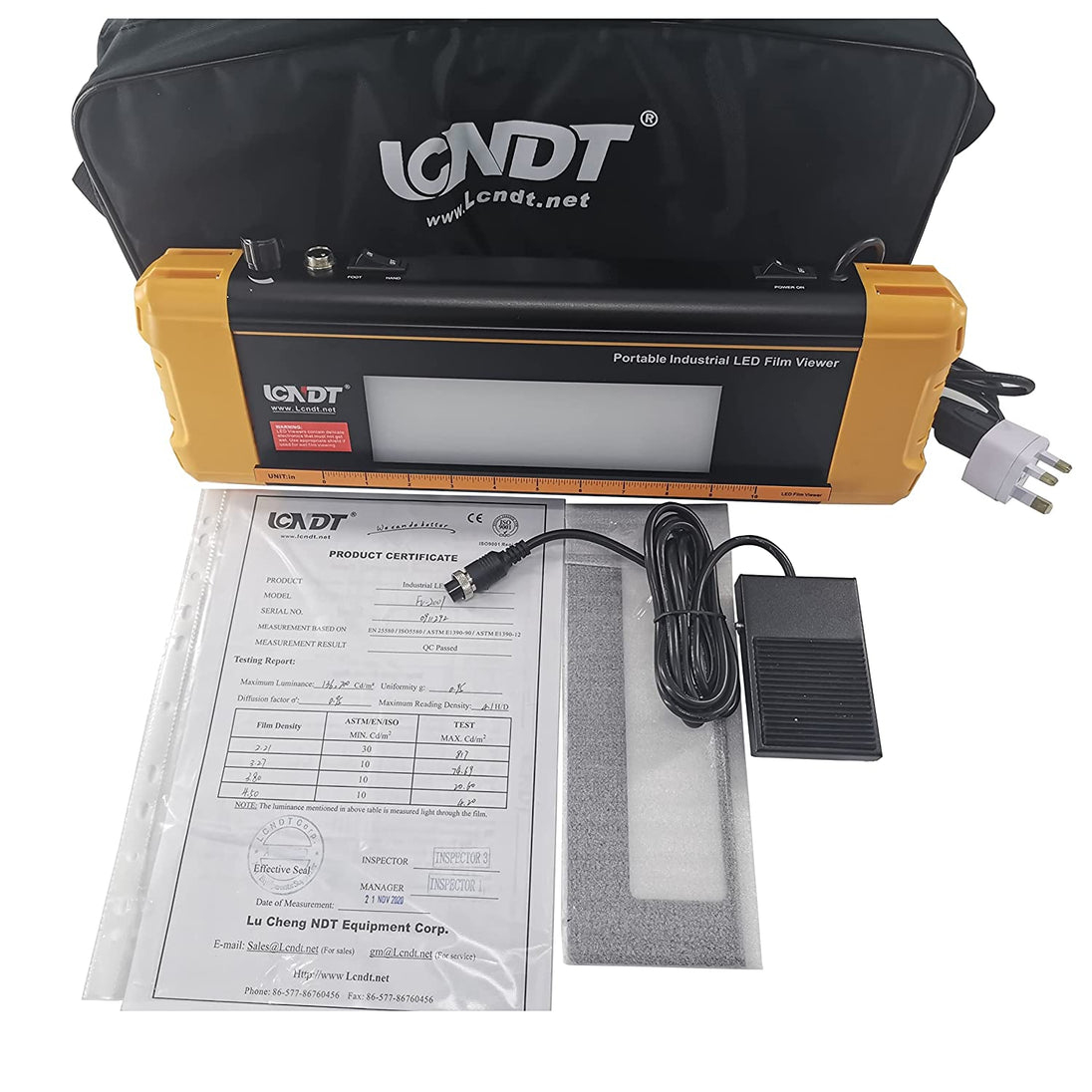

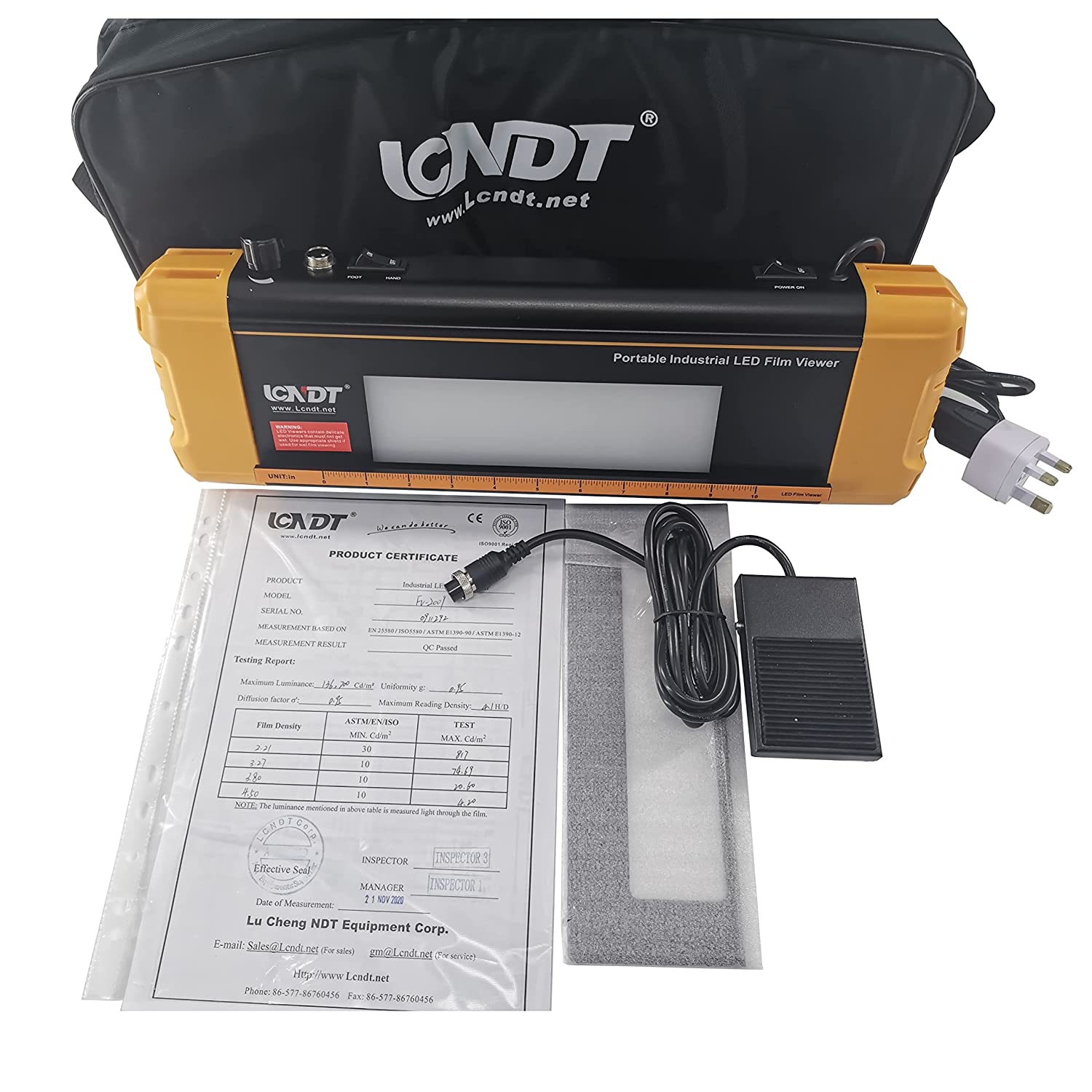

Spare parts list:

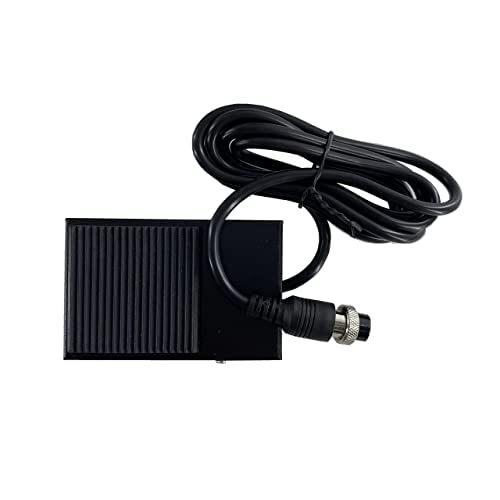

Foot pedal:1
Carrying bag:1
Light mask (150*60mm):1
Light mask (150*45mm):1
Guarantee,Instruction and report(English):1

Specification:
Max Luminance: ≥103,000Cd/M2(323,420Lux)
Uniformity: g≥0.95
Diffusion Factor: σ’≥0.95
Viewer window: 200×60mm
Surface temp. rise ≤ 15oC
Weight: 5.5pounds(2.5kg)

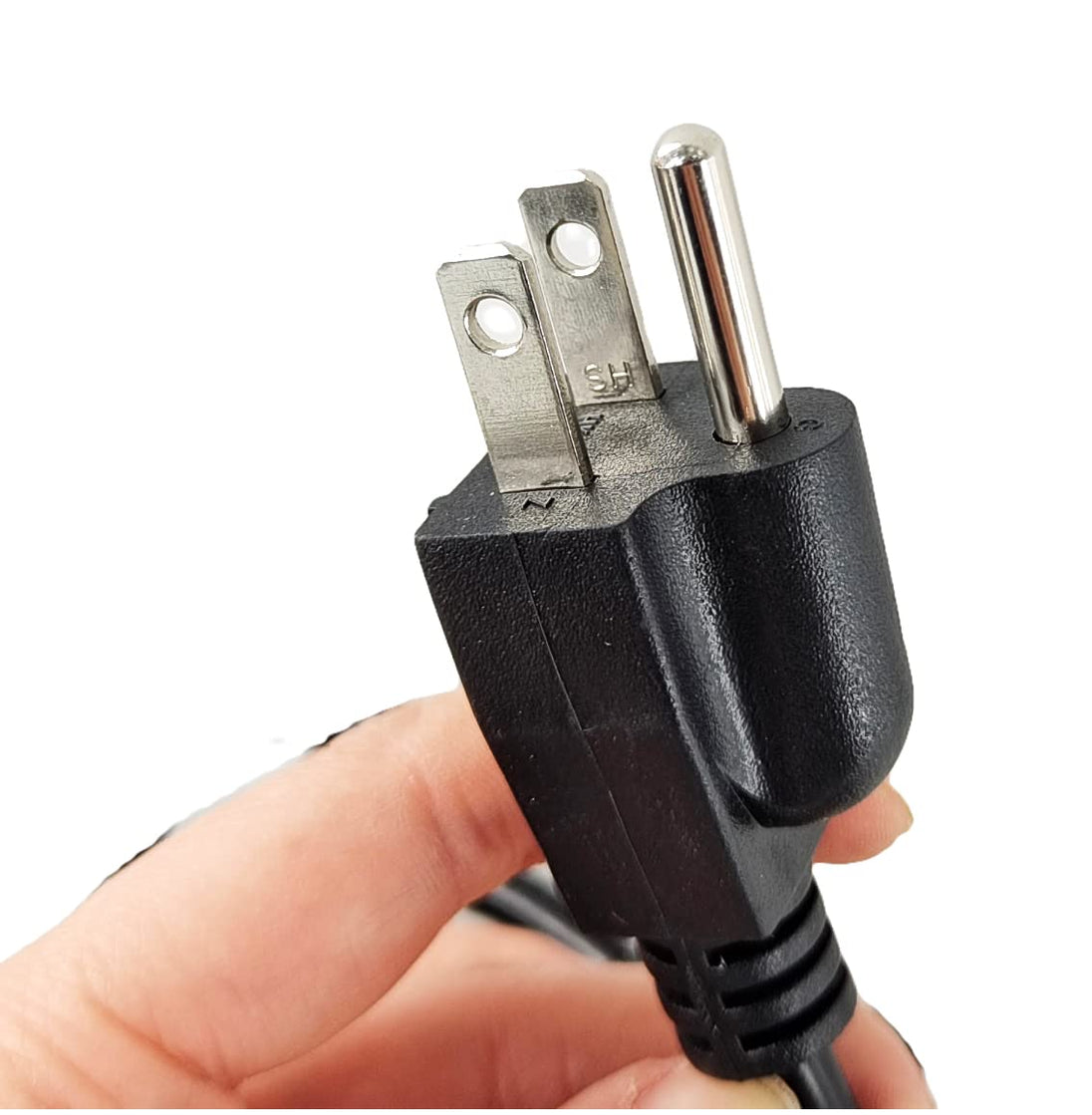

Power: 85-264VAC 47~63Hz.(Full range)
Dimension: 17.9×5.5×2.6"/ 455×140×65mm (L*W*H)
