VTSYIQI

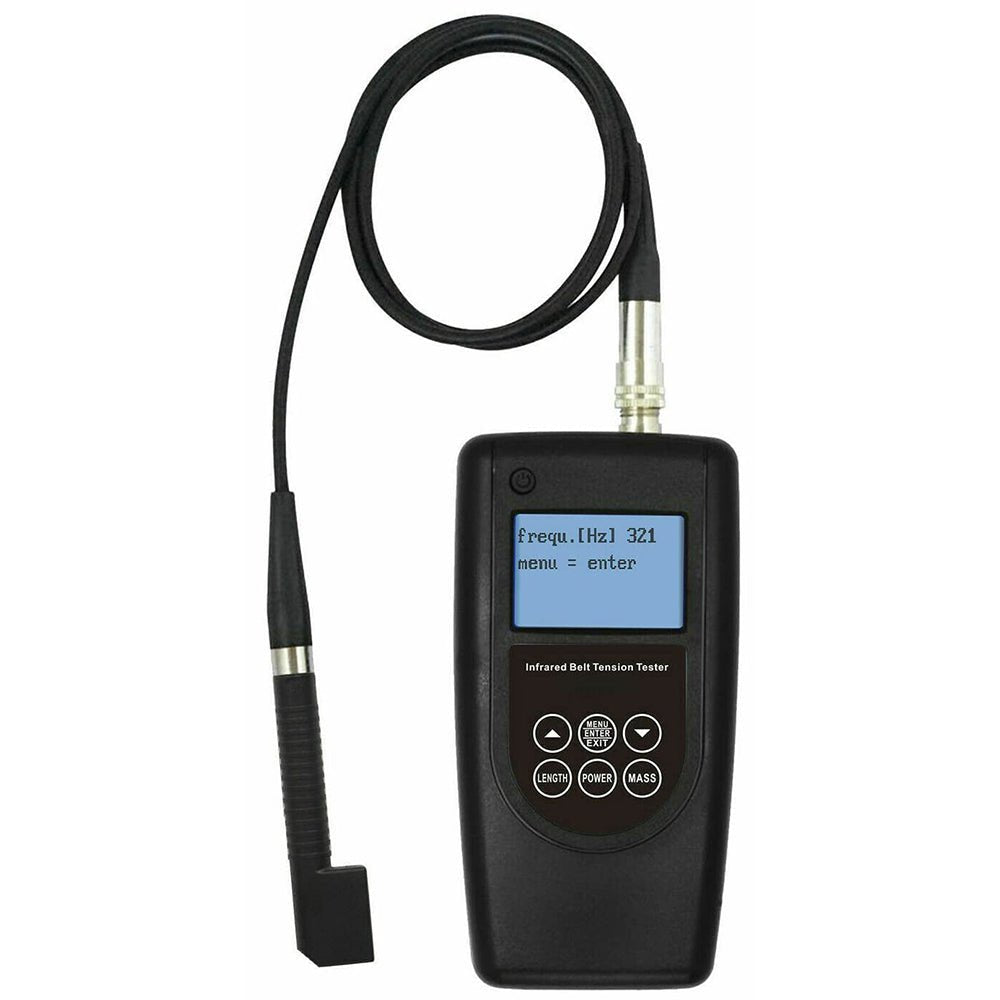

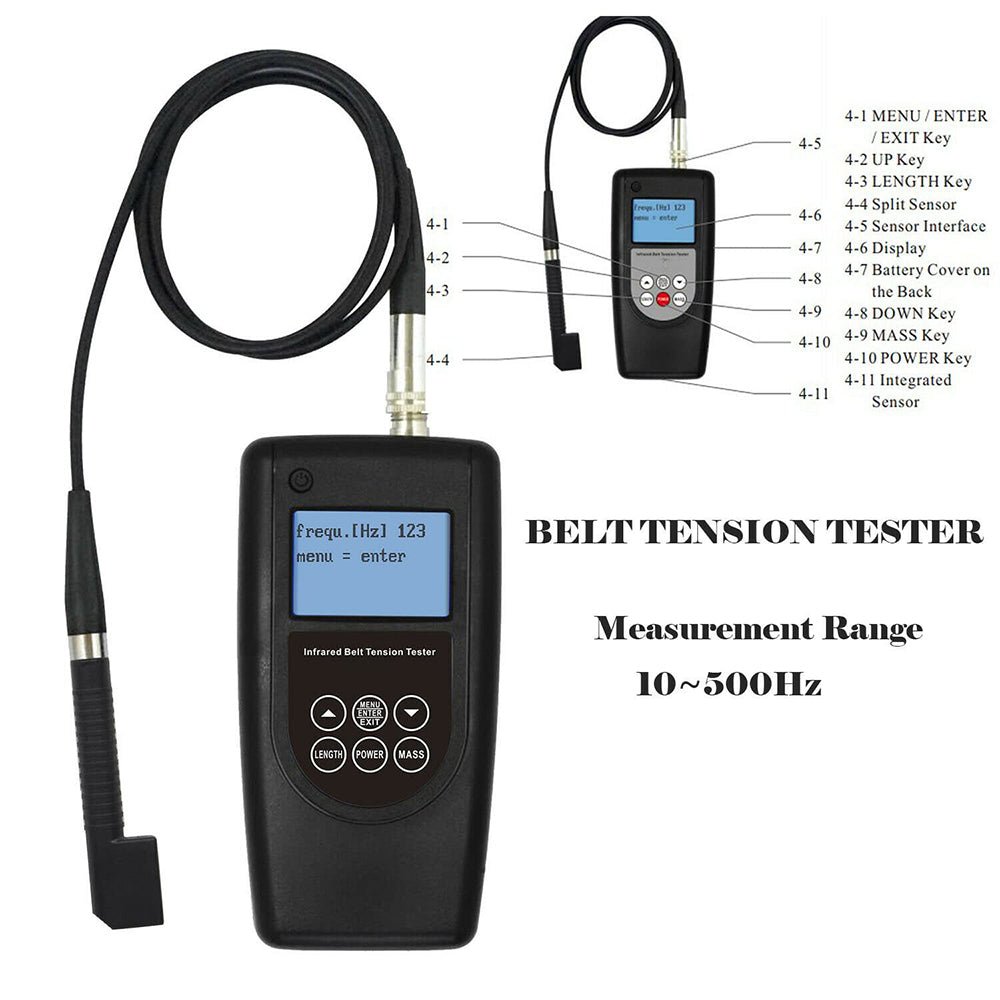

VTSYIQI Infrared Belt Tensiometer Tension Meter Tester Gauge Belt Tensiometer with Range 10Hz~500Hz Laser Sensor Measurement Measure for Digital Motor Tensiometer
- 常规价格
- $536.00
About this item
Using laser sensor, direct measurement, more convenient than mechanical sensor.

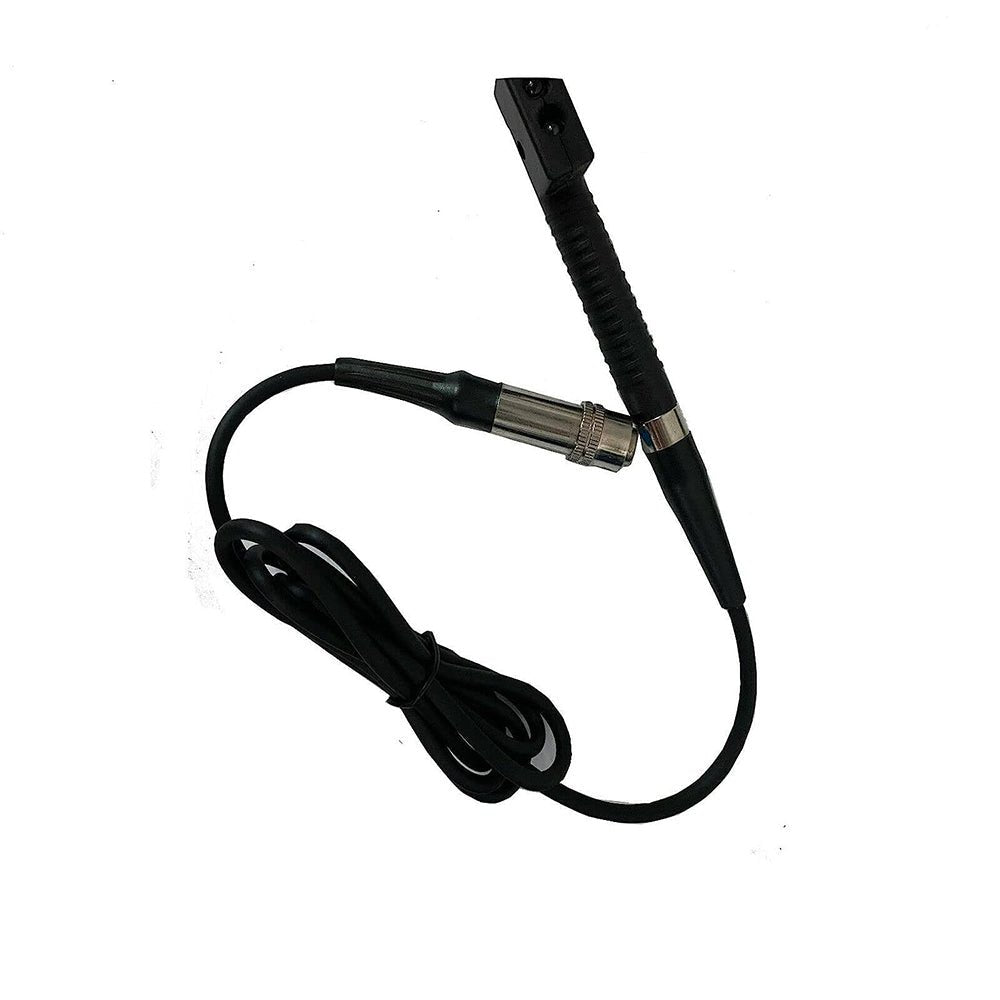

The size of the split sensor is small, suitable for measurement in small spaces.
There are two kinds of sensors of integrated type and split type to choose from
The readings can be displayed in two different units, metric or imperial.
Features
* Direct measurement, more convenient than mechanical sensor.
* The size of the split sensor is small, which is suitable for measuring in a narrow space.
* Two kinds of sensors selectable, the integrated sensor and the split sensor.
* Metric or imperial units can be used to display readings.
* With automatic power off function.
Specifications
Measurement Range:10~500Hz
Input Range:
Free Belt Length Max 99.99m
Belt Mass Max 9.999kg/m
Digital Sampling Error:<1%
Display Error:±1Hz
Total Error:<5%
Operating Temperature Range:+10~50°C
Transportation Temperature Range:-5~70°C
Unit of Measurement:Metric: m, kg/m, N
Imperial: Inch, lbs/foot, lbf
Optical Path Measurement Distance:3~20mm
Depth of Split Sensor:About 66mm
